Peugeot Boxer 2016 Owner's Manual - RHD (UK, Australia)

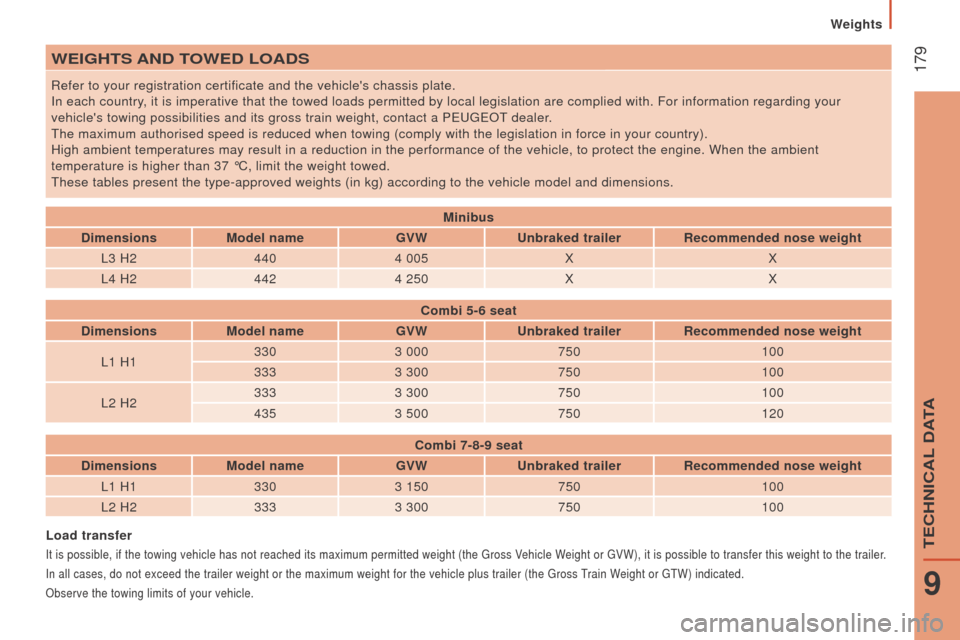

179WEIGHtS And toWEd LoAdS
Refer to your registration certificate and the vehicle's chassis plate.
In each country, it is imperative that the towed loads permitted by local legislation a\
re complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a P
eugeOt dealer.the maximum authorised speed is reduced when towing (comply with the leg\
islation in force in your country).
High ambient temperatures may result in a reduction in the performance o\
f the vehicle, to protect the engine. When the ambient


temperature is higher than 37 °C, limit the weight towed.
these tables present the type-approved weights (in kg) according to the\
vehicle model and dimensions.
Load transfer
It is possible, if the towing vehicle has not reached its maximum permit\
ted weight (the gross Vehicle Weight or gVW), it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight or the maximum weight for\
the vehicle plus trailer (the
gross train Weight or gtW) indicated.
Observe the towing limits of your vehicle.
Minibus
dimensions Model name GVWunbraked trailerrecommended nose weight
L3 H2 4404 005 X X
L4 H2 4424 250 X X
combi 5-6 seat
dimensionsModel name GVWunbraked trailerrecommended nose weight
L1 H1 330
3 000 750 100
333 3 300 750 100
L2 H2 333
3 300 750 100
435 3 500 750 120
combi 7-8-9 seat
dimensionsModel name GVWunbraked trailerrecommended nose weight
L1 H1 3303 150 750 100
L2 H2 3333 300 750 100
9
teCHNICAL DAtA

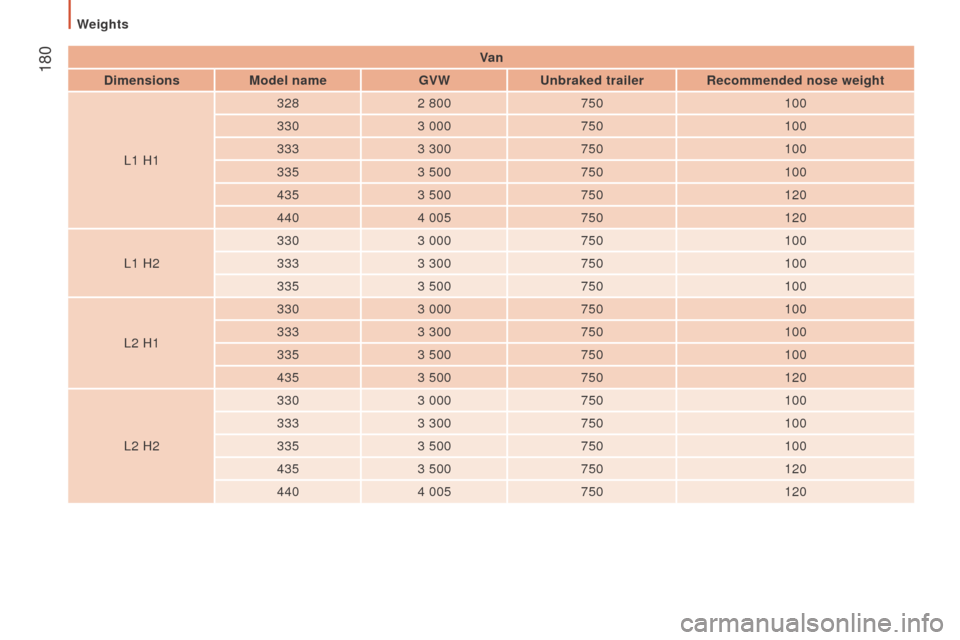

Weights

180Va n
dimensionsModel name GVWunbraked trailerrecommended nose weight
L1 H1 328
2 800 750 100
330 3 000 750 100
333 3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L1 H2 330
3 000 750 100
333 3 300 750 100
335 3 500 750 100
L2 H1 330
3 000 750 100
333 3 300 750 100
335 3 500 750 100
435 3 500 750 120
L2 H2 330
3 000 750 100
333 3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120

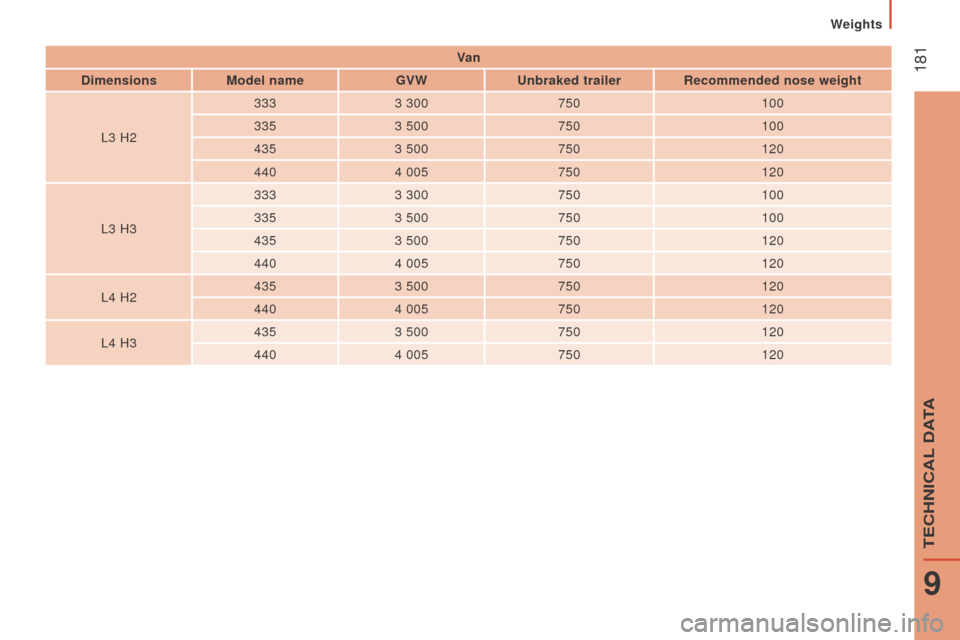

Weights

181Va n
dimensionsModel name GVWunbraked trailerrecommended nose weight
L3 H2 333
3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L3 H3 333
3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L4 H2 435
3 500 750 120
440 4 005 750 120
L4 H3 435
3 500 750 120
440 4 005 750 120
9
teCHNICAL DAtA
Weights

182

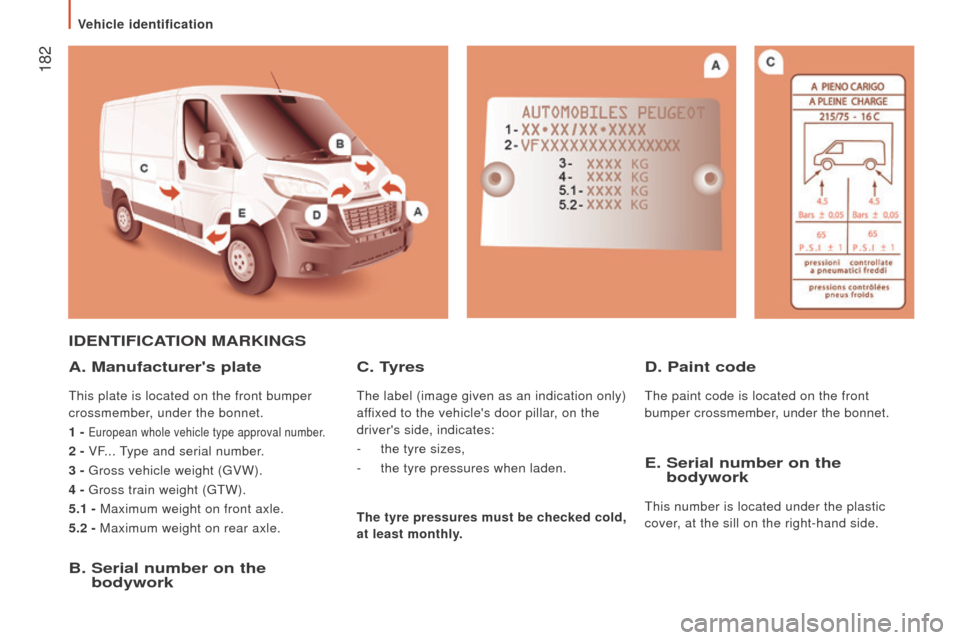

IdEntIFIcAtIon MArKInGS
A. Manufacturer's plate
this plate is located on the front bumper
crossmember, under the bonnet.
1 -

european whole vehicle type approval number.
2 - VF... type and serial number.
3 -
gross vehicle weight (gVW).
4 -


gross train weight (gtW).
5.1 -

Maximum weight on front axle.
5.2 - Maximum weight on rear axle.
B. Serial number on the
bodywork E.
Serial number on the
bodywork
this number is located under the plastic
cover, at the sill on the right-hand side.
c. tyres
the label (image given as an indication only)
affixed to the vehicle's door pillar , on the
driver's side, indicates:
-
the tyre sizes,
-
the tyre pressures when laden.
d. Paint code
the paint code is located on the front
bumper crossmember, under the bonnet.
the tyre pressures must be checked cold,


at least monthly.
Vehicle identification

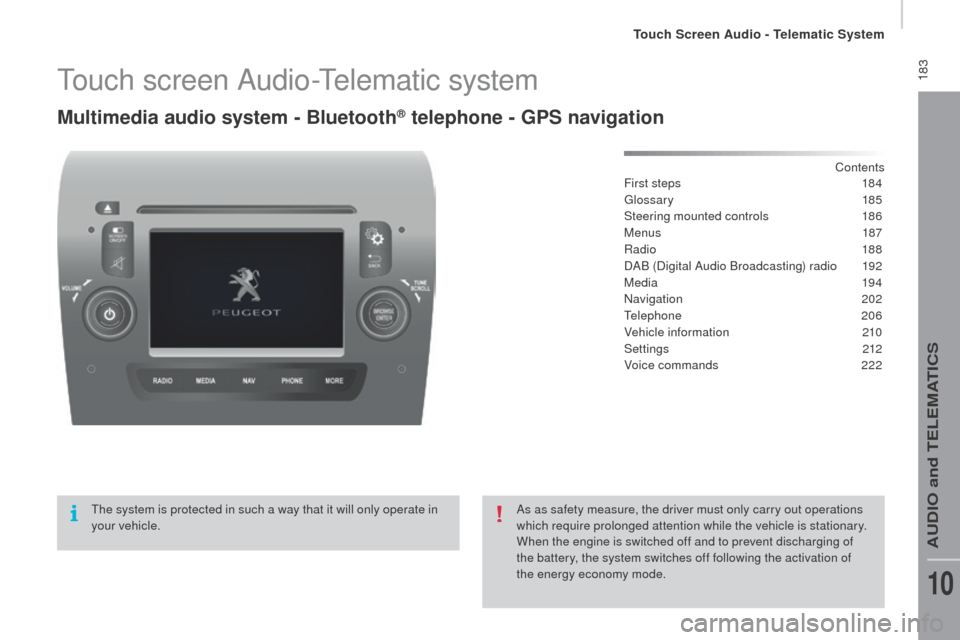

183touch screen Audio-telematic system
Multimedia audio system - Bluetooth® telephone - GPS navigation
Contents
First steps 18 4
gloss

ary
1
85
Steering mounted controls
18

6
Menus
1

87
Radio
18

8
DAB (Digital Audio Broadcasting) radio
19

2
Media
19

4
Navigation
20

2
tele

phone
2
06
Vehicle information
21

0
Settings
2

12
Voice commands
22

2
the s

ystem is protected in such a way that it will only operate in
your vehicle. As as safety measure, the driver must only carry out operations
which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of
the battery, the system switches off following the activation of
the energy economy mode.
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

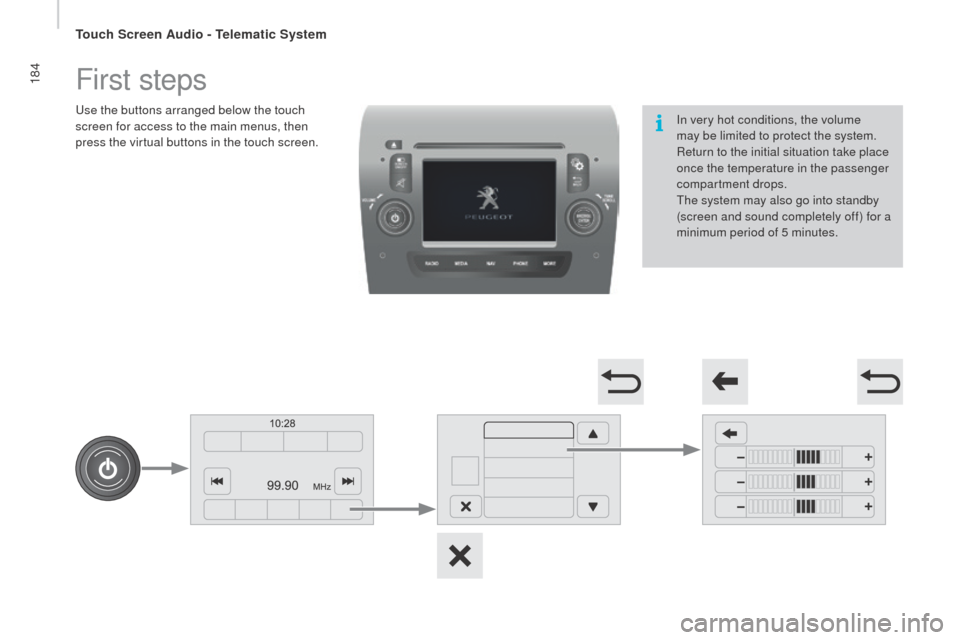

184First steps
use the buttons arranged below the touch
s creen for access to the main menus, then
press the virtual buttons in the touch screen. In very hot conditions, the volume
may be limited to protect the system.
Return to the initial situation take place
once the temperature in the passenger
compartment drops.
the s

ystem may also go into standby
(screen and sound completely off) for a
minimum period of 5 minutes.
touch Screen Audio - telematic System

185
Screen off / on.
Activate, deactivate, adjust certain
system and vehicle functions.
eje
ct CD.
Mute / restore volume (mute / pause).
Abandon the current operation.
go up o

ne level (menu or folder).
Press: on / off.
Rotate: adjust the volume
(each source is independent).
Radio, rotate: search for a radio
station.
Media, rotate: select the previous /
next track.
Press: confirm the option displayed in
the screen.
the s

creen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. pressing with more
than one finger is not recognised.
the s
creen can be used when wearing
gloves.
thi
s technology allows use at
all temperatures.
to cl

ean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

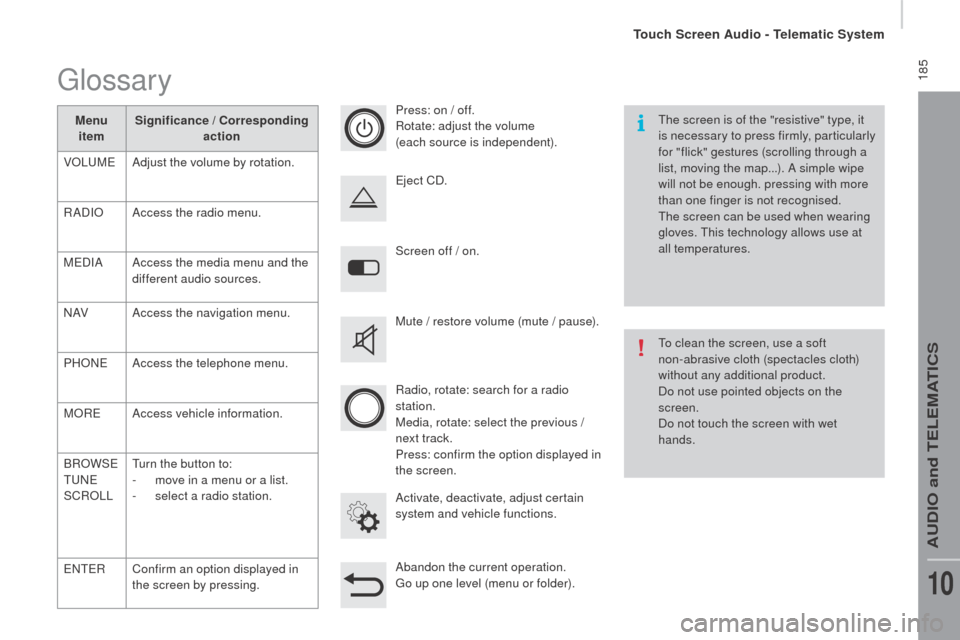

glossary
Menu item Significance / cor
responding
action
VOL
uMeAd

just the volume by rotation.
RADIO Access the radio menu.
M
eD

IA Access the media menu and the
different audio sources.
N AV Access the navigation menu.
PHON
eAc

cess the telephone menu.
MOR
eAc

cess vehicle information.
BROWS
e
tuNeSC

ROLL
tur
n the button to:
-
mov

e in a menu or a list.
-
se

lect a radio station.
eNteRC

onfirm an option displayed in
the screen by pressing.
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

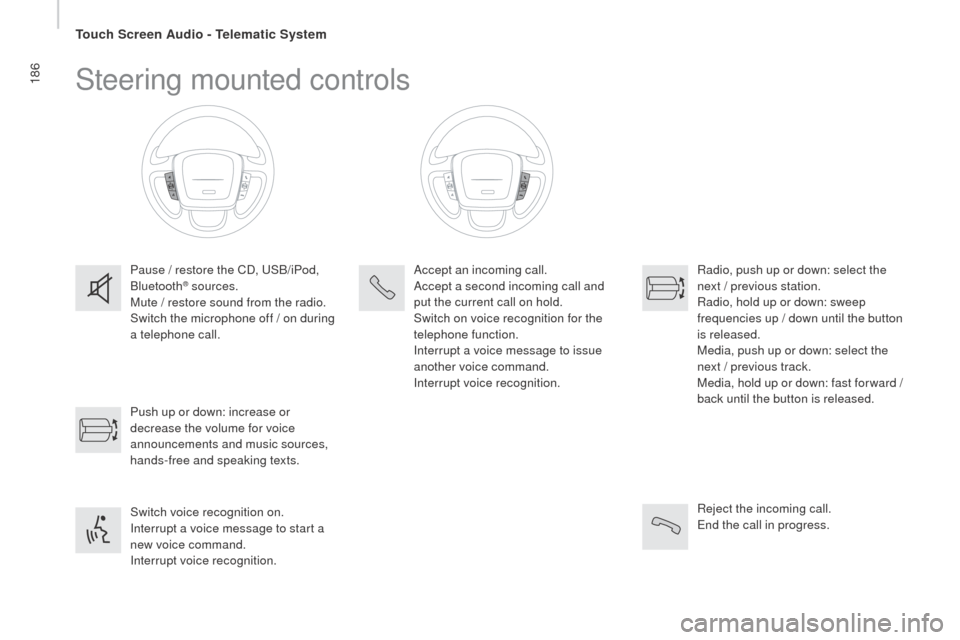

186Steering mounted controls
Pause / restore the CD, uSB/iPod,
Bluetooth® sources.
Mute / restore sound from the radio.
Switch the microphone off / on during
a telephone call.
Switch voice recognition on.
Interrupt a voice message to start a
new voice command.
Interrupt voice recognition. Push up or down: increase or
decrease the volume for voice
announcements and music sources,
hands-free and speaking texts. Accept an incoming call.
Accept a second incoming call and
put the current call on hold.
Switch on voice recognition for the
telephone function.
Interrupt a voice message to issue
another voice command.
Interrupt voice recognition.
Radio, push up or down: select the
next / previous station.
Radio, hold up or down: sweep
frequencies up / down until the button
is released.
Media, push up or down: select the
next / previous track.
Media, hold up or down: fast for ward
/
b

ack until the button is released.
Reject the incoming call.
end t

he call in progress.
touch Screen Audio - telematic System

187Menus
navigation
M
ediaradio
Settings
tele

phone Vehicle information
Settings for the navigation system and select a
destination.
Select from the different music sources.
Activate, deactivate, and adjust certain
functions.
Select from the different radio sources.
Activate, deactivate, and adjust certain
functions.
Activate, deactivate, and adjust certain
functions.
Connect a mobile telephone via Bluetooth
®.
Access to the ambient temperature, the clock,
the compass and the trip computer.
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

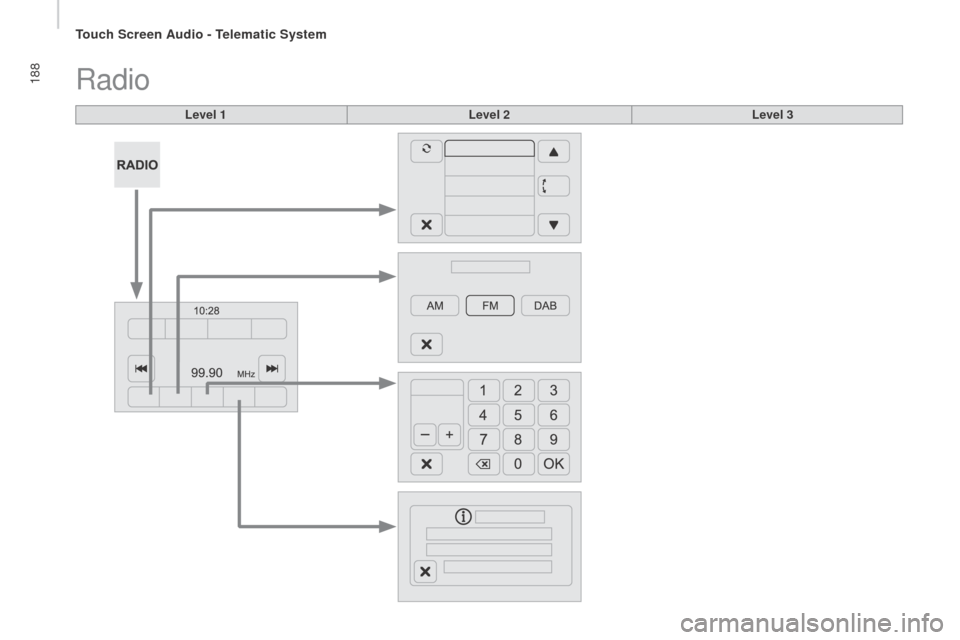

188Radio
Level 1Level 2Level 3
touch Screen Audio - telematic System
