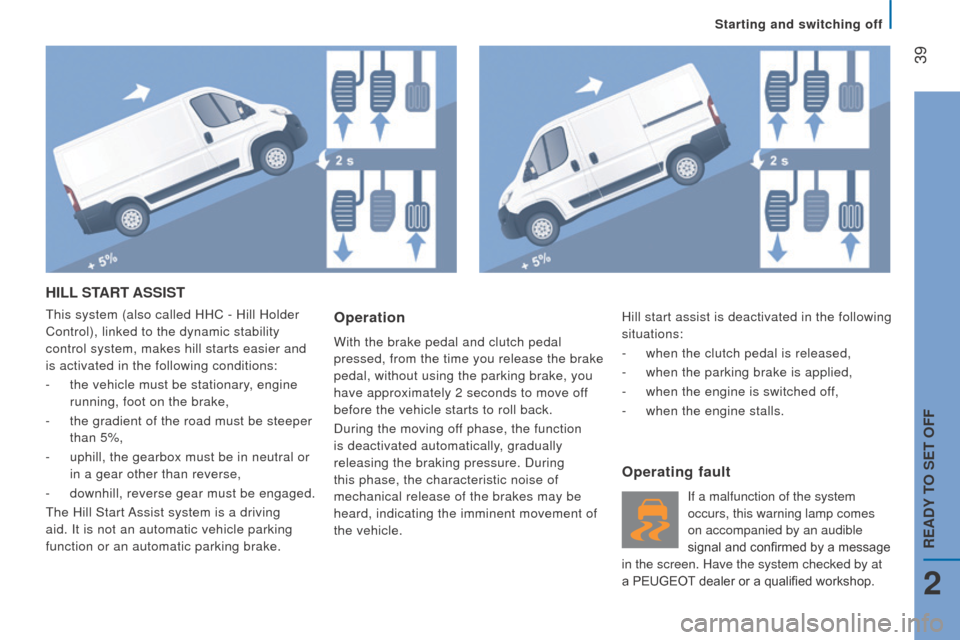

HILL StArt ASSISt
this system (also called HHC - Hill Holder
Control), linked to the dynamic stability
control system, makes hill starts easier and

is activated in the following conditions:
-
the vehicle must be stationary, engine


running, foot on the brake,
-
the gradient of the road must be steeper
than 5%,
-
uphill, the gearbox must be in neutral or
in a gear other than reverse,
-
downhill, reverse gear must be engaged.
the Hill Start

Assist system is a driving
aid. It is not an automatic vehicle parking
function or an automatic parking brake.operation
With the brake pedal and clutch pedal
pressed, from the time you release the brake
pedal, without using the parking brake, you
have approximately 2 seconds to move off
before the vehicle starts to roll back.
During the moving off phase, the function
is deactivated automatically, gradually
releasing the braking pressure. During
this phase, the characteristic noise of
mechanical release of the brakes may be
heard, indicating the imminent movement of
the vehicle.
operating fault
If a malfunction of the system
occurs, this warning lamp comes
on accompanied by an audible
signal and confirmed by a message
in the screen. Have the system checked by at
a PEUGEOT dealer or a qualified workshop. Hill start assist is deactivated in the following
situations:
-
when the clutch pedal is released,
-
when the parking brake is applied,
-
when the engine is switched off,
-
when the engine stalls.
2
rEAdY to SEt oFF
Starting and switching off

40the Stop & Start system puts the engine
temporarily into standby - S
tOP mode -

during stops in the traffic (red lights, traffic
jams, or other...).
the engine restarts


automatically - S
tARt mode - as soon as
you want to move of

f.
the restart takes

place instantly, quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions and offers the comfort of
complete silence when stationary.

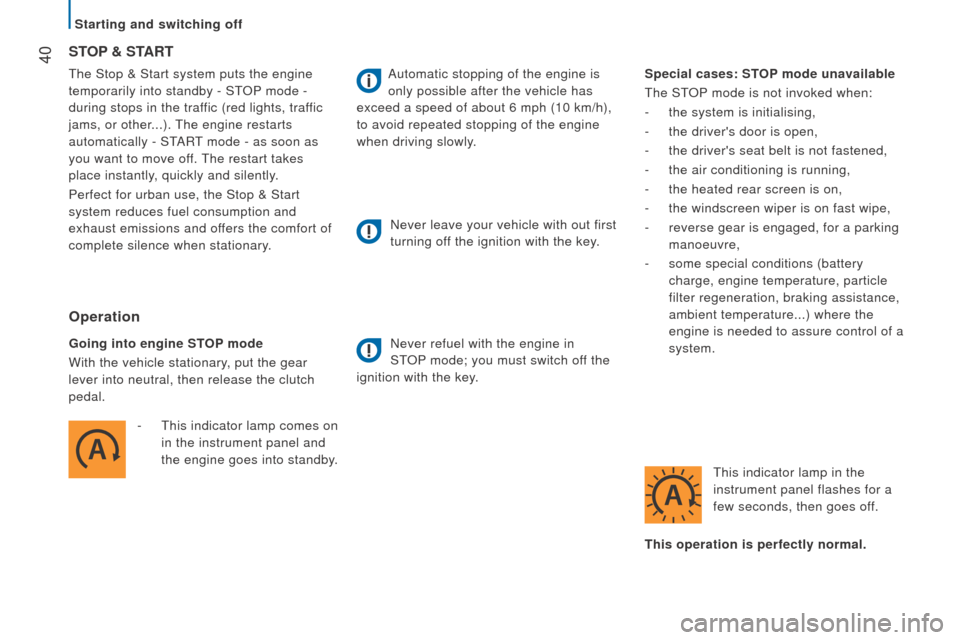

StoP & StArt
operation
Going into engine StoP mode
With the vehicle stationary, put the gear
lever into neutral, then release the clutch
pedal.
-


t
his indicator lamp comes on

in the instrument panel and
the engine goes into standby. Automatic stopping of the engine is
only possible after the vehicle has
exceed a speed of about 6 mph (10 km/h),
to avoid repeated stopping of the engine
when driving slowly.
Never leave your vehicle with out first
turning off the ignition with the key.
Never refuel with the engine in
S
tOP mode; you must switch of
f the
ignition with the key. Special cases: S
t

o
P
mode unavailable
the StOP mode is not invoked when:
-
the system is initialising,
-
the driver's door is open,
-
the driver's seat belt is not fastened,
-
the air conditioning is running,
-
the heated rear screen is on,
-
the windscreen wiper is on fast wipe,
-
reverse gear is engaged, for a parking
manoeuvre,
-
some special conditions (battery
charge, engine temperature, particle

filter regeneration, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.
this indicator lamp in the


instrument panel flashes for a
few seconds, then goes off.
this operation is perfectly normal.
Starting and switching off

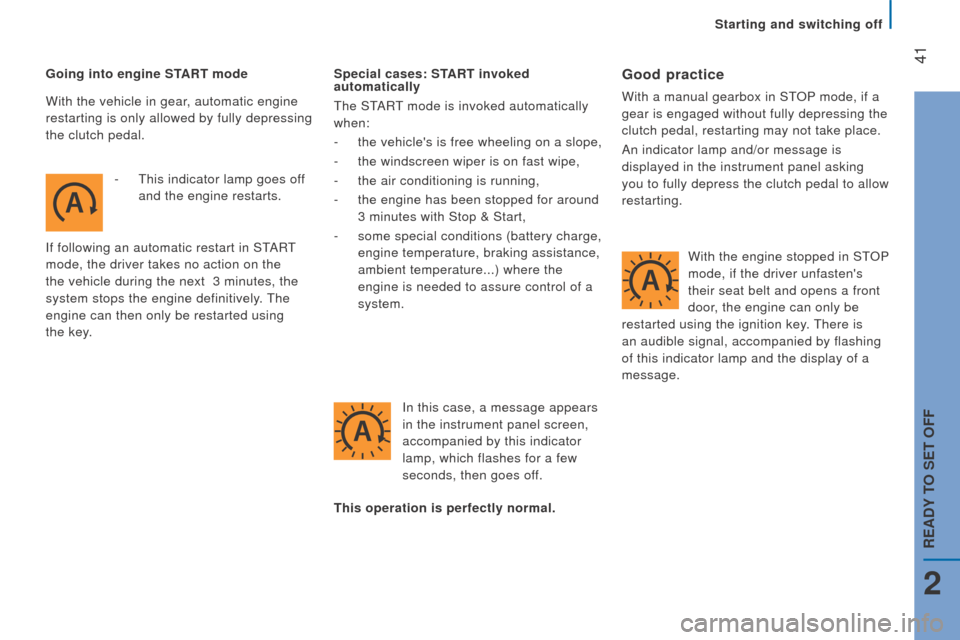

41Going into engine StArt mode
-

t
his indicator lamp goes of
f
and the engine restarts.
If following an automatic restart in S
tARt
mode, the driver takes no action on the
the vehicle during the next
3 minutes, the


system stops the engine definitively.
the


engine can then only be restarted using
the
key

. Special cases: StArt invoked

automatically
the StARt mode is invoked automatically
when:
-
the vehicle's is free wheeling on a slope,
-
the windscreen wiper is on fast wipe,
-
the air conditioning is running,
-
the engine has been stopped for around
3 minutes with Stop & Start,
-
some special conditions (battery charge,
engine temperature, braking assistance,


ambient temperature...) where the
engine is needed to assure control of a
system.
In this case, a message appears
in the instrument panel screen,
accompanied by this indicator
lamp, which flashes for a few
seconds, then goes off.Good practice
With a manual gearbox in StOP mode, if a
gear is engaged without fully depressing the
clutch pedal, restarting may not take place.
An indicator lamp and/or message is
displayed in the instrument panel asking
you to fully depress the clutch pedal to allow
restarting.
this operation is perfectly normal.
With the vehicle in gear

, automatic engine
restarting is only allowed by fully depressing
the clutch pedal.
With the engine stopped in S
tOP
mode, if the driver unfasten's


their seat belt and opens a front
door, the engine can only be
restarted using the ignition key.
there is


an audible signal, accompanied by flashing
of this indicator lamp and the display of a
message.
2
rEAdY to SEt oFF
Starting and switching off

42

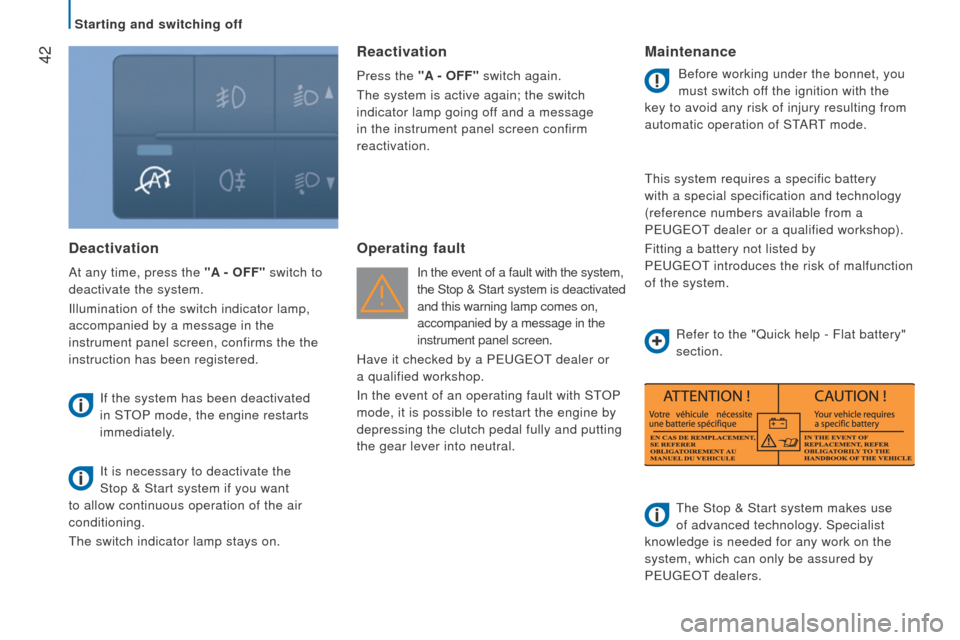

deactivation
At any time, press the "A - oFF" switch to
deactivate the system.
Illumination of the switch indicator lamp,
accompanied by a message in the

instrument panel screen, confirms the the
instruction has been registered.
If the system has been deactivated
in S
tOP mode, the engine restarts


immediately.
It is necessary to deactivate the
Stop
& Start system if you want


to allow continuous operation of the air
conditioning.
the switch indicator lamp stays on.
reactivation
Press the "A - oFF" switch again.
the system is active again; the switch


indicator lamp going off and a message
in the instrument panel screen confirm
reactivation.
operating fault
In the event of a fault with the system,
the Stop & Start system is deactivated
and this warning lamp comes on,
accompanied by a message in the
instrument panel screen.
Have it checked by a P
eugeOt dealer or
a
qualified workshop.
In the event of an operating fault with S
tOP
mode, it is possible to restart the engine by


depressing the clutch pedal fully and putting
the gear lever into neutral.
Maintenance
Before working under the bonnet, you
must switch off the ignition with the
key to avoid any risk of injury resulting from
automatic operation of S
tARt mode.
this system requires a specific battery


with a special specification and technology
(reference numbers available from a
P
eugeOt dealer or a qualified workshop).
Fitting a battery not listed by
P
eugeOt


introduces the risk of malfunction

of the system.
the Stop & Start system makes use


of advanced technology. Specialist
knowledge is needed for any work on the
system, which can only be assured by
P
eugeOt dealers.
Refer to the "Quick help - Flat battery"
section.
Starting and switching off

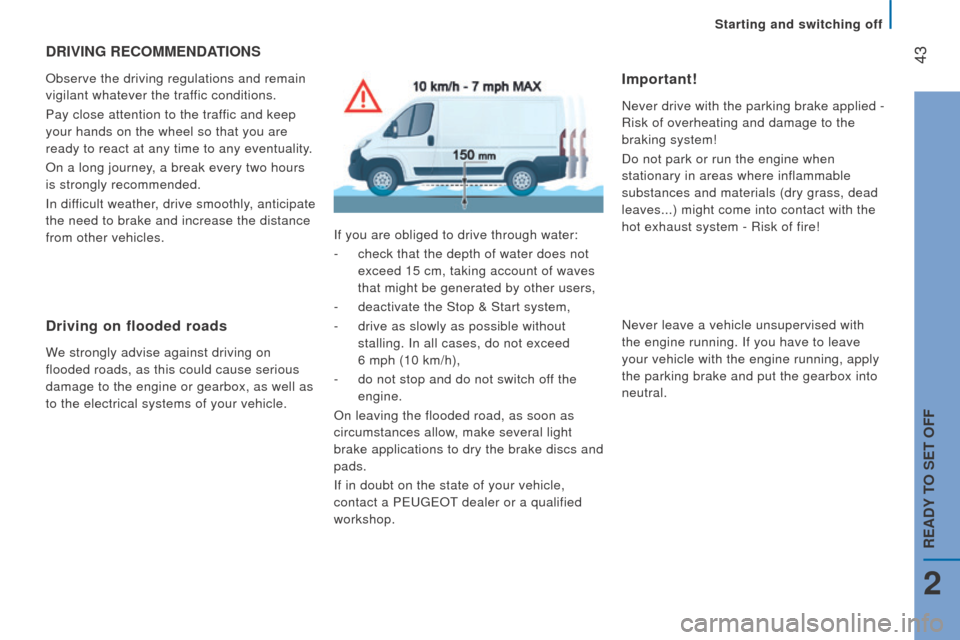

43drIVInG rEcoMMEndAtIonS
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep
your hands on the wheel so that you are
ready to react at any time to any eventuality.
On a long journey, a break every two hours
is strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
driving on flooded roads
We strongly advise against driving on
flooded roads, as this could cause serious
damage to the engine or gearbox, as well as
to the electrical systems of your vehicle.If you are obliged to drive through water:
-
check that the depth of water does not
exceed 15 cm, taking account of waves


that might be generated by other users,
-
deactivate the Stop & Start system,
-
drive as slowly as possible without
stalling. In all cases, do not exceed

6 mph (10 km/h),
-
do not stop and do not switch off the


engine.
On leaving the flooded road, as soon as
circumstances allow, make several light
brake applications to dry the brake discs and
pads.
If in doubt on the state of your vehicle,
contact a P
eugeOt dealer or a qualified
workshop.
Important!
Never drive with the parking brake applied -
Risk of overheating and damage to the
braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass, dead
leaves...) might come into contact with the
hot exhaust system - Risk of fire!
Never leave a vehicle unsupervised with
the engine running. If you have to leave
your vehicle with the engine running, apply
the parking brake and put the gearbox into
neutral.
2
rEAdY to SEt oFF
Starting and switching off

44
Sound control
Your vehicle benefits from technical
suspension choices which contributes to
improving general comfort.
these developments also contribute to

reducing noise disturbance.
Acoustic comfort
the underseal under the body, on the body
sills and on the wheel arches considerably
reduces noise and protects the body from

external wear.
Improved comfort

45

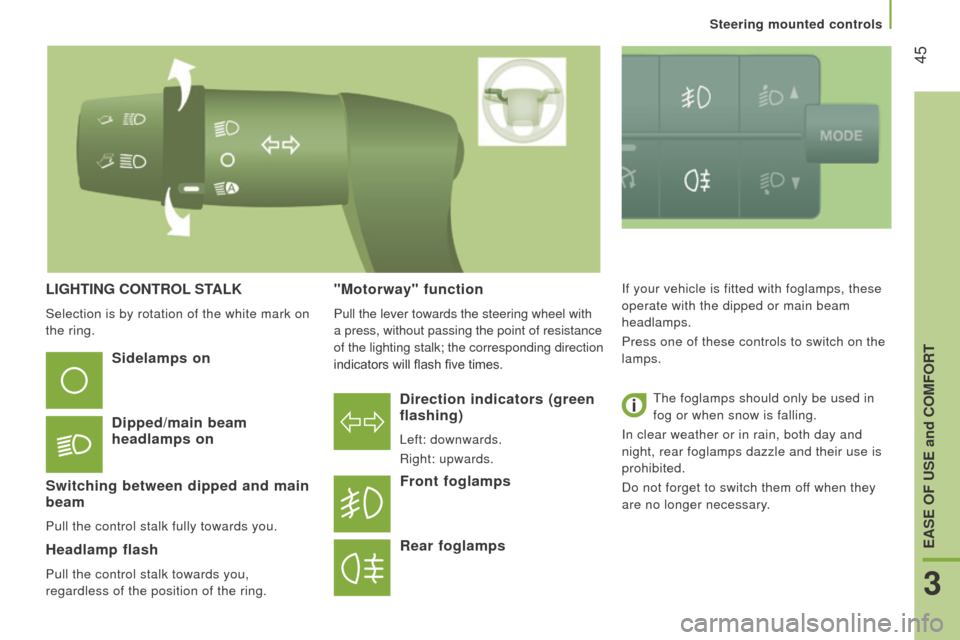

LIGHtInG controL StALK
Selection is by rotation of the white mark on
the ring.
direction indicators (green
flashing)
Left: downwards.
Right: upwards.
Sidelamps on
dipped/main beam


headlamps on
Switching between dipped and main
beam
Pull the control stalk fully towards you.
Headlamp flash
Pull the control stalk towards you,
regardless of the position of the ring.
Front foglamps
rear foglamps
If your vehicle is fitted with foglamps, these
operate with the dipped or main beam
headlamps.
Press one of these controls to switch on the
lamps.
the foglamps should only be used in


fog or when snow is falling.
In clear weather or in rain, both day and
night, rear foglamps dazzle and their use is
prohibited.
Do not forget to switch them off when they
are no longer necessary."Motorway" function
Pull the lever towards the steering wheel with
a press, without passing the point of resistance
of the lighting stalk; the corresponding direction
indicators will flash five times.
3
EASE oF uSE and coMFort
Steering mounted controls

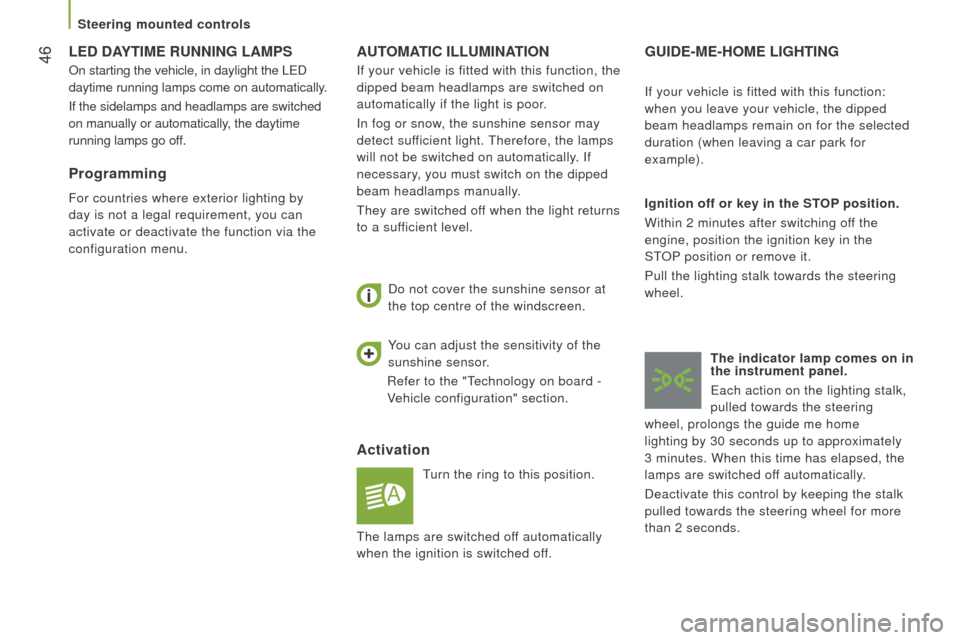

46AutoMAtIc ILLuMInAtIon
Activation
turn the ring to this position.
Do not cover the sunshine sensor at
the top centre of the windscreen.
GuIdE-ME-HoME LIGHtInG
Ignition off or key in the StoP position.
Within 2 minutes after switching off the
engine, position the ignition key in the
S
tOP position or remove it.
Pull the lighting stalk towards the steering


wheel.
the indicator lamp comes on in


the instrument panel.
each action on the lighting stalk,


pulled towards the steering
wheel, prolongs the guide me home
lighting by 30 seconds up to approximately
3
minutes. When this time has elapsed, the


lamps are switched off automatically.
Deactivate this control by keeping the stalk
pulled towards the steering wheel for more
than 2 seconds. If your vehicle is fitted with this function:
when you leave your vehicle, the dipped
beam headlamps remain on for the selected
duration (when leaving a car park for
example).
You can adjust the sensitivity of the
sunshine sensor.
Refer to the "
technology on board -
V

ehicle configuration" section.
If your vehicle is fitted with this function, the
dipped beam headlamps are switched on
automatically if the light is poor.
In fog or snow, the sunshine sensor may
detect sufficient light.
therefore, the lamps


will not be switched on automatically. If
necessary, you must switch on the dipped
beam headlamps manually.they are switched of
f when the light returns
to a sufficient level.
LEd dAYtIME runnInG LAMPS
On starting the vehicle, in daylight the LeD
daytime running lamps come on automatically.
If the sidelamps and headlamps are switched

on manually or automatically, the daytime
running lamps go off.
Programming
For countries where exterior lighting by
day is not a legal requirement, you can
activate or deactivate the function via the
configuration menu.
the lamps are switched of

f automatically
when the ignition is switched off.
Steering mounted controls

47
HEAdLAMP BEAM
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
this function works in the dipped and main

beam headlamps position.
Press these controls, located
on the dashboard, several times
in succession to adjust the
headlamps.
An indicator in the screen shows
the adjustment position selected
(0, 1, 2, 3).
PArKInG LAMPS
this system enables you to leave the lamps
on when parked; with the ignition off, key in
the S
tOP position or key removed.
Move the ring on the lighting stalk to


position
O then to dipped or main beam


headlamps.
the

indicator lamp in the
instrument panel comes on.
the lamps will remain on while


you are parked.
Leaving the lighting on for long periods may
significantly reduce the state of charge of
your vehicle's battery.
travelling abroad
If using your vehicle in a country
that drives on the other side of the road,

the headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a P
eugeOt dealer or a qualified
workshop.
3
EASE oF uSE and coMFort
Steering mounted controls

48

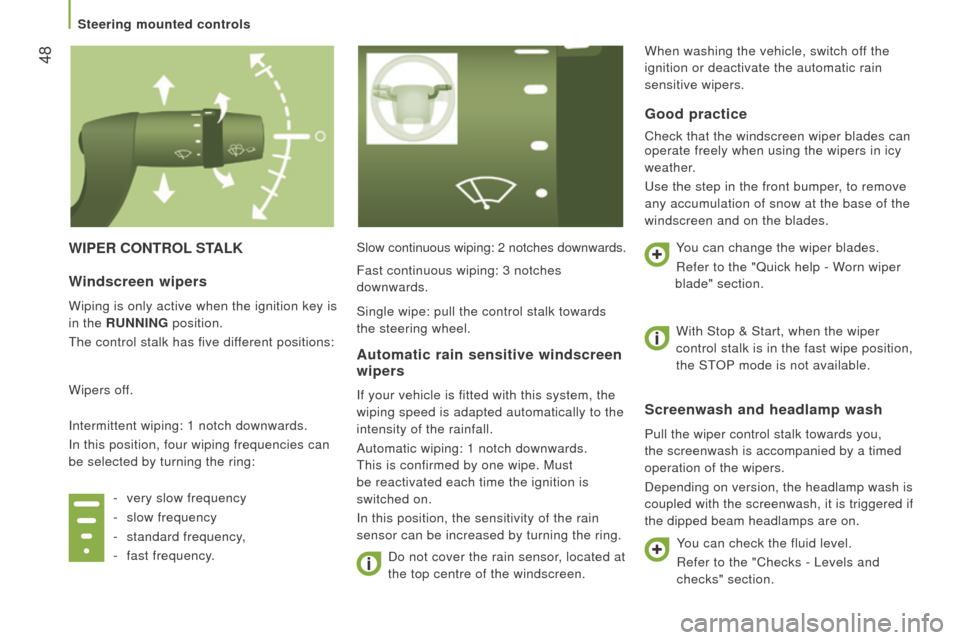

WIPEr controL StALKSlow continuous wiping: 2 notches downwards.Do not cover the rain sensor, located at
the top centre of the windscreen.
Screenwash and headlamp wash
Pull the wiper control stalk towards you,
the screenwash is accompanied by a timed
operation of the wipers.
Depending on version, the headlamp wash is
coupled with the screenwash, it is triggered if
the dipped beam headlamps are on.
Windscreen wipers
Wiping is only active when the ignition key is
in the
runnInG
position.
the control stalk has five dif

ferent positions:
Wipers off.
Intermittent wiping: 1 notch downwards.
In this position, four wiping frequencies can
be selected by turning the ring: -
very slow frequency
-
slow frequency
-
standard frequency,
-
fast frequency.
Automatic rain sensitive windscreen
wipers
If your vehicle is fitted with this system, the
wiping speed is adapted automatically to the
intensity of the rainfall.
Automatic wiping: 1 notch downwards.
this is confirmed by one wipe. Must


be reactivated each time the ignition is
switched
on.
In this position, the sensitivity of the rain


sensor can be increased by turning the ring.
Good practice
Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.
use the step in the front bumper

, to remove
any accumulation of snow at the base of the
windscreen and on the blades.
You can change the wiper blades.
Refer to the "Quick help - Worn wiper
blade" section.
You can check the fluid level.
Refer to the "Checks - Levels and
checks" section.
Fast continuous wiping: 3 notches
downwards.
Single wipe: pull the control stalk towards
the steering wheel.
With Stop & Start, when the wiper
control stalk is in the fast wipe position,


the S
tOP mode is not available.
When washing the vehicle, switch of

f the
ignition or deactivate the automatic rain
sensitive wipers.
Steering mounted controls
