Peugeot Boxer 2016 Owner's Manual

249
boxer_en_Chap11_Particularites_ed01-2015

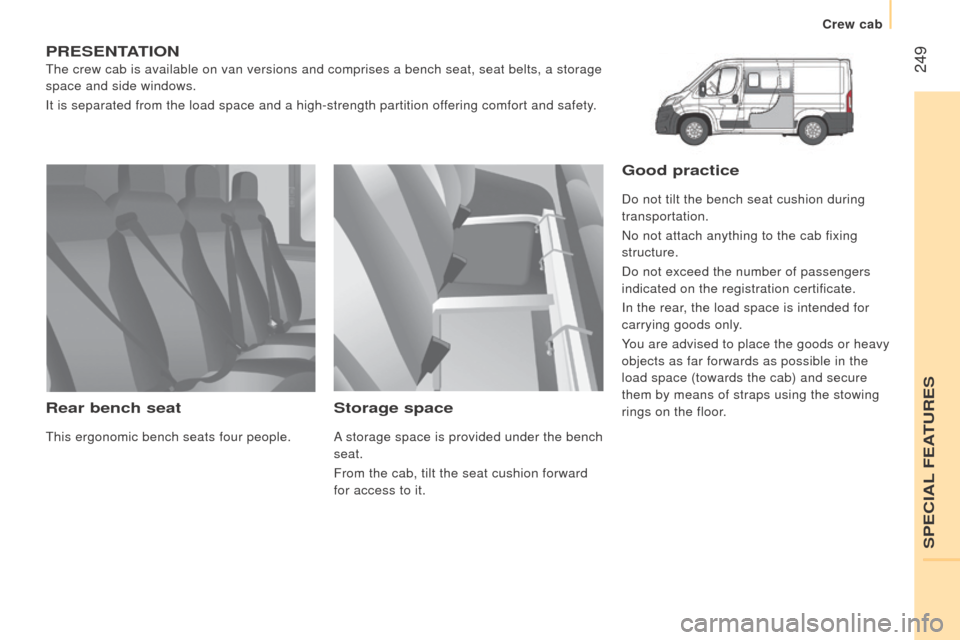

PrESEntAtI on
the crew cab is available on van versions and comprises a bench seat, sea\
t belts, a storage
space and side windows.
It is separated from the load space and a high-strength partition of
fering comfort and safety.
rear bench seat
this ergonomic bench seats four people.
Storage space
A storage space is provided under the bench
seat.
From the cab, tilt the seat cushion forward
for access to it.
Good practice
Do not tilt the bench seat cushion during
transportation.
No not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the load space is intended for
carrying goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
load space (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.
SPeCIAL FeAtuReS
Crew cab

250
boxer_en_Chap11_Particularites_ed01-2015

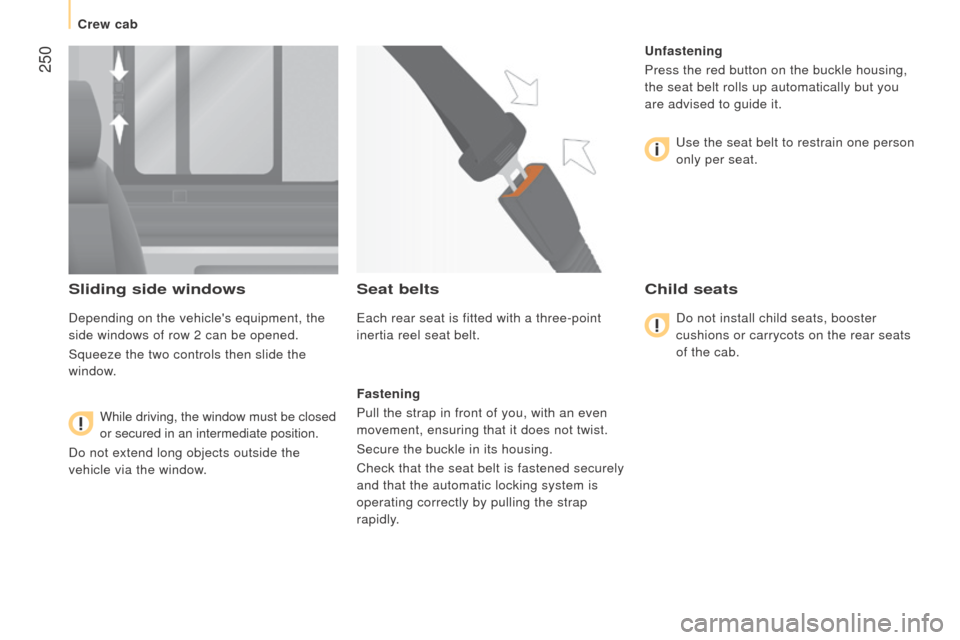

Sliding side windows
Depending on the vehicle's equipment, the
side windows of row 2 can be opened.
Squeeze the two controls then slide the
window.While driving, the window must be closed
or secured in an intermediate position.
Do not extend long objects outside the
vehicle via the window.
Seat belts
each rear seat is fitted with a three-point
inertia reel seat belt.
Fastening
Pull the strap in front of you, with an even

movement, ensuring that it does not twist.
Secure the buckle in its housing.
Check that the seat belt is fastened securely
and that the automatic locking system is
operating correctly by pulling the strap
rapidly.
u
nfastening
Press the red button on the buckle housing,
the seat belt rolls up automatically but you
are advised to guide it.
u
se the seat belt to restrain one person
only per seat.
child seats
Do not install child seats, booster
cushions or carrycots on the rear seats
of the cab.
Crew cab

251
boxer_en_Chap11_Particularites_ed01-2015

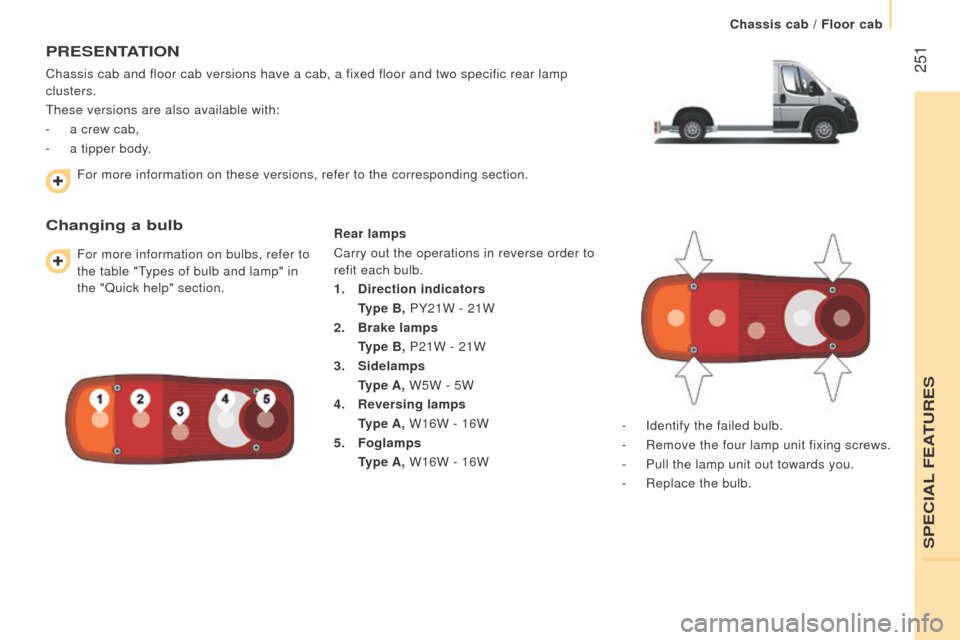

PrESEntAtI on
Chassis cab and floor cab versions have a cab, a fixed floor and two spe\
cific rear lamp
clusters.
t

hese versions are also available with:
-

a crew cab,
-


a tipper body
.
changing a bulb
For more information on bulbs, refer to
the table "t
ypes of bulb and lamp" in

the "Quick help" section.
r
ear lamps
Carry out the operations in reverse order to
refit each bulb.
1.
d
irection indicators
type B,

PY21W - 21W
2.

Brake lamps
type B,

P21W - 21W
3.

Sidelamps
type A,

W5W - 5W
4.
r
eversing lamps
type A,

W16W - 16W
5.

Foglamps
type A,

W16W - 16W-

Identify the failed bulb.
-


Remove the four lamp unit fixing screws.
-


Pull the lamp unit out towards you.
-


Replace the bulb.
For more information on these versions, refer to the corresponding secti\
on.
SPeCIAL FeAtuReS
Chassis cab / Floor cab

252
boxer_en_Chap11_Particularites_ed01-2015

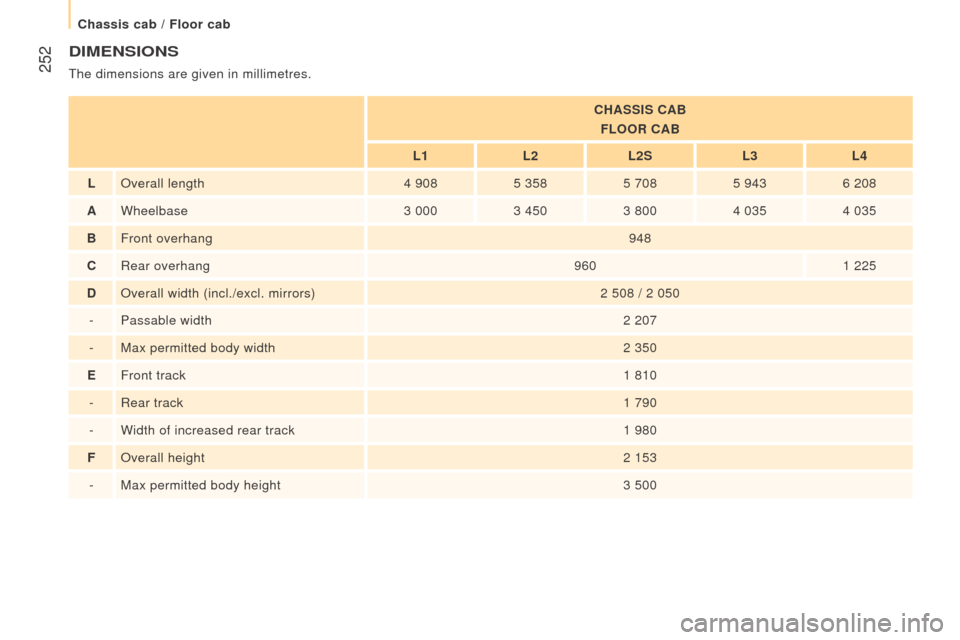

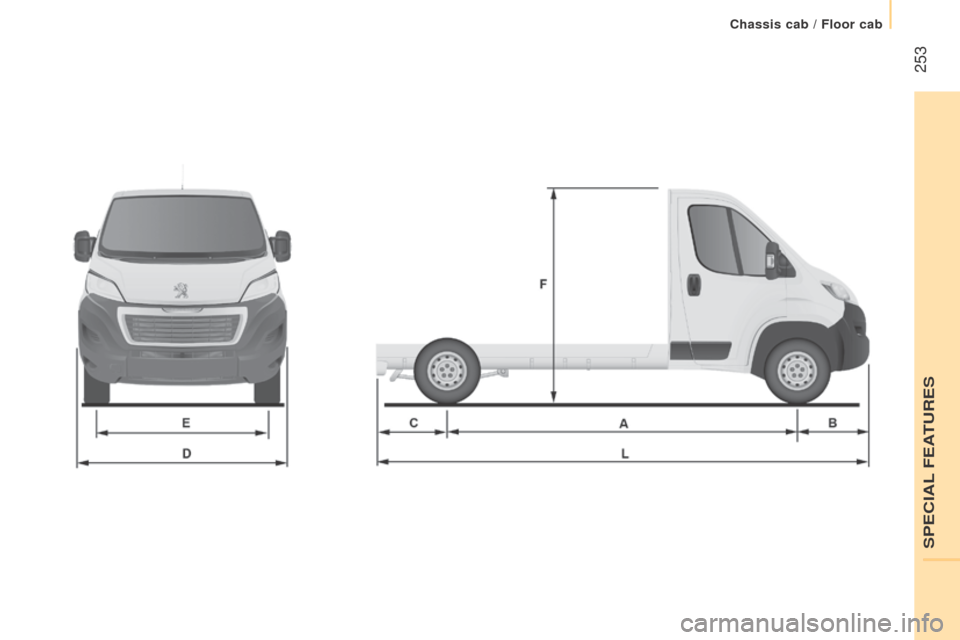

dIMEnSIonS
the dimensions are given in millimetres.
cHASSIS cAB
FL oor c AB
L1 L2L2S L3L4
L Overall length 4

908 5

358 5
708 5
9436
208
A Wheelbase 3

000 3

450 3
800 4
0354
035
B Front overhang 948
cRear overhang9601 225
dOverall width (incl./excl. mirrors) 2 508 / 2

050
- Passable width 2
207
- Max permitted body width 2
350
E Front track 1
810
- Rear track 1
790
- Width of increased rear track 1
980
F Overall height 2
153
- Max permitted body height 3
500
Chassis cab / Floor cab

253
boxer_en_Chap11_Particularites_ed01-2015
SPeCIAL FeAtuReS
Chassis cab / Floor cab

254
boxer_en_Chap11_Particularites_ed01-2015

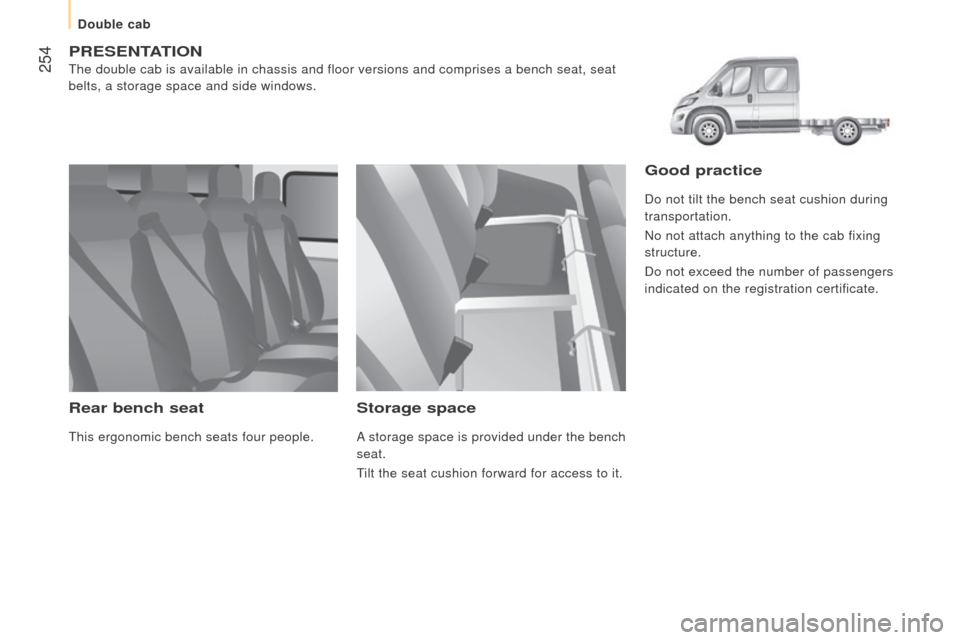

PrESEntAtI on
the double cab is available in chassis and floor versions and comprises a\
bench seat, seat
belts, a storage space and side windows.
rear bench seat
this ergonomic bench seats four people.
Storage space
A storage space is provided under the bench
seat.
tilt the seat cushion forward for access to it.
Good practice
Do not tilt the bench seat cushion during
transportation.
No not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
Double cab

255
boxer_en_Chap11_Particularites_ed01-2015

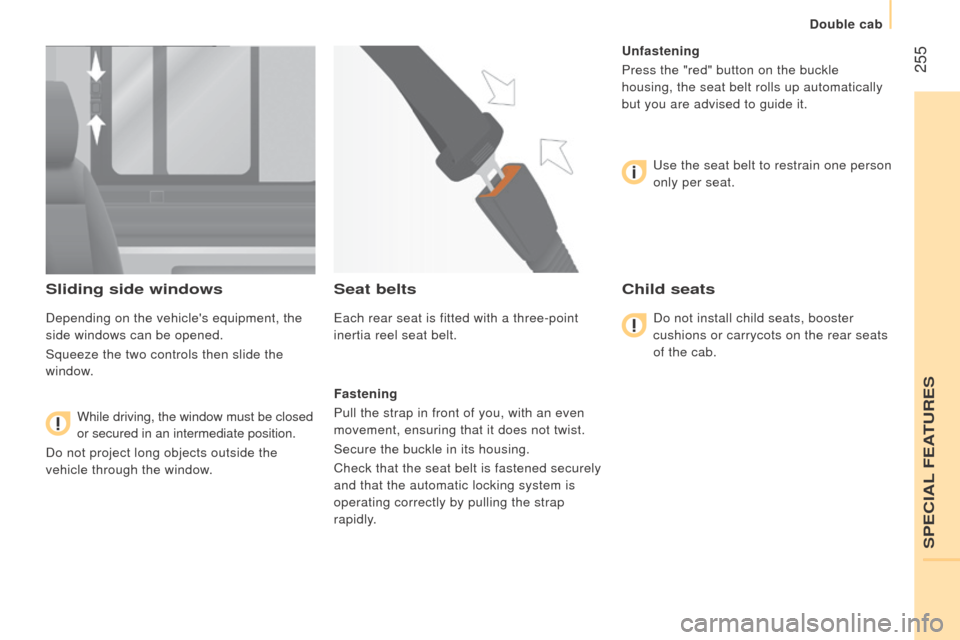

Sliding side windows
Depending on the vehicle's equipment, the
side windows can be opened.
Squeeze the two controls then slide the
window.While driving, the window must be closed
or secured in an intermediate position.
Do not project long objects outside the
vehicle through the window.
Seat belts
each rear seat is fitted with a three-point
inertia reel seat belt.
Fastening
Pull the strap in front of you, with an even

movement, ensuring that it does not twist.
Secure the buckle in its housing.
Check that the seat belt is fastened securely
and that the automatic locking system is
operating correctly by pulling the strap
rapidly.
u
nfastening
Press the "red" button on the buckle
housing, the seat belt rolls up automatically
but you are advised to guide it.
u
se the seat belt to restrain one person
only per seat.
child seats
Do not install child seats, booster
cushions or carrycots on the rear seats
of the cab.
SPeCIAL FeAtuReS
Double cab

256
boxer_en_Chap11_Particularites_ed01-2015

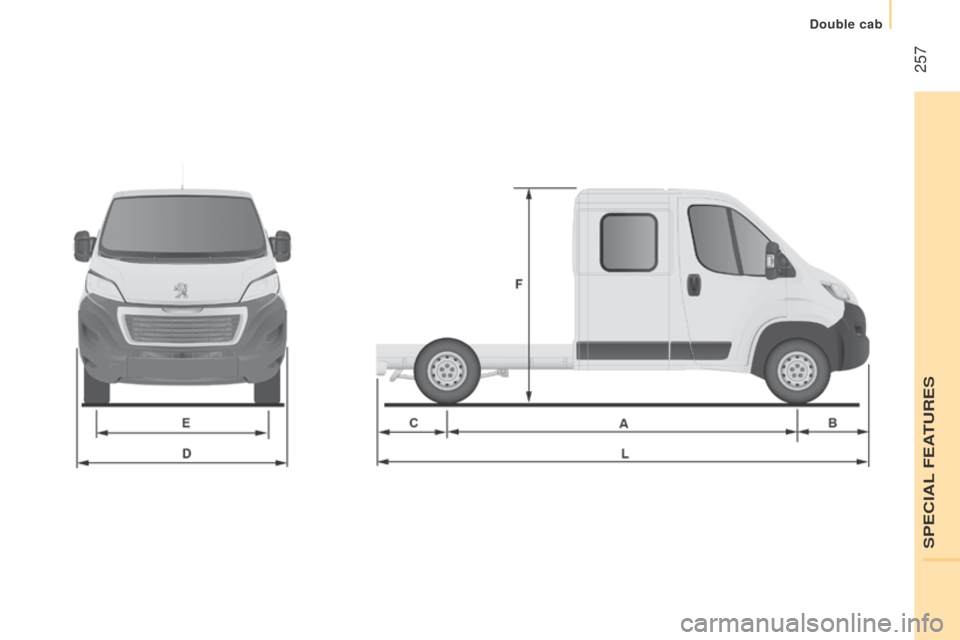

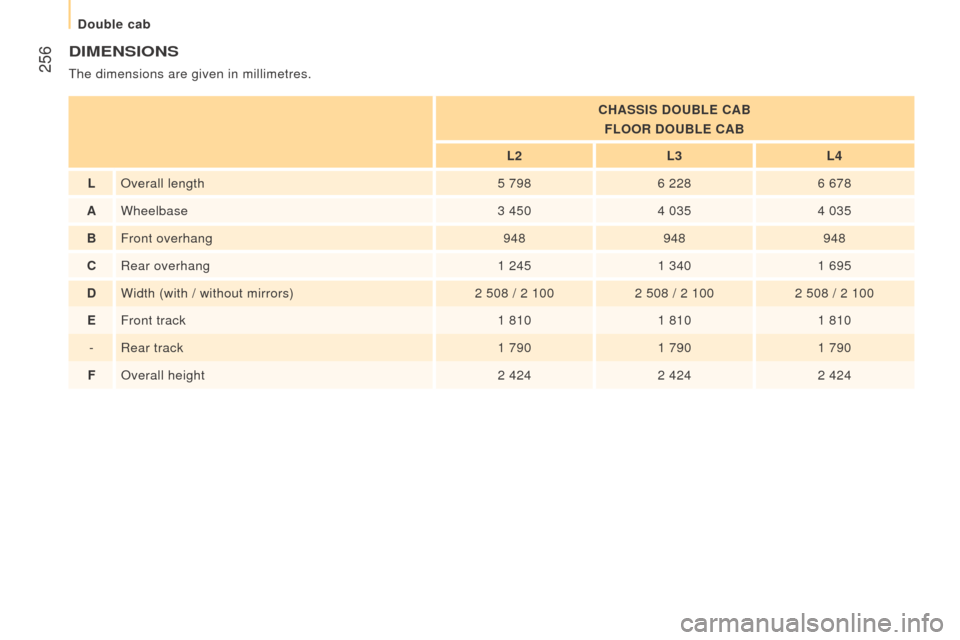

dIMEnSIonS
the dimensions are given in millimetres.
c
HASSIS dou BLE c AB
FL
oor dou BLE c AB
L2 L3L4
L Overall length 5 7986 2286 678
A Wheelbase 3 4504 0354 035
B Front overhang 948948948
cRear overhang 1 2451 3401 695
dWidth (with / without mirrors) 2 508 / 2 1002 508 / 2 1002 508 / 2 100
E Front track 1 8101 8101 810
- Rear track 1 7901 7901 790
F Overall height 2 4242 4242 424
Double cab

257
boxer_en_Chap11_Particularites_ed01-2015
SPeCIAL FeAtuReS
Double cab

258
boxer_en_Chap11_Particularites_ed01-2015

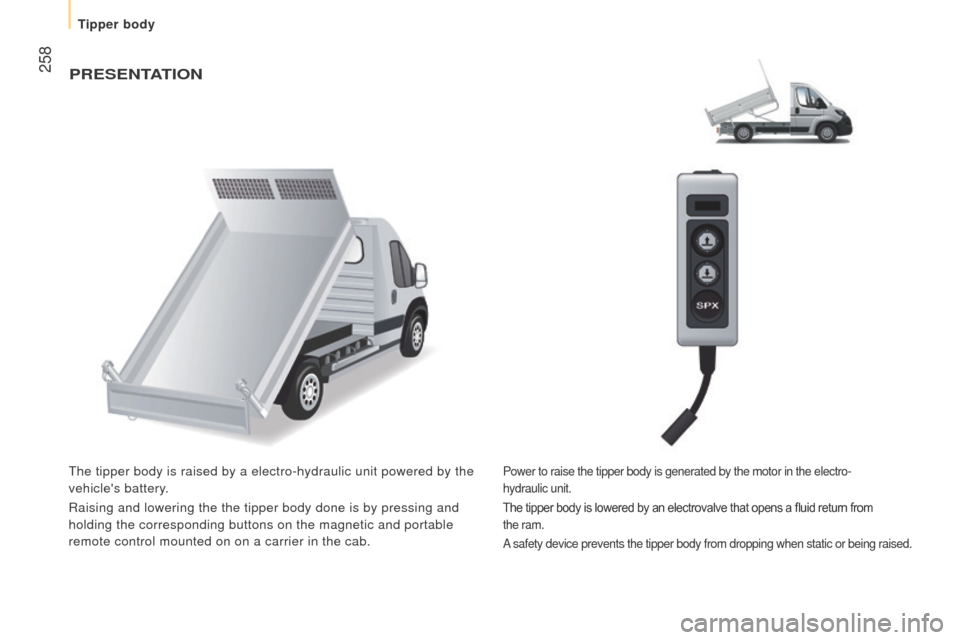

PrESEntAtI on
the tipper body is raised by a electro-hydraulic unit powered by the
vehicle's battery .
Raising and lowering the the tipper body done is by pressing and
holding the corresponding buttons on the magnetic and portable
remote control mounted on on a carrier in the cab.Power to raise the tipper body is generated by the motor in the electro-\
hydraulic unit.
The tipper body is lowered by an electrovalve that opens a fluid return from
the
ram.
A safety device prevents the tipper body from dropping when static or bei\
ng raised.
tipper body
