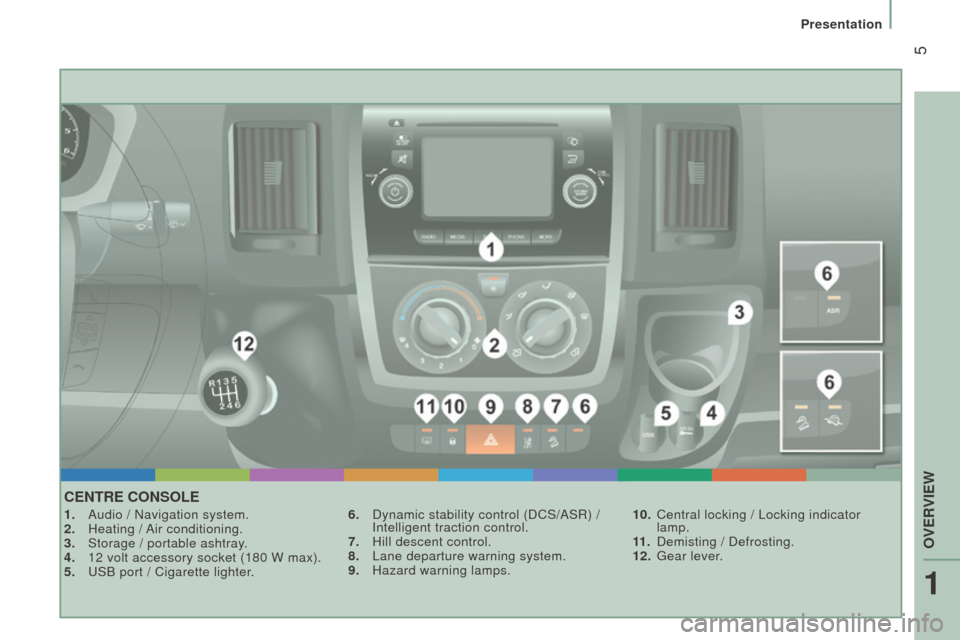

cEntrE conSoLE
1. Audio / Navigation system.
2. Heating / Air conditioning.
3.

Storage / portable ashtray
.
4.

12 volt accessory socket (180 W max).
5.

u SB port / Cigarette lighter. 6.
Dynamic stability control (DCS/ASR) /
Intelligent traction control.
7.

Hill descent control.
8.


Lane departure warning system.
9.


Hazard warning lamps.10.

Central locking / Locking indicator
lamp.
11 .
Demisting / Defrosting.
12.

g ear lever.
1
OVeRVIeW
Presentation

9
boxer_en_Chap01_Vue-ensemble_ed01-2015
Lane departure warning system 105
Hill descent control

104
Intelligent

t
raction
Control
103
ASR, DSC


101-102
V

ehicle configuration

90-91
Setting the time


91
Reversing camera


95touch screen audio
system


183-230
Audio system


231-247
tachograph


93
Cab fittings

76-80
●

cigarette lighter
,
●
glove box - cooled,
●

overhead storage,
●

portable ashtray
,
●
courtesy lamps,
●

12 volt socket / USB port,
●

writing table / multifunction

support,
●
storage compartments.
g

earbox

36-37
Parking sensors

94-95
Demisting-defrosting

59
Central locking

22
Locking indicator lamp


22
Hazard warning lamps


98 V

entilation, heating,
A/C
60-62, 63-64
●

manual air conditioning,
●

mono-zone digital air

conditioning,
●
air recirculation.
1
OVeRVIeW
Location

98
boxer_en_Chap05_Securite_ed01-2015

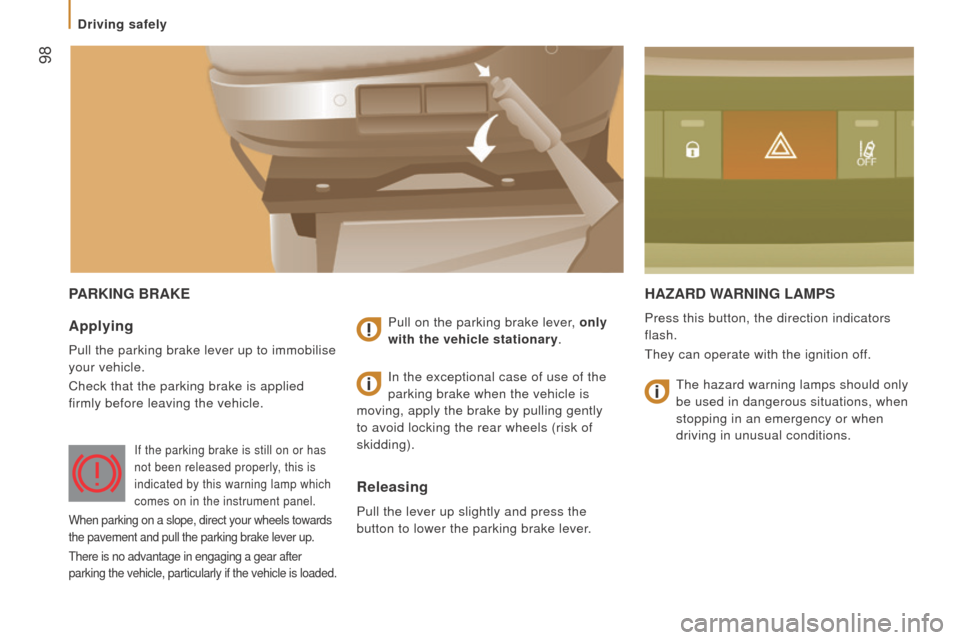

PAr KI n G B r AKEH A z A rd WA rn I n G LAMPS
Press this button, the direction indicators
flash.
t

hey can operate with the ignition off.Applying
Pull the parking brake lever up to immobilise
your vehicle.
Check that the parking brake is applied
firmly before leaving the vehicle. Pull on the parking brake lever, only
with the vehicle stationary.
releasing
Pull the lever up slightly and press the
button to lower the parking brake lever.In the exceptional case of use of the
parking brake when the vehicle is
moving, apply the brake by pulling gently
to avoid locking the rear wheels (risk of
skidding).
If the parking brake is still on or has
not been released properly, this is
indicated by this warning lamp which
comes on in the instrument panel.
When parking on a slope, direct your wheels towards
the pavement and pull the parking brake lever up.
t

here is no advantage in engaging a gear after
parking the vehicle, particularly if the vehicle is loaded.
the hazard warning lamps should only
be used in dangerous situations, when
stopping in an emergency or when
driving in unusual conditions.
Driving safely

135
boxer_en_Chap07_Verifications_ed01-2015

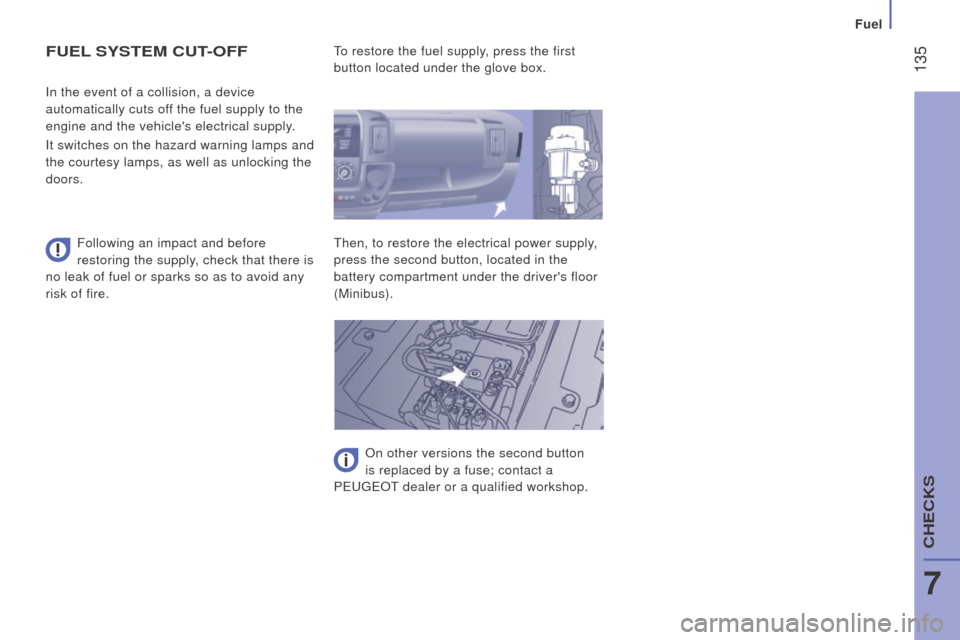

FuEL SYS t EM cut-o FF
Following an impact and before
restoring the supply, check that there is
no leak of fuel or sparks so as to avoid any
risk of fire. In the event of a collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It switches on the hazard warning lamps and
the courtesy lamps, as well as unlocking the
doors.
to restore the fuel supply
, press the first
button located under the glove box.t hen, to restore the electrical power supply,
press the second button, located in the
battery compartment under the driver's floor
(Minibus).
On other versions the second button
is replaced by a fuse; contact a
P
euge O t
dealer or a qualified workshop.
