power steering Peugeot Boxer 2016 Owner's Manual

10
boxer_en_Chap01_Vue-ensemble_ed01-2015

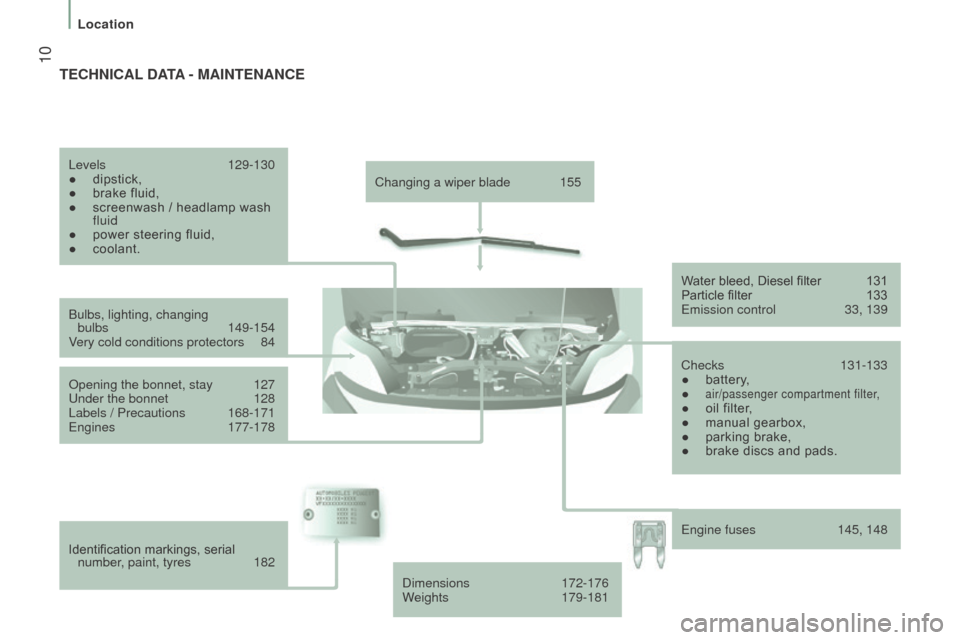

Changing a wiper blade 155
Bulbs, lighting, changing bulbs

149-154
Very cold conditions protectors

84
Opening the bonnet, stay


127u

nder the bonnet

128
Labels / Precautions


168-171e

ngines

177-178
Identification markings, serial number, paint, tyres

182
Levels


129-130
●
dipstick,
●
brake fluid,
●

screenwash / headlamp wash


fluid
●

power steering fluid,
●


coolant. W

ater bleed, Diesel filter
131
Particle filter


133e

mission control
33, 139
Checks

131-133
●

battery
,
●

air/passenger compartment filter,● oil filter,
● manual gearbox,
●

parking brake,
●


brake discs and pads.
tEcHnIcAL d AtA - M AI nt E n A nc E
Dimensions 172-176
W eights 179-181
e
ngine fuses
145, 148
Location

26
boxer_en_Chap02_Pret-a-Partir_ed01-2015

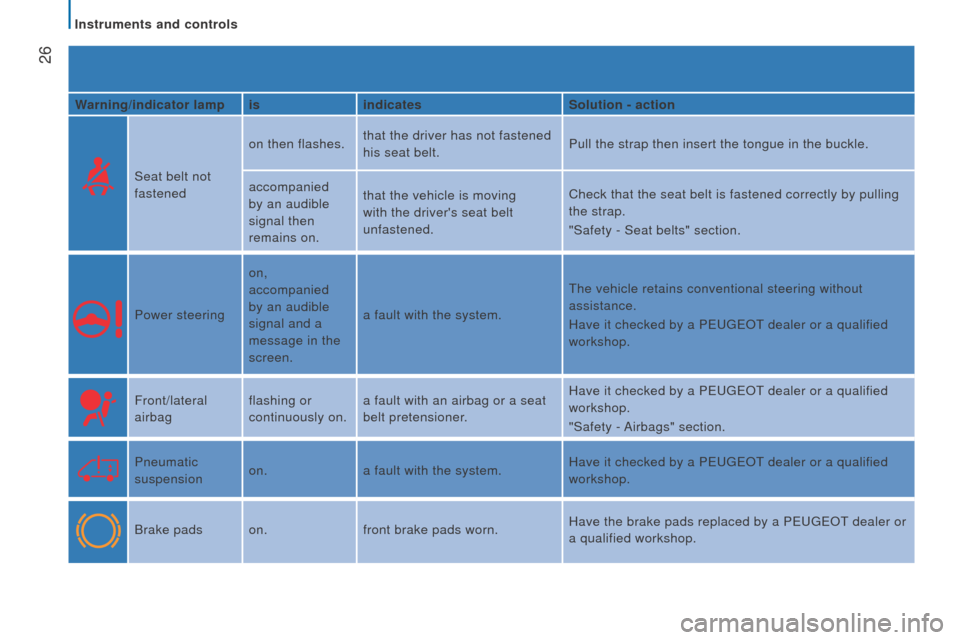

Warning/indicator lampisindicates Solution - action
Seat belt not
fastened on then flashes.
that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened.
Check that the seat belt is fastened correctly by pulling
the strap.
"Safety - Seat belts" section.
Power steering on,
accompanied
by an audible
signal and a
message in the
screen.a fault with the system.
t

he vehicle retains conventional steering without
assistance.
Have it checked by a P
euge O t
dealer or a qualified

workshop.
Front/lateral
airbag flashing or
continuously on.a fault with an airbag or a seat
belt pretensioner. Have it checked by a P
euge O t
dealer or a qualified

workshop.
"Safety - Airbags" section.
Pneumatic
suspension on.
a fault with the system. Have it checked by a P
euge O t
dealer or a qualified

workshop.
Brake pads on.front brake pads worn. Have the brake pads replaced by a P
euge O t
dealer or

a qualified workshop.
Instruments and controls

37
boxer_en_Chap02_Pret-a-Partir_ed01-2015

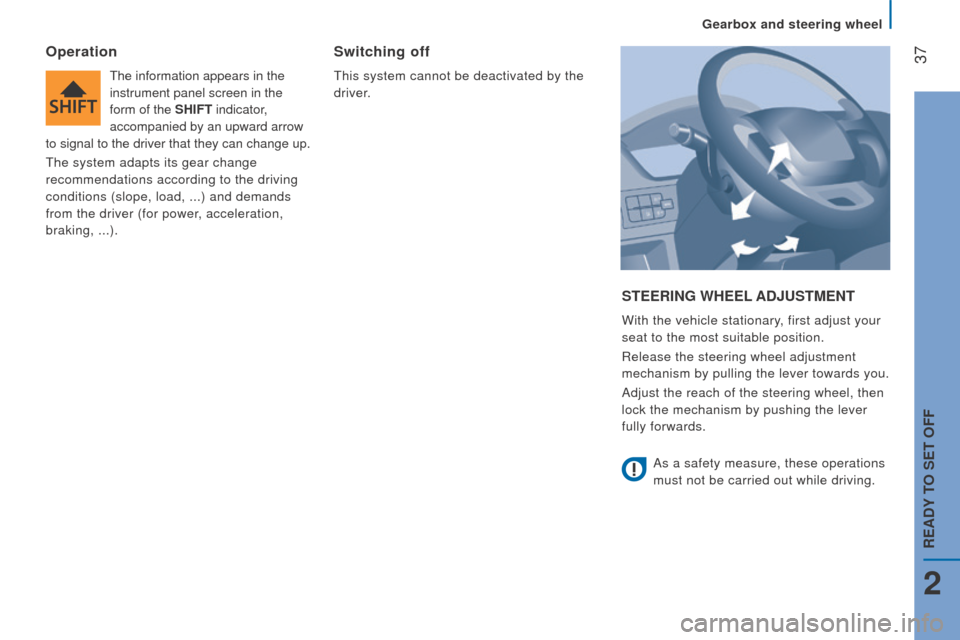

StEErInG WHEEL A dju S t ME nt
With the vehicle stationary, first adjust your
seat to the most suitable position.
Release the steering wheel adjustment
mechanism by pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock the mechanism by pushing the lever
fully forwards.
operation
the information appears in the
instrument panel screen in the
form of the
SHIF t indicator,
accompanied by an upward arrow
to signal to the driver that they can change up.
t

he system adapts its gear change
recommendations according to the driving
conditions (slope, load, ...) and demands
from the driver (for power, acceleration,
braking,

...).
Switching off
this system cannot be deactivated by the
driver .
As a safety measure, these operations
must not be carried out while driving.
Gearbox and steering wheel
2
rEAdY to SEt oFF

128
boxer_en_Chap07_Verifications_ed01-2015

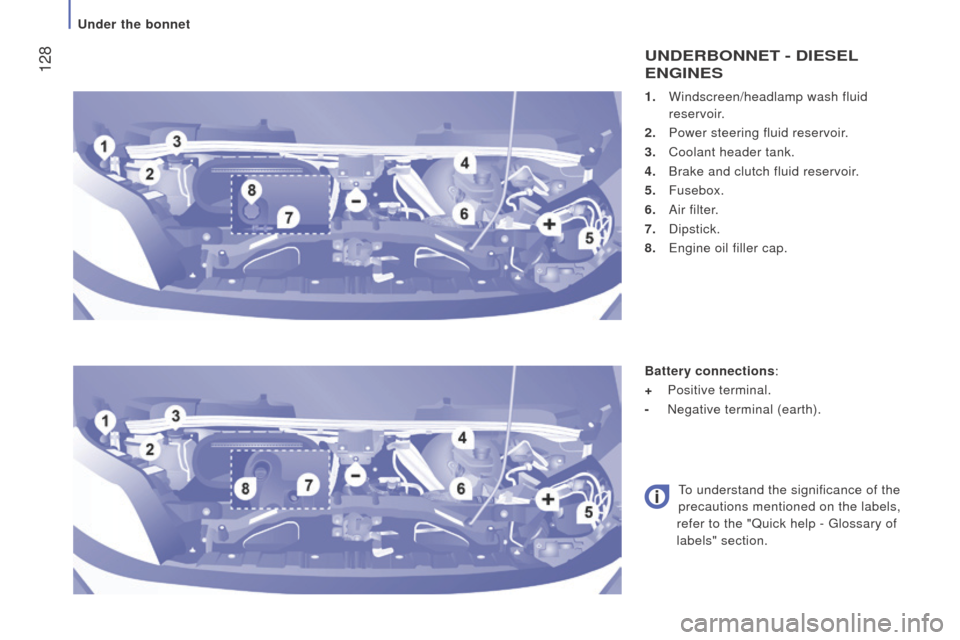

1. Windscreen/headlamp wash fluid
reservoir.
2.

Power steering fluid reservoir
.
3.

Coolant header tank.
4.


Brake and clutch fluid reservoir
.
5.
Fusebox.
6.

Air filter
.
7.
Dipstick.
8.
e ngine oil filler cap.
undErBonnEt - dIESEL
E
n GI n ES
Battery connections:
+
Positive terminal.
-
Negative terminal (earth).
to understand the significance of the


precautions mentioned on the labels,
refer to the "Quick help -
g lossary of
labels" section.
under the bonnet

130
boxer_en_Chap07_Verifications_ed01-2015

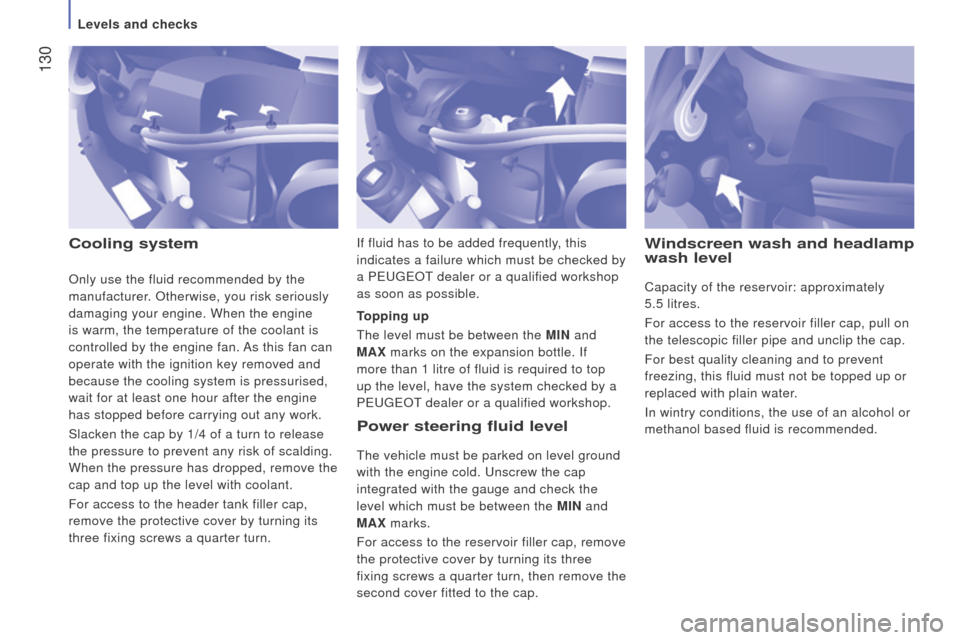

cooling systemPower steering fluid level
the vehicle must be parked on level ground
with the engine cold. u nscrew the cap
integrated with the gauge and check the
level which must be between the MI
n and
MA
x marks.
For access to the reservoir filler cap, remove
the protective cover by turning its three
fixing screws a quarter turn, then remove the
second cover fitted to the cap.
topping up
t
he level must be between the MI n and
MA x marks on the expansion bottle. If
more than 1 litre of fluid is required to top
up the level, have the system checked by a
P euge O t
dealer or a qualified workshop.
Windscreen wash and headlamp
wash level
Capacity of the reservoir: approximately
5.5
litres.
For access to the reservoir filler cap, pull on
the telescopic filler pipe and unclip the cap.
For best quality cleaning and to prevent
freezing, this fluid must not be topped up or
replaced with plain water.
In wintry conditions, the use of an alcohol or
methanol based fluid is recommended.
If fluid has to be added frequently, this
indicates a failure which must be checked by
a P
euge
O
t dealer or a qualified workshop

as soon as possible.
Only use the fluid recommended by the
manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine fan. As this fan can
operate with the ignition key removed and
because the cooling system is pressurised,
wait for at least one hour after the engine
has stopped before carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
For access to the header tank filler cap,
remove the protective cover by turning its
three fixing screws a quarter turn.
Levels and checks

146
boxer_en_Chap08_Aide-Rapide_ed01-2015
FusesA (amps) Allocation
12 7.5Right-hand dipped headlamp
13 7.5Left-hand dipped headlamp
31 5
e

ngine compartment control unit relay - Dashboard control unit relay (ig\
nition switch +)
32 7.5Cabin lighting (battery +)
33 7.5Battery check sensor on Stop & Start version (battery +)
34 7.5Minibus interior lighting - Hazard warning lamps
36 10Audio system - Air conditioning controls - Alarm -
tachograph - Battery cut-of

f control unit -
Additional heating programmer (battery +)
37 7.5Brake lamp switch -
t

hird brake lamp - Instrument panel (ignition +)
38 20Central door locking (battery +)
42 5ABS control unit and sensor - ASR sensor - DSC sensor - Brake lamp switch
43 20Windscreen wiper motor (ignition switch +)
47 20Driver's electric window motor
48 20Passenger's electric window motor
49 5Parking sensors control unit - Audio system - Steering mounted controls - Centre and side switch panels\
-
Auxiliary switch panel - Battery cut-off control unit (ignition switch +)
50 7.5Airbags and pre-tensioners control unit
51 5
tachograph - Power steering control unit -

Air conditioning - Reversing lamps - Water in Diesel sensor -
Air flow sensor (ignition switch +)
53 7.5Instrument panel (battery +)
89 -Not used
90 7.5Left-hand main beam
91 7.5Right-hand main beam
92 7.5Left-hand front foglamp
93 7.5Right-hand front foglamp
Failed fuse

163
boxer_en_Chap08_Aide-Rapide_ed01-2015

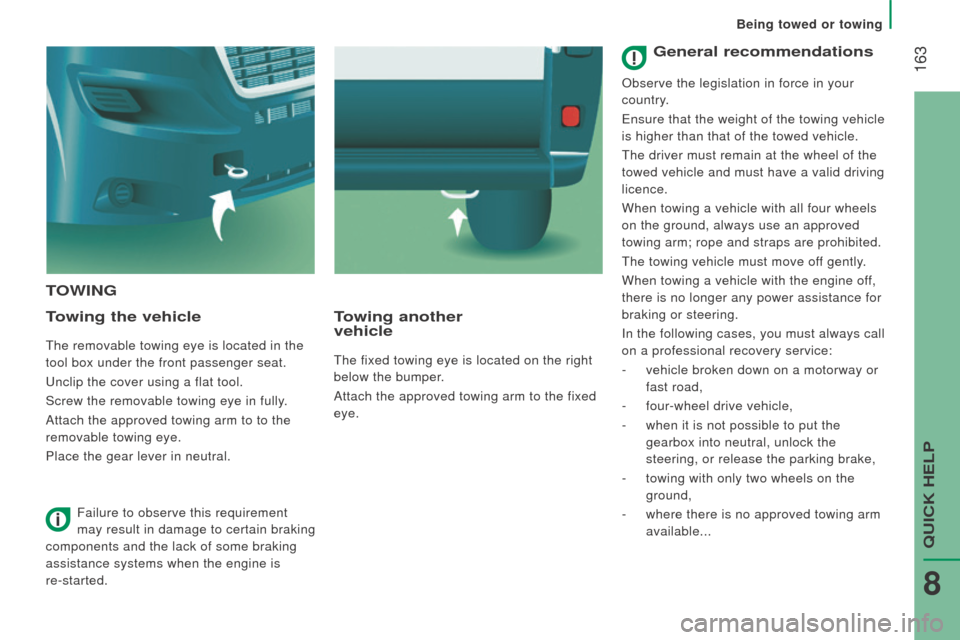

toWI n G
t
owing the vehicle
the removable towing eye is located in the
tool box under the front passenger seat.
u

nclip the cover using a flat tool.
Screw the removable towing eye in fully.
Attach the approved towing arm to to the
removable towing eye.
Place the gear lever in neutral.
towing another
vehicle
the fixed towing eye is located on the right
below the bumper .
Attach the approved towing arm to the fixed
eye.
Failure to observe this requirement
may result in damage to certain braking
components and the lack of some braking
assistance systems when the engine is
re-started.
General recommendations
Observe the legislation in force in your
country.
e

nsure that the weight of the towing vehicle
is higher than that of the towed vehicle.
t

he driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing arm; rope and straps are prohibited.
t

he towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
-

vehicle broken down on a motorway or

fast road,
-

four-wheel drive vehicle,
-


when it is not possible to put the

gearbox into neutral, unlock the
steering, or release the parking brake,
-

towing with only two wheels on the

ground,
-

where there is no approved towing arm

available...
Being towed or towing
QuICK HeLP
8

169
boxer_en_Chap08_Aide-Rapide_ed01-2015

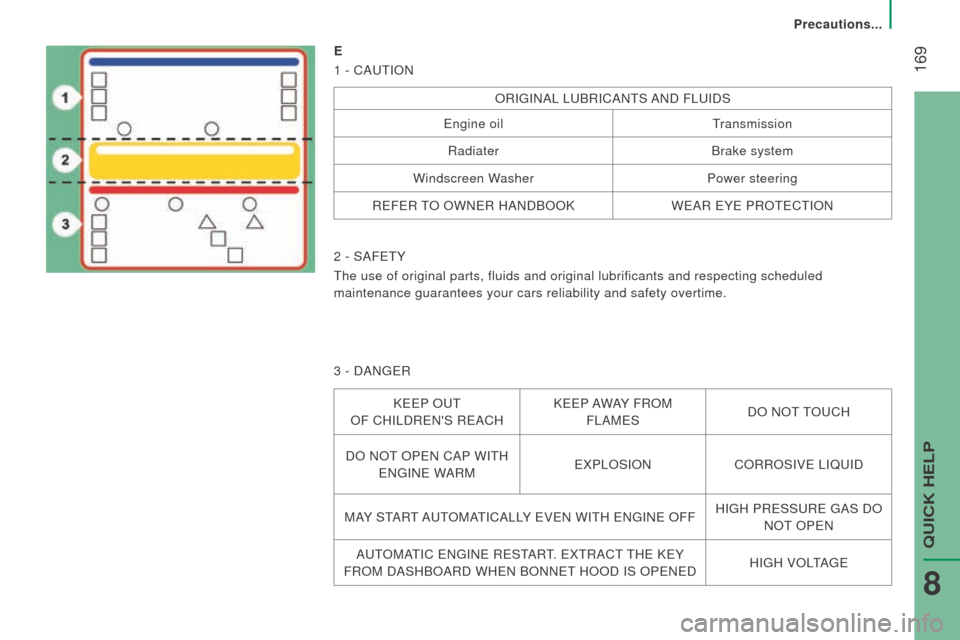

E
1 - CAut ION
ORIgINAL LuBRICANtS AND FLuIDS
e

ngine oil
transmission
Radiater Brake system
Windscreen W

asher Power steering
R
e
F
e
R
tO OWN

e
R HANDBOOK W
e AR e Y e PRO te C t ION
2 - SAF
et
Y
t

he use of original parts, fluids and original lubrificants and respectin\
g scheduled
maintenance guarantees your cars reliability and safety overtime.
3 - DAN
ge
R
KeeP Out
OF CHILDR e N'S R e ACHK
ee P AWAY FROM
FLAM e SDO NO
t tO u CH
DO NO
t
OP
e N CAP WI t H
e

N g IN e WARM
e
XPLOSIONCORROSIV
e LIQ u ID
MAY S
t
ARt
A ut
OMAt
ICALLY e V e N WI t H e N g IN e OFFHI
g H PR e SS u R e g AS DO
NO
t
OP
e N
A
ut
OMAt
IC e N g IN e R e S t
ARt.
e X t RAC t
t
H e K e Y
FROM DASHBOARD WH
e N BONN et
HOOD IS OP
e N e DHI
g H VOL
tA
ge
Precautions...
QuICK HeLP
8

198
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015

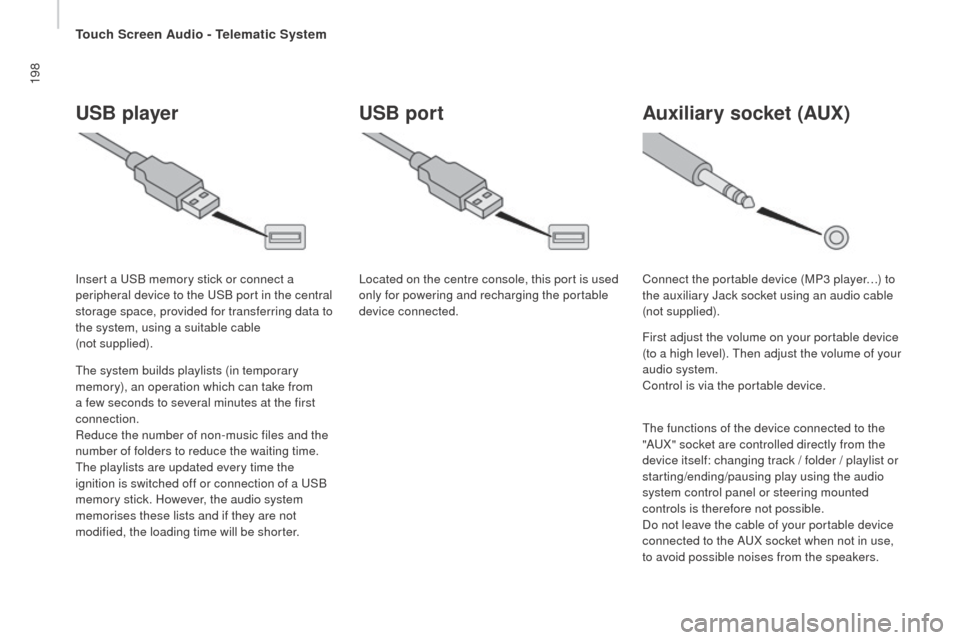

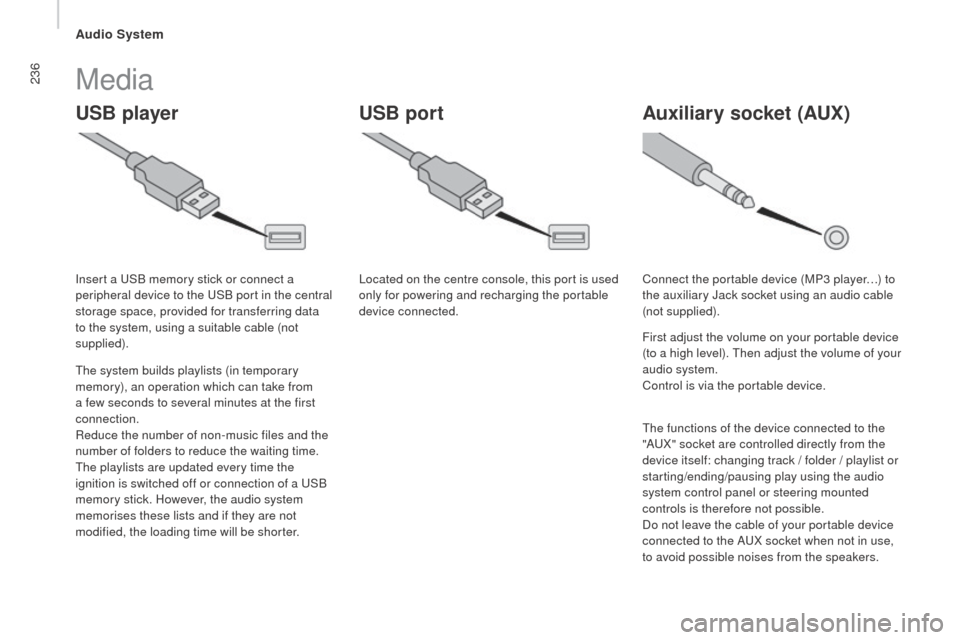

uSB player
the system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
th
e playlists are updated every time the
ignition is switched off or connection of a
u
S
B
memory stick. However, the audio system
memorises these lists and if they are not
modified, the loading time will be shorter. Insert a u
S
B memory stick or connect a
peripheral device to the u
S
B port in the central
storage space, provided for transferring data to
the system, using a suitable cable
(not supplied).
Auxiliary socket (Au x)
Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).
Located on the centre console, this port is used
only for powering and recharging the portable
device connected.
uSB port
First adjust the volume on your portable device
(to a high level).
th en adjust the volume of your
audio system.
Control is via the portable device.
th

e functions of the device connected to the
"A
uX

" socket are controlled directly from the
device itself: changing track / folder / playlist or
starting/ending/pausing play using the audio
system control panel or steering mounted
controls is therefore not possible.
Do not leave the cable of your portable device
connected to the A
uX s

ocket when not in use,
to avoid possible noises from the speakers.
touch Screen Audio - telematic System

236
boxer_en_Chap10b_Autoradio_Fiat-4_ed01-2015
uSB playerAuxiliary socket (Au x)uSB port
Media
the system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
th

e playlists are updated every time the
ignition is switched off or connection of a
u
S
B
memory stick. However, the audio system
memorises these lists and if they are not
modified, the loading time will be shorter. Insert a u
S
B memory stick or connect a
peripheral device to the u
S
B port in the central
storage space, provided for transferring data
to the system, using a suitable cable (not
supplied). Located on the centre console, this port is used
only for powering and recharging the portable
device connected.
Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).
First adjust the volume on your portable device
(to a high level).
t
h
en adjust the volume of your
audio system.
Control is via the portable device.
th

e functions of the device connected to the
"A
uX

" socket are controlled directly from the
device itself: changing track / folder / playlist or
starting/ending/pausing play using the audio
system control panel or steering mounted
controls is therefore not possible.
Do not leave the cable of your portable device
connected to the A
uX s

ocket when not in use,
to avoid possible noises from the speakers.
Audio System
