headlamp PEUGEOT BOXER DAG 2003 Owners Manual

17-11-2003
3YOUR BOXER AT A GLANCE
1 -Storage compartment.
2 - Left side vent.
3 - Lights and direction indicators stalk.
4 - Instrument dials.
5 - Windscreen wash-wipestalk.
6 - Gear lever.
7 - Central adjustable heating/ventilation vents and airflow regulation.
8 - Folding writing table.
9 - Audio equipment location orstorage compartment.
10 - Controls:
Ð Demisting of rear door
windows.
Ð Fog lamps.Ð Hazard lights.Ð Rear fog lamps.Ð ASR. 11 -
Storage tray.
12 - Upper glove box. Passenger air bag.
13 - Right side vent.
14 - Storage compartment.
15 - Right-hand fuse box.
16 - Storage compartment.
17 - Lower glove box.
18 - 12 V accessories socket.
19 - Heating/air conditioning controls.
20 - Storage compartment.
21 - Ashtray.
22 - Lighter. 23 -
Passenger air bag disarming switch*.
24 - Steering wheel adjustment control.
25 - Driver's air bag. Horn.
26 - Headlamp height adjustment.
27 - Bonnet release.
28 - Left-hand fuse box.
29 - Programmable heating.
* According to destination.

17-11-2003
Vehicles fitted with front fog lamps and a rear fog lampFront fog lamps. Rear fog lamps. WINDSCREEN WIPERS 4
Single wipe.
0 Off.
1 Intermittent wipe.
2 Normal wipe (moderate rain).
3 Rapid wipe (heavy rain).
Windscreen wash-wipe: pull thestalk towards you.
5YOUR BOXER AT A GLANCE
STEERING WHEEL
STALKS LIGHTING Front and rear lights
Lights off. Side lights. Dipped headlamps.
Main beam headlamps.
11 311 4

17-11-2003
PEUGEOT SERVICING25
A, B AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
: All driving conditions: Arduous conditions * According to country.
1st Level
Operations Description of operation serviceA B C Intermediate
DRAIN/REFILLÐ Engine oil Ð Bleed fuel filter (diesel) Ð Oil filter Ð Fuel filter* (petrol)REPLACEÐ Fuel filter element (diesel)Ð Air filter elementÐ Spark plugs (petrol)Ð Engine oil (check + top-up) Ð Battery (check + top-up) if cap is removable LEVELÐ Screen wash (check + top-up) Ð Coolant (check + top-up) Ð Brake fluid (check + top-up) Ð Power steering fluid (check + top up according to specification) Ð Operation of lights and indicators Ð Condition of glass, headlamp and light lenses and mirrors Ð Horn Ð Windscreen washer jets Ð Condition of wiper blades Ð Condition and tension of the ancillary drive belts Ð Handbrake and clutch Ð Condition of hydraulic circuits (hoses and covers) CHECKÐ Condition of rubber boots and gaiters Ð Brake pads Ð Play in hubs, link rods, ball joints, flexible mountingsÐ Shock absorbersÐ Rear drum brake lining wearÐ Condition and pressure of tyres (including spare wheel) Ð Emission control check as per current legislation (petrol) Ð Smoke opacity (diesel) Ð Passenger compartment filter (according to specification) Ð Visual check of the whole vehicle
SERVICE*Ð Courtesy vehicle
ROAD TEST

17-11-2003

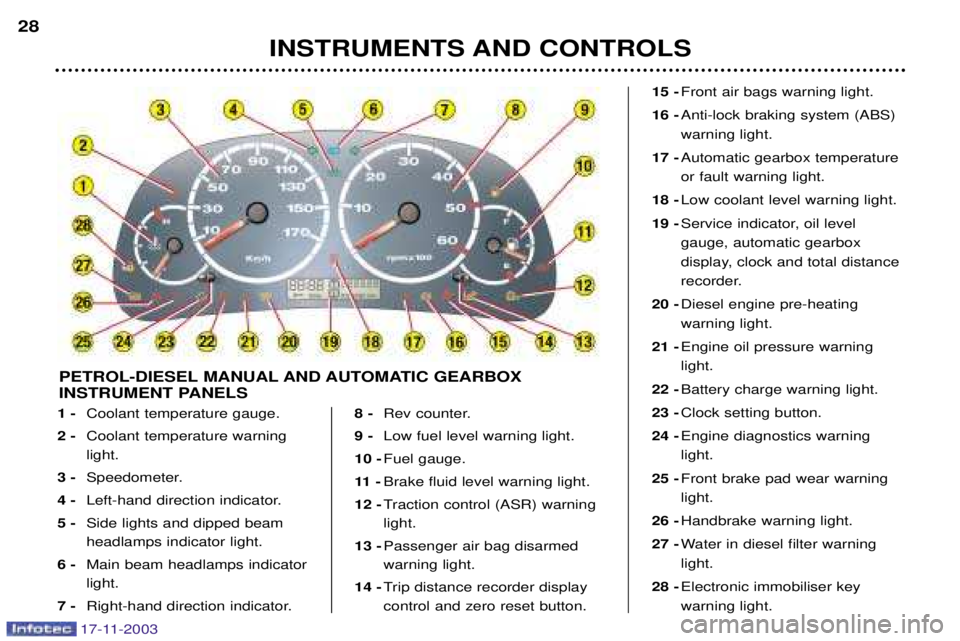

1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Speedometer.
4 - Left-hand direction indicator.
5 - Side lights and dipped beamheadlamps indicator light.
6 - Main beam headlamps indicatorlight.
7 - Right-hand direction indicator. 8 -
Rev counter.
9 - Low fuel level warning light.
10 - Fuel gauge.
11 - Brake fluid level warning light.
12 - Traction control (ASR) warninglight.
13 - Passenger air bag disarmedwarning light.
14 - Trip distance recorder displaycontrol and zero reset button. 15 -
Front air bags warning light.
16 - Anti-lock braking system (ABS) warning light.
17 - Automatic gearbox temperatureor fault warning light.
18 - Low coolant level warning light.
19 - Service indicator, oil levelgauge, automatic gearbox
display, clock and total distance
recorder.
20 - Diesel engine pre-heatingwarning light.
21 - Engine oil pressure warninglight.
22 - Battery charge warning light.
23 - Clock setting button.
24 - Engine diagnostics warninglight.
25 - Front brake pad wear warninglight.
26 - Handbrake warning light.
27 - Water in diesel filter warninglight.
28 - Electronic immobiliser keywarning light.
INSTRUMENTS AND CONTROLS
28
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

17-11-2003
YOUR BOXER IN DETAIL113
THE LIGHTS STALK Front and rear lights Selection is by turning the ring.
Lights off Side lights Dipped headlamps
Main beam headlamps Dipped/Main beam change Push the stalk forwards to switch on the main beam headlamps. Pull the stalk towards you to switch
them off. Note:
with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps Press the button in the centre of the
fascia panel. The warning light onthe button comes on. The front fog lamps operate with the dipped and main beam headlamps. Direction indicators (flashers)
Left: downwards.
Right: upwards.
Rear fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The rear fog lamps operate with the dipped and main beam headlamps.
In good or rainy weather, both day and night, therear fog lamps are daz-zling and are prohibited. Do not forget to switch the
fog lamps off when they are no longer needed.

17-11-2003
YOUR BOXER IN DETAIL
114

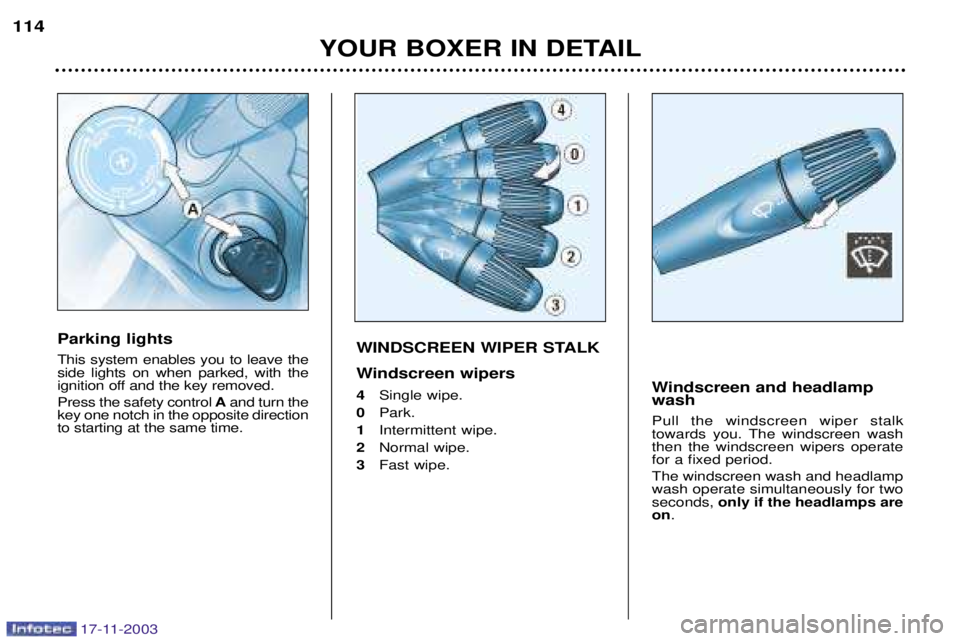

WINDSCREEN WIPER STALK
Windscreen wipers 4
Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and headlamp wash operate simultaneously for twoseconds, only if the headlamps are
on .
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

17-11-2003
YOUR BOXER IN DETAIL
114
WINDSCREEN WIPER STALK
Windscreen wipers 4
Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and headlamp wash operate simultaneously for twoseconds, only if the headlamps are
on .
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

17-11-2003
YOUR BOXER IN DETAIL117

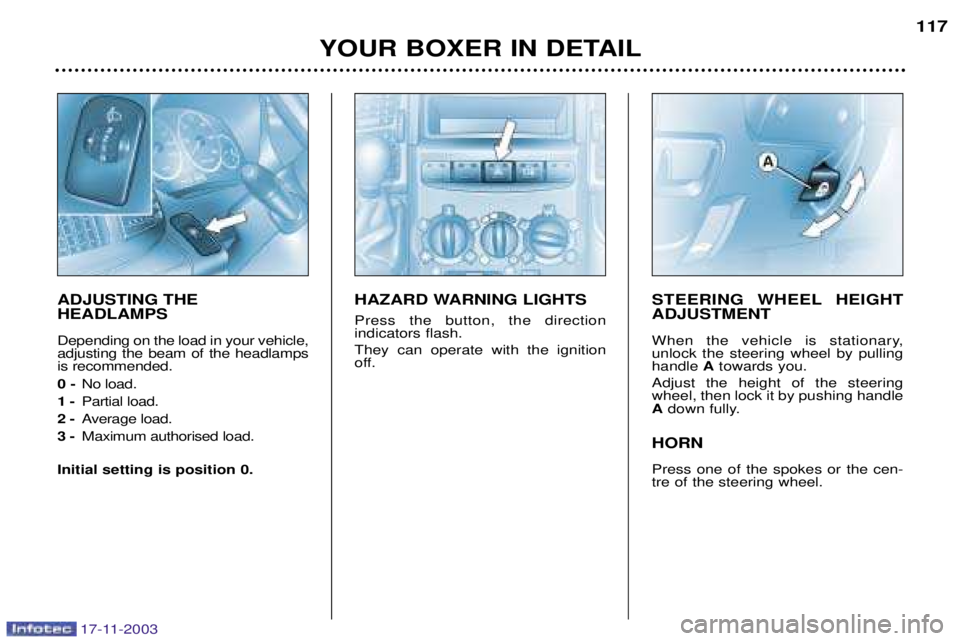

ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of the headlampsis recommended. 0 -
No load.
1 - Partial load.
2 - Average load.
3 - Maximum authorised load.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indicators flash. They can operate with the ignition
off.
STEERING WHEEL HEIGHT ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
Atowards you.
Adjust the height of the steeringwheel, then lock it by pushing handleA down fully.
HORN Press one of the spokes or the cen- tre of the steering wheel.

17-11-2003

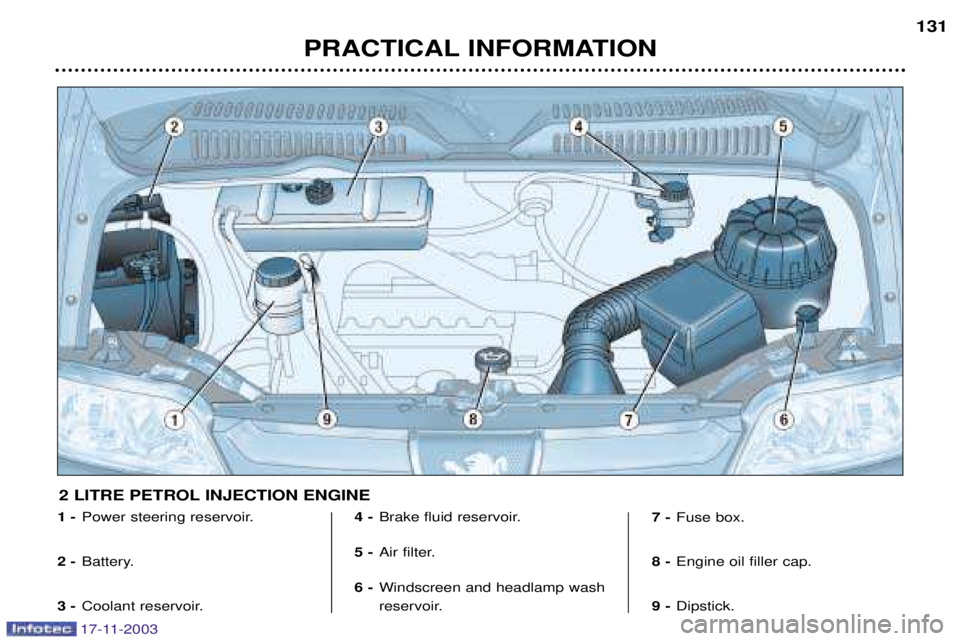

PRACTICAL INFORMATION131
1 -
Power steering reservoir.
2 - Battery.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Air filter.
6 - Windscreen and headlamp wash
reservoir. 7 -
Fuse box.
8 - Engine oil filler cap.
9 - Dipstick.
2 LITRE PETROL INJECTION ENGINE

17-11-2003

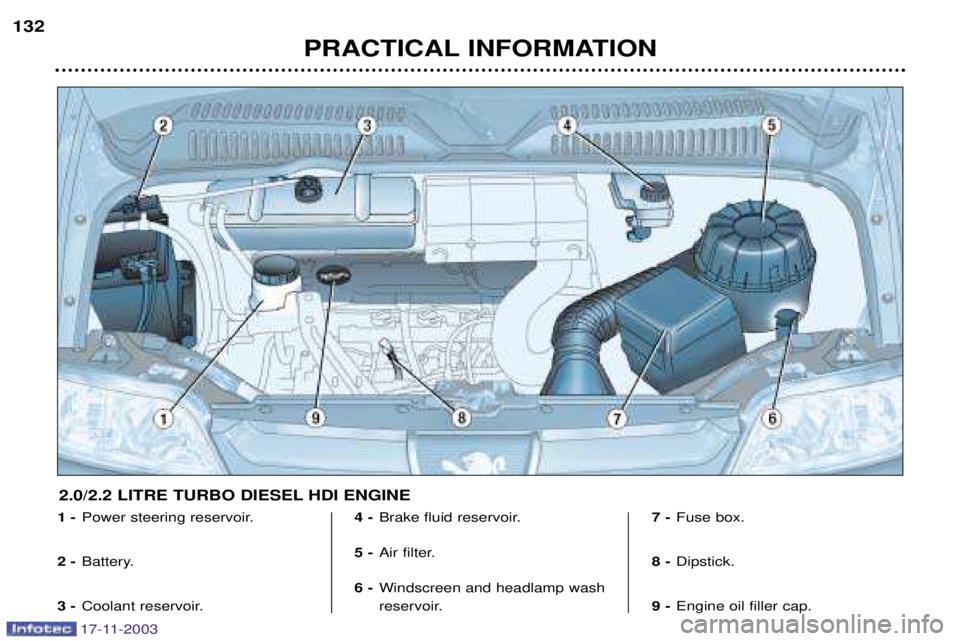

PRACTICAL INFORMATION
132
1 -
Power steering reservoir.
2 - Battery.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Air filter.
6- Windscreen and headlamp wash
reservoir. 7 -
Fuse box.
8 - Dipstick.
9 - Engine oil filler cap.
2.0/2.2 LITRE TURBO DIESEL HDI ENGINE
