FRONT DOORS AND SLIDING
SIDE DOOR

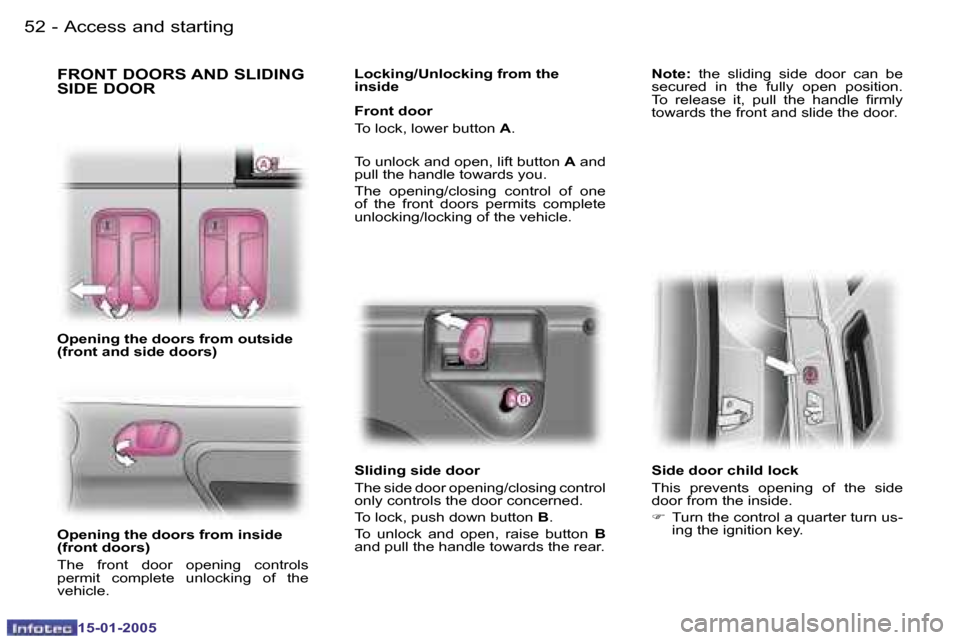

Opening the doors from outside
(front and side doors)
Opening the doors from inside
(front doors)
The front door opening controls
permit complete unlocking of the
vehicle. Locking/Unlocking from the
inside
Front door
To lock, lower button
A.
To unlock and open, lift button A and
pull the handle towards you.
The opening/closing control of one
of the front doors permits complete
unlocking/locking of the vehicle.
Sliding side door
The side door opening/closing control
only controls the door concerned.
To lock, push down button B.
To unlock and open, raise button B
and pull the handle towards the rear. Note:
the sliding side door can be
secured in the fully open position.
To release it, pull the handle irmly
towards the front and slide the door.
Side door child lock
This prevents opening of the side
door from the inside. F Turn the control a quarter turn us-
ing the ignition key.
Access and starting

52 -
15-01-2005
53
-
15-01-2005
HINGED REAR DOORS

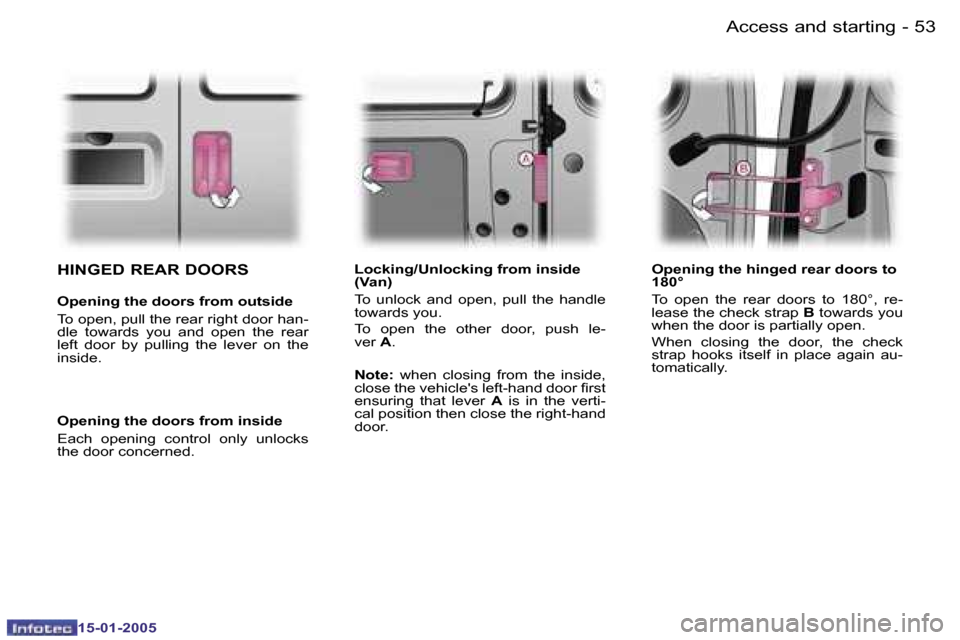

Opening the doors from outside
To open, pull the rear right door han-
dle towards you and open the rear
left door by pulling the lever on the
inside. Locking/Unlocking from inside
(Van)
To unlock and open, pull the handle
towards you.
To open the other door, push le-
ver
A.
Note: when closing from the inside,
close the vehicle's left-hand door irst
ensuring that lever A is in the verti-
cal position then close the right-hand
door. Opening the hinged rear doors to
180°
To open the rear doors to 180°, re-
lease the check strap
B towards you
when the door is partially open.
When closing the door, the check
strap hooks itself in place again au-
tomatically.
Opening the doors from inside
Each opening control only unlocks
the door concerned.
Access and starting

54 -
15-01-2005
55
-
15-01-2005

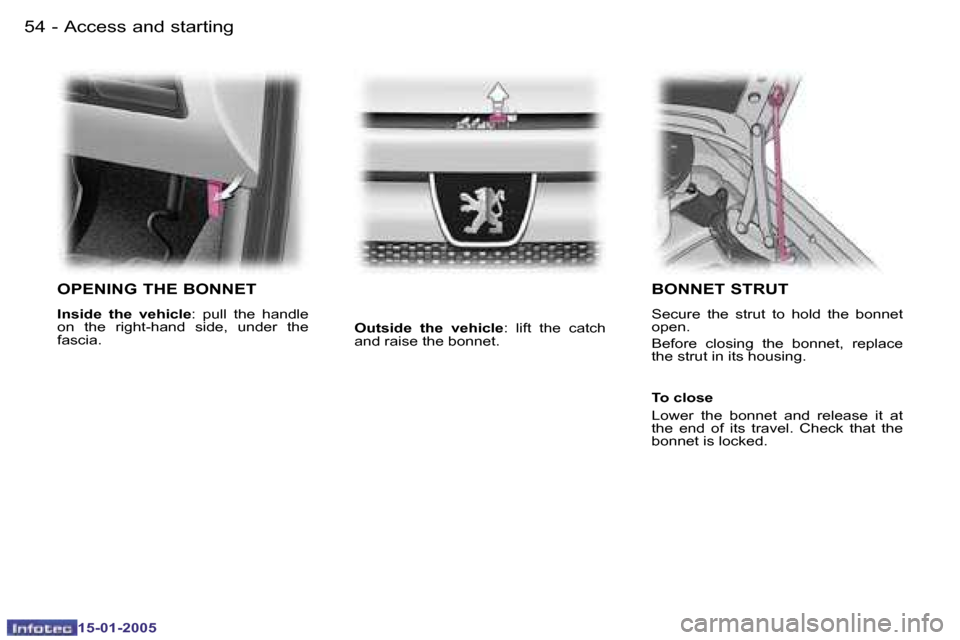

OPENING THE BONNET
Inside the vehicle
: pull the handle
on the right-hand side, under the
fascia.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
Outside the vehicle
: lift the catch
and raise the bonnet.
Access and starting

54 -
15-01-2005
55
-
15-01-2005

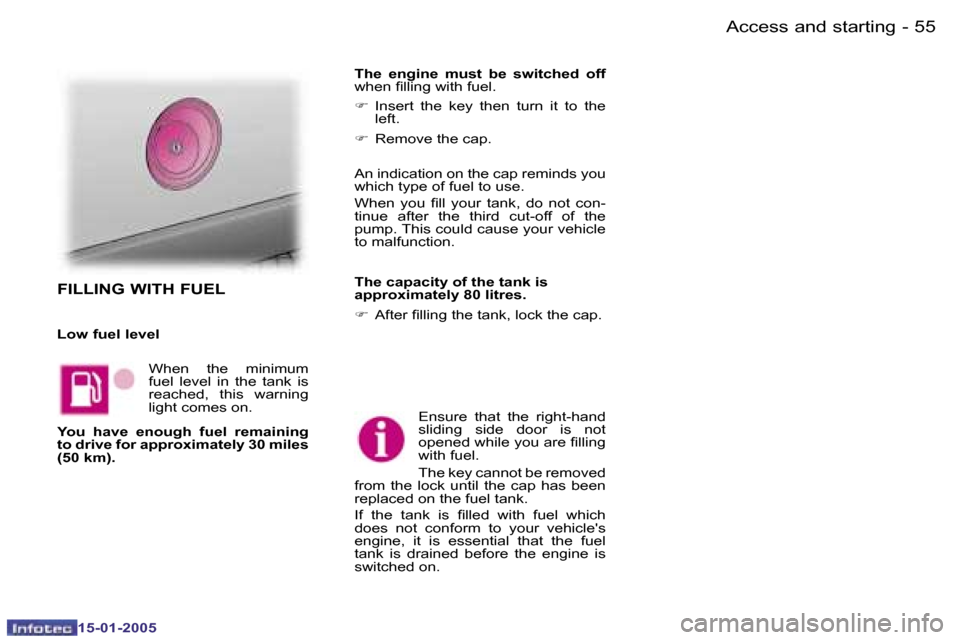

FILLING WITH FUEL
The engine must be switched off

when illing with fuel.
F Insert the key then turn it to the
left.
F Remove the cap.
An indication on the cap reminds you
which type of fuel to use.
When you ill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is
approximately 80 litres.
F After illing the tank, lock the cap.
Low fuel level
When the minimum
fuel level in the tank is
reached, this warning
light comes on.
You have enough fuel remaining
to drive for approximately 30 miles
(50 km). Ensure that the right-hand
sliding side door is not
opened while you are illing
with fuel.
The key cannot be removed
from the lock until the cap has been
replaced on the fuel tank.
If the tank is illed with fuel which
does not conform to your vehicle's
engine, it is essential that the fuel
tank is drained before the engine is
switched on.
Access and starting

56 -
15-01-2005
57
-
15-01-2005
In good or rainy weather,
both day and night, the
front fog lamps and the rear
fog lamp are dazzling and
are prohibited.
Do not forget to switch them off when
they are no longer needed.

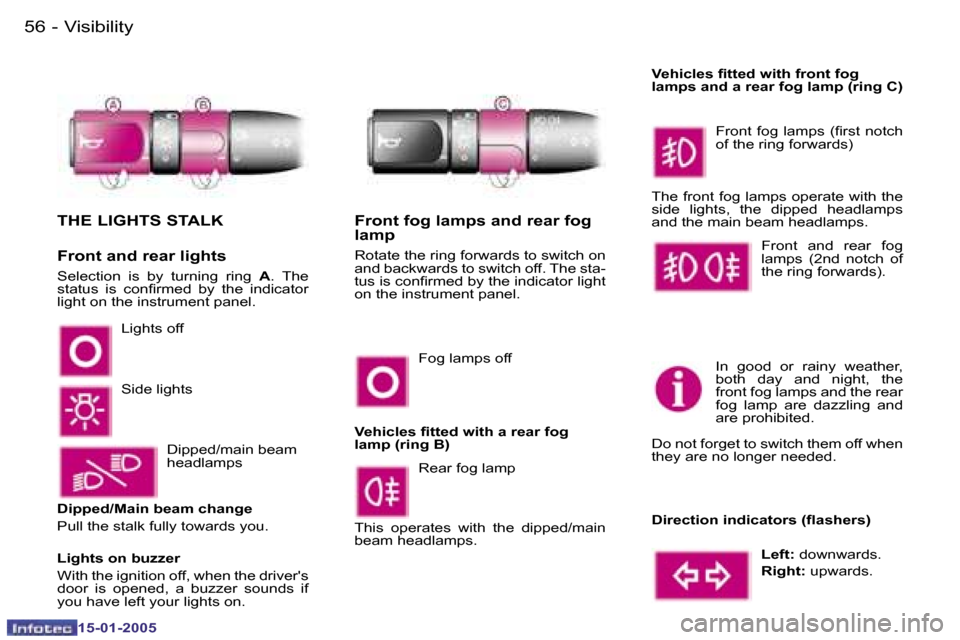

THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A. The
status is conirmed by the indicator
light on the instrument panel.
Lights off
Side lights
Dipped/main beam
headlamps
Dipped/Main beam change
Pull the stalk fully towards you.
Lights on buzzer
With the ignition off, when the driver's
door is opened, a buzzer sounds if
you have left your lights on.
Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
tus is conirmed by the indicator light
on the instrument panel.
Fog lamps off
Vehicles itted with a rear fog
lamp (ring B) Rear fog lamp
This operates with the dipped/main
beam headlamps. The front fog lamps operate with the
side lights, the dipped headlamps
and the main beam headlamps.
Front and rear fog
lamps (2nd notch of
the ring forwards).
Front fog lamps (irst notch
of the ring forwards)
Vehicles itted with front fog
lamps and a rear fog lamp (ring C)
Direction indicators (lashers)
Left: downwards.
Right: upwards.
Visibility

56 -
15-01-2005
57
-
15-01-2005
When using a car wash,
switch off the ignition or
check that the windscreen
wipers stalk is in position
0
-Off.
In winter, you are advised to wait un-
til the windscreen has been de-iced
fully before operating the windscreen
wipers stalk.

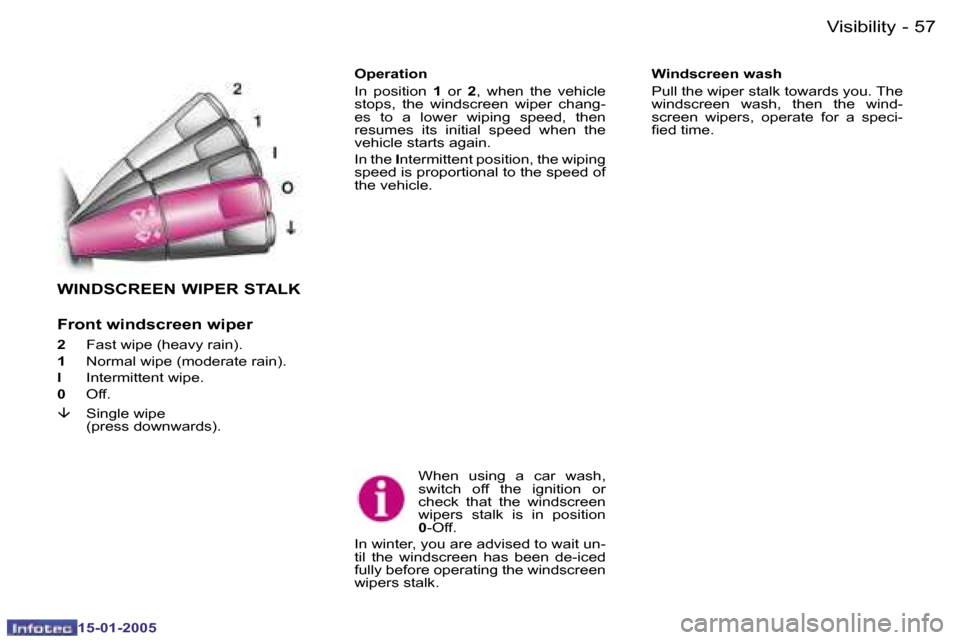

WINDSCREEN WIPER STALK
Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
â Single wipe
(press downwards). Operation
In position
1 or 2, when the vehicle
stops, the windscreen wiper chang-
es to a lower wiping speed, then
resumes its initial speed when the
vehicle starts again.
In the Intermittent position, the wiping
speed is proportional to the speed of
the vehicle. Windscreen wash
Pull the wiper stalk towards you.
The
windscreen wash, then the wind-
screen wipers, operate for a speci-
ied time.
Visibility

58 -
15-01-2005
59
-
15-01-2005

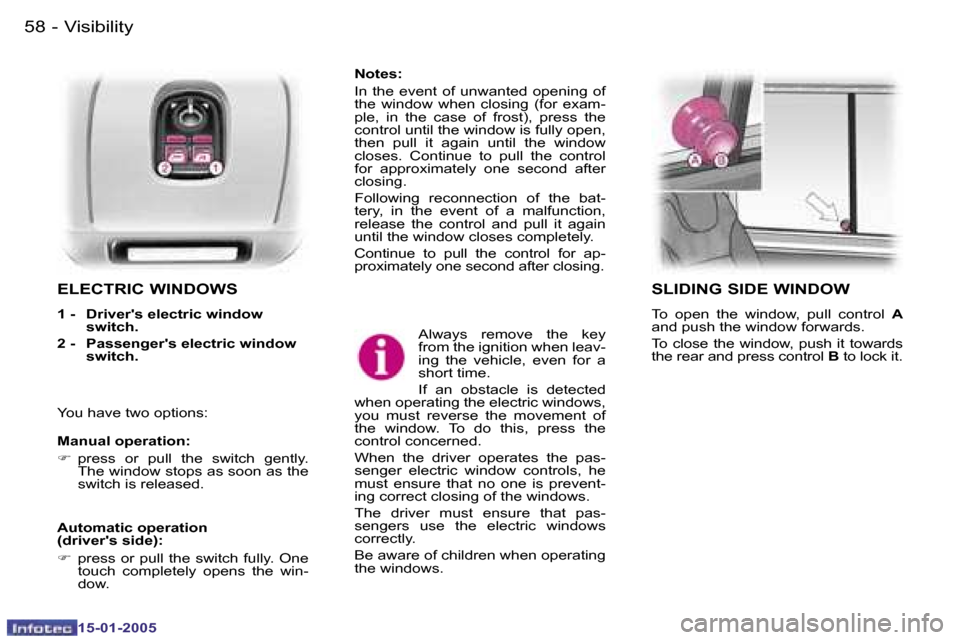

ELECTRIC WINDOWS
1 - Driver's electric window
switch.
2 - Passenger's electric window switch.
SLIDING SIDE WINDOW
To open the window, pull control A
and push the window forwards.
To close the window, push it towards
the rear and press control B to lock it.
Always remove the key
from the ignition when leav-
ing the vehicle, even for a
short time.
If an obstacle is detected
when operating the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the pas-
senger electric window controls, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Notes:
In the event of unwanted opening of
the window when closing (for exam-
ple, in the case of frost), press the
control until the window is fully open,
then pull it again until the window
closes. Continue to pull the control
for approximately one second after
closing.
Following reconnection of the bat-
tery, in the event of a malfunction,
release the control and pull it again
until the window closes completely.
Continue to pull the control for ap-
proximately one second after closing.
Automatic operation
(driver's side):
F press or pull the switch fully. One
touch completely opens the win-
dow.
You have two options:
Manual operation:
F
press or pull the switch gently.
The window stops as soon as the
switch is released.
Visibility

58 -
15-01-2005
59
-
15-01-2005

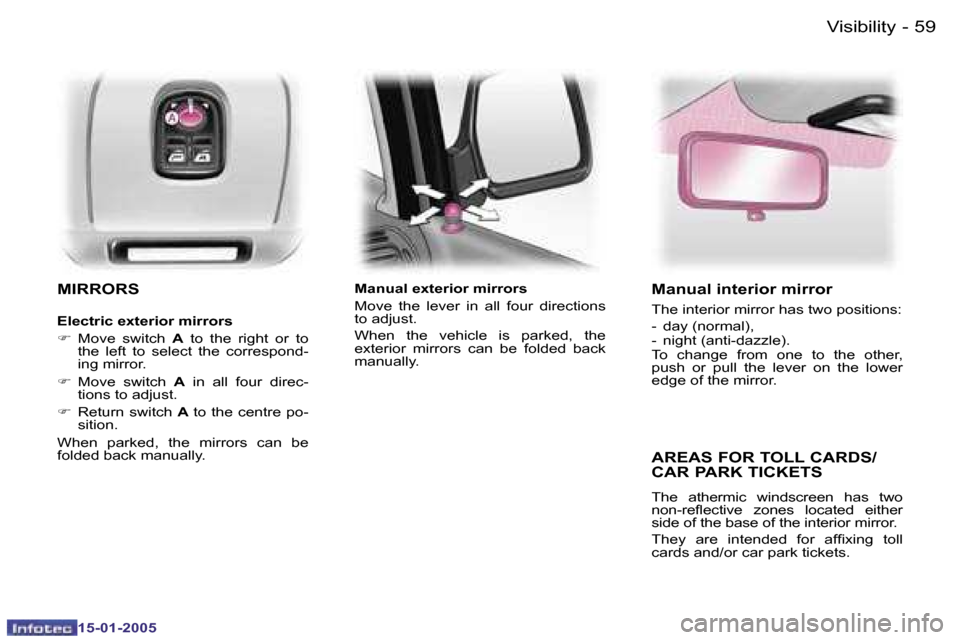

MIRRORS
Electric exterior mirrors F
Move switch A to the right or to
the left to select the correspond-
ing mirror.
F Move switch A in all four direc-
tions to adjust.
F Return switch A to the centre po-
sition.
When parked, the mirrors can be
folded back manually. Manual exterior mirrors
Move the lever in all four directions
to adjust.
When the vehicle is parked, the
exterior mirrors can be folded back
manually.
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
AREAS FOR TOLL CARDS/
CAR PARK TICKETS
The athermic windscreen has two
non-relective zones located either
side of the base of the interior mirror.
They are intended for afixing toll
cards and/or car park tickets.
Visibility

60 -
15-01-2005
61
-
15-01-2005

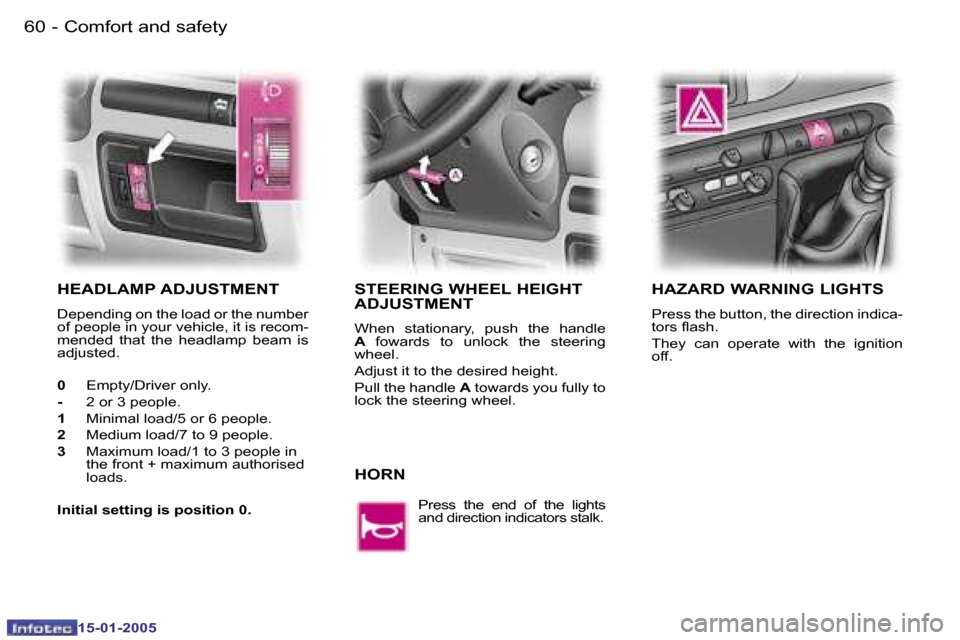

HEADLAMP ADJUSTMENT
Depending on the load or the number
of people in your vehicle, it is recom-
mended that the headlamp beam is
adjusted.
0
Empty/Driver only.
- 2 or 3 people.
1 Minimal load/5 or 6 people.
2 Medium load/7 to 9 people.
3 Maximum load/1 to 3 people in
the front + maximum authorised
loads.
Initial setting is position 0.
STEERING WHEEL HEIGHT
ADJUSTMENT
When stationary, push the handle
A fowards to unlock the steering
wheel.
Adjust it to the desired height.
Pull the handle A towards you fully to
lock the steering wheel.
HAZARD WARNING LIGHTS
Press the button, the direction indica-
tors lash.
They can operate with the ignition
off.
HORN
Press the end of the lights
and direction indicators stalk.
Comfort and safety

60 -
15-01-2005
61
-
15-01-2005

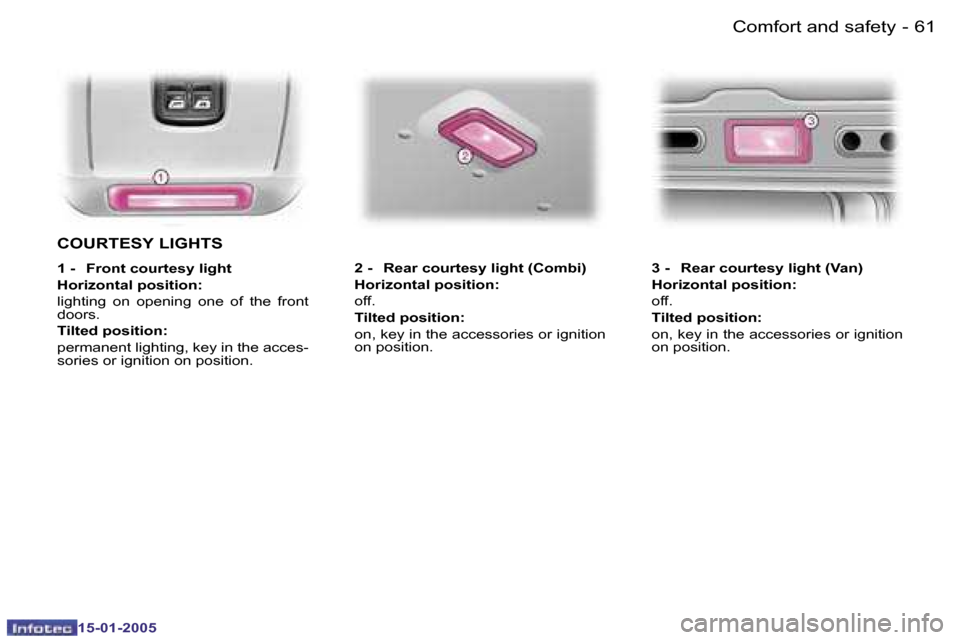

COURTESY LIGHTS
1 - Front courtesy light
Horizontal position:
lighting on opening one of the front
doors.
Tilted position:
permanent lighting, key in the acces-
sories or ignition on position. 2 - Rear courtesy light (Combi)
Horizontal position:
off.
Tilted position:
on, key in the accessories or ignition
on position.
3 - Rear courtesy light (Van)
Horizontal position:
off.
Tilted position:
on, key in the accessories or ignition
on position.
Comfort and safety
