Page 111 of 113

Peugeot Expert Dag 2006 Owners Manual �T�e�c�h�n�i�c�a�l� �d�a�t�a�1�0�6 �-
�I�N�T�E�R�I�O�R� �D�I�M�E�N�S�I�O�N�S� �(�i�n� �m�m�)
�V�e�r�s�i�o�n �V�a�n
�W�h�e�e�l�b�a�s�e �N�o�r�m�a�l �E�x�t�e�n�d�e�d �J �2� �0�5�0 �2� �4�5�0
�K �1� �2�9

Technical data106 -

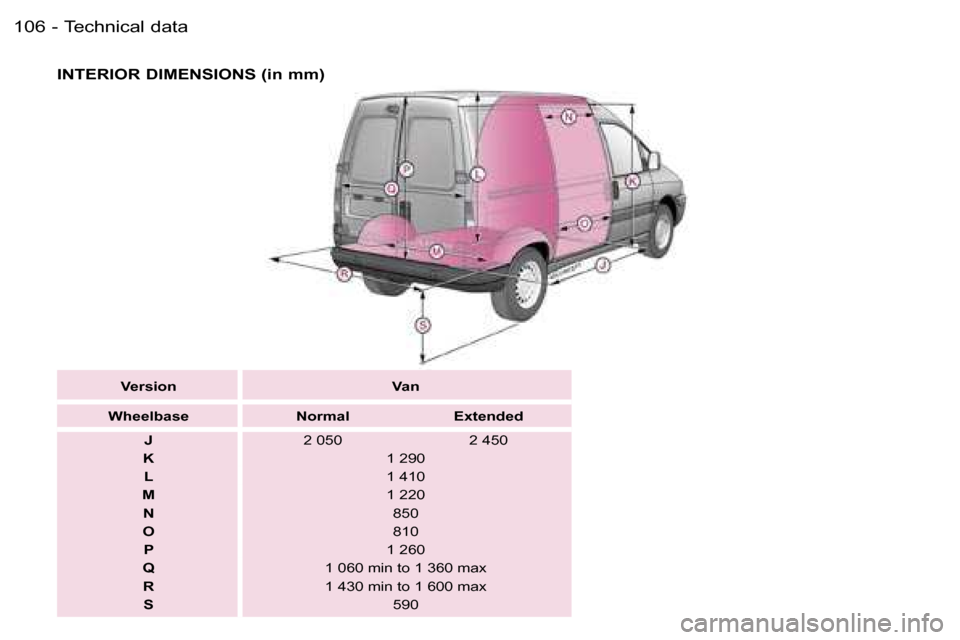

INTERIOR DIMENSIONS (in mm)
Version Van
Wheelbase Normal Extended J 2 050 2 450
K 1 290
L 1 410
M 1 220
N 850
O 810
P 1 260
Q 1 060 min to 1 360 max
R 1 430 min to 1 600 max
S 590

Page 112 of 113

Peugeot Expert Dag 2006 Owners Manual �1�0�7�T�e�c�h�n�i�c�a�l� �d�a�t�a�-
�I�N�T�E�R�I�O�R� �D�I�M�E�N�S�I�O�N�S� �(�i�n� �m�m�)
�V�e�r�s�i�o�n�C�o�m�b�i
�N�u�m�b�e�r� �o�f� �s�e�a�t�s �5�-�6 �7�-�8�-�9
�D�i�m�e�n�s�i�o�n�s� �o�f� �t�h�e

107Technical data-

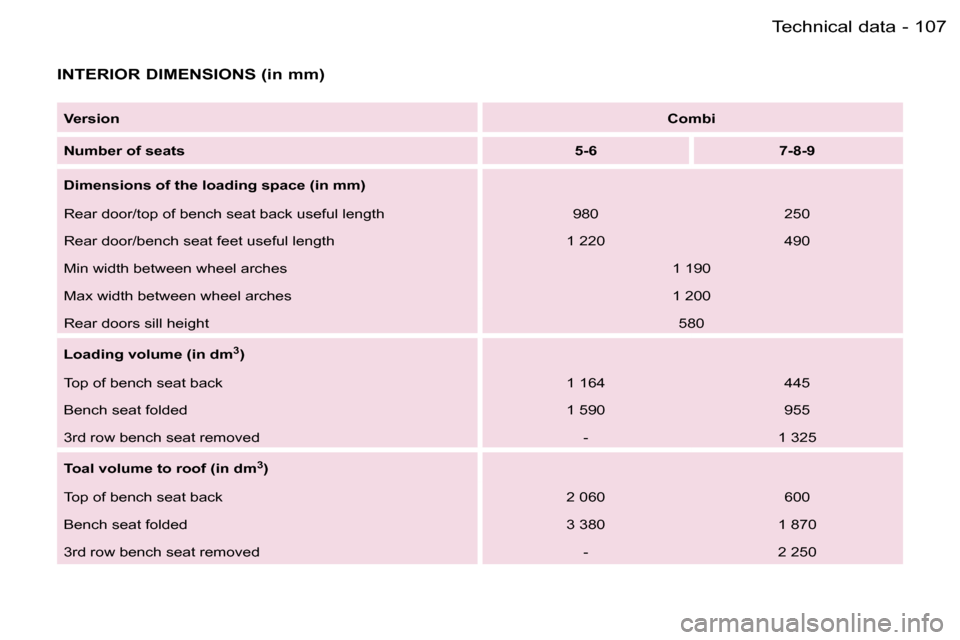

INTERIOR DIMENSIONS (in mm)
VersionCombi
Number of seats 5-6 7-8-9
Dimensions of the loading space (in mm)
Rear door/top of bench seat back useful length 980 250
Rear door/bench seat feet useful length 1 220 490
Min width between wheel arches 1 190
Max width between wheel arches 1 200
Rear doors sill height 580
Loading volume (in dm
3)
Top of bench seat back 1 164 445
Bench seat folded 1 590 955
3rd row bench seat removed - 1 325
Toal volume to roof (in dm
3)
Top of bench seat back 2 060 600
Bench seat folded 3 380 1 870
3rd row bench seat removed - 2 250

Page 113 of 113

Peugeot Expert Dag 2006 Owners Manual �T�e�c�h�n�i�c�a�l� �d�a�t�a�1�0�8 �-
�T�H�E� �I�D�E�N�T�I�F�I�C�A�T�I�O�N�
�F�E�A�T�U�R�E�S� �O�F� �Y�O�U�R�
�E�X�P�E�R�T
�A�.� �M�a�n�u�f�a�c�t�u�r�e�r��s� �p�l�a�t�e�.
� �A�f�ﬁ�x�e�d �t�o �

Technical data108 -

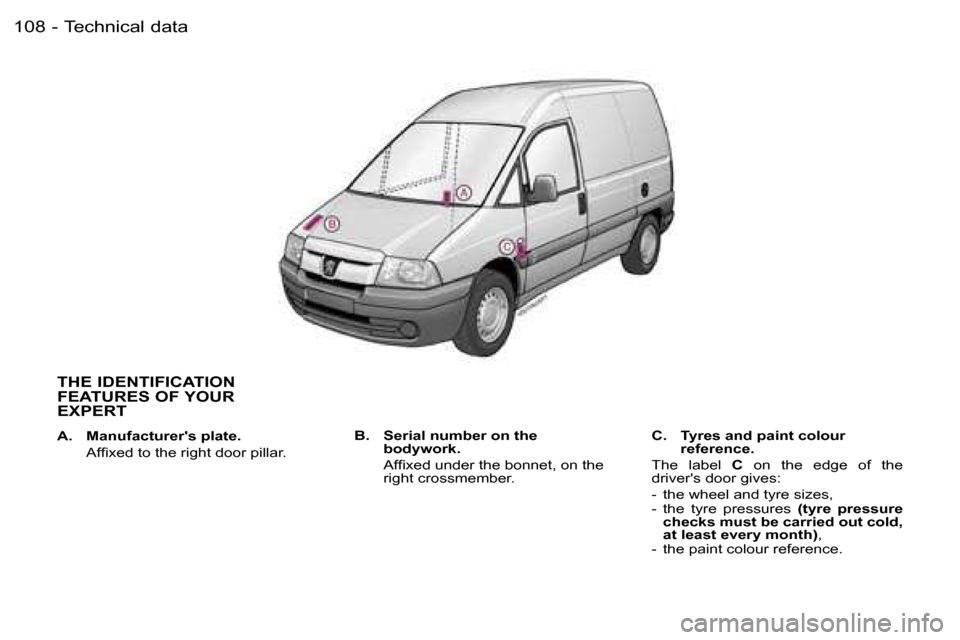

THE IDENTIFICATION
FEATURES OF YOUR
EXPERT
A. Manufacturer's plate.
Afﬁxed to the right door pillar. B. Serial number on the
bodywork.
Afﬁxed under the bonnet, on the
right crossmember. C. Tyres and paint colour
reference.
The label C on the edge of the
driver's door gives:
- the wheel and tyre sizes,
- the tyre pressures (tyre pressure
checks must be carried out cold,
at least every month) ,
- the paint colour reference.
