Changing a bulb
QUICK HEL
P
7

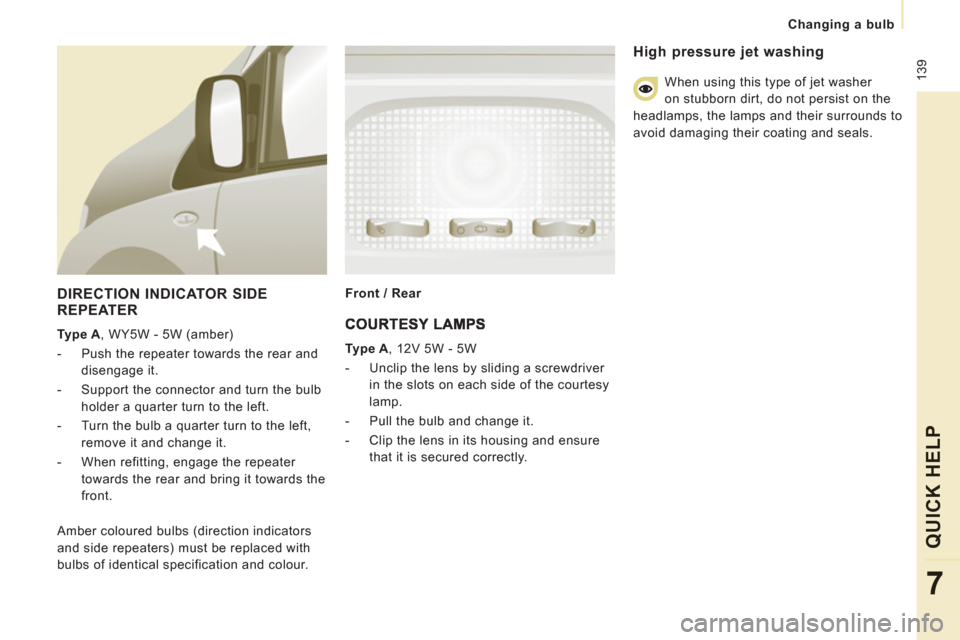

DIRECTION INDICATOR SIDEREPEATER


Type A
, WY5W - 5W (amber)


- Push the repeater towards the rear and
disengage it.

- Support the connector and turn the bulb
holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,
remove it and change it.

- When refitting, engage the repeater
towards the rear and bring it towards the
front.
Front / Rear

Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
Type A
, 12V 5W - 5W


- Unclip the lens by sliding a screwdriver
in the slots on each side of the courtesy
lamp.

- Pull the bulb and change it.

- Clip the lens in its housing and ensure
that it is secured correctly.


High pressure jet washing

When using this type of jet washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their surrounds to
avoid damaging their coating and seals.

140


Changing a bulb

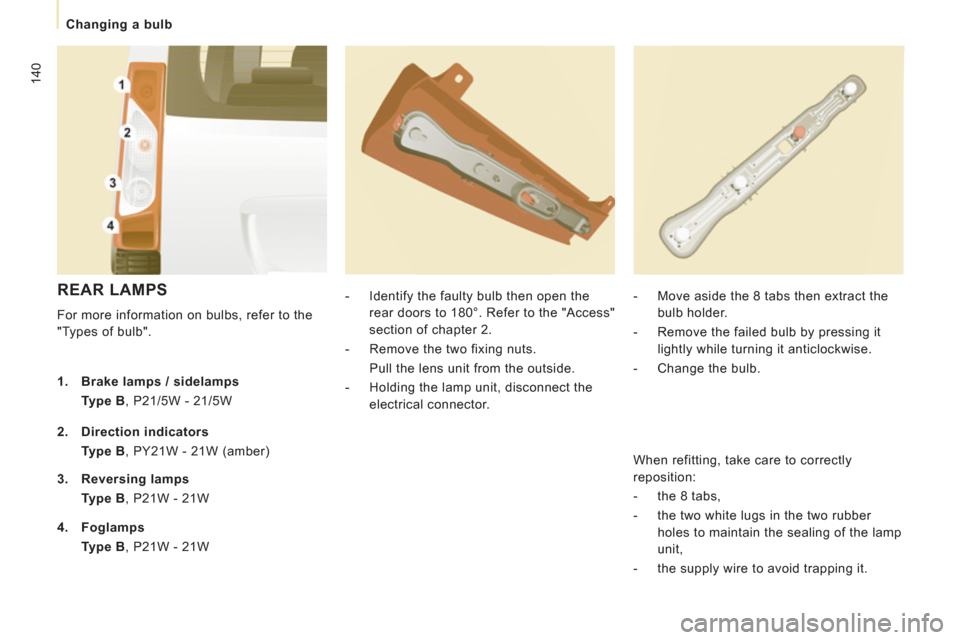

REAR LAMPS

For more information on bulbs, refer to the
"Types of bulb".

- Identify the faulty bulb then open the
rear doors to 180°. Refer to the "Access"
section of chapter 2.

- Remove the two fixing nuts.
Pull the lens unit from the outside.

- Holding the lamp unit, disconnect the
electrical connector.
- Move aside the 8 tabs then extract the
bulb holder.

- Remove the failed bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.


1.
Brake
lamps
/
sidelamps
Type B
, P21/5W - 21/5W

2.
Direction indicators

Type B
, PY21W - 21W (amber)

3.
Reversing
lamps
Type B
, P21W - 21W

4.
Foglamps
Type B
, P21W - 21W When refitting, take care to correctly
reposition:


- the 8 tabs,

- the two white lugs in the two rubber
holes to maintain the sealing of the lamp
unit,

- the supply wire to avoid trapping it.

Changing a bulb
QUICK HEL
P
7

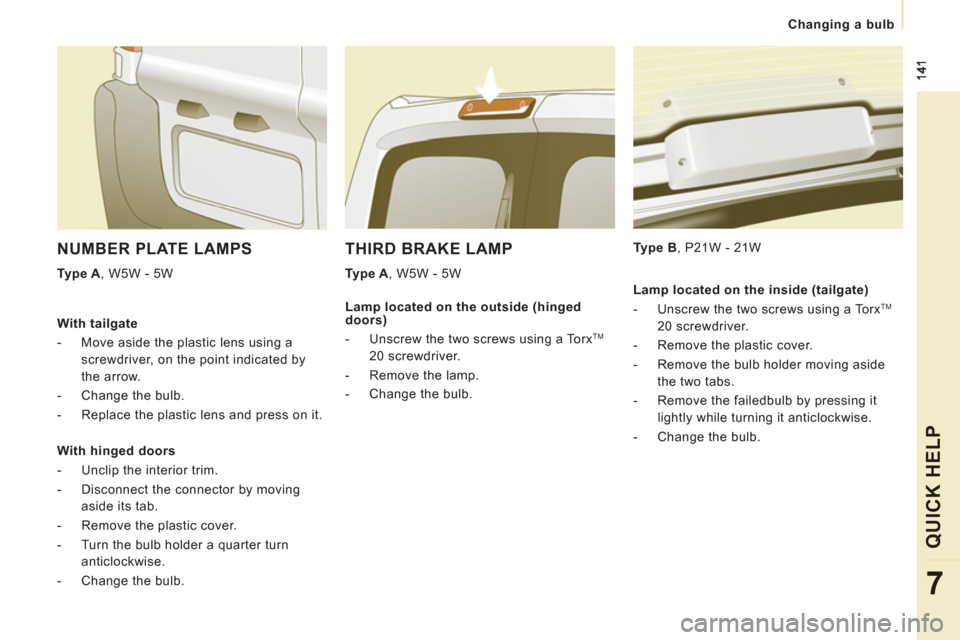

THIRD BRAKE LAMP

Type A
, W5W - 5W
Type B
, P21W - 21W

NUMBER PLATE LAMPS


Type A
, W5W - 5W

With tailgate


- Move aside the plastic lens using a
screwdriver, on the point indicated by
the arrow.

- Change the bulb.

- Replace the plastic lens and press on it.


With hinged doors


- Unclip the interior trim.

- Disconnect the connector by moving
aside its tab.

- Remove the plastic cover.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.


Lamp located on the outside (hinged
doors)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the lamp.

- Change the bulb.
Lamp located on the inside (tailgate)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the plastic cover.

- Remove the bulb holder moving aside
the two tabs.

- Remove the failedbulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

142


Changing a fuse

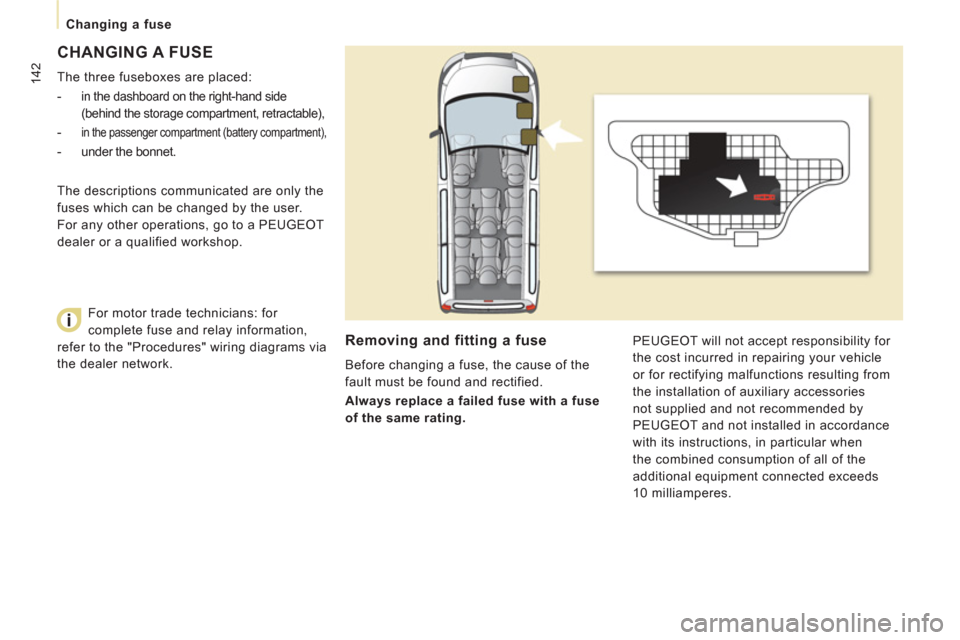

CHANGING A FUSE

The three fuseboxes are placed:


-
in the dashboard on the right-hand side
(behind the storage compartment, retractable),

- in the passenger compartment (battery compartment),


- under the bonnet.
Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.

Always replace a
failed
fuse with a fuse
of the same rating. PEUGEOT will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting from
the installation of auxiliary accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade technicians: for
complete fuse and relay information,
refer to the "Procedures" wiring diagrams via
the dealer network.

143
Changing a fuse
QUICK HEL
P
7

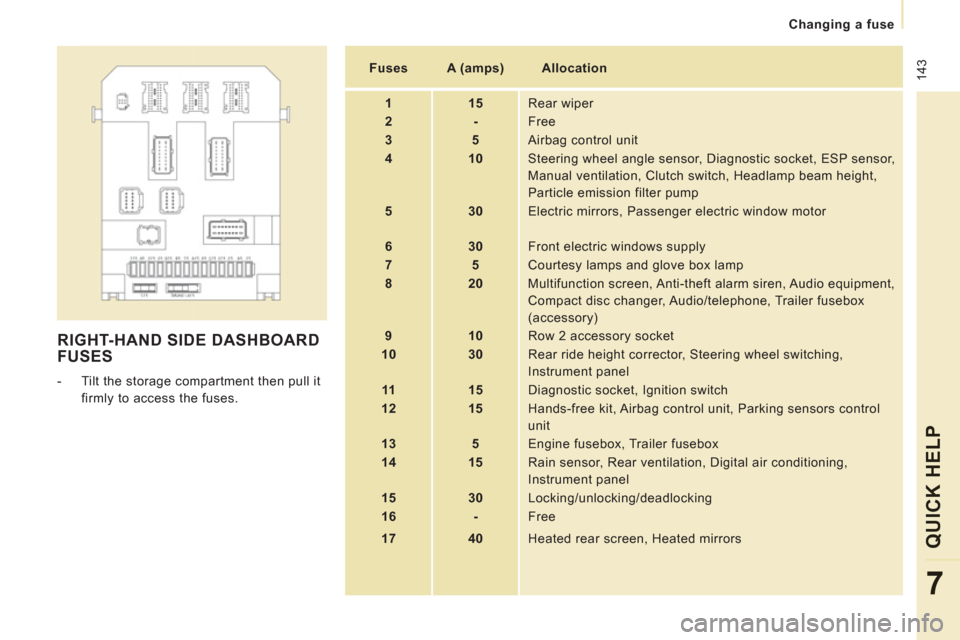

RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)


9


10
Row 2 accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Rear ventilation, Digital air conditioning,
Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors

144


Changing a fuse

PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


20
Row 3 12 V socket


3


40/50
Trailer fusebox (accessory)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


10
Rear ventilation


40


5
Folding mirrors

145
Changing a fuse
QUICK HEL
P
7

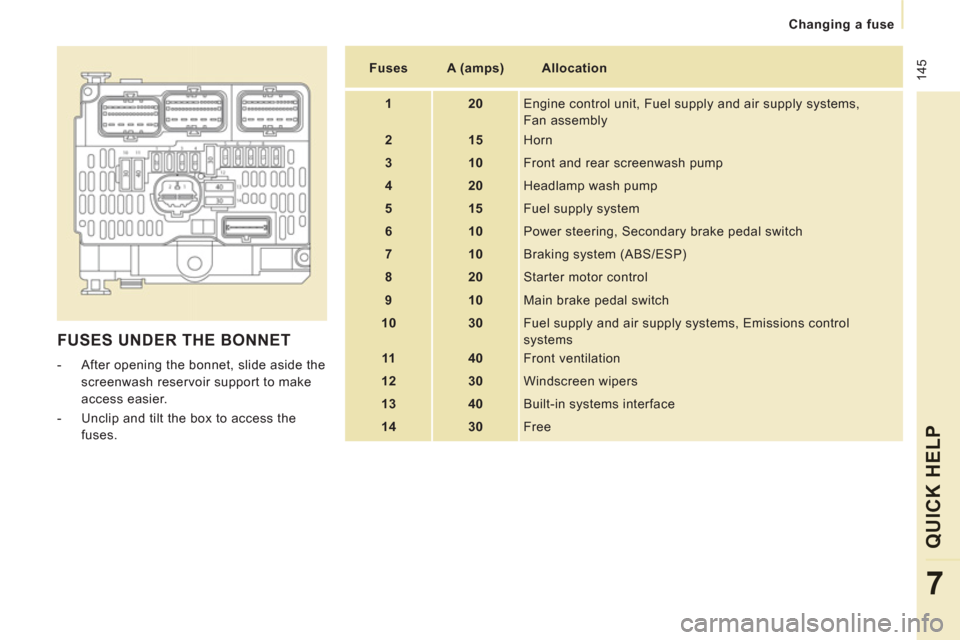

FUSES UNDER THE BONNET



- After opening the bonnet, slide aside the
screenwash reservoir support to make
access easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control
systems

11


40
Front ventilation


12


30
Windscreen wipers


13


40
Built-in systems interface


14


30
Free

146

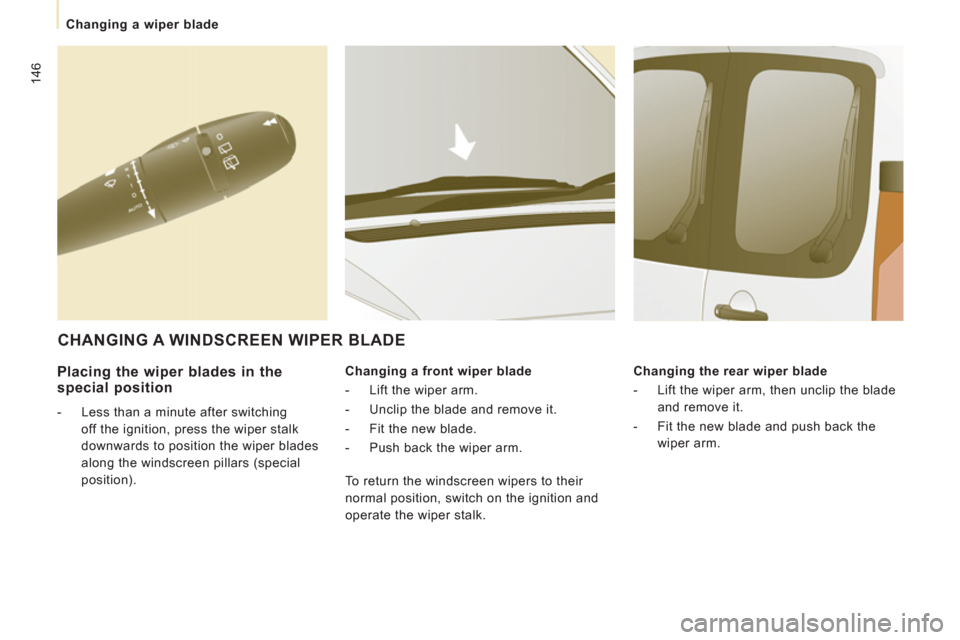

Changing a wiper blade



Placing the wiper blades in the
special position


- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper blades
along the windscreen pillars (special
position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the blade
and remove it.

- Fit the new blade and push back the
wiper arm.


CHANGING A WINDSCREEN WIPER BLADE

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wiper stalk.

147


Having your vehicle towed
QUICK HEL
P
7


Without lifting (4 wheels on the ground)

You should always use a towing bar.


From the front



- Unclip the cover by pressing at the
bottom,

- Fully screw in the removable towing eye.

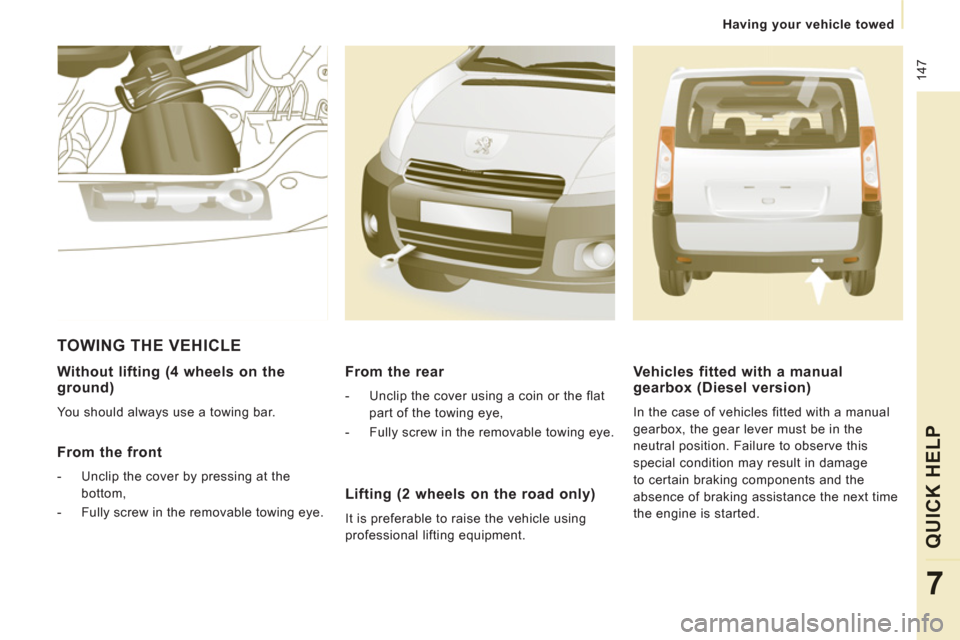

TOWING THE VEHICLE
Lifting (2 wheels on the road only)

It is preferable to raise the vehicle using
professional lifting equipment.
From the rear



- Unclip the cover using a coin or the flat
part of the towing eye,

- Fully screw in the removable towing eye.


Vehicles fitted with a manual gearbox (Diesel version)

In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

148


Having your vehicle towed

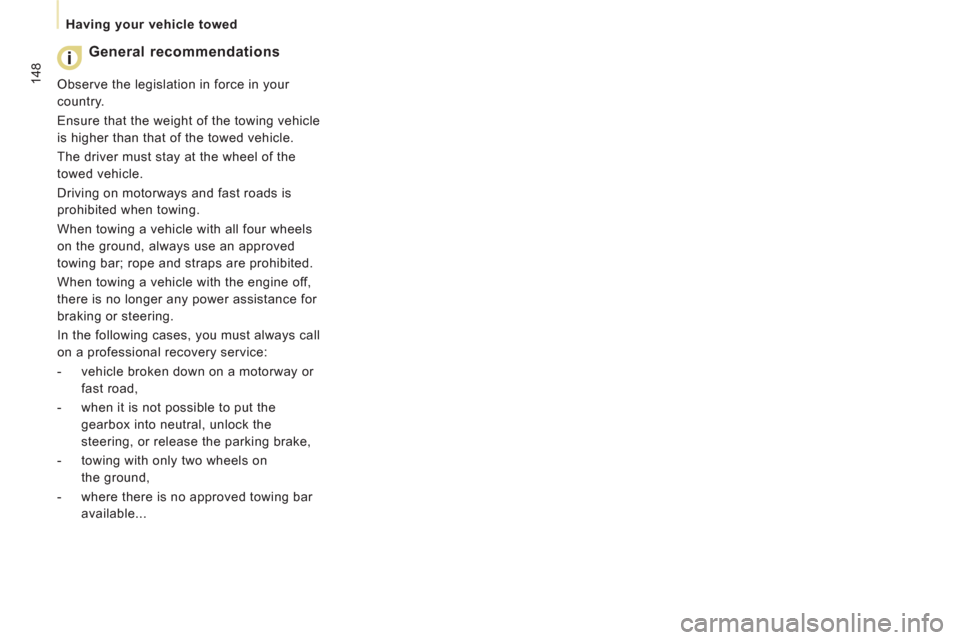

General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on
the ground,

- where there is no approved towing bar
available...
