140


Snow chains

SNOW CHAINS


In wintry conditions, snow chains improve
traction as well as the behaviour of the
vehicle when braking.

The snow chains must be fitted only to
the driving wheels. They must never be
fitted to "space-saver" type spare wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.

Advice on installation



)
If you have to fit the chains during
a journey, stop the vehicle on a flat
surface on the side of the road.

)
Apply the parking brake and position any
wheel chocks to prevent movement of
your vehicle.

)
Fit the chains following the instructions
provided by the manufacturer.

)
Move off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).

)
Stop your vehicle and check that the
snow chains are correctly tightened.


Avoid driving on roads that have been
cleared of snow, to avoid damaging
your vehicle's tyres and the road surface. It
is recommended that before you leave, you
practise fitting the snow chains on a level
and dry surface. If your vehicle is fitted with
alloy wheels, check that no part of the chain
or its fixings is in contact with the wheel rim.


Use only the chains designed to be fitted to
the type of wheel fitted to your vehicle:
For more information on snow chains,
contact a PEUGEOT dealer or a qualified
workshop.

Original tyre size
Maximum link size.

215/65 R15

12 mm
215/60 R16
MICHELIN

215/60 R16
BRIDGESTONE

160

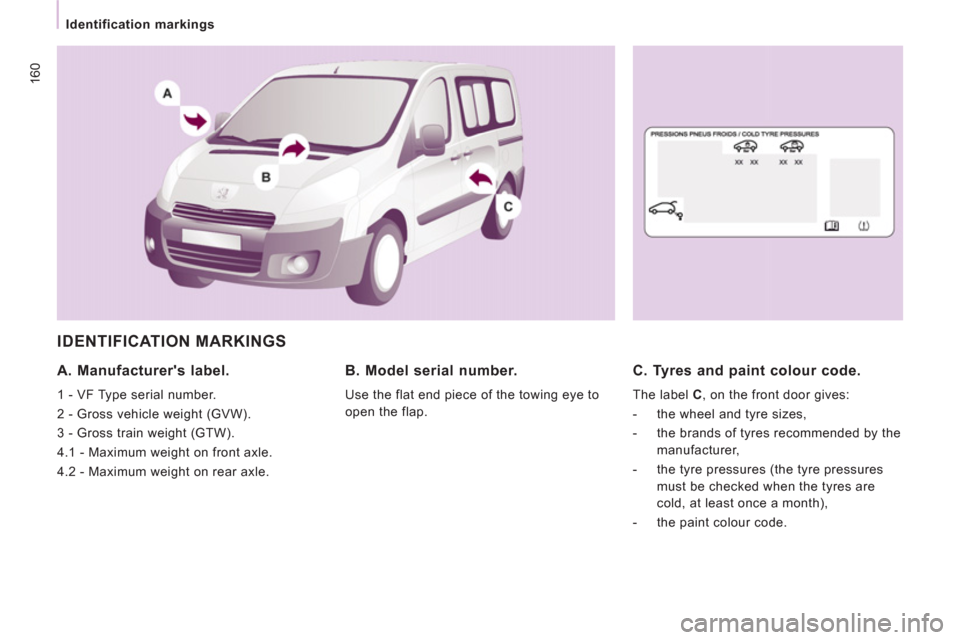

Identification markings

IDENTIFICATION MARKINGS


A. Manufacturer's label.

1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Model serial number.

Use the flat end piece of the towing eye to
open the flap.
C. Tyres and paint colour code.

The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres recommended by the
manufacturer,

- the tyre pressures (the tyre pressures
must be checked when the tyres are
cold, at least once a month),

- the paint colour code.
