Under the bonnet

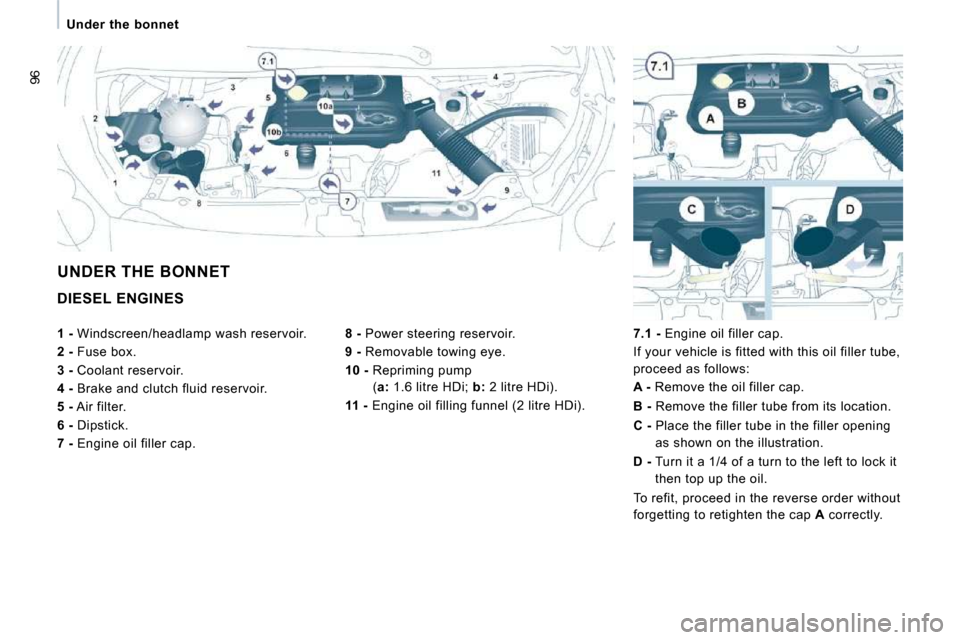

DIESEL ENGINES
8 - Power steering reservoir.

9 - Removable towing eye.

10 - Repriming pump
( a: 1.6 litre HDi; b: 2 litre HDi).

11 - Engine oil filling funnel (2 litre HDi).
7.1 - Engine oil filler cap.
If your vehicle is fitted with this oil filler tub e,
proceed as follows:

A - Remove the oil filler cap.

B - Remove the filler tube from its location.

C - Place the filler tube in the filler opening
as shown on the illustration.

D - Turn it a 1/4 of a turn to the left to lock it
then top up the oil.
To refit, proceed in the reverse order without
forgetting to retighten the cap A correctly.
UNDER THE BONNET

1 - Windscreen/headlamp wash reservoir.

2 - Fuse box.

3 - Coolant reservoir.

4 - Brake and clutch fluid reservoir.

5 - Air filter.

6 - Dipstick.

7 - Engine oil filler cap.

97
Under the bonnet
CHECKS
6

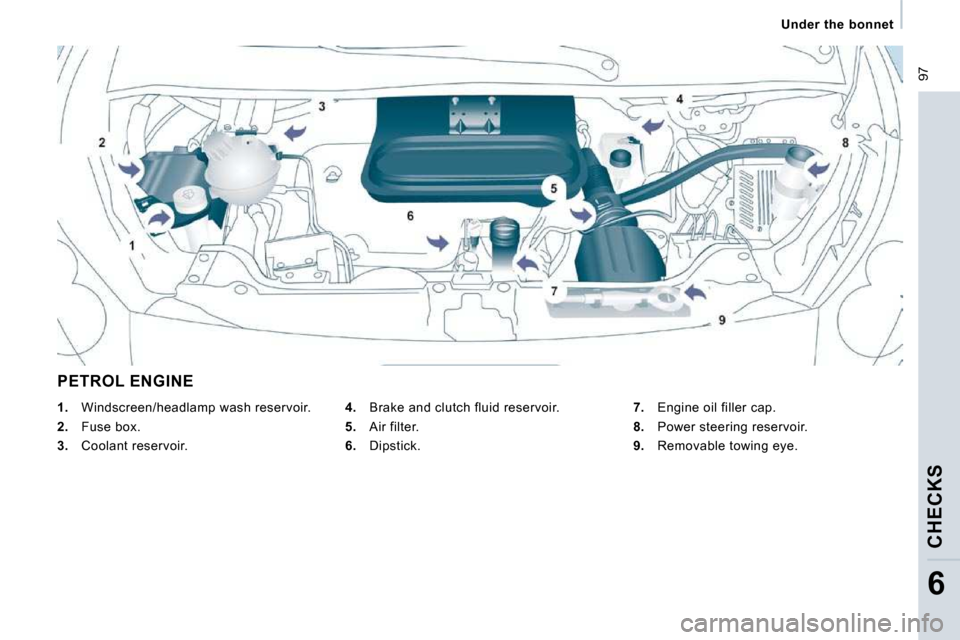

PETROL ENGINE

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.
7. Engine oil filler cap.

8. Power steering reservoir.

9. Removable towing eye.

1. Windscreen/headlamp wash reservoir.

2. Fuse box.

3. Coolant reservoir.

116
Changing a fuse
CHANGING A FUSE

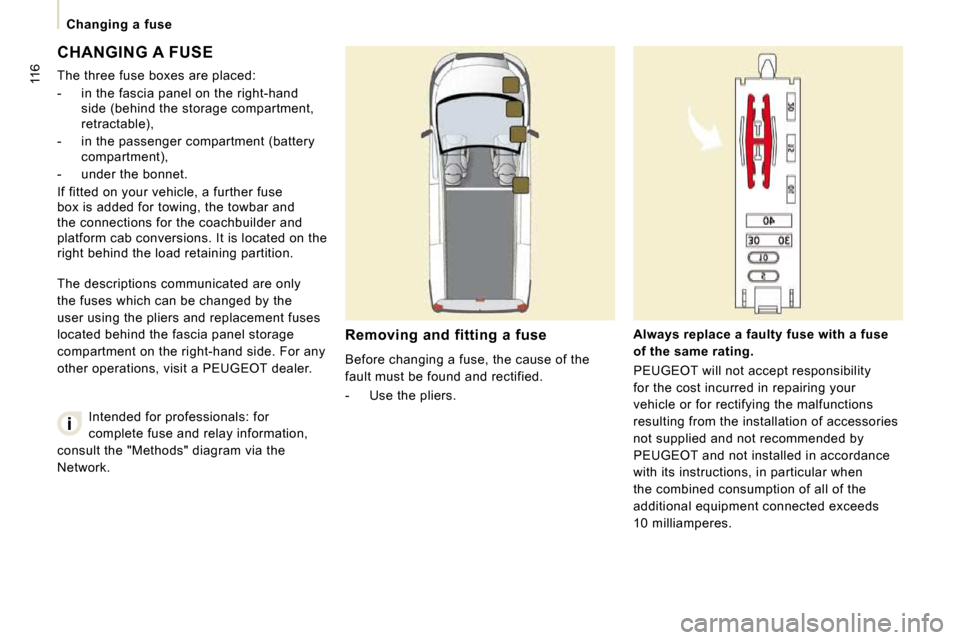

The three fuse boxes are placed:
- in the fascia panel on the right-hand side (behind the storage compartment,
retractable),
- in the passenger compartment (battery compartment),
- under the bonnet.
If fitted on your vehicle, a further fuse
box is added for towing, the towbar and
the connections for the coachbuilder and
platform cab conversions. It is located on the
right behind the load retaining partition.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
- Use the pliers.
Always replace a faulty fuse with a fuse
of the same rating.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
The descriptions communicated are only
the fuses which can be changed by the
user using the pliers and replacement fuses
located behind the fascia panel storage
compartment on the right-hand side. For any
other operations, visit a PEUGEOT dealer.
Intended for professionals: for
complete fuse and relay information,
consult the "Methods" diagram via the
Network.

117
Changing a fuse
TROUBLESHOOTING
7

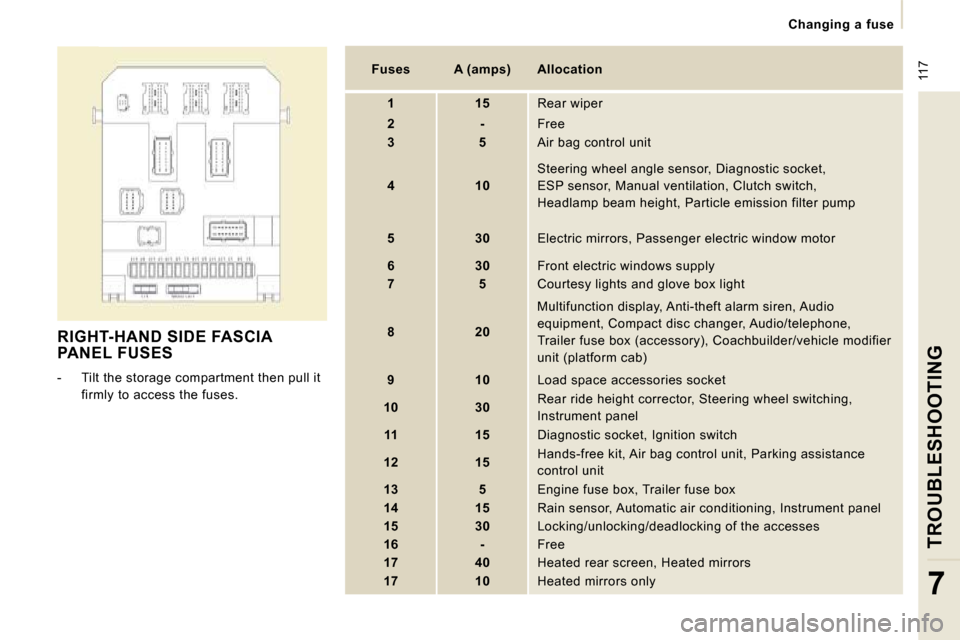

RIGHT-HAND SIDE FASCIA PANEL FUSES
- Tilt the storage compartment then pull it firmly to access the fuses.
Fuses A (amps) Allocation

1 15 Rear wiper

2 - Free

3 5 Air bag control unit

4 10 Steering wheel angle sensor, Diagnostic socket,
ESP sensor, Manual ventilation, Clutch switch,
Headlamp beam height, Particle emission filter pump


5 30 Electric mirrors, Passenger electric window mot or

6 30 Front electric windows supply

7 5 Courtesy lights and glove box light

8 20 Multifunction display, Anti-theft alarm siren, Aud
io
equipment, Compact disc changer, Audio/telephone,
Trailer fuse box (accessory), Coachbuilder/vehicle modifier
unit (platform cab)

9 10 Load space accessories socket

10 30 Rear ride height corrector, Steering wheel switchi
ng,
Instrument panel

11 15 Diagnostic socket, Ignition switch

12 15 Hands-free kit, Air bag control unit, Parking assi
stance
control unit

13 5 Engine fuse box, Trailer fuse box

14 15 Rain sensor, Automatic air conditioning, Instru ment panel

15 30 Locking/unlocking/deadlocking of the accesses

16 - Free

17 40 Heated rear screen, Heated mirrors

17 10 Heated mirrors only

118
Changing a fuse

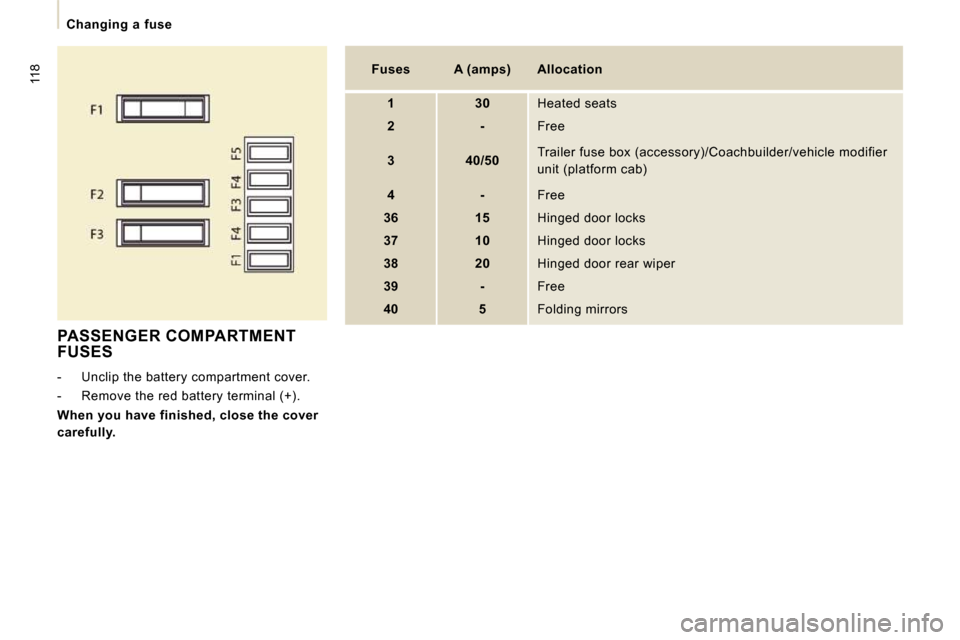

PASSENGER COMPARTMENT FUSES
- Unclip the battery compartment cover.
- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.
Fuses A (amps) Allocation

1 30 Heated seats

2 - Free

3 40/50 Trailer fuse box (accessory)/Coachbuilder/vehicle
modifier
unit (platform cab)

4 - Free

36 15 Hinged door locks

37 10 Hinged door locks

38 20 Hinged door rear wiper

39 - Free

40 5 Folding mirrors

119
Changing a fuse
TROUBLESHOOTING
7
FUSES UNDER THE BONNET
- After opening the bonnet, slide the screenwash support to make access
easier.
- Unclip and tilt the box to access the fuses.
Fuses A (amps) Allocation

1 20 Engine control unit, Fuel supply and air supply sy
stems,
Fan assembly

2 15 Horn

3 10 Front and rear wash-wipe pump

4 20 Headlamp wash pump

5 15 Fuel supply system

6 10 Power steering, Secondary brake pedal switch

7 10 Braking system (ABS/ESP)

8 20 Starter control

9 10 Main brake pedal switch

10 30 Fuel supply and air supply systems, Emission contr
ol
systems

11 40 Front ventilation

12 30 Windscreen wipers

13 40 Built-in systems interface

14 30 Free

120
Changing a fuse

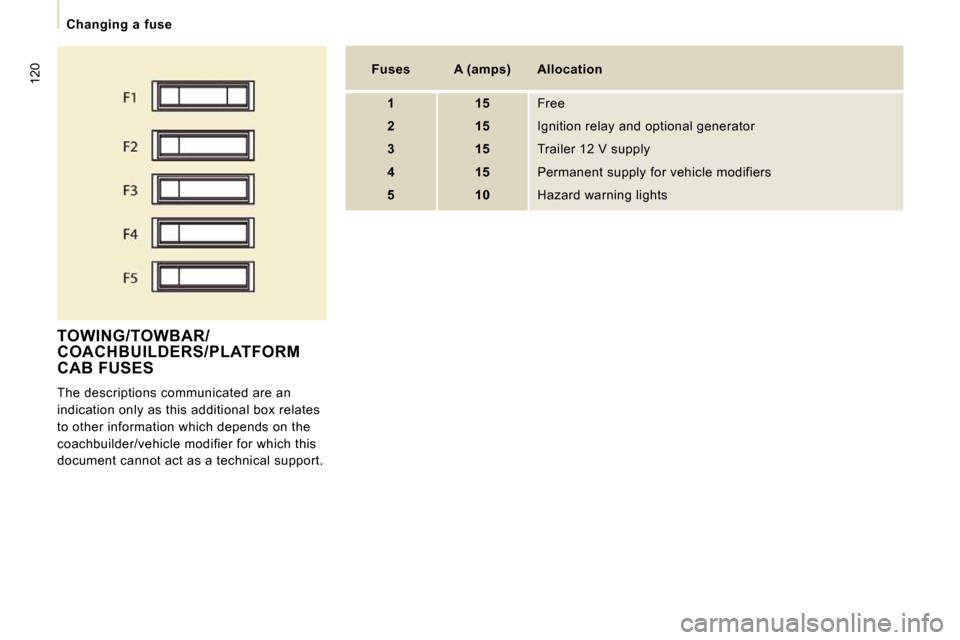

TOWING/TOWBAR/COACHBUILDERS/PLATFORM CAB FUSES
The descriptions communicated are an
indication only as this additional box relates
to other information which depends on the
coachbuilder/vehicle modifier for which this
document cannot act as a technical support.
Fuses A (amps) Allocation

1 15 Free

2 15 Ignition relay and optional generator

3 15 Trailer 12 V supply

4 15 Permanent supply for vehicle modifiers

5 10 Hazard warning lights
