39


Gearboxes and steering wheel

READY TO SET OFF
2


Changing into 5 th
or 6 th
gear

Move the gear lever fully to the right to
engage 5 th or 6 th
gear. To change gear easily, always depress the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:


- ensure that the mat is positioned
correctly,

- never fit one mat on top of another.
When driving, avoid leaving your hand on
the gear knob as the force exerted, even if
slight, may wear the internal components of
the gearbox over time.


GEARBOXES AND STEERING WHEEL


5-speed gearbox
6-speed gearbox


Engaging reverse gear

In the 6-speed configuration, raise the collar
under the gear knob to engage reverse gear.
Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.

51

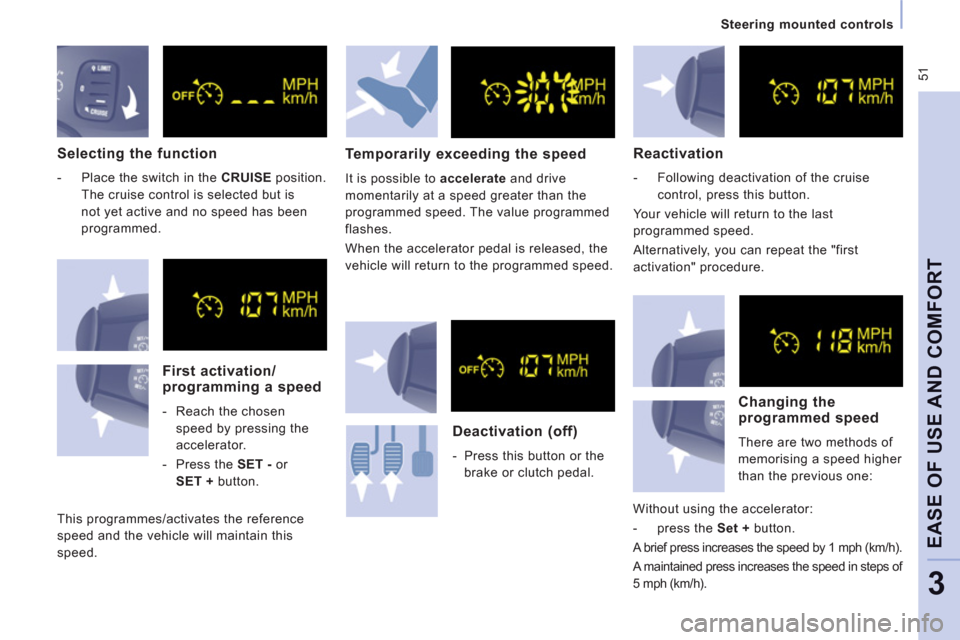

Steering mounted controls
EASE OF USE AND COMFOR
T
3


Selecting the function



- Place the switch in the CRUISE
position.
The cruise control is selected but is
not yet active and no speed has been
programmed.



First activation/programming a speed



- Reach the chosen
speed by pressing the
accelerator.

- Press the SET -
or
SET +
button.
This pro
grammes/activates the reference
speed and the vehicle will maintain this
speed.
Temporarily exceeding the speed
It is possible to accelerate
and drive
momentarily at a speed greater than the
pro
grammed speed. The value programmed
flashes.
When the accelerator pedal is released, the
vehicle will return to the pro
grammed speed.
Reactivation



- Following deactivation of the cruise
control, press this button.
Y
our vehicle will return to the last
programmed speed.

Alternatively, you can repeat the "first
activation" procedure.
Deactivation (off)


- Press this button or the
brake or clutch pedal.



Changing the
programmed speed
There are two methods of
memorisin
g a speed higher
t
han the previous one:

Without using the accelerator:


- press the Set +
button.

A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in steps o
f
5 mph (km/h).

10
9


Under the bonnet

CHECK
S
6

DIESEL ENGINES


8 -
Power steering reservoir.

9 -
Removable towing eye.

10 -
Priming pump
( a
: 1.6 litre HDi; b
: 2 litre HDi).

11 -
Engine oil filling funnel (2 litre HDi).
7.1 -
Engine oil filler cap.
If your vehicle is fitted with this oil filler tube,
proceed as follows:

A -
Remove the oil filler cap.

B -
Remove the filler tube from its location.

C -
Place the filler tube in the filler opening
as shown on the illustration.

D -
Turn it a 1/4 of a turn to the left to lock it
then top up the oil.
To refit, proceed in the reverse order without
forgetting to retighten the cap A
correctly.

UNDER THE BONNET


1 -
Screen/headlamp wash reservoir.

2 -
Fusebox.

3 -
Coolant header tank.

4 -
Brake and clutch fluid reservoir.

5 -
Air filter.

6 -
Engine oil dipstick.

7 -
Engine oil filler cap.

11 0
Under the bonnet
PETROL ENGINE


4.
Brake and clutch fluid reservoir.

5.
Air filter.

6.
Engine oil dipstick.
7.
Engine oil filler cap.

8.
Power steering reservoir.

9.
Removable towing eye.

1.
Screen/headlamp wash reservoir.

2.
Fusebox.

3.
Coolant header tank.

135

Changing a fuse
QUICK HELP
7

RIGHT-HAND SIDE DASHBOARD
FUSES
- Tilt the storage compartment then pull it
firmly to access the fuses.
Fuses

F
Amperes

A
Allocation


1
15 Rear wiper

2
- Free

3
5 Airbag control unit

4
10
Steering wheel angle sensor, Diagnostic socket, DSC
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump
5
30 Electric mirrors, Passenger electric window motor

6
30 Front electric windows supply

7
5 Courtesy lamps and glove box lamp

8
20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone, Trailer
fusebox (accessory), Coachbuilder/vehicle converter unit
(platform cab)
9
10 Load space accessory socket

10
30
Rear ride height corrector, Steering wheel switching,
Instrument panel
11
15 Diagnostic socket, Ignition switch

12
15
Hands-free kit, Airbag control unit, Parking sensors control
unit
13
5 Engine fusebox, Trailer fusebox

14
15 Rain sensor, Digital air conditioning, Instrument panel

15
30 Locking/unlocking/deadlocking

16
- Free

17
40 Heated rear screen, Heated mirrors

17
10 Heated mirrors only
