76
Practical information

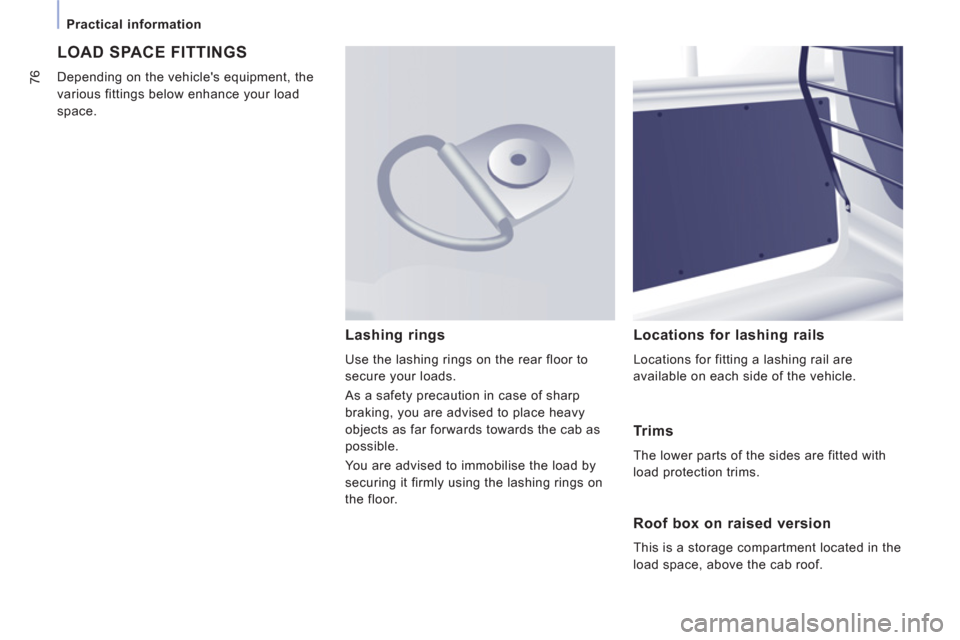

LOAD SPACE FITTINGS

Depending on the vehicle's equipment, the
various fittin
gs below enhance your load
space.

Locations for lashing rails

Locations for fitting a lashing rail are
available on each side of the vehicle.
Lashing rings
Use the lashing rings on the rear floor to
secure your loads.
As a safet
y precaution in case of sharp
braking, you are advised to place heavy
ob
jects as far forwards towards the cab as
poss
ible.
You are advised to immobilise the load b
y
securing it firmly using the lashing rings on
th
e floor.

Trims

The lower parts of the sides are fitted with
load protection trims.


Roof box on raised version

This is a storage compartment located in the
load space, above the cab roof.

ABS
ABS

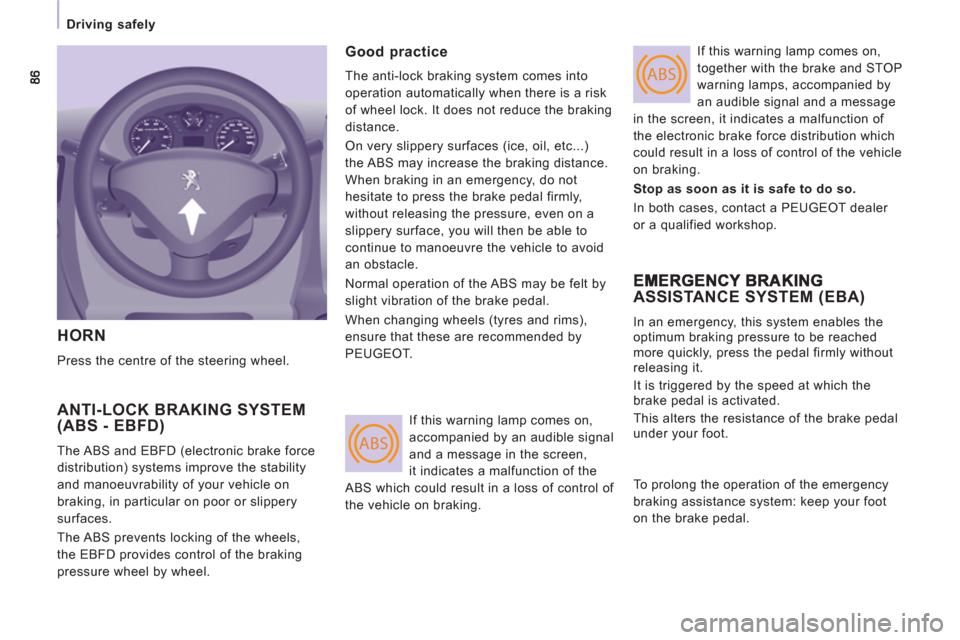

Driving safely
HORN

Press the centre of the steering wheel.

ANTI-LOCK BRAKING SYSTEM(ABS - EBFD)

The ABS and EBFD (electronic brake force
distribution) systems improve the stability
and manoeuvrability of your vehicle on
braking, in particular on poor or slippery
surfaces.
The ABS prevents locking of the wheels,
the EBFD provides control of the braking
pressure wheel by wheel.

Good practice

The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not reduce the braking
distance.
On very slippery surfaces (ice, oil, etc...)
the ABS may increase the braking distance.
When braking in an emergency, do not
hesitate to press the brake pedal firmly,
without releasing the pressure, even on a
slippery surface, you will then be able to
continue to manoeuvre the vehicle to avoid
an obstacle.
Normal operation of the ABS may be felt by
slight vibration of the brake pedal.
When changing wheels (tyres and rims),
ensure that these are recommended by
PEUGEOT. If this warning lamp comes on,
together with the brake and STOP
warning lamps, accompanied by
an audible signal and a message
in the screen, it indicates a malfunction of
the electronic brake force distribution which
could result in a loss of control of the vehicle
on braking.

Stop as soon as it is safe to do so.
In both cases, contact a PEUGEOT dealer
or a qualified workshop.
ASSISTANCE SYSTEM (EBA)

In an emergency, this system enables the
optimum braking pressure to be reached
more quickly, press the pedal firmly without
releasing it.
It is triggered by the speed at which the
brake pedal is activated.
This alters the resistance of the brake pedal
under your foot. If this warning lamp comes on,
accompanied by an audible signal
and a message in the screen,
it indicates a malfunction of the
ABS which could result in a loss of control of
the vehicle on braking. To prolong the operation of the emergency
braking assistance system: keep your foot
on the brake pedal.

ESP
OFF
87


Driving safely

SAFETY
4

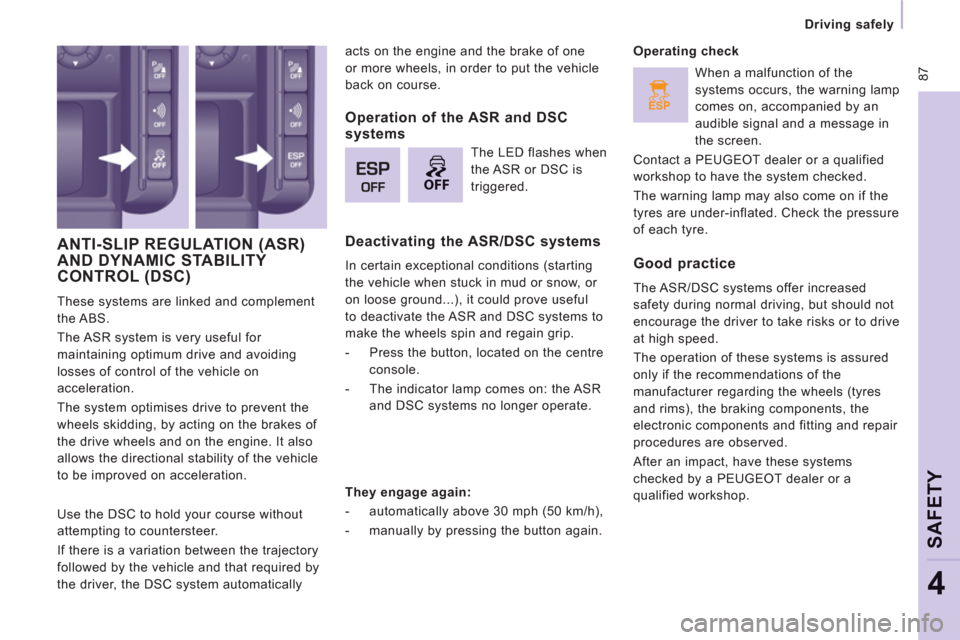

ANTI-SLIP REGULATION (ASR)AND DYNAMIC STABILITY
CONTROL (DSC)
These systems are linked and complement
the ABS.
The ASR system is very useful for
maintaining optimum drive and avoiding
losses of control of the vehicle on
acceleration.
The system optimises drive to prevent the
wheels skidding, by acting on the brakes of
the drive wheels and on the engine. It also
allows the directional stability of the vehicle
to be improved on acceleration. acts on the engine and the brake of one
or more wheels, in order to put the vehicle
back on course.

Deactivating the ASR/DSC systems

In certain exceptional conditions (starting
the vehicle when stuck in mud or snow, or
on loose ground...), it could prove useful
to deactivate the ASR and DSC systems to
make the wheels spin and regain grip.


- Press the button, located on the centre
console.

- The indicator lamp comes on: the ASR
and DSC systems no longer operate.
Operating check

Good practice

The ASR/DSC systems offer increased
safety during normal driving, but should not
encourage the driver to take risks or to drive
at high speed.
The operation of these systems is assured
only if the recommendations of the
manufacturer regarding the wheels (tyres
and rims), the braking components, the
electronic components and fitting and repair
procedures are observed.
After an impact, have these systems
checked by a PEUGEOT dealer or a
qualified workshop.
Use the DSC to hold your course without
attempting to countersteer.
If there is a variation between the trajectory
followed by the vehicle and that required by
the driver, the DSC system automatically

Operation of the ASR and DSC
systems
The LED flashes when
the ASR or DSC is
triggered.

They engage again:


- automatically above 30 mph (50 km/h),

- manually by pressing the button again.
When a malfunction of the
systems occurs, the warning lamp
comes on, accompanied by an
audible signal and a message in
the screen.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
The warning lamp may also come on if the
tyres are under-inflated. Check the pressure
of each tyre.
