Exterior

FAMILIARISATIO
N
1

121 85
Rear suspension

Repairing a wheel
Parking sensors 123
Changing a wheel
78 26
25 20
Side-hinged rear doors

Key - Remote control

Sliding side door



Key
: section identification
: page identification 142

Usable dimensions

Interior
10

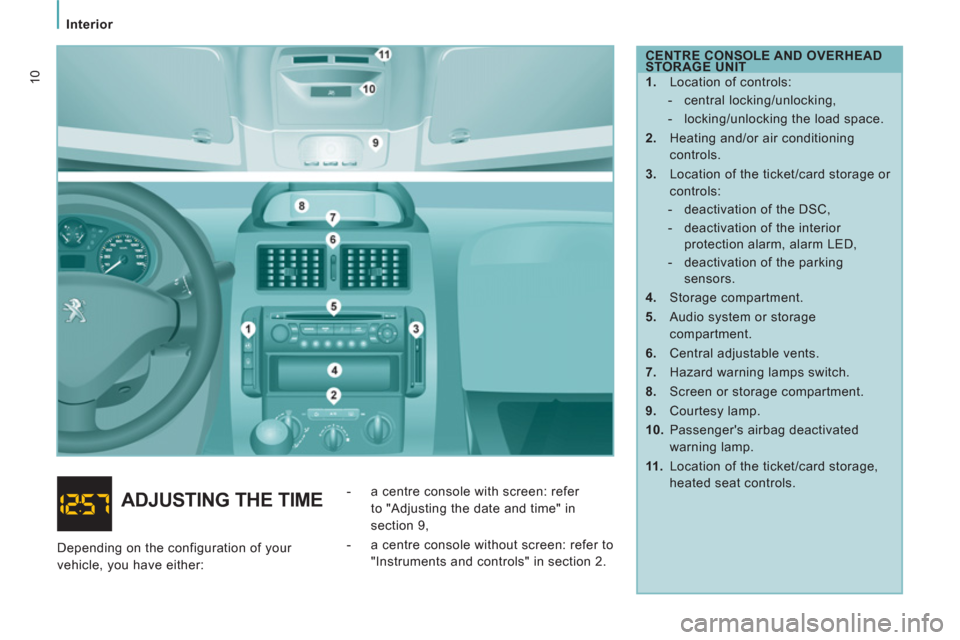

CENTRE CONSOLE AND OVERHEAD
STORAGE UNIT


1.
Location of controls:


- central locking/unlocking,

- locking/unlocking the load space.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation of the DSC,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio system or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp.

11 .
Location of the ticket/card storage,
heated seat controls.




ADJUSTING THE TIME


- a centre console with screen: refer
to "Adjusting the date and time" in
section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.
Depending on the configuration of your
vehicle, you have either:

36


Instruments and controls

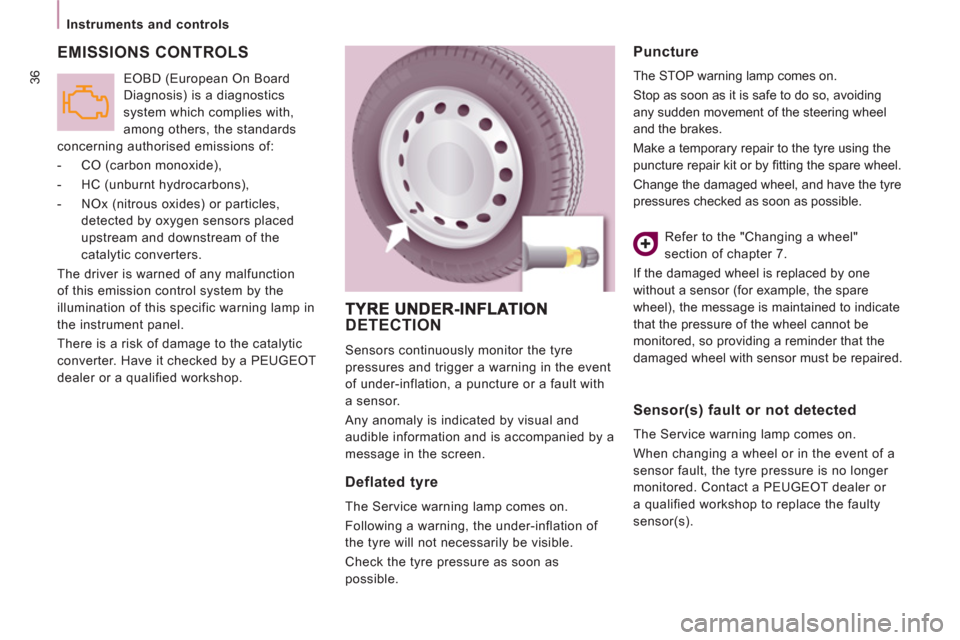

EMISSIONS CONTROLS

EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised emissions of:


- CO (carbon monoxide),

- HC (unburnt hydrocarbons),

- NOx (nitrous oxides) or particles,
detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.
The driver is warned of any malfunction
of this emission control system by the
illumination of this specific warning lamp in
the instrument panel.
There is a risk of damage to the catalytic
converter. Have it checked by a PEUGEOT
dealer or a qualified workshop.
DETECTION
Sensors continuously monitor the tyre
pressures and trigger a warning in the event
of under-inflation, a puncture or a fault with
a sensor.
Any anomaly is indicated by visual and
audible information and is accompanied by a
message in the screen.

Deflated tyre

The Service warning lamp comes on.
Following a warning, the under-inflation of
the tyre will not necessarily be visible.
Check the tyre pressure as soon as
possible.


Puncture

The STOP warning lamp comes on.
Stop as soon as it is safe to do so, avoiding
any sudden movement of the steering wheel
and the brakes.
Make a temporary repair to the tyre using the
puncture repair kit or by fi tting the spare wheel.
Change the damaged wheel, and have the tyre
pressures checked as soon as possible.
Refer to the "Changing a wheel"
section of chapter 7.
If the damaged wheel is replaced by one
without a sensor (for example, the spare
wheel), the message is maintained to indicate
that the pressure of the wheel cannot be
monitored, so providing a reminder that the
damaged wheel with sensor must be repaired.


Sensor(s) fault or not detected

The Service warning lamp comes on.
When changing a wheel or in the event of a
sensor fault, the tyre pressure is no longer
monitored. Contact a PEUGEOT dealer or
a qualified workshop to replace the faulty
sensor(s).

45


Steering mounted controls
EASE OF USE AND COMFOR
T
3


Dipped beam/main beam change
Pull the stalk full
y towards you.
Automatic illumination of headlamps
if
your vehicle is fi tted with a
sunshine sensor. Li
ghting off
Dipped beam
(green)
Main beam (blue)

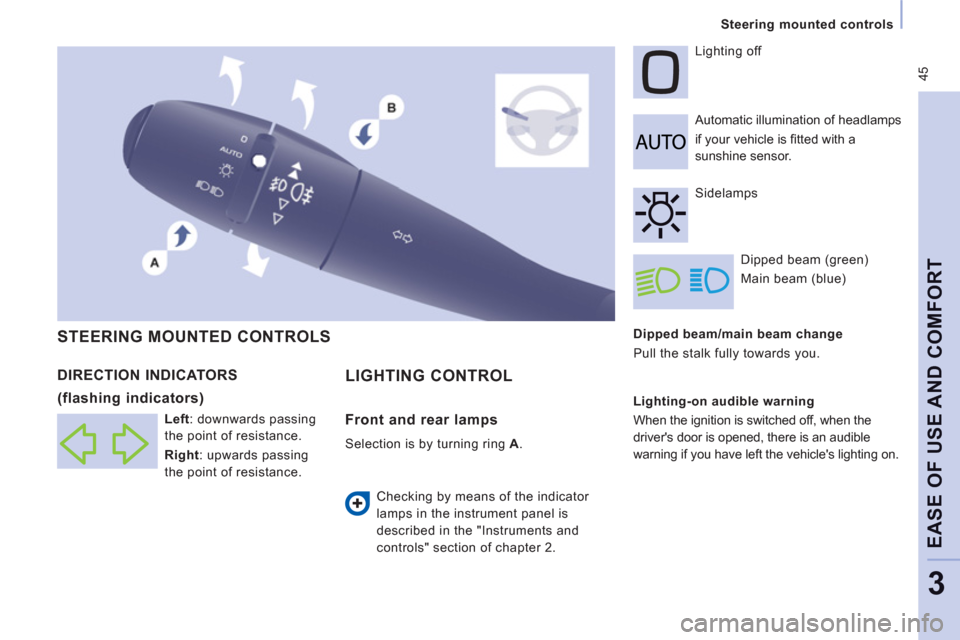

DIRECTION INDICATORS
(flashing indicators)
STEERING MOUNTED CONTROLS
Checking by means of the indicator
lamps in the instrument panel is
described in the "Instruments and
controls" section of chapter 2.
Sidelamps

Lighting-on audible warning
When the ignition is switched o
ff, when the
driver's door is o
pened, there is an audible
warnin
g if you have left the vehicle's lighting on.
Left: downwards passing
the point o
f resistance.
Right: upwards passing
the point o
f resistance.
LIGHTING CONTROL
Front and rear lamps
Selection is by turning ring A.

47


Steering mounted controls
EASE OF USE AND COMFOR
T
3

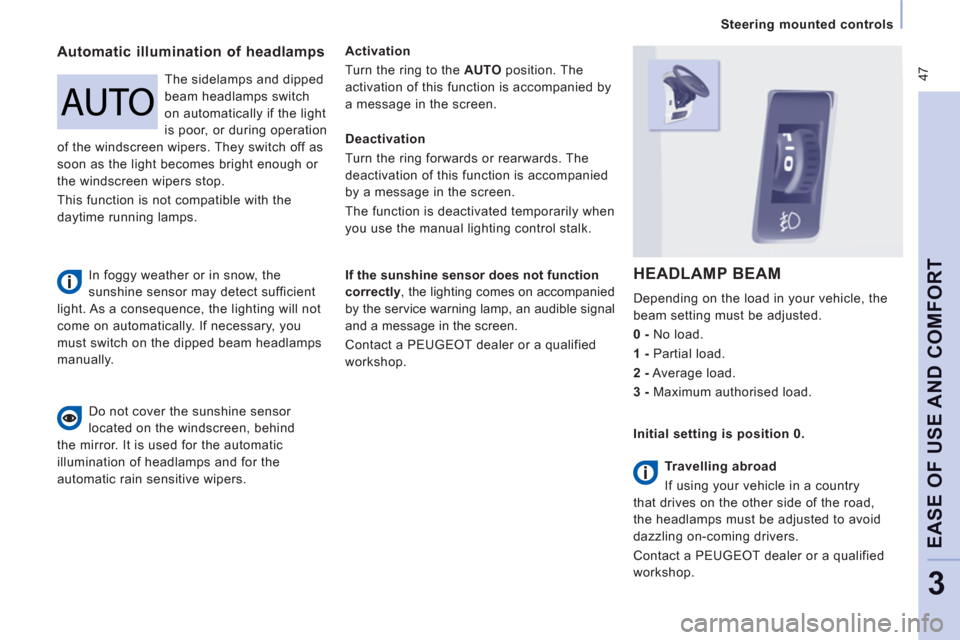

Automatic illumination of headlamps

Activation
Turn the ring to the
AUTOposition. The
activation of this function is accompanied by
a message in the screen.
If the sunshine sensor does not function
correctly, the lighting comes on accompanied
by the service warning lamp, an audible signal
and a message in the screen.
Contact a PEUGEOT dealer or a qualified
workshop.


HEADLAMP BEAM

Depending on the load in your vehicle, the
beam settin
g must be adjusted.
0 -
N
o load.
1 -
P
artial load.
2 -
Avera
ge load.
3 -
Maximum authorised load.
D
o not cover the sunshine sensor
located on the windscreen, behind
th
e mirror. It is used for the automatic
illumination of headlamps and for the
automatic rain sensitive wipers. The sidelam
ps and dipped
beam headlamps switch
on automaticall
y if the light
is poor, or durin
g operation
of the windscreen wipers. The
y switch off as
soon as the light becomes bright enough or
the windscreen wi
pers stop.
This
function is not compatible with the
da
ytime running lamps.
Deactivation
Turn the ring
forwards or rearwards. The
deactivation of this function is accom
panied
by a message in the screen.
The function is deactivated temporaril
y when
you use the manual lighting control stalk.
Initial settin
g is position 0.
In foggy weather or in snow, the
sunshine sensor may detect sufficient
light. As a consequence, the lighting will not
come on automatically. If necessary, you
must switch on the dipped beam headlamps
manually.


Travelling abroad
I
f using your vehicle in a country
that drives on the other side of the road,
t
he headlamps must be adjusted to avoid
dazzling on-coming drivers.

Contact a PEUGEOT dealer or a qualified
worksho
p.

48
Steering mounted controls

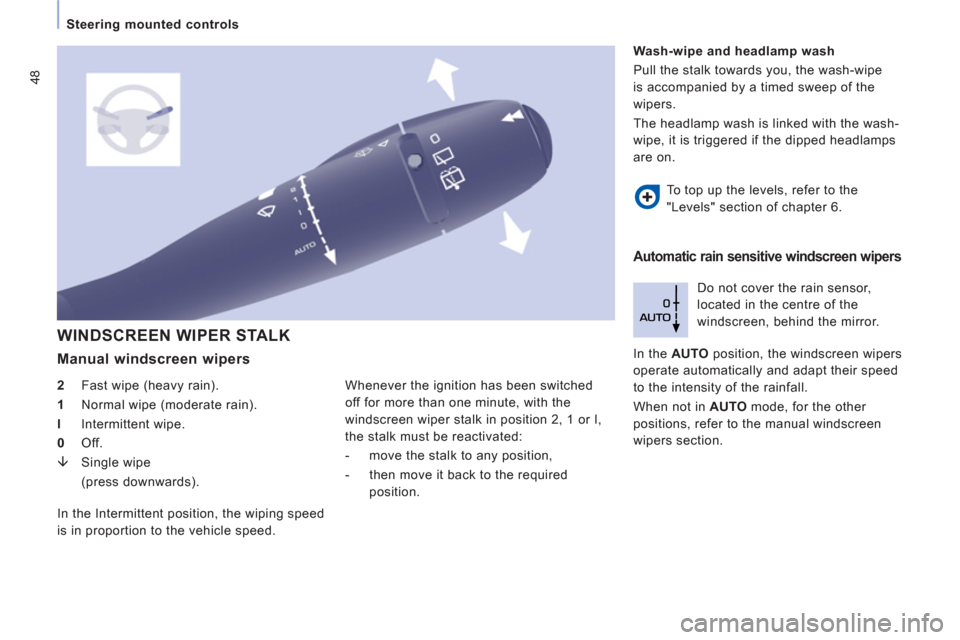

WINDSCREEN WIPER STALK

Manual windscreen wipers


2
Fast wipe (heavy rain).

1
Normal wipe (moderate rain).

l
Intermittent wipe.

0
Off.

È
Single wipe
(press downwards). Do not cover the rain sensor,
l
ocated in the centre of the
w
indscreen, behind the mirror. Wash-wi
pe and headlamp wash
Pull the stalk towards you, the wash-wipe
is accompanied b
y a timed sweep of the
w
ipers.
The headlam
p wash is linked with the wash-
wipe, it is tri
ggered if the dipped headlamps
are on.
In the I ntermittent position, the wipin
g speed
is in
proportion to the vehicle speed. To to
p up the levels, refer to the
"Levels" section of chapter 6.

In the AUTOposition, the windscreen wipers
operate automaticall
y and adapt their speed
to the intensit
y of the rainfall.
Wh
en not in AUTO
mode, for the other
positions, refer to the manual windscreen
w
ipers section. Whenever the ignition has been switched
off for more than one minute, with the
windscreen wiper stalk in position 2, 1 or I,
the stalk must be reactivated:


- move the stalk to any position,

- then move it back to the required
position.



Automatic rain sensitive windscreen wipers

59
Ventilation
EASE OF USE AND COMFOR
T
3

Driver or passenger side comfort value
The value indicated on the display
corresponds to a level of comfort and
not a temperature in de
grees Celsius or
F
ahrenheit.

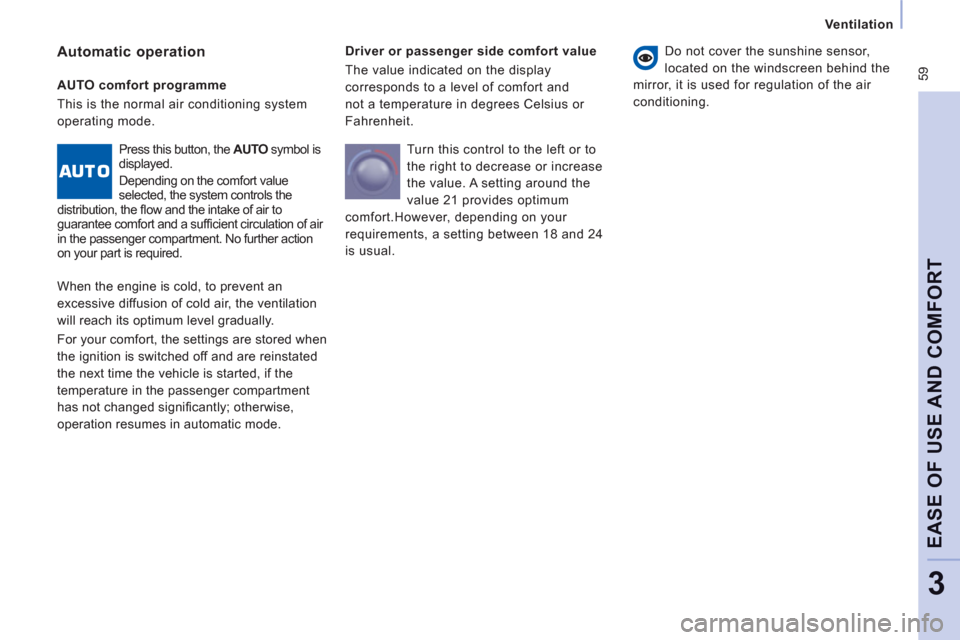

Automatic operation
Do not cover the sunshine sensor,
l
ocated on the windscreen behind the
mirror, it is used for regulation of the air
conditioning.
AUTO comfort programme
This is the normal air conditioning system
operat
ing mode.
Press this button, the
AUTO
symbol is
displayed.
Depending on the com
fort valueselected, the system controls the
distribution, the fl ow and the intake of air to
guarantee comfort and a suffi cient circulation of air
in the passenger compartment. No further action
on your part is required.

When the engine is cold, to prevent an
excessive diffusion of cold air, the ventilation
will reach its optimum level
gradually.
For
your comfort, the settings are stored when
the i
gnition is switched off and are reinstated
the next time the vehicle is started, i
f the
temperature in the passen
ger compartment
has not changed signifi cantly; otherwise,
operat
ion resumes in automatic mode. T
urn this control to the left or to
the right to decrease or increase
the value. A settin
g around the
value 21 provides optimum
comfort.However, depending on your
requirements, a settin
g between 18 and 24
i
s usual.

78
Rear suspension


Metal suspension
This equipment adopts long movement limiters
which make it possible to
guarantee stable
behaviour both when loaded and when empt
y.
No action on your part is required except to
ensure that maintenance is carried out and that
the authorised loads are com
plied with.irrespective o
f the weight of the load, within
the limit of the authorised values.
On board,
the increasin
g or lightening of the load on
the vehicle's plat
form is detected by two
hei
ght sensors. When all of the doors are
closed, the sensors trigger the automatic
hei
ght correction and determine the optimum
hei
ght of the sill for the vehicle's driving
conditions.
Deactivation of automatic height correction
The control which permits deactivation o
f
automatic re
gulation is located on the right-
hand side, at the rear of the vehicle.

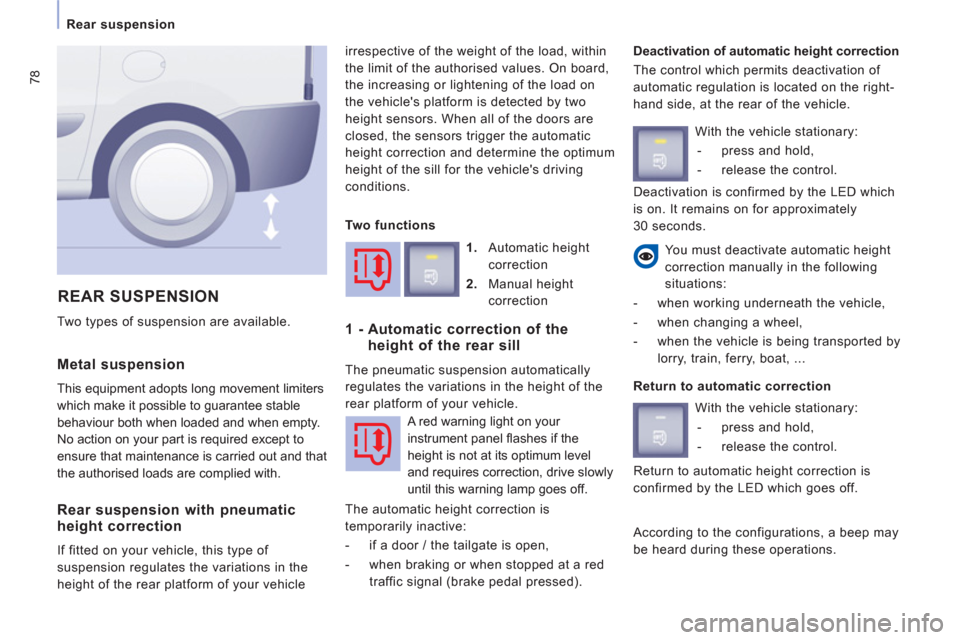

REAR SUSPENSION
You must deactivate automatic height
correction manually in the following
situations:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Two t
ypes of suspension are available.

Rear suspension with pneumatic height correction

If fitted on your vehicle, this type of
suspension regulates the variations in the
height of the rear platform of your vehicle

1.
Automatic height
correction

2.
Manual height
correction


1 - Automatic correction of the
height of the rear sill
The pneumatic suspension automatically
re
gulates the variations in the height of the
rear plat
form of your vehicle.
A red warning light on your
instrument panel
fl ashes if the
height is not at its optimum level
and requires correction, drive slowl
y
until this warning lamp goes off.
The automatic hei
ght correction is
temporar
ily inactive:


- if a door / the tailgate is open,

- when braking or when stopped at a red
traffic signal (brake pedal pressed).
With the vehicle stationary:


- press and hold,

- release the control.

Return to automatic correction

With the vehicle stationary:


- press and hold,

- release the control.

According to the configurations, a beep may
be heard durin
g these operations.

Two functions Deactivation is con
firmed by the LED which
is on. It remains on for approximatel
y
30 seconds.
Return to automatic hei
ght correction is
confirmed by the LED which goes off.

85


Parking sensors

SAFETY
4


Engage reverse gear

An audible signal confirms the activation of
the system by engaging reverse gear.
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle. When
the distance between the rear of the vehicle
and the obstacle is less than approximately
thirty centimetres, the audible signal
becomes continuous.

Stop the assistance

Change to neutral.

REAR PARKING SENSORS

The audible and/or visual rear parking
sensor system consists of four proximity
sensors, installed in the rear bumper. The
sensors detect any obstacle which enters
the field: person, vehicle, tree, fence, behind
the vehicle during the manoeuvre.
Certain objects detected at the beginning of
the manoeuvre will no longer be detected
at the end of the manoeuvre due to the
blind spots between and below the sensors.
Examples: stake, roadworks cone or
pavement post.

Activation / Deactivation

You can activate or deactivate the
system by pressing this button.

Malfunction

In the event of a malfunction, when reverse
gear is engaged the LED in the button
comes on, accompanied by an audible
signal and a message in the screen. Contact
a PEUGEOT dealer or a qualified workshop.


Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
The system will be deactivated automatically
if a trailer is being towed or if a bicycle
carrier is fitted (vehicle fitted with a
towbar or bicycle carrier recommended by
PEUGEOT).
The parking assistance cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.
Display in the screen


You are advised to deactivate the system if
your vehicle is fitted with a rear ladder or if
you are transporting a load which exceeds
the length of the vehicle. The activation or deactivation of the system
is stored when the vehicle stops.
