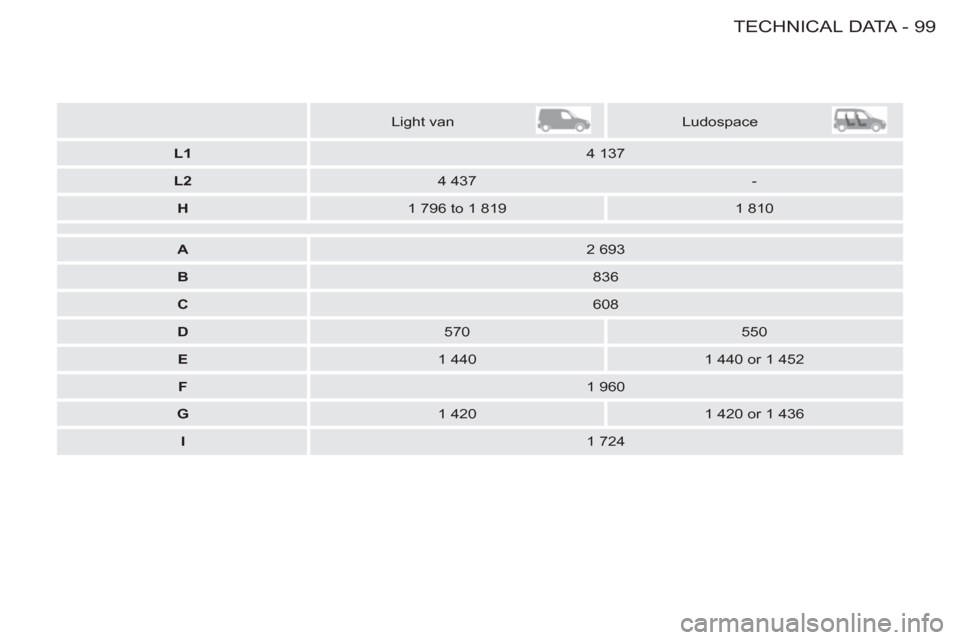

99 TECHNICAL DATA
-





Light van


Ludospace



L1


4 137


L2


4 437
-


H


1 796 to 1 819
1 810







A


2 693


B


836


C


608


D


570
550


E


1 440
1 440 or 1 452


F


1 960


G


1 420
1 420 or 1 436


I


1 724

TECHNICAL DATA
100 -

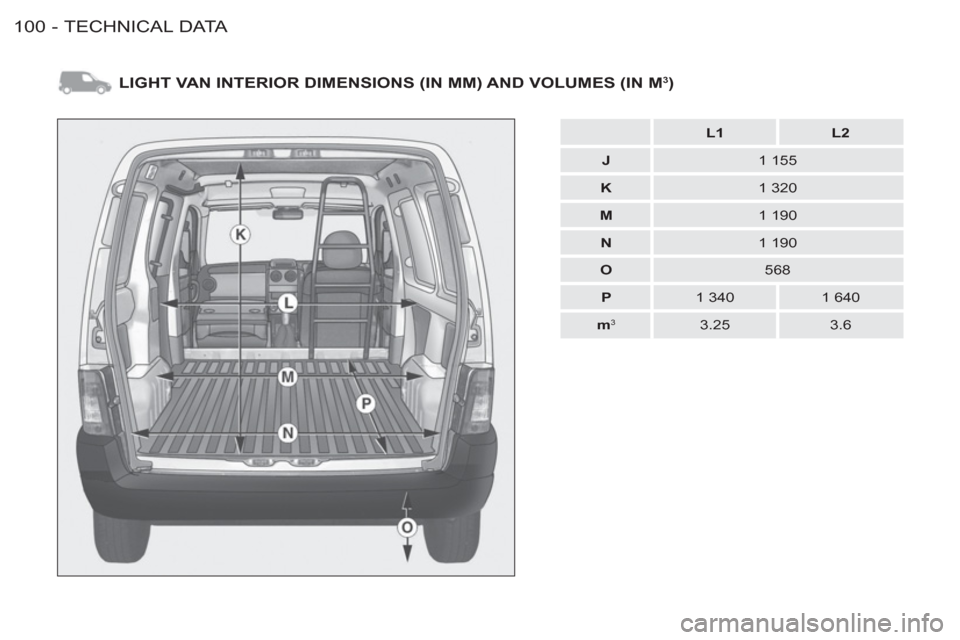

LIGHT VAN INTERIOR DIMENSIONS (IN MM) AND VOLUMES (IN M3 )



L1



L2




J


1 155


K


1 320


M


1 190


N


1 190


O


568


P


1 340
1 640


m
3



3.25
3.6

101 TECHNICAL DATA
-

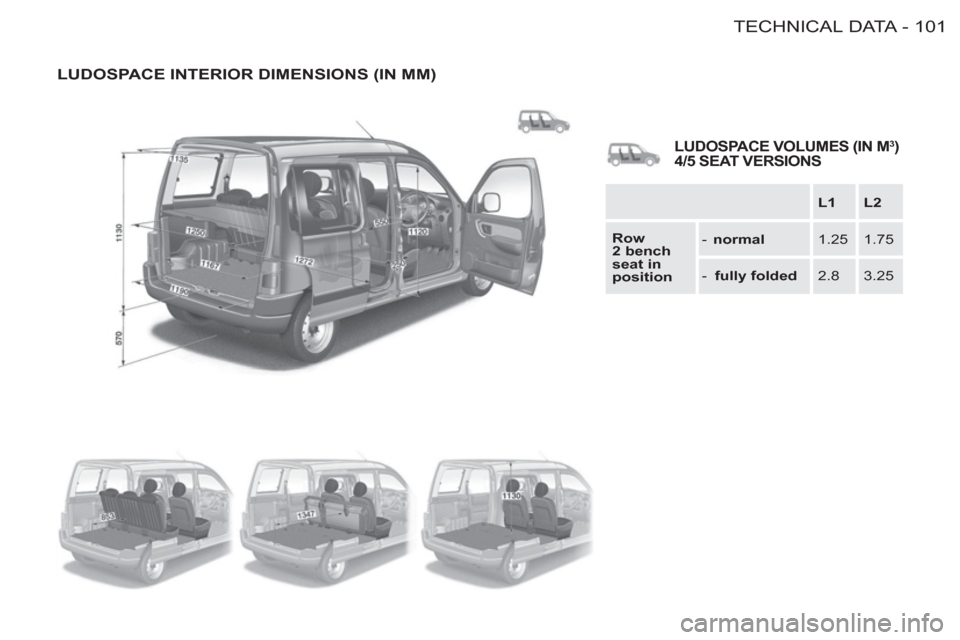

LUDOSPACE INTERIOR DIMENSIONS (IN MM)






L1



L2




Row
2 bench
seat in
position




- normal



1.25
1.75



- fully folded



2.8
3.25
LUDOSPACE VOLUMES (IN M 3 )4/5 SEAT VERSIONS

TECHNICAL DATA
102 -

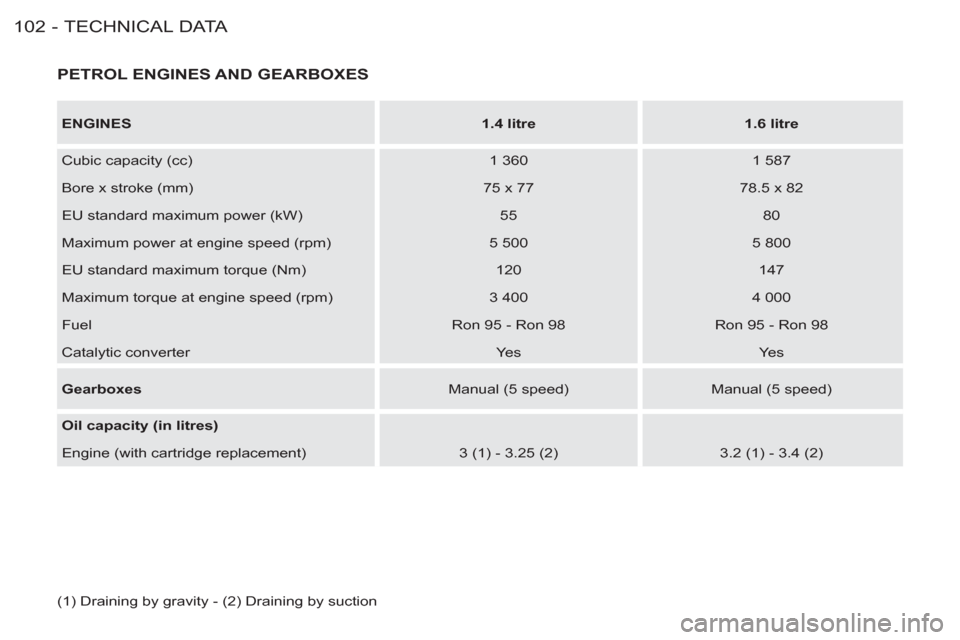

PETROL ENGINES AND GEARBOXES



ENGINES


1.4 litre



1.6 litre


Cubic capacity (cc)
1 360
1 587
Bore x stroke (mm)
75 x 77
78.5 x 82
EU standard maximum power (kW)
55
80
Maximum power at engine speed (rpm)
5 500
5 800
EU standard maximum torque (Nm)
120
147
Maximum torque at engine speed (rpm)
3 400
4 000
Fuel
Ron 95 - Ron 98
Ron 95 - Ron 98
Catalytic converter
Yes
Yes

Gearboxes

Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3 (1) - 3.25 (2)
3.2 (1) - 3.4 (2)
(1) Draining by gravity - (2) Draining by suction

103 TECHNICAL DATA
-

ENGINES


1.6 litre Turbo HDi 75



1.6 litre Turbo HDi 90



1.9 litre


Cubic capacity (cc)
1 560
1 560
1 867
Bore x stroke (mm)
75 x 88.3
75 x 88.3
82.2 x 88
EU standard maximum power (kW)
55
67
51
Maximum power at engine speed (rpm)
4 000
4 000
4 600
EU standard maximum torque (Nm)
185
230
125
Maximum torque at engine speed (rpm)
1 500
1 750
2 500
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Ye s
Yes

Gearboxes

Manual (5 speed)
Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3.75
3.8
4.8

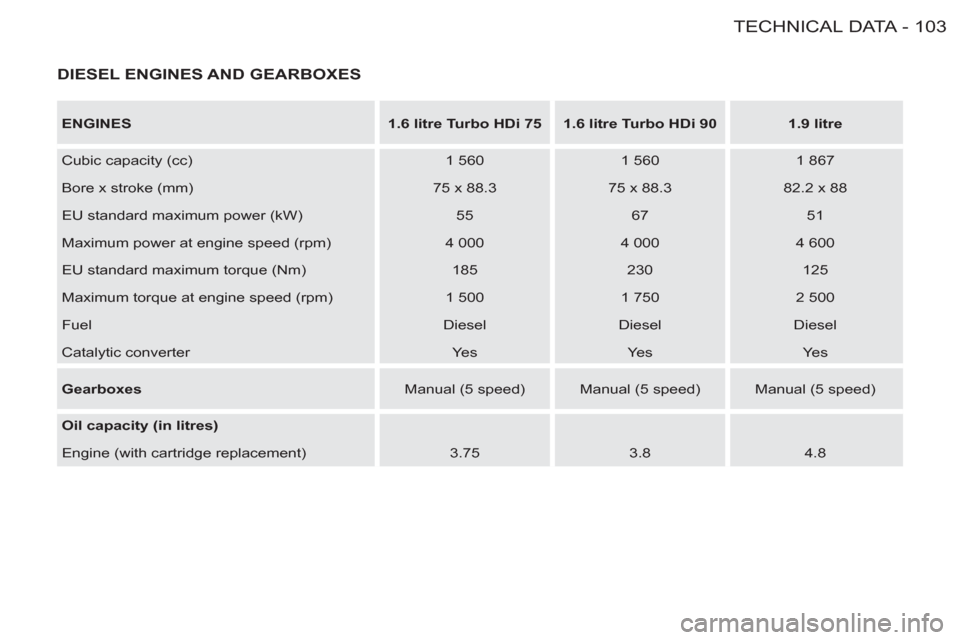

DIESEL ENGINES AND GEARBOXES

TECHNICAL DATA
104 -

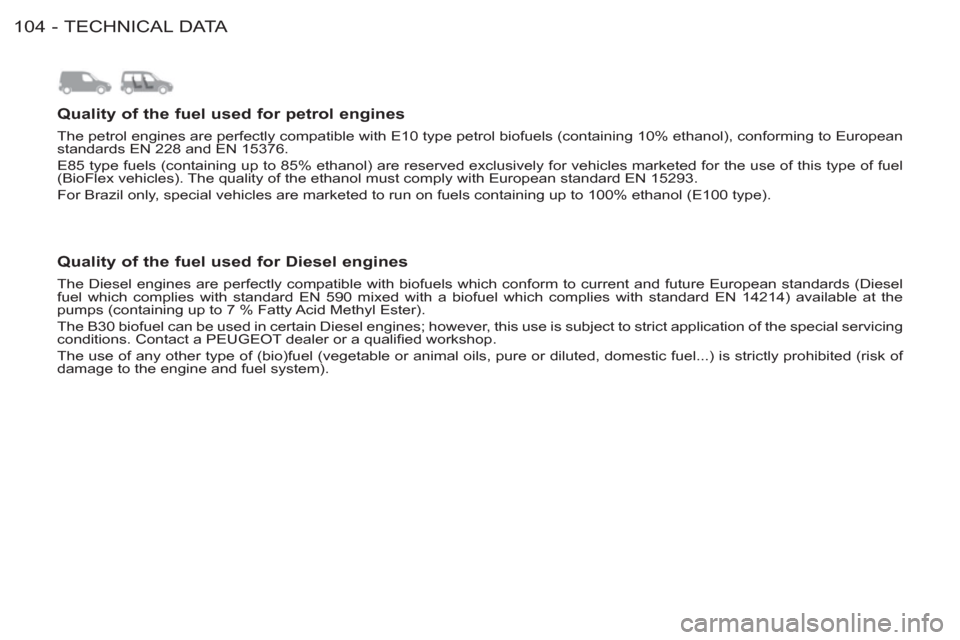

Quality of the fuel used for petrol engines












Quality of the fuel used for Diesel engines


The petrol engines are perfectly compatible with E10 type petrol biofuels (containing 10% ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85% ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15293.
For Brazil only, special vehicles are marketed to run on fuels containing up to 100% ethanol (E100 type).


The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel
fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the
pumps (containing up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing
conditions. Contact a PEUGEOT dealer or a qualifi ed workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

105 TECHNICAL DATA
-

Engine


1.4 litre



Gearbox


Manual



Length



L1



Version (kg)


800




●
Kerb weight (in running order)
1 055


●
Gross vehicle weight (GVW)
1 855


●
Gross train weight (GTW)
2 755


●
Unbraked trailer
500


●
Braked trailer (within GTW)
900


●
Recommended nose weight
70


●
Recommended weight on roof rack
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, limit the towed load.

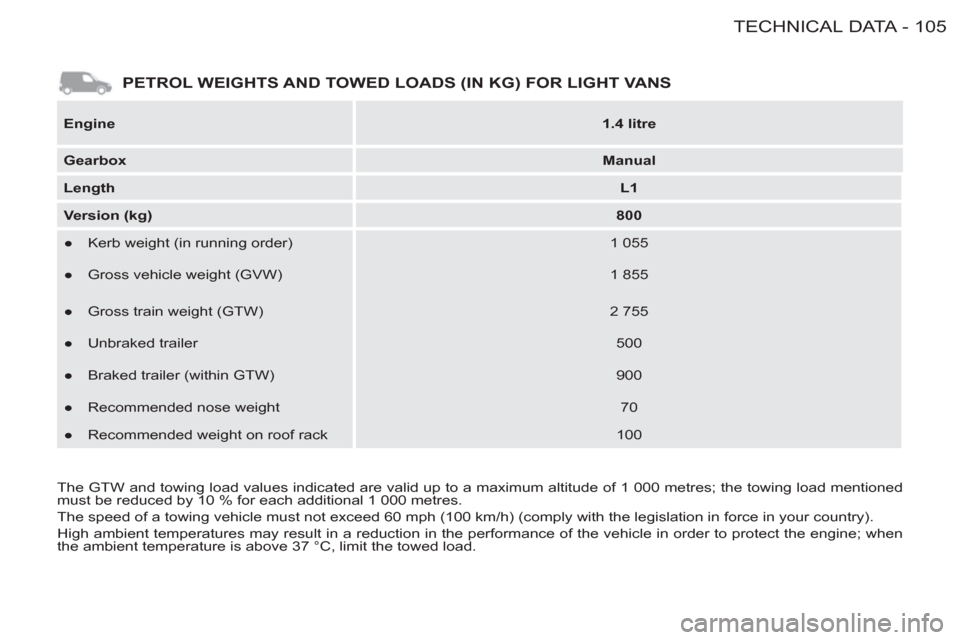

PETROL WEIGHTS AND TOWED LOADS (IN KG) FOR LIGHT VANS

TECHNICAL DATA
106 -

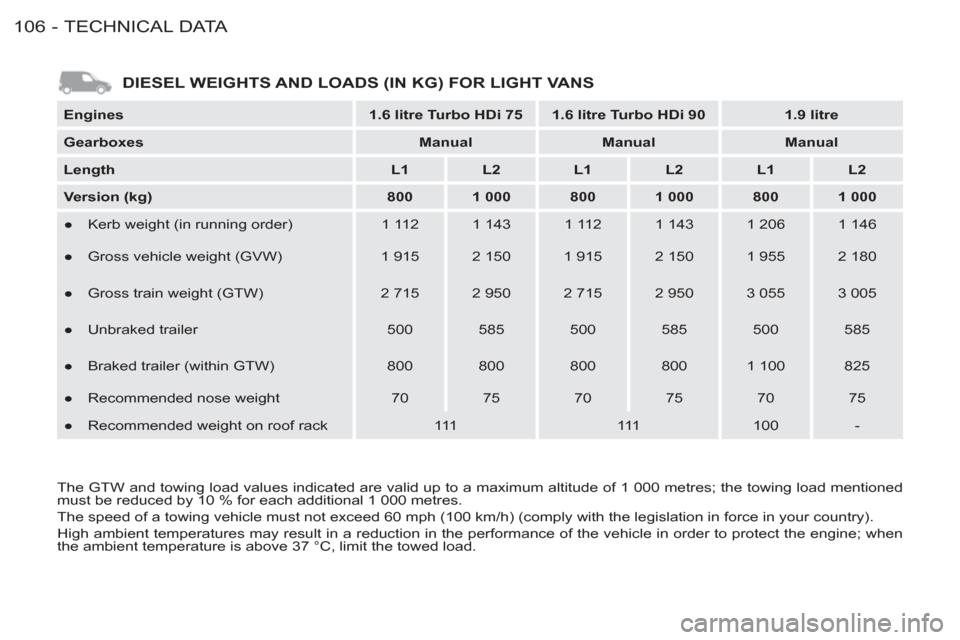

DIESEL WEIGHTS AND LOADS (IN KG) FOR LIGHT VANS


Engines


1.6 litre Turbo HDi 75



1.6 litre Turbo HDi 90



1.9 litre



Gearboxes


Manual



Manual



Manual



Length


L1



L2



L1



L2



L1



L2



Version (kg)


800



1 000



800



1 000



800



1 000




●
Kerb weight (in running order)
1 112
1 143
1 112
1 143
1 206
1 146


●
Gross vehicle weight (GVW)
1 915
2 150
1 915
2 150
1 955
2 180


●
Gross train weight (GTW)
2 715
2 950
2 715
2 950
3 055
3 005


●
Unbraked trailer
500

585
500
585
500
585


●
Braked trailer (within GTW)
800
800
800
800
1 100
825


●
Recommended nose weight
70
75
70
75
70
75


●
Recommended weight on roof rack
111
111
100
-
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, limit the towed load.

107-

WEIGHTS AND TOWING LOADS (IN KG)
FOR PETROL LUDOSPACE 4/5 SEAT VERSIONS

Engines


1.4 litre



1.6 litre



Gearboxes


Manual



Manual



Length


L1



L2



Version (kg)


-



1 000




●
Kerb weight (in running order)
1 197
1 207


●
Gross vehicle weight (GVW)
1 780
2 170


●
Gross train weight (GTW)
2 680
2 880


●
Unbraked trailer
540
585


●
Braked trailer (within GTW)
900
710


●
Recommended nose weight
70
75


●
Recommended weight on roof rack
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed load.

TECHNICAL DATA
108 -

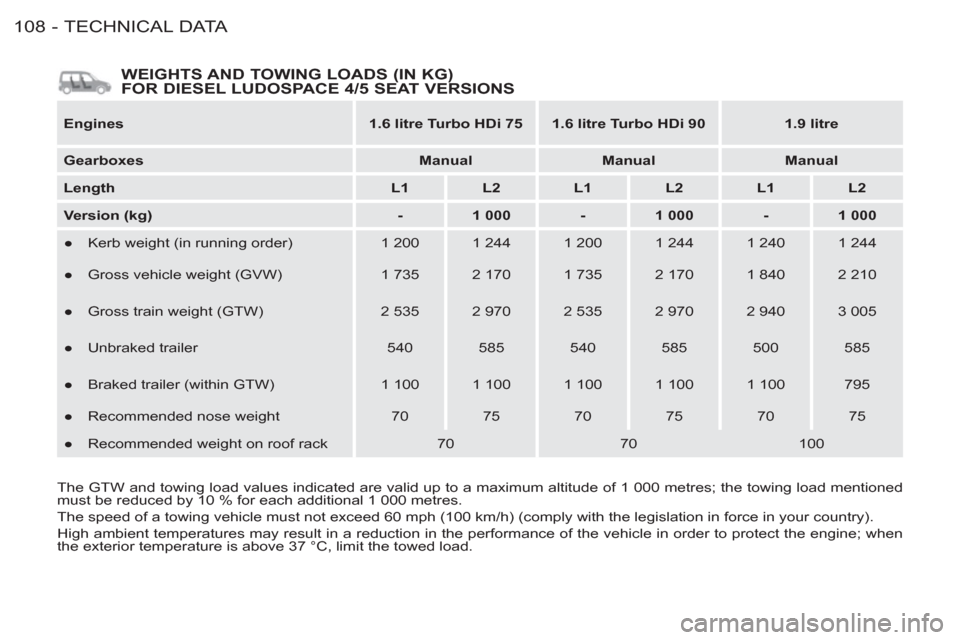

WEIGHTS AND TOWING LOADS (IN KG)
FOR DIESEL LUDOSPACE 4/5 SEAT VERSIONS

Engines


1.6 litre Turbo HDi 75



1.6 litre Turbo HDi
90



1.9 litre



Gearboxes


Manual



Manual



Manual



Length


L1



L2



L1



L2



L1



L2



Version (kg)


-



1 000



-



1 000



-



1 000




●
Kerb weight (in running order)
1 200
1 244
1 200
1 244
1 240
1 244


●
Gross vehicle weight (GVW)
1 735
2 170
1 735
2 170
1 840
2 210


●
Gross train weight (GTW)
2 535
2 970
2 535
2 970
2 940
3 005


●
Unbraked trailer
540
585
540
585
500
585


●
Braked trailer (within GTW)
1 100
1 100
1 100
1 100
1 100
795


●
Recommended nose weight
70
75
70
75
70
75


●
Recommended weight on roof rack
70
70
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed load.
