INSTRUMENTS, CONTROLS and DISPLAYS
20 -

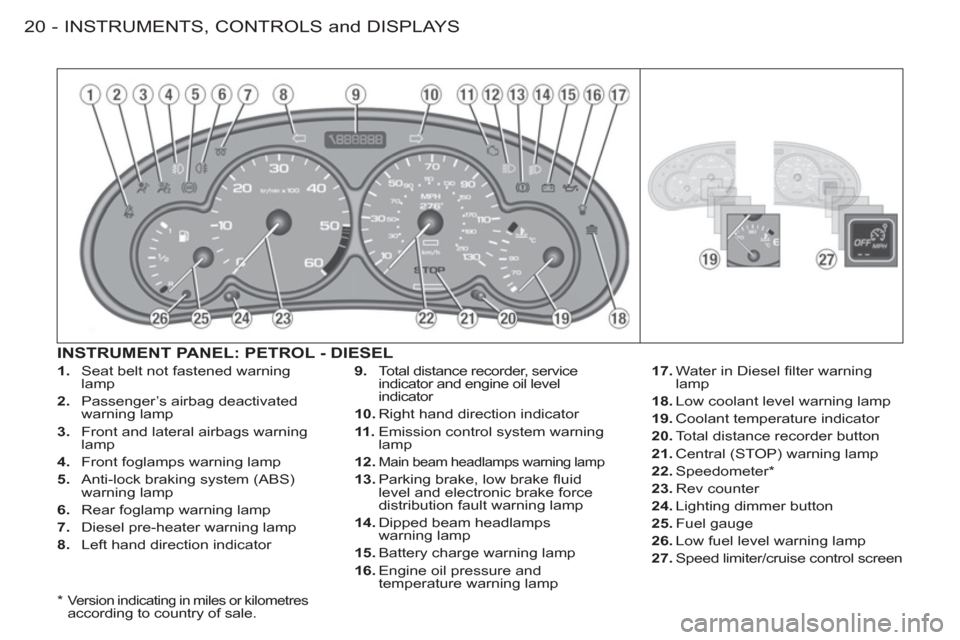

1.
Seat belt not fastened warning
lamp

2.
Passenger’s airbag deactivated
warning lamp

3.
Front and lateral airbags warning
lamp

4.
Front foglamps warning lamp

5.
Anti-lock braking system (ABS)
warning lamp

6.
Rear foglamp warning lamp

7.
Diesel pre-heater warning lamp

8.
Left hand direction indicator
9.
Total distance recorder, service
indicator and engine oil level
indicator

10.
Right hand direction indicator

11 .
Emission control system warning
lamp

12.

Main beam headlamps warning lamp


13.
Parking brake, low brake fl uid
level and electronic brake force
distribution fault warning lamp

14.
Dipped beam headlamps
warning lamp

15.
Battery charge warning lamp

16.
Engine oil pressure and
temperature warning lamp
17.
Water in Diesel fi lter warning
lamp

18.
Low coolant level warning lamp

19.
Coolant temperature indicator

20.
Total distance recorder button

21.
Central (STOP) warning lamp

22.
Speedometer *

23.
Rev counter

24.
Lighting dimmer button

25.
Fuel gauge

26.
Low fuel level warning lamp

27.
Speed limiter/cruise control screen

INSTRUMENT PANEL: PETROL - DIESEL


*
Version indicating in miles or kilometres
according to country of sale.

21 INSTRUMENTS, CONTROLS and DISPLAYS
-

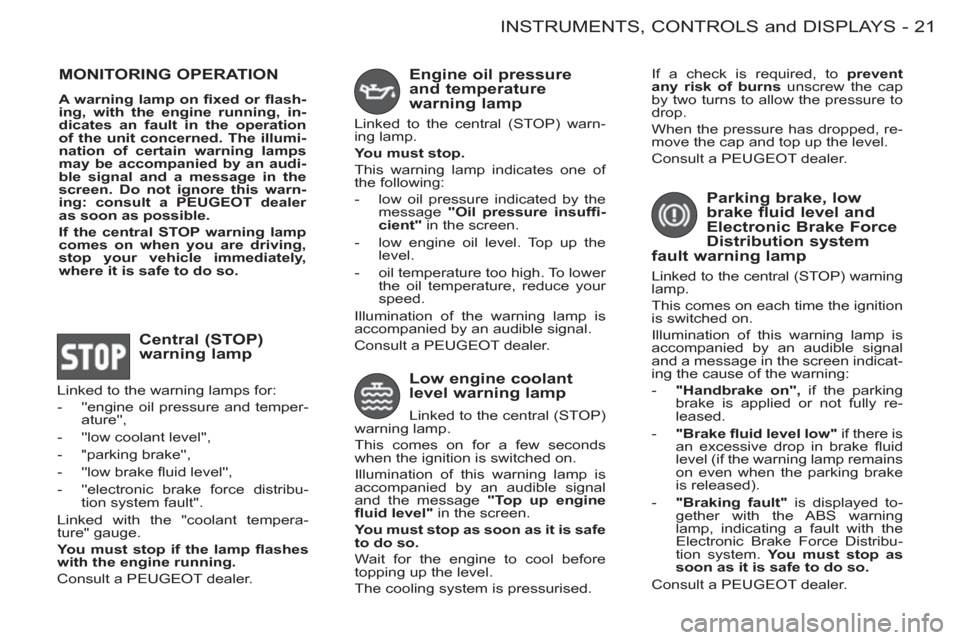

MONITORING OPERATION


A warning lamp on fi xed or fl ash-
ing, with the engine running, in-
dicates an fault in the operation
of the unit concerned. The illumi-
nation of certain warning lamps
may be accompanied by an audi-
ble signal and a message in the
screen. Do not ignore this warn-
ing: consult a
PEUGEOT dealer
as soon as possible.


If the central STOP warning lamp
comes on when you are driving,
stop your vehicle immediately,
where it is safe to do so.



Central (STOP)
warning lamp
Engine oil pressure
and temperature
warning lamp
Linked to the central (STOP) warn-
ing lamp.

You must stop.

This warning lamp indicates one of
the following:


- low oil pressure indicated by the
message "Oil pressure insuffi -
cient"
in the screen.

- low engine oil level. Top up the
level.

- oil temperature too high. To lower
the oil temperature, reduce your
speed.
Illumination of the warning lamp is
accompanied by an audible signal.
Consult a PEUGEOT dealer.


Low engine coolant
level warning lamp
Linked to the central (STOP)
warning lamp.
This comes on for a few seconds
when the ignition is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and the message "Top up engine
fl uid level"
in the screen.

You must stop as soon as it is safe
to do so.

Wait for the engine to cool before
topping up the level.
The cooling system is pressurised.


Parking brake, low
brake fluid level and
Electronic Brake Force
Distribution system
fault warning lamp
Linked to the central (STOP) warning
lamp.
This comes on each time the ignition
is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and a message in the screen indicat-
ing the cause of the warning:


- "Handbrake on",
if the parking
brake is applied or not fully re-
leased.

- "Brake fl uid level low"
if there is
an excessive drop in brake fl uid
level (if the warning lamp remains
on even when the parking brake
is released).

- "Braking fault"
is displayed to-
gether with the ABS warning
lamp, indicating a fault with the
Electronic Brake Force Distribu-
tion system. You must stop as
soon as it is safe to do so.


Consult a PEUGEOT dealer. If a check is required, to prevent
any risk of burns
unscrew the cap
by two turns to allow the pressure to
drop.
When the pressure has dropped, re-
move the cap and top up the level.
Consult a PEUGEOT dealer.
Linked to the warning lamps for:


- ''engine oil pressure and temper-
ature'',

- ''low coolant level'',

- "parking brake'',

- ''low brake fl uid level'',

- ''electronic brake force distribu-
tion system fault''.
Linked with the "coolant tempera-
ture" gauge.

You must stop if the lamp fl ashes
with the engine running.

Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
22 -

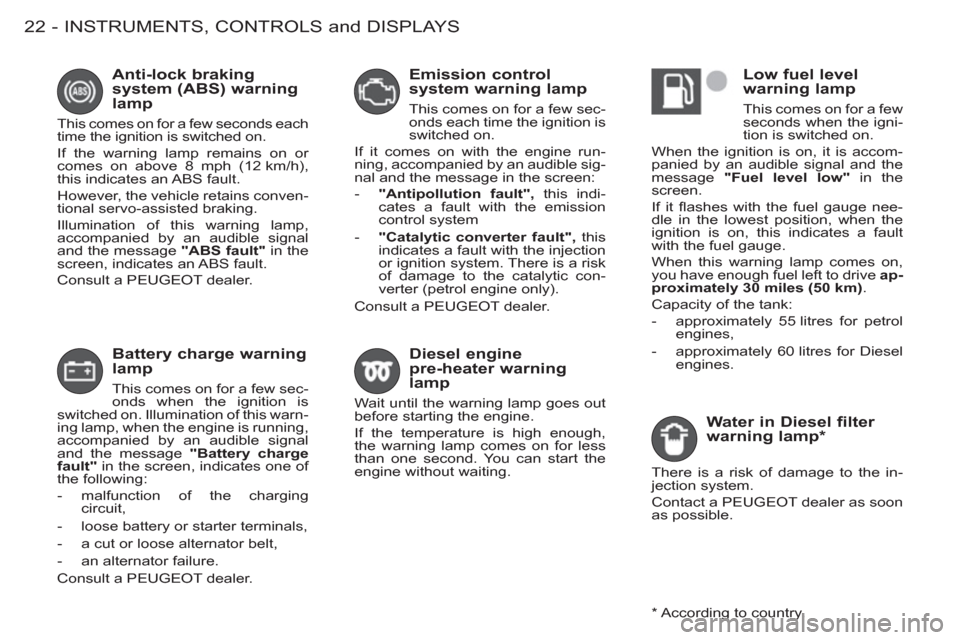

Battery charge warning
lamp
This comes on for a few sec-
onds when the ignition is
switched on. Illumination of this warn-
ing lamp, when the engine is running,
accompanied by an audible signal
and the message "Battery charge
fault"
in the screen, indicates one of
the following:


- malfunction of the charging
circuit,

- loose battery or starter terminals,

- a cut or loose alternator belt,

- an alternator failure.
Consult a PEUGEOT dealer.


Emission control
system warning lamp
This comes on for a few sec-
onds each time the ignition is
switched on.
If it comes on with the engine run-
ning, accompanied by an audible sig-
nal and the message in the screen:


- "Antipollution fault",
this indi-
cates a fault with the emission
control system

- "Catalytic converter fault",
this
indicates a fault with the injection
or ignition system. There is a risk
of damage to the catalytic con-
verter (petrol engine only).
Consult a PEUGEOT dealer.


Diesel engine
pre-heater warning
lamp
Wait until the warning lamp goes out
before starting the engine.
If the temperature is high enough,
the warning lamp comes on for less
than one second. You can start the
engine without waiting.


Low fuel level
warning lamp
This comes on for a few
seconds when the igni-
tion is switched on.
When the ignition is on, it is accom-
panied by an audible signal and the
message "Fuel level low"
in the
screen.
If it fl ashes with the fuel gauge nee-
dle in the lowest position, when the
ignition is on, this indicates a fault
with the fuel gauge.
When this warning lamp comes on,
you have enough fuel left to drive ap-
proximately 30 miles (50 km)
.
Capacity of the tank:


- approximately 55 litres for petrol
engines,

- approximately 60 litres for Diesel
engines.



Water in Diesel filter
warning lamp *

There is a risk of damage to the in-
jection system.
Contact a PEUGEOT dealer as soon
as possible.


Anti-lock braking
system (ABS) warning
lamp
This comes on for a few seconds each
time the ignition is switched on.
If the warning lamp remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Illumination of this warning lamp,
accompanied by an audible signal
and the message "ABS fault"
in the
screen, indicates an ABS fault.
Consult a PEUGEOT dealer.

*
According to country.

23 INSTRUMENTS, CONTROLS and DISPLAYS
-

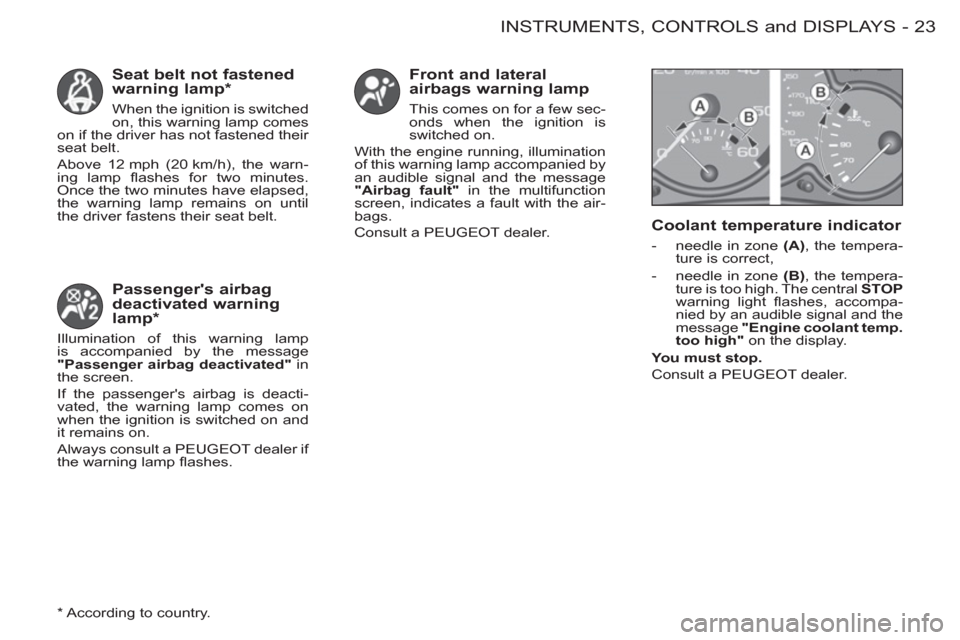

Seat belt not fastened
warning lamp *

When the ignition is switched
on, this warning lamp comes
on if the driver has not fastened their
seat belt.
Above 12 mph (20 km/h), the warn-
ing lamp fl ashes for two minutes.
Once the two minutes have elapsed,
the warning lamp remains on until
the driver fastens their seat belt.


Coolant temperature indicator



- needle in zone (A)
, the tempera-
ture is correct,

- needle in zone (B)
, the tempera-
ture is too high. The central STOP

warning light fl ashes, accompa-
nied by an audible signal and the
message "Engine coolant temp.
too high"
on the display.

You must stop.


Consult a PEUGEOT dealer.

* According to country.


Passenger's airbag
deactivated warning
lamp *

Illumination of this warning lamp
is accompanied by the message
"Passenger airbag deactivated"
in
the screen.
If the passenger's airbag is deacti-
vated, the warning lamp comes on
when the ignition is switched on and
it remains on.
Always consult a PEUGEOT dealer if
the warning lamp fl ashes.


Front and lateral
airbags warning lamp
This comes on for a few sec-
onds when the ignition is
switched on.
With the engine running, illumination
of this warning lamp accompanied by
an audible signal and the message
"Airbag fault"
in the multifunction
screen, indicates a fault with the air-
bags.
Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
24 -

Service indicator

This is a visual reminder of when the
next service is due. This service is to
be carried out according to the man-
ufacturer's servicing schedule. 5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation
and the screen shows the total or trip
distances.


The distance remaining before the next
service is less than 1 000 km (600 miles).

Example:
900 km (560 miles) remain before
the next service is due.
When switching on the ignition and for 5 sec-
onds, the screen shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation
and the symbol remains on.
This indicates that a service should
be carried out shortly. The screen
shows the total or trip distances.
The service is overdue.
Each time the ignition is switched on
and for 5 seconds, the symbol and
the excess distance fl ash.

Example:
the service is overdue
by 300 km (186 miles). The service
should be carried out very shortly.
When the ignition is switched on and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation and
the symbol remains on. The screen
shows the total or trip distances.

Note:
the spanner comes on if the
two-year interval has been exceeded.

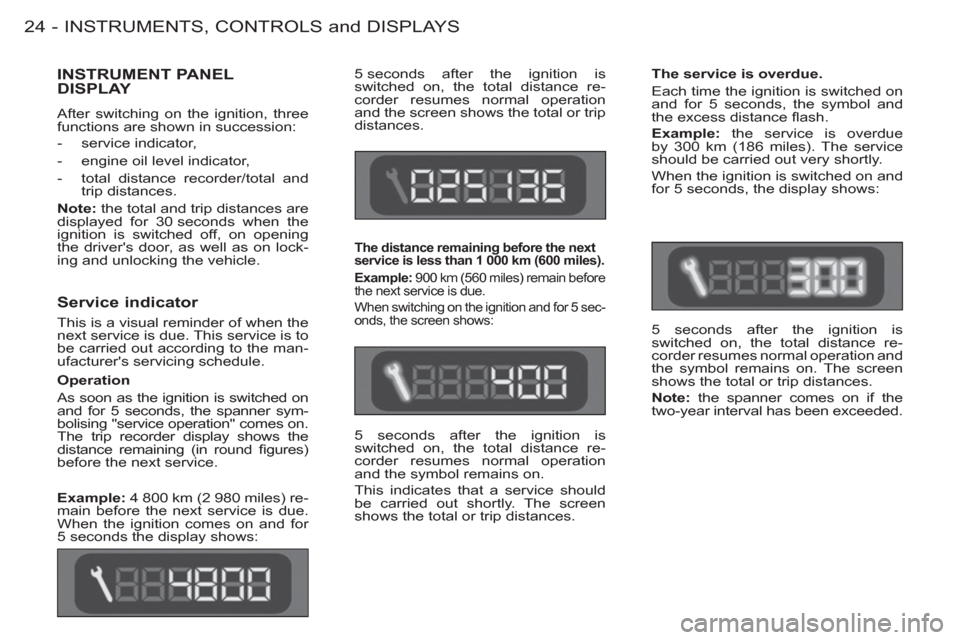

INSTRUMENT PANEL DISPLAY

After switching on the ignition, three
functions are shown in succession:


- service indicator,

- engine oil level indicator,

- total distance recorder/total and
trip distances.

Note
: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver's door, as well as on lock-
ing and unlocking the vehicle.

Example:
4 800 km (2 980 miles) re-
main before the next service is due.
When the ignition comes on and for
5 seconds the display shows:
Operation
As soon as the ignition is switched on
and for 5 seconds, the spanner sym-
bolising ''service operation'' comes on.
The trip recorder display shows the
distance remaining (in round fi gures)
before the next service.

25 INSTRUMENTS, CONTROLS and DISPLAYS
-

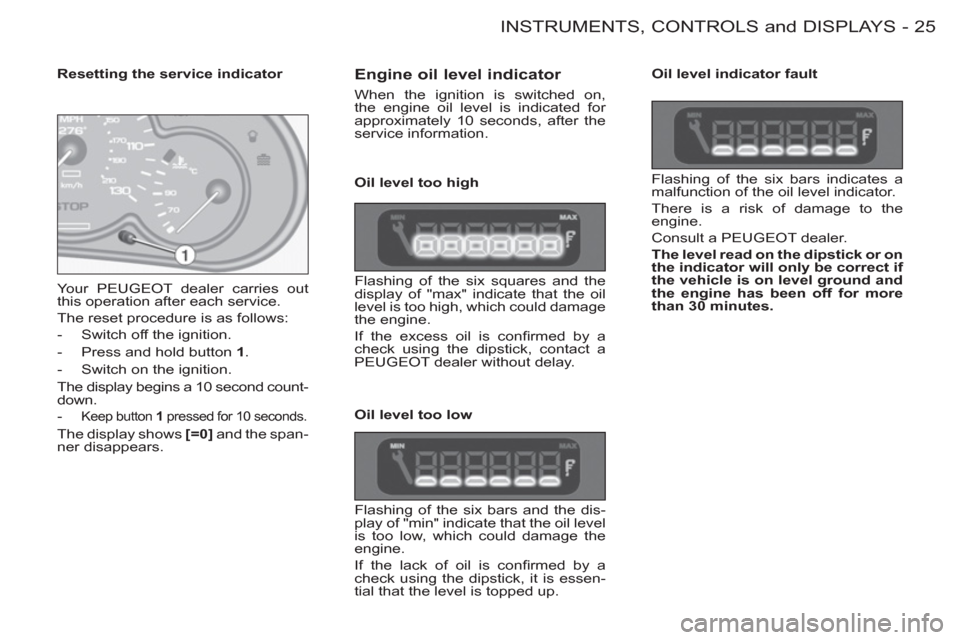

Engine oil level indicator

When the ignition is switched on,
the engine oil level is indicated for
approximately 10 seconds, after the
service information.
Flashing of the six squares and the
display of "max" indicate that the oil
level is too high, which could damage
the engine.
If the excess oil is confi rmed by a
check using the dipstick, contact a
PEUGEOT dealer without delay. Your PEUGEOT dealer carries out
this operation after each service.
The reset procedure is as follows:


- Switch off the ignition.

- Press and hold button 1
.

- Switch on the ignition.
The display begins a 10 second count-
down.


-
Keep button 1
pressed for 10 seconds.

The display shows [=0]
and the span-
ner disappears.

Flashing of the six bars and the dis-
play of "min" indicate that the oil level
is too low, which could damage the
engine.
If the lack of oil is confi rmed by a
check using the dipstick, it is essen-
tial that the level is topped up. Flashing of the six bars indicates a
malfunction of the oil level indicator.
There is a risk of damage to the
engine.
Consult a PEUGEOT dealer.

The level read on the dipstick or on
the indicator will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 30 minutes.









Resetting the service indicator

Oil level too high

Oil level too low
Oil level indicator fault

INSTRUMENTS, CONTROLS and DISPLAYS
26 -

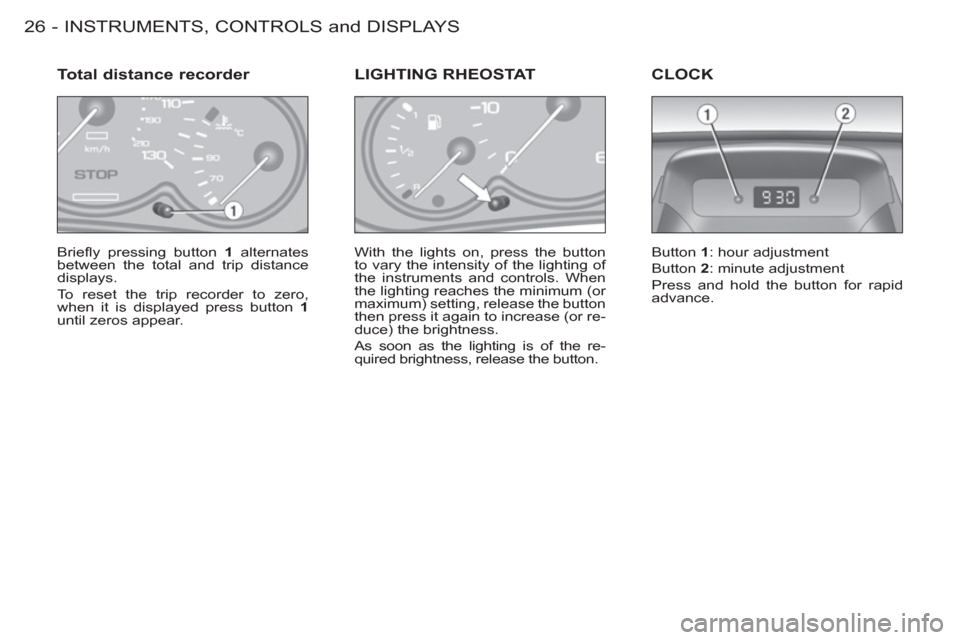

Briefl y pressing button 1
alternates
between the total and trip distance
displays.
To reset the trip recorder to zero,
when it is displayed press button 1

until zeros appear.


Total distance recorder

With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or
maximum) setting, release the button
then press it again to increase (or re-
duce) the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
LIGHTING RHEOSTAT CLOCK
Button 1
: hour adjustment
Button 2
: minute adjustment
Press and hold the button for rapid
advance.

27 INSTRUMENTS, CONTROLS and DISPLAYS
-

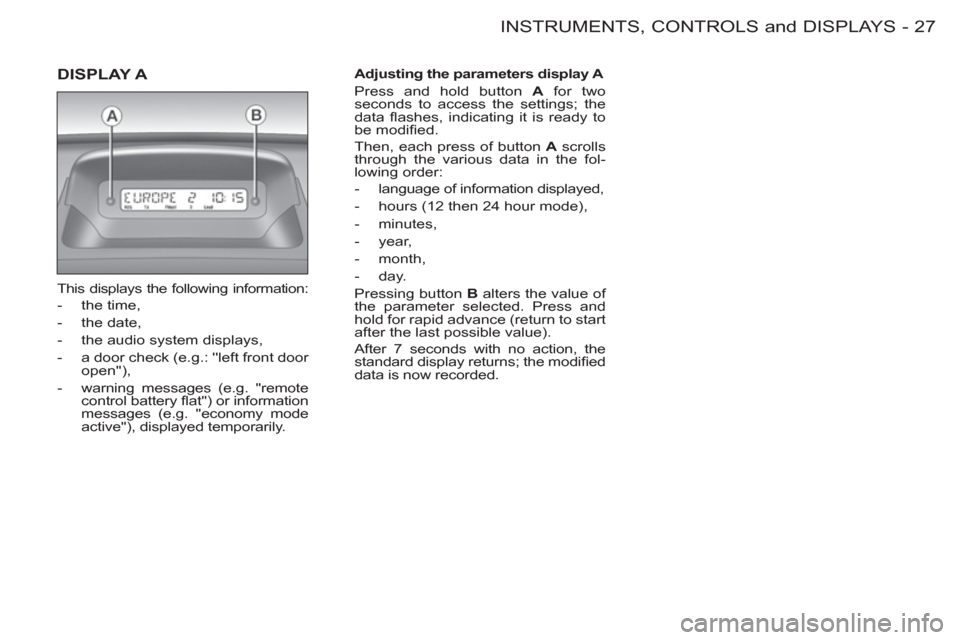

DISPLAY A

This displays the following information:


- the time,

- the date,

- the audio system displays,

- a door check (e.g.: ''left front door
open''),

- warning messages (e.g. ''remote
control battery fl at'') or information
messages (e.g. ''economy mode
active''), displayed temporarily.

Adjusting the parameters display A
Press and hold button A
for two
seconds to access the settings; the
data fl ashes, indicating it is ready to
be modifi ed.
Then, each press of button A
scrolls
through the various data in the fol-
lowing order:


- language of information displayed,

- hours (12 then 24 hour mode),

- minutes,

- year,

- month,

- day.
Pressing button B
alters the value of
the parameter selected. Press and
hold for rapid advance (return to start
after the last possible value).
After 7 seconds with no action, the
standard display returns; the modifi ed
data is now recorded.

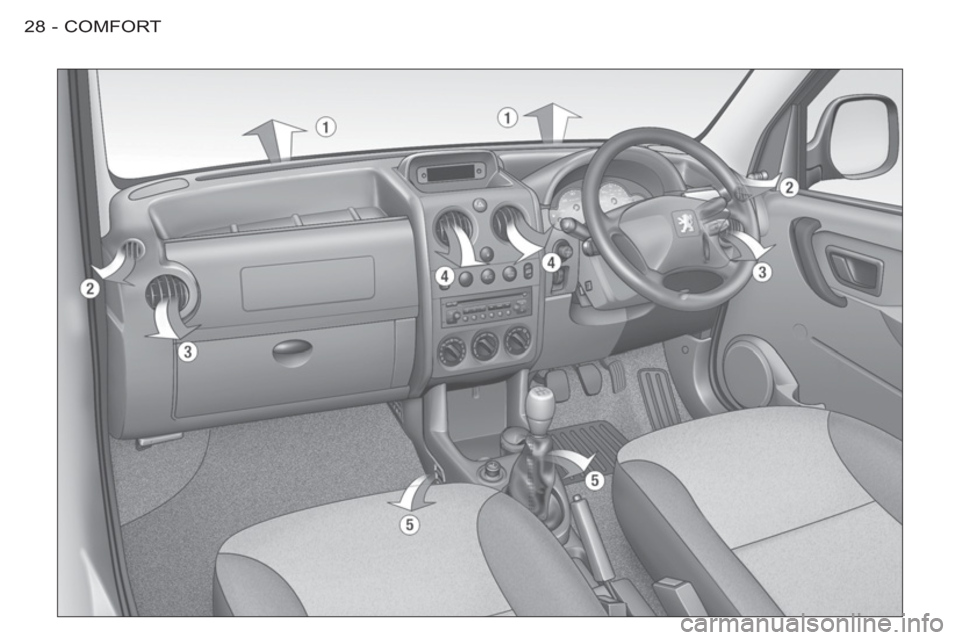

COMFORT28 -
