8
Interior
INSTRUMENTS AND CONTROLS
1. Lights and direction indicators
stalk.
2. Instrument panel with display.
3. Wipers, wash-wipe, trip
computer controls.
4. Ignition.
5. Audio equipment, hands-free kit
control.
6. Driver’s air bag, horn.
7. Steering wheel height and depth
adjustment.
8. Cruise control, speed limiter
switch.
9. Control pad, parking assistance,
headlamp beam adjustment,
ESP.
10. Bonnet release.
11. Electric exterior mirror
adjustment.
Page 21 of 153
READY TO SET OFF
25 25
22
Instruments and controls
INSTRUMENTS AND CONTROLS
INSTRUMENT PANEL
Dials
1. Distance recorder in kilometres/
miles.
2. Display.
3. Fuel level, coolant temperature.
4. Rev counter.
5. Trip distance recorder/service
indicator zero reset.
6. Instrument panel lighting rheostat. Displays
- Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level
indicator, total kilometres/miles.
- Presence of water in the diesel fi l t e r .
- Diesel pre-heating. Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle’s equipment.
Page 22 of 153
26
Instruments and controls Centre console with display
Instrument panel without display
- turn to the right to increase the hours (hold the button to the right
for rapid scrolling),
- turn to the left: 24 H or 12 H is displayed,
-
turn to the right to select 24 H or 12 H,
- turn to the left to complete the time adjustment.
After approximately 30 seconds
without any action, the display returns
to the normal display.

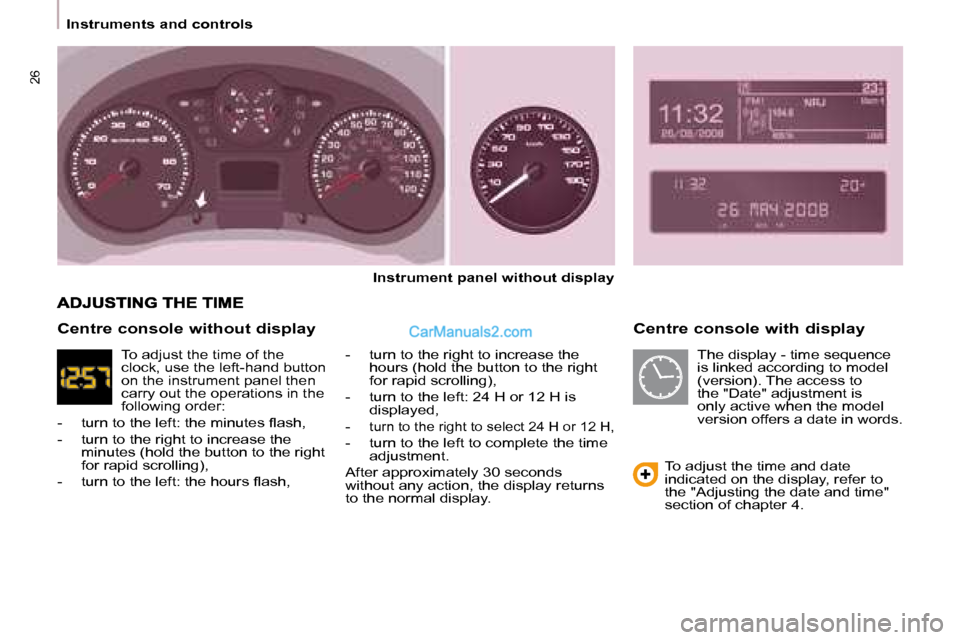

To adjust the time and date
indicated on the display, refer to
the "Adjusting the date and time"
section of chapter 4.
Centre console without display
To adjust the time of the
clock, use the left-hand button
on the instrument panel then
carry out the operations in the
following order:
- t u r n t o t h e l e f t : t h e m i n u t e s fl a s h ,
- turn to the right to increase the
minutes (hold the button to the right
for rapid scrolling),
- t u r n t o t h e l e f t : t h e h o u r s fl a s h , The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
Page 28 of 153
32
Instruments and controls
Warning light on the
display

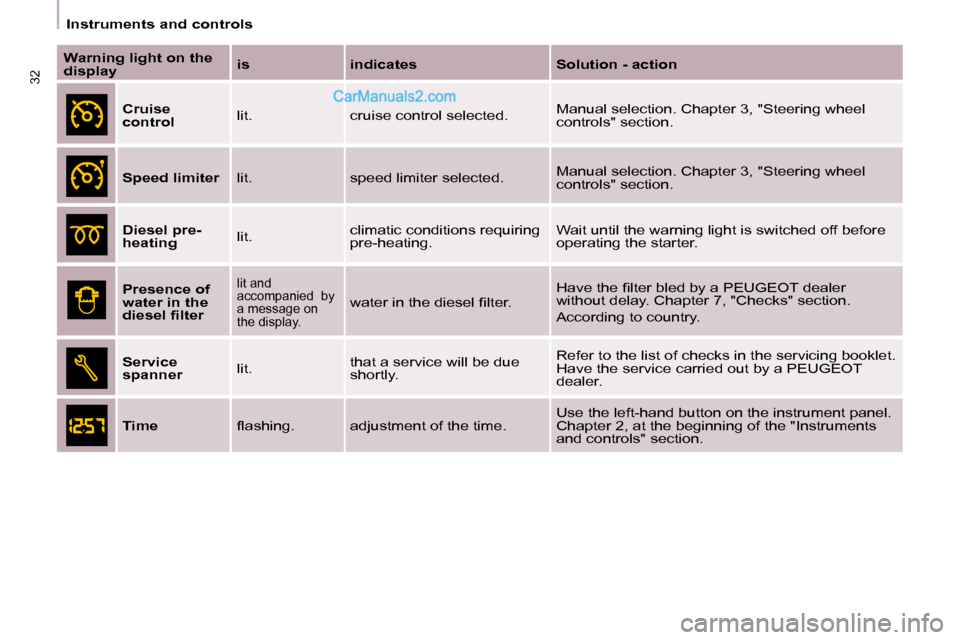

is indicates Solution - action
Cruise
control lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Speed limiter lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Diesel pre-
heating lit. climatic conditions requiring
pre-heating. Wait until the warning light is switched off before
operating the starter.
Presence of
water in the
d i e s e l fi l t e r
lit and
accompanied by
a message on
the display.
w a t e r i n t h e d i e s e l fi l t e r . H a v e t h e fi l t e r b l e d b y a P E U G E O T d e a l e r
without delay. Chapter 7, "Checks" section.
According to country.
Service
spanner lit. that a service will be due
shortly. Refer to the list of checks in the servicing booklet.
Have the service carried out by a PEUGEOT
dealer.
Time fl a s h i n g . adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 2, at the beginning of the "Instruments
and controls" section.
Page 30 of 153
34
Instruments and controls Puncture
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged (punctured or
v e r y d e fl a t e d ) t y r e , a n d h a v e t h e t y r e
pressure checked as soon as possible. Sensor(s) not detected
U n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
from one (or several) tyre(s). Contact a
PEUGEOT dealer to replace the faulty
sensor(s).
This message is also displayed when
one of the tyres is away from the
vehicle (being repaired) or when a
w h e e l w i t h o u t a s e n s o r i s fi t t e d .
All repairs and changing of tyres on a
w h e e l fi t t e d w i t h t h i s s y s t e m m u s t b e
carried out by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of vigilance or the
responsibility of the driver.
This system does not remove the need
to have the tyre pressure checked
regularly (including the spare wheel), to
ensure that the dynamic performance
of the vehicle remains at its best and
to avoid premature wear of the tyres,
in particular in the case of arduous
driving (heavy load, high speed).
The system may temporarily be
disturbed by radio broadcasts on a
frequency close to it.
DETECTION
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles, detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.
Therefore, the driver is warned of any
malfunction of this emission control
s y s t e m b y t h e l i g h t i n g o f t h i s s p e c i fi c
warning light on the instrument panel.
There is a risk of damage to the
catalytic converter. Have it checked by
a PEUGEOT dealer.
EMISSION CONTROL Flat tyre
Check the tyre pressure as soon as
possible.
Refer to the "Changing a wheel"
section of chapter 8.
If the damaged tyre is temporarily
stored inside the vehicle, it will again
emit this message to remind you of the
necessity of having it repaired. This will
prevent another warning of the same
type being displayed.
Sensors check the tyre pressure during
driving (speed higher than 12 mph
[20 km/h]) and trigger a warning in the
event of a malfunction or puncture. EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:
Any anomaly detected
( fl a t o r p u n c t u r e d t y r e ,
malfunction of a sensor)
is indicated by visual
and audible information
and is accompanied by a
message on the display.
Page 36 of 153
40
Steering wheel controls
DIRECTION INDICATORS
(green flashing)
"Motorway" function
P r e s s t h e c o n t r o l u p o r d o w n t o fl a s h
the corresponding direction indicator
three times. LIGHTING CONTROL
Left : downwards passing the
point of resistance.
Right : upwards passing the
point of resistance. Front and rear lights
Selection is by turning ring
A . Lights off
Automatic lights
Side lights
Dipped beam (green)
Main beam (blue)
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when
the driver’s door is opened, a buzzer
sounds if you have left your lights on.
Checking by means of the indicator
lights on the instrument panel is
described in the "Instruments and
controls" section of chapter 2.
Page 37 of 153
40
Steering wheel controls
DIRECTION INDICATORS
(green flashing)
"Motorway" function
P r e s s t h e c o n t r o l u p o r d o w n t o fl a s h
the corresponding direction indicator
three times. LIGHTING CONTROL
Left : downwards passing the
point of resistance.
Right : upwards passing the
point of resistance. Front and rear lights
Selection is by turning ring
A . Lights off
Automatic lights
Side lights
Dipped beam (green)
Main beam (blue)
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when
the driver’s door is opened, a buzzer
sounds if you have left your lights on.
Checking by means of the indicator
lights on the instrument panel is
described in the "Instruments and
controls" section of chapter 2.
Page 38 of 153
41
Steering wheel controls
ERGONOMICS and COMFORT
3

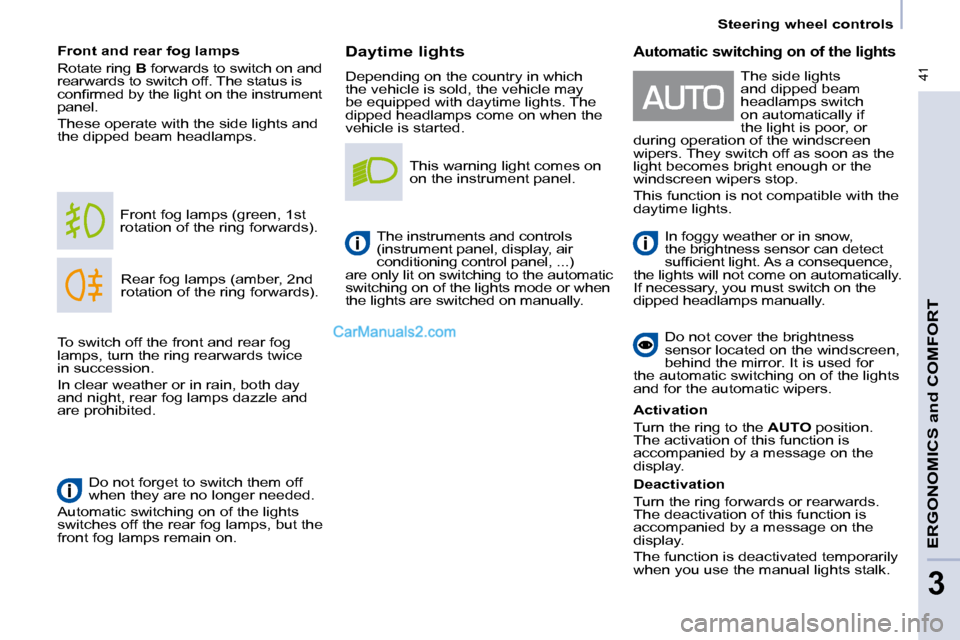

Daytime lights
Depending on the country in which
the vehicle is sold, the vehicle may
be equipped with daytime lights. The
dipped headlamps come on when the
vehicle is started.
Rear fog lamps (amber, 2nd
rotation of the ring forwards).
Front fog lamps (green, 1st
rotation of the ring forwards).
Front and rear fog lamps
Rotate ring
B forwards to switch on and
rearwards to switch off. The status is
c o n fi r m e d b y t h e l i g h t o n t h e i n s t r u m e n t
panel.
These operate with the side lights and
the dipped beam headlamps.
Do not forget to switch them off
when they are no longer needed.
Automatic switching on of the lights
switches off the rear fog lamps, but the
front fog lamps remain on. This warning light comes on
on the instrument panel.
The instruments and controls
(instrument panel, display, air
conditioning control panel, ...)
are only lit on switching to the automatic
switching on of the lights mode or when
the lights are switched on manually.
To switch off the front and rear fog
lamps, turn the ring rearwards twice
in succession.
In clear weather or in rain, both day
and night, rear fog lamps dazzle and
are prohibited. Automatic switching on of the lights
In foggy weather or in snow,
the brightness sensor can detect
s u f fi c i e n t l i g h t . A s a c o n s e q u e n c e ,
the lights will not come on automatically.
If necessary, you must switch on the
dipped headlamps manually.
Do not cover the brightness
sensor located on the windscreen,
behind the mirror. It is used for
the automatic switching on of the lights
and for the automatic wipers.
Activation
Turn the ring to the AUTO position.
The activation of this function is
accompanied by a message on the
display.
Deactivation
Turn the ring forwards or rearwards.
The deactivation of this function is
accompanied by a message on the
display.
The function is deactivated temporarily
when you use the manual lights stalk. The side lights
and dipped beam
headlamps switch
on automatically if
the light is poor, or
during operation of the windscreen
wipers. They switch off as soon as the
light becomes bright enough or the
windscreen wipers stop.
This function is not compatible with the
daytime lights.
Page 43 of 153
45
Steering wheel controls
ERGONOMICS and COMFORT
3

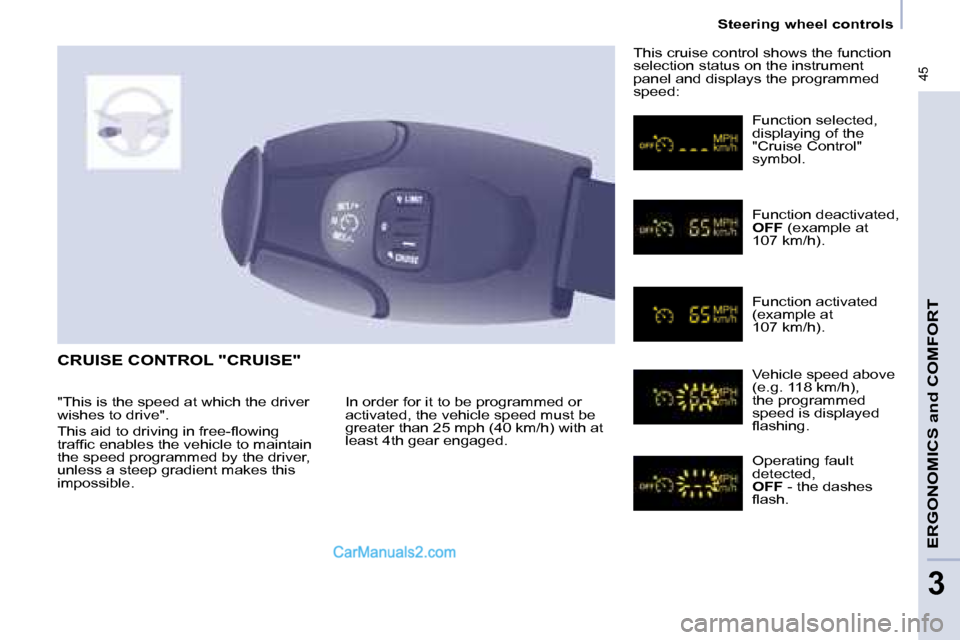

CRUISE CONTROL "CRUISE"
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with at
least 4th gear engaged. This cruise control shows the function
selection status on the instrument
panel and displays the programmed
speed:
Function selected,
displaying of the
"Cruise Control"
symbol.
Function deactivated,
OFF (example at
107 km/h).
Function activated
(example at
107 km/h).
Vehicle speed above
(e.g. 118 km/h),
the programmed
speed is displayed
fl a s h i n g .
Operating fault
detected,
OFF - the dashes
fl a s h .
"This is the speed at which the driver
wishes to drive".
T h i s a i d t o d r i v i n g i n f r e e - fl o w i n g
t r a f fi c e n a b l e s t h e v e h i c l e t o m a i n t a i n
the speed programmed by the driver,
unless a steep gradient makes this
impossible.
Page 46 of 153
48
Steering wheel controls However, pressing the pedal beyond
t h i s p o i n t o f r e s i s t a n c e t o t h e fl o o r
permits exceeding of the programmed
speed. To resume use of the limiter,
simply reduce the pressure on the
accelerator pedal gradually and return
to a speed below that programmed.
The operating actions may be
carried out when stationary, with the
engine running, or with the vehicle
moving. This speed limiter shows the function
selection status on the instrument
panel and displays the programmed
speed:
SPEED LIMITER "LIMIT"
Function selected,
displaying of the
"Speed Limiter"
symbol.
Function deactivated,
last programmed
speed - OFF
(example at 65 mph
(107 km/h)).
Function activated
(example at 65 mph
(107 km/h)).
Vehicle speed above
(example 70 mph
(118 km/h)),
the programmed
speed is displayed
fl a s h i n g .
Operating fault
detected,
OFF - the dashes
fl a s h .
"This is the selected speed which the
driver does not wish to exceed".
This selection is made with the engine
running while stationary or with the
vehicle moving. The minimum speed
which can be programmed is 20 mph
(30 km/h).
The speed of the vehicle responds
to the pressure of the driver’s foot as
far as the accelerator pedal point of
resistance which indicates that the
programmed speed has been reached.
