69
EASE OF USE and COMFOR
T
33


Seats


CONFIGURATIONS

Examples of various layouts combining comfort and practicality

The various operations
must be carried out while
stationary.

70


Practical information

FRONT FITTINGS

1. Lower glove box

An auxiliary socket is located in the
glove box (cable not supplied) for the
connection of portable equipment
(MP3 player, ...).


Upper storage compartment

This is located on the fascia, behind
the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks
causing an electrical short-circuit and
therefore a potential fi re.


3. Side storage compartment

4. Bag hook

Only hang fl exible bags which are not
too heavy on this hook.


2. Storage tray and bottle
holder (1.5 L)

71
EASE OF USE and COMFOR
T
33
Practical information

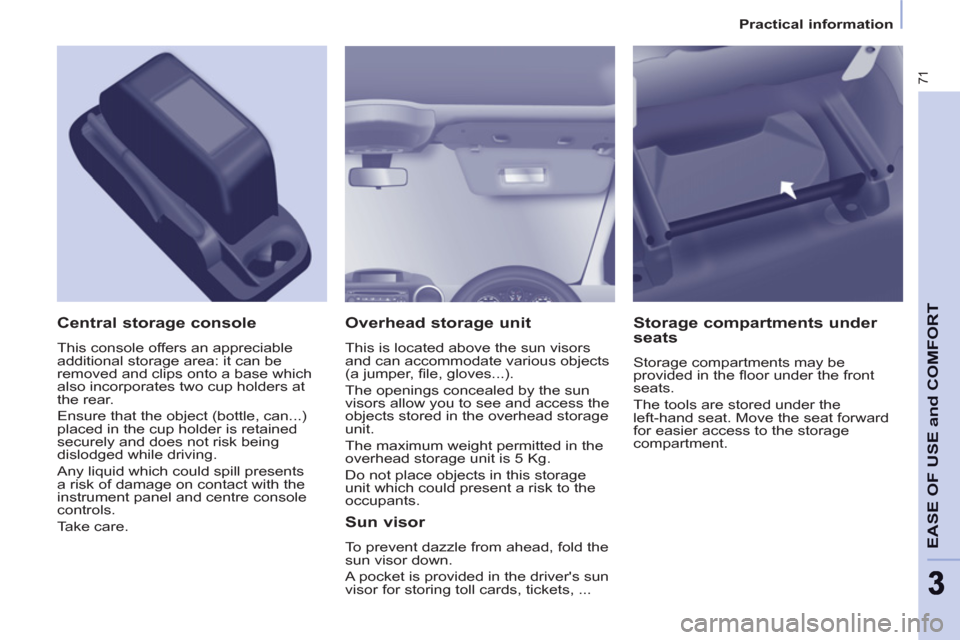

Overhead storage unit

This is located above the sun visors
and can accommodate various objects
(a jumper, fi le, gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
The maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.


Central storage console

This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.


Sun visor

To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun
visor for storing toll cards, tickets, ...


Storage compartments under
seats
Storage compartments may be
provided in the fl oor under the front
seats.
The tools are stored under the
left-hand seat. Move the seat forward
for easier access to the storage
compartment.

72


Practical information


Automatic operation
The front courtesy lamp comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked. Cab: comes on when one of
the front doors is opened. These are switched on and off by
means of a manual switch, with
the ignition on.

Load space: comes on when
one of the rear doors is
opened.

If the doors remain open for
a few minutes, the courtesy
lamps go off.
Permanently off. Permanently on, ignition on.
Front courtesy lamp

COURTESY LAMPS


Rear courtesy lamp
Front individual reading lamps

73
EASE OF USE and COMFOR
T
33
Practical information

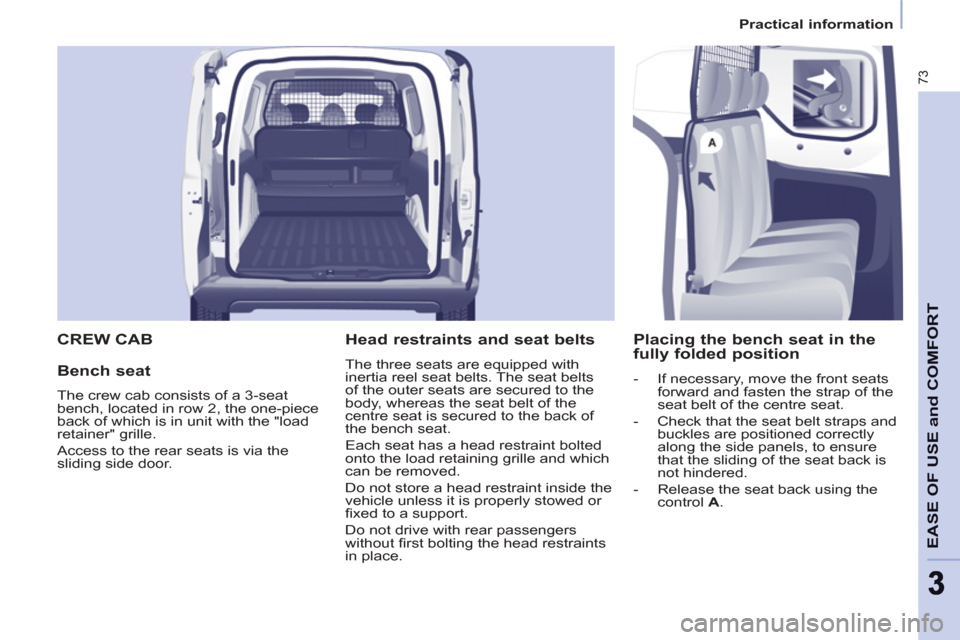

CREW CAB

Bench seat

The crew cab consists of a 3-seat
bench, located in row 2, the one-piece
back of which is in unit with the "load
retainer" grille.
Access to the rear seats is via the
sliding side door.


Head restraints and seat belts

The three seats are equipped with
inertia reel seat belts. The seat belts
of the outer seats are secured to the
body, whereas the seat belt of the
centre seat is secured to the back of
the bench seat.
Each seat has a head restraint bolted
onto the load retaining grille and which
can be removed.
Do not store a head restraint inside the
vehicle unless it is properly stowed or
fi xed to a support.
Do not drive with rear passengers
without fi rst bolting the head restraints
in place.


Placing the bench seat in the
fully folded position


- If necessary, move the front seats
forward and fasten the strap of the
seat belt of the centre seat.

- Check that the seat belt straps and
buckles are positioned correctly
along the side panels, to ensure
that the sliding of the seat back is
not hindered.

- Release the seat back using the
control A
.

74


Practical information

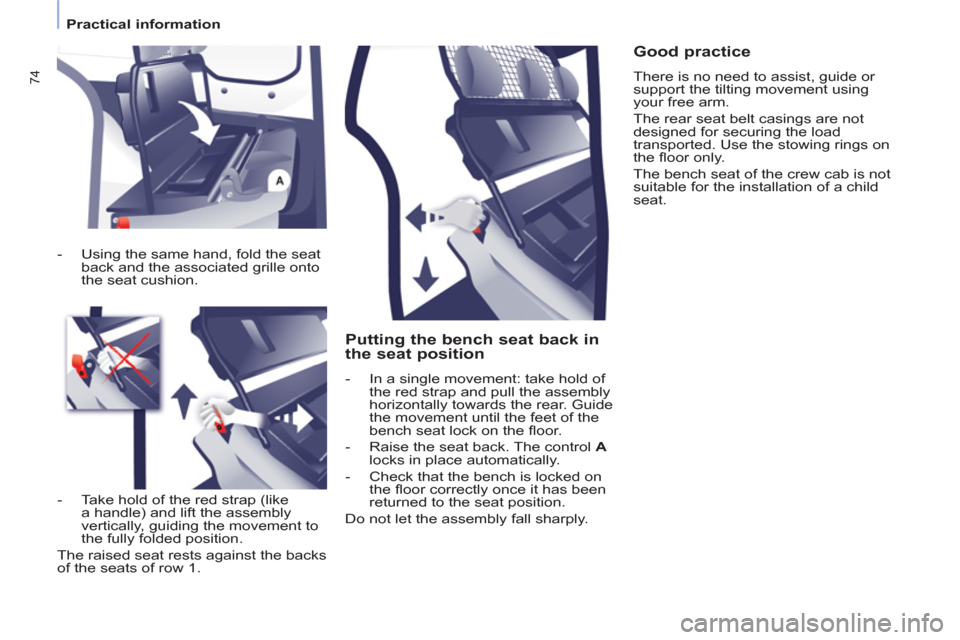

Putting the bench seat back in
the seat position


- In a single movement: take hold of
the red strap and pull the assembly
horizontally towards the rear. Guide
the movement until the feet of the
bench seat lock on the fl oor.

- Raise the seat back. The control A

locks in place automatically.

- Check that the bench is locked on
the fl oor correctly once it has been
returned to the seat position.
Do not let the assembly fall sharply.


Good practice

There is no need to assist, guide or
support the tilting movement using
your free arm.
The rear seat belt casings are not
designed for securing the load
transported. Use the stowing rings on
the fl oor only.
The bench seat of the crew cab is not
suitable for the installation of a child
seat.

- Using the same hand, fold the seat
back and the associated grille onto
the seat cushion.

- Take hold of the red strap (like
a handle) and lift the assembly
vertically, guiding the movement to
the fully folded position.
The raised seat rests against the backs
of the seats of row 1.

75
EASE OF USE and COMFOR
T
33
Practical information
LOAD SPACE FITTINGS

12 volt socket (120 W max)

It is advisable to limit its use to avoid
discharging the battery.


Lashing rings

Use the lashing rings on the rear fl oor
to secure your loads.
As a safety precaution in case of sharp
braking, you are advised to immobilise
the load by securing it fi rmly using the
stowing rings and place heavy objects
as far forwards as possible (towards
the cab).


Trim panels

The lower parts of the sides are fi tted
with load protection trim panels.

76


Practical information


Ladder

Partition with fl ap


Mid-height partition


Load retainers

Your vehicle can be equipped with
a wide range of load retainers to
effectively protect the driver and front
passenger(s), while maintaining the
loading adaptability.

Removable flap

The fl ap located on the panel section
of the mid-height partition, behind the
passenger seat(s), can be removed to
permit the loading of long objects.


- Turn the control located at the top
of the fl ap to release it.

- Lift the fl ap to remove it from its
location.

- Pivot the fl ap by 90° to the right.

- Store it behind the driver's seat,
clipping it into the securing lugs.
Contact a PEUGEOT dealer for
information about the different models
of accessory load retainer available.

77
EASE OF USE and COMFOR
T
33
Practical information
ROOF BARS

If you install transverse bars on these bars, refer to the weight values indicated
by the manufacturer but do not exceed 75 Kg.

78


Mirrors and windows



Electric door mirrors


- Move the control to the right or to
the left to select the corresponding
mirror.

- Move the control in all four
directions to adjust.

- Return the control to the central
position.

Electric folding / unfolding
The mirrors can be folded or unfolded
electrically from the inside, with the
vehicle parked and the ignition on:


- Place the control in the central
position.

- Turn the control downwards.



MIRRORS


Heated mirrors
Manual door mirrors
Move the lever in all four directions to
adjust.
When the vehicle is parked, the door
mirrors can be folded back manually.
The mirrors are not equipped with
automatic heating.

The electric mirrors can be
heated. Press the heated rear
screen button.
