Peugeot Partner 2012 Owner's Manual

Snow screen

11 9
QUICK HEL
P
7

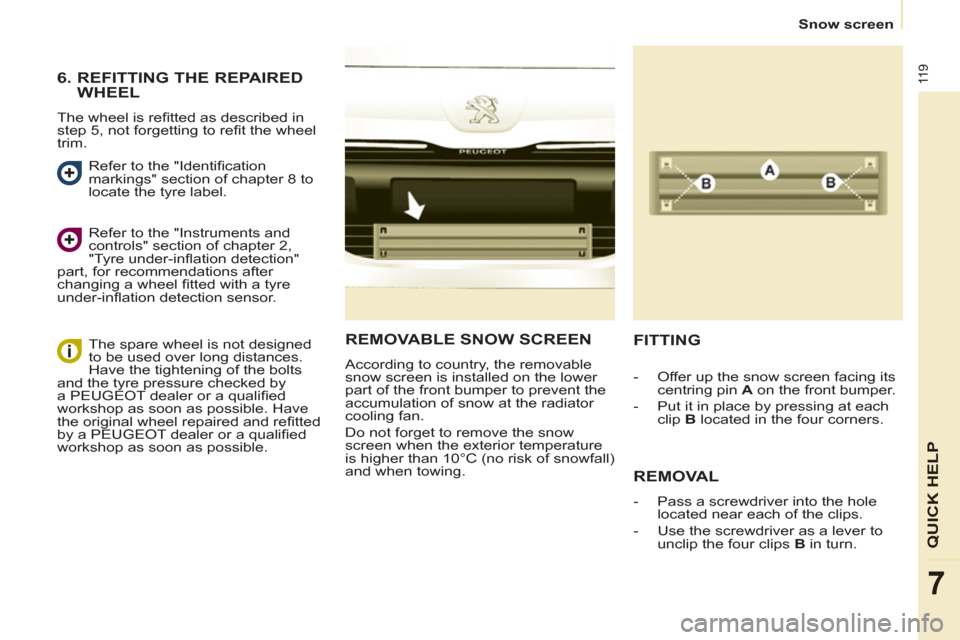

REMOVABLE SNOW SCREEN

According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10°C (no risk of snowfall)
and when towing.

FITTING

REMOVAL



- Pass a screwdriver into the hole
located near each of the clips.

- Use the screwdriver as a lever to
unclip the four clips B
in turn.


- Offer up the snow screen facing its
centring pin A
on the front bumper.

- Put it in place by pressing at each
clip B
located in the four corners.



6. REFITTING THE REPAIRED
WHEEL
The wheel is refi tted as described in
step 5, not forgetting to refi t the wheel
trim.
Refer to the "Identifi cation
markings" section of chapter 8 to
locate the tyre label.
Refer to the "Instruments and
controls" section of chapter 2,
"Tyre under-infl ation detection"
part, for recommendations after
changing a wheel fi tted with a tyre
under-infl ation detection sensor.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by
a PEUGEOT dealer or a qualifi ed
workshop as soon as possible. Have
the original wheel repaired and refi tted
by a PEUGEOT dealer or a qualifi ed
workshop as soon as possible.

Changing a bulb

120

CHANGING A BULB


Type B

Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Type A

All glass bulb: pull gently
as it is fi tted by pressure.

Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refi t each bulb and check that
the bonnet is closed securely.
Type C

Halogen bulb: release the
retaining spring from its
housing.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi ngers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.


High pressure washing

Types of bulb

Various types of bulb are fi tted to your
vehicle. To remove them: When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
edges to avoid damaging their coating
and seals.

Type D

Light emitting diode (LED):
for replacement of the
daytime running lamps,
contact a PEUGEOT dealer
or a qualifi ed workshop.

Changing a bulb

121
QUICK HELP
7


3.
Direction indicators

Type B
, PY21W - 21W (amber)


- Remove the cover by pulling the
fl exible rubber tab.

- Turn the bulb holder a quarter
turn anticlockwise.

- Remove the bulb by pressing
it lightly while turning it
anticlockwise.

- Change the bulb.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.
2.
Sidelamps

Ty p e A
, W5W - 5W


- Remove the cover by pulling the
fl exible rubber tab.

- Remove the bulb holder fi tted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.

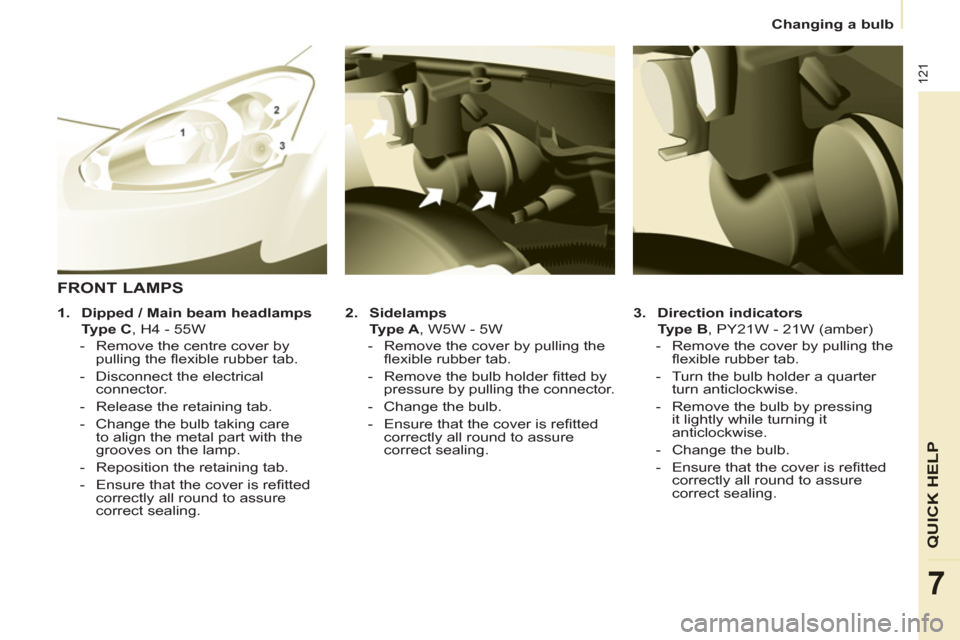

FRONT LAMPS



1.
Dipped / Main beam headlamps

Type C
, H4 - 55W


- Remove the centre cover by
pulling the fl exible rubber tab.

- Disconnect the electrical
connector.

- Release the retaining tab.

- Change the bulb taking care
to align the metal part with the
grooves on the lamp.

- Reposition the retaining tab.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.

Changing a bulb

122


4.

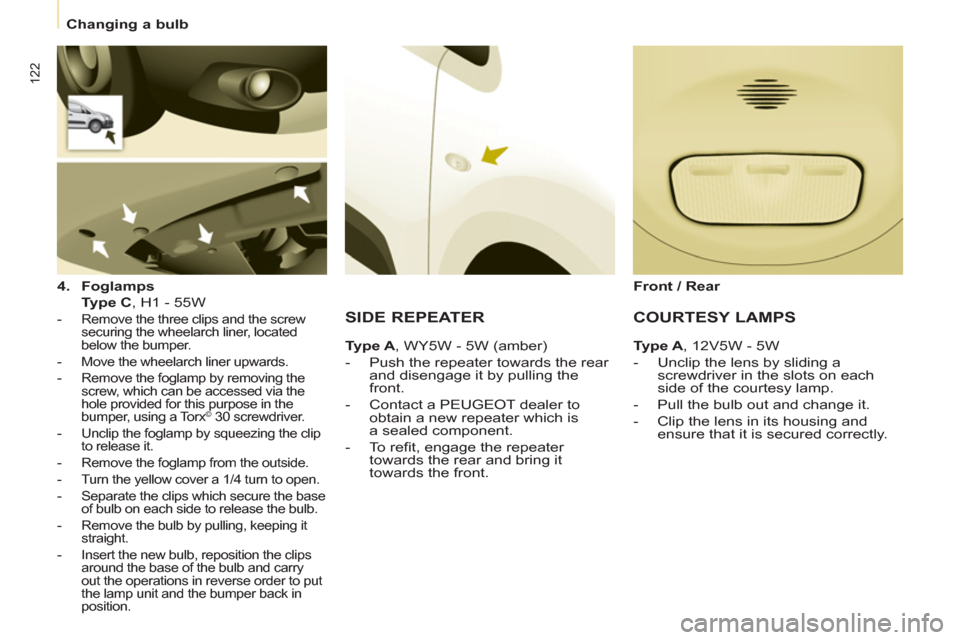

Foglamps

Type C
, H1 - 55W



- Remove the three clips and the screw
securing the wheelarch liner, located
below the bumper.

- Move the wheelarch liner upwards.

- Remove the foglamp by removing the
screw, which can be accessed via the
hole provided for this purpose in the
bumper, using a Torx
© 30 screwdriver.

- Unclip the foglamp by squeezing the clip
to release it.

- Remove the foglamp from the outside.

- Turn the yellow cover a 1/4 turn to open.

- Separate the clips which secure the base
of bulb on each side to release the bulb.

- Remove the bulb by pulling, keeping it
straight.

- Insert the new bulb, reposition the clips
around the base of the bulb and carry
out the operations in reverse order to put
the lamp unit and the bumper back in
position.



SIDE REPEATER


Ty p e A
, WY5W - 5W (amber)


- Push the repeater towards the rear
and disengage it by pulling the
front.

- Contact a PEUGEOT dealer to
obtain a new repeater which is
a sealed component.

- To refi t, engage the repeater
towards the rear and bring it
towards the front.
Front / Rear




COURTESY LAMPS


Type A
, 12V5W - 5W


- Unclip the lens by sliding a
screwdriver in the slots on each
side of the courtesy lamp.

- Pull the bulb out and change it.

- Clip the lens in its housing and
ensure that it is secured correctly.

Changing a bulb

123
QUICK HELP
7


For more information concerning the
bulbs, refer to the "Types of bulb".


1.
Brake lamps/sidelamps


Type B
, P21/5W - 21/5W

2.
Direction indicators


Type B
, PY21W - 21W (amber)

3.
Reversing lamps


Type B
, P21W - 21W

4.
Foglamps


Type B
, P21W - 21W


- Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Access" section of
chapter 2.

- Remove the two fi xing bolts using
the screwdriver stored in the tool kit
under the right-hand seat.

- Pull the lamp unit from the outside.

- Holding the lamp, disconnect
the electrical connector.
- Move aside the 4 tabs then extract
the bulb holder.

- Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.

- Change the bulb.


When removing the lamp unit:


- with tailgate, pull the lamp unit
towards the centre of the vehicle,

- with hinged doors, pull the lamp
unit towards you.


When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes.

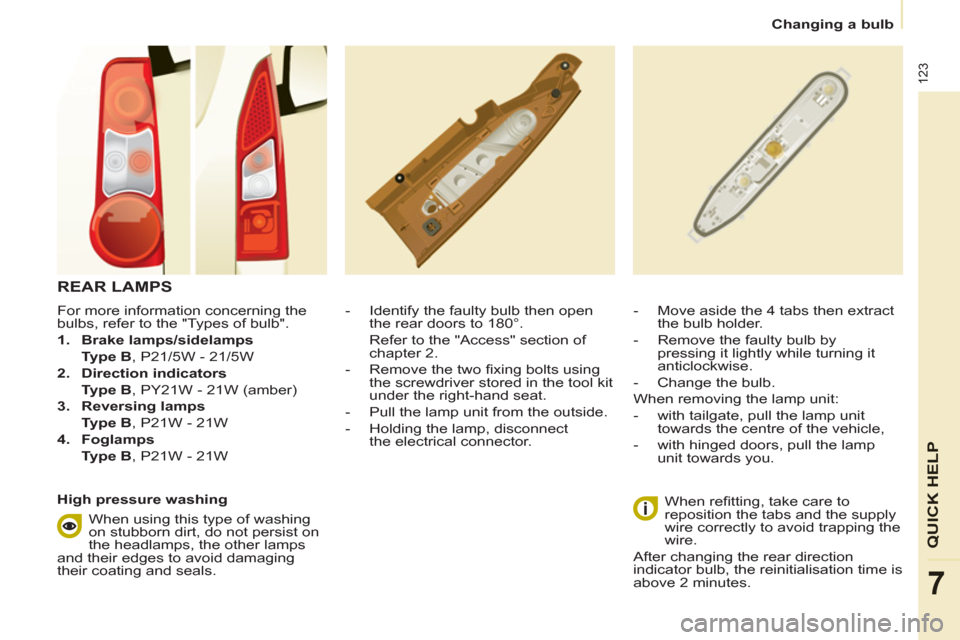

REAR LAMPS


High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals.

Changing a bulb

124

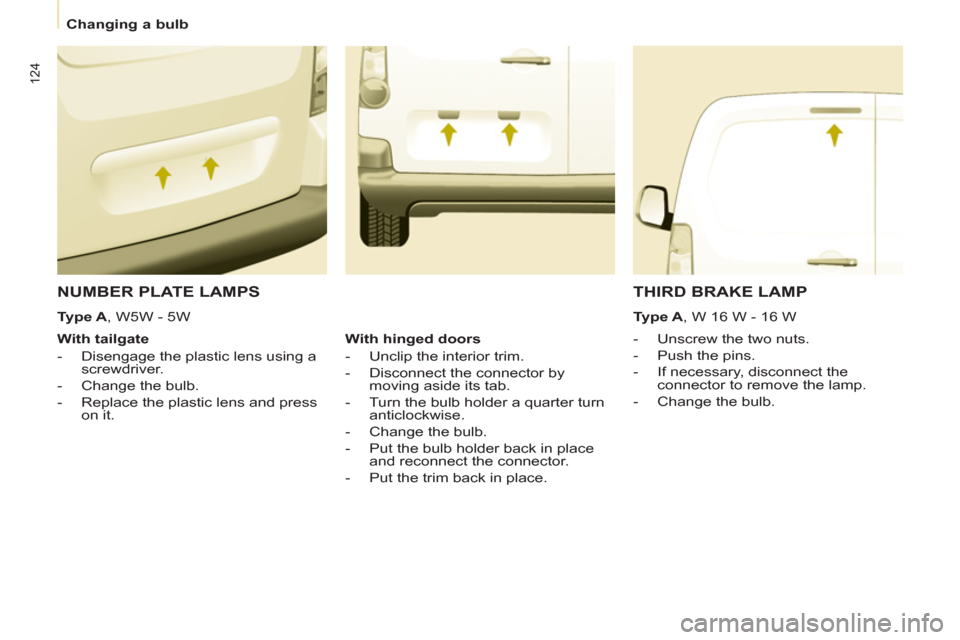

NUMBER PLATE LAMPS




- Unscrew the two nuts.

- Push the pins.

- If necessary, disconnect the
connector to remove the lamp.

- Change the bulb.


With tailgate


- Disengage the plastic lens using a
screwdriver.

- Change the bulb.

- Replace the plastic lens and press
on it.

THIRD BRAKE LAMP


Ty p e A
, W 16 W - 16 W

With hinged doors


- Unclip the interior trim.

- Disconnect the connector by
moving aside its tab.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.

- Put the bulb holder back in place
and reconnect the connector.

- Put the trim back in place.



Type A
, W5W - 5W

Changing a fuse

125
QUICK HEL
P
7

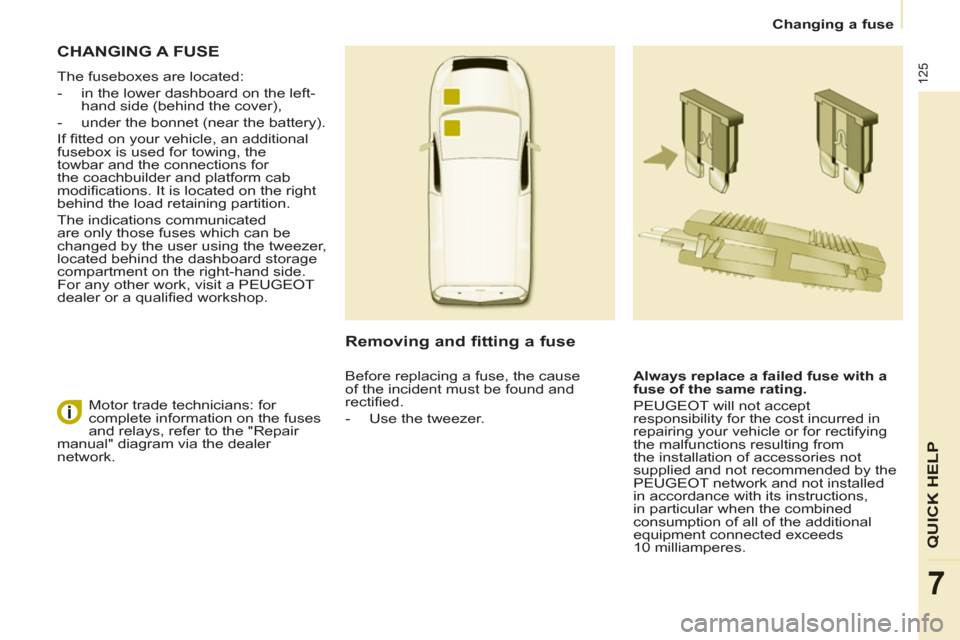

CHANGING A FUSE

The fuseboxes are located:


- in the lower dashboard on the left-
hand side (behind the cover),

- under the bonnet (near the battery).
If fi tted on your vehicle, an additional
fusebox is used for towing, the
towbar and the connections for
the coachbuilder and platform cab
modifi cations. It is located on the right
behind the load retaining partition.
The indications communicated
are only those fuses which can be
changed by the user using the tweezer,
located behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a PEUGEOT
dealer or a qualifi ed workshop.


Removing and fitting a fuse


Always replace a failed fuse with a
fuse of the same rating.

PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
manual" diagram via the dealer
network. Before replacing a fuse, the cause
of the incident must be found and
rectifi ed.


- Use the tweezer.

Changing a fuse

126

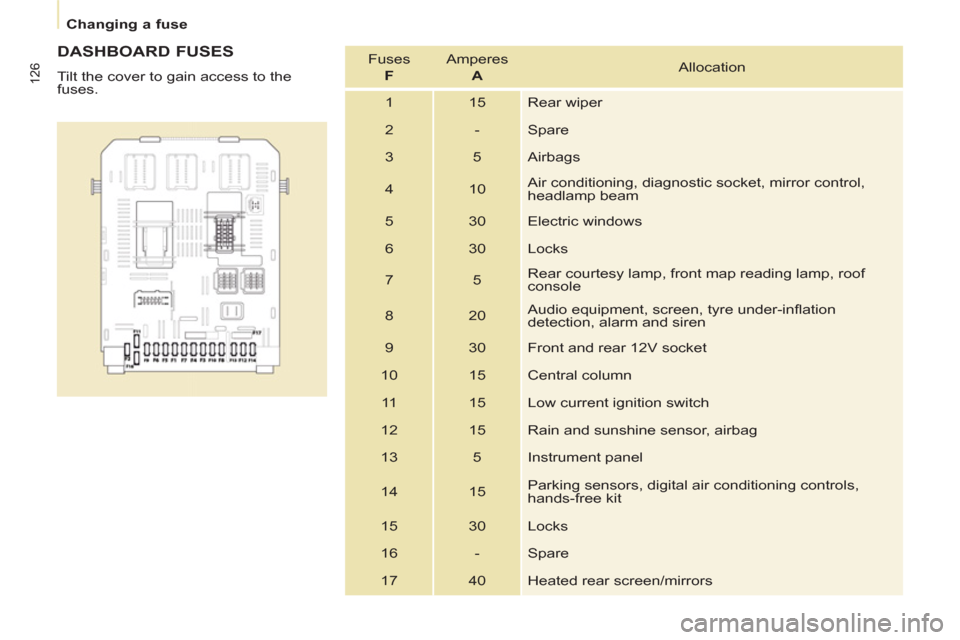

DASHBOARD FUSES

Tilt the cover to gain access to the
fuses. Fuses
F
Amperes
A
Allocation
1 15 Rear wiper
2 - Spare
3 5 Airbags
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free kit
15 30 Locks
16 - Spare
17 40 Heated rear screen/mirrors

Changing a fuse

127
QUICK HEL
P
7

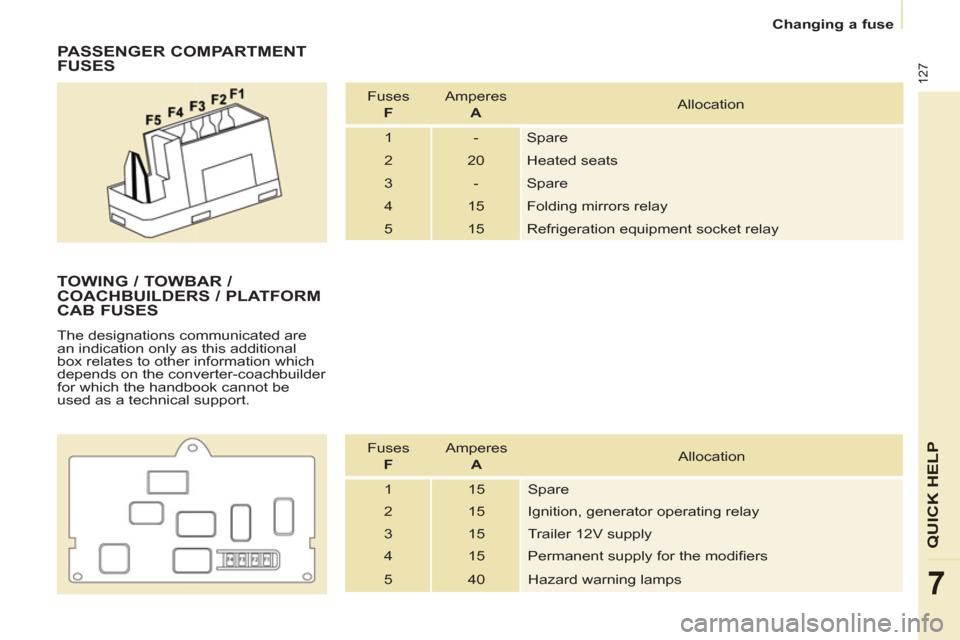

PASSENGER COMPARTMENT
FUSES
Fuses
F
Amperes
A
Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay


TOWING / TOWBAR /
COACHBUILDERS / PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
depends on the converter-coachbuilder
for which the handbook cannot be
used as a technical support.
Fuses
F
Amperes
A
Allocation
1 15 Spare
2 15 Ignition, generator operating relay
3 15 Trailer 12V supply
4 15 Permanent supply for the modifi ers
5 40 Hazard warning lamps

Changing a fuse

128

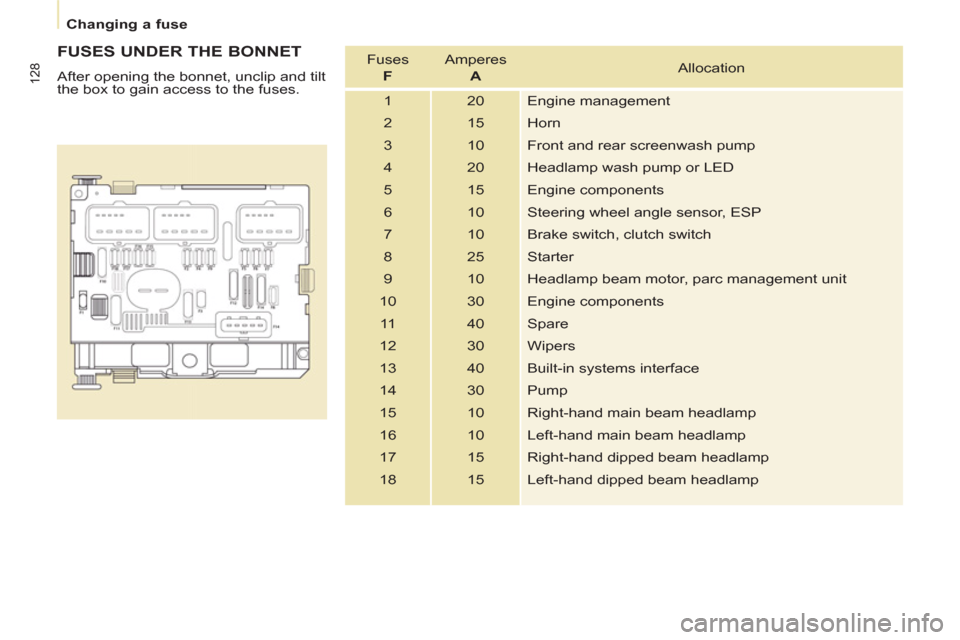

FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F
Amperes
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump or LED
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp
