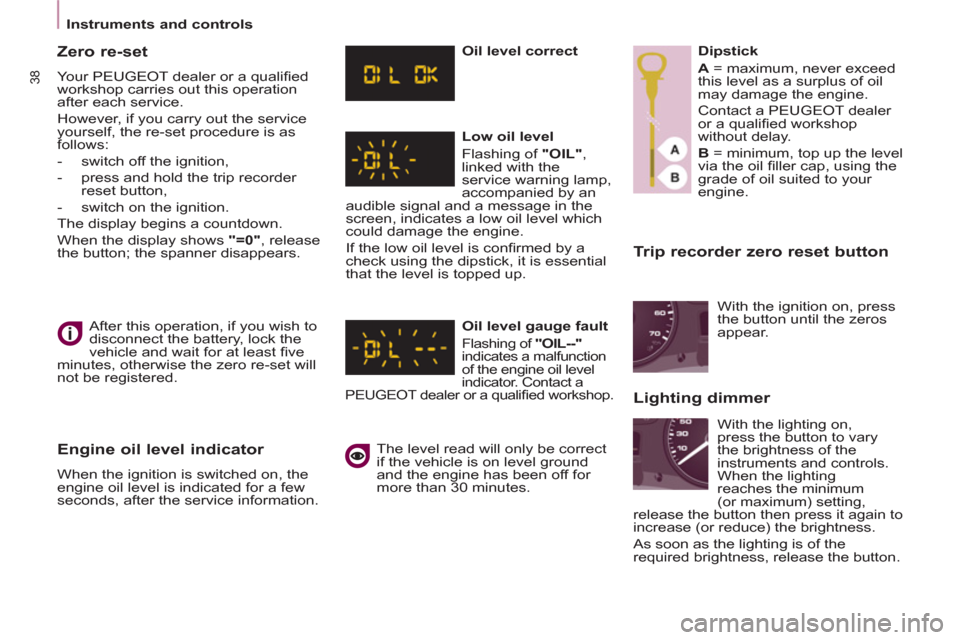

Instruments and controls

38


Trip recorder zero reset button

After this operation, if you wish to
disconnect the battery, lock the
vehicle and wait for at least fi ve
minutes, otherwise the zero re-set will
not be registered.


Zero re-set

Your PEUGEOT dealer or a qualifi ed
workshop carries out this operation
after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:


- switch off the ignition,

- press and hold the trip recorder
reset button,

- switch on the ignition.
The display begins a countdown.
When the display shows "=0"
, release
the button; the spanner disappears.

Engine oil level indicator

When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information.
Oil level correct

Low oil level
Flashing of "OIL"
,
linked with the
service warning lamp,
accompanied by an
audible signal and a message in the
screen, indicates a low oil level which
could damage the engine.
If the low oil level is confi rmed by a
check using the dipstick, it is essential
that the level is topped up.

Oil level gauge fault

Flashing of "OIL--"
indicates a malfunction
of the engine oil level
indicator. Contact a
PEUGEOT dealer or a qualifi ed workshop.

The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
Dipstick

A
= maximum, never exceed
this level as a surplus of oil
may damage the engine.
Contact a PEUGEOT dealer
or a qualifi ed workshop
without delay.

B
= minimum, top up the level
via the oil fi ller cap, using the
grade of oil suited to your
engine.


With the lighting on,
press the button to vary
the brightness of the
instruments and controls.
When the lighting
reaches the minimum
(or maximum) setting,
release the button then press it again to
increase (or reduce) the brightness.
As soon as the lighting is of the
required brightness, release the button.

With the ignition on, press
the button until the zeros
appear.


Lighting dimmer

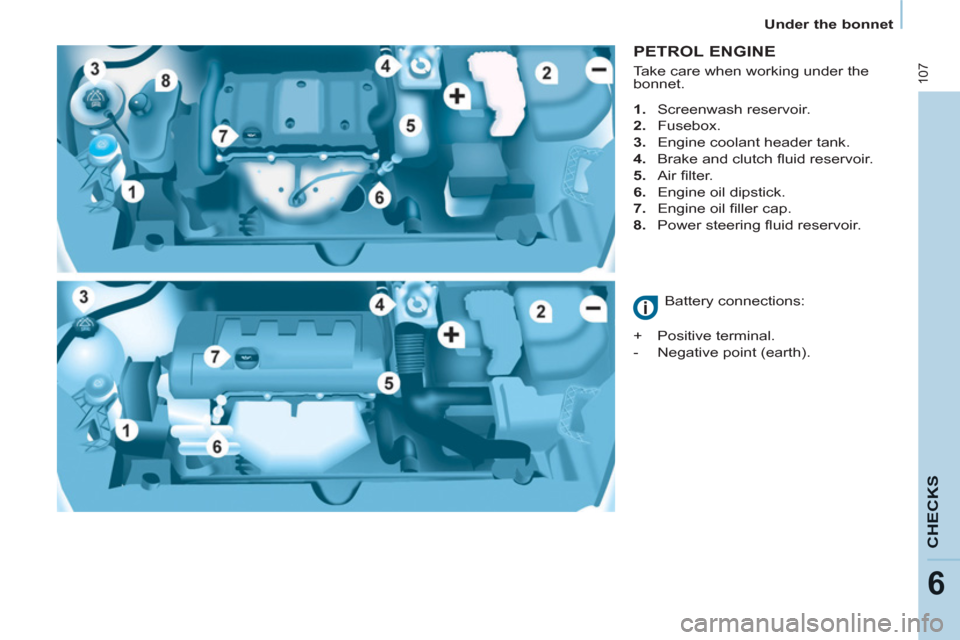

Under the bonnet

107
CHECK
S
6


PETROL ENGINE




1.
Screenwash reservoir.

2.
Fusebox.

3.
Engine coolant header tank.

4.
Brake and clutch fl uid reservoir.

5.
Air fi lter.

6.
Engine oil dipstick.

7.
Engine oil fi ller cap.

8.
Power steering fl uid reservoir.


Battery connections:
+ Positive terminal.
- Negative point (earth). Take care when working under the
bonnet.

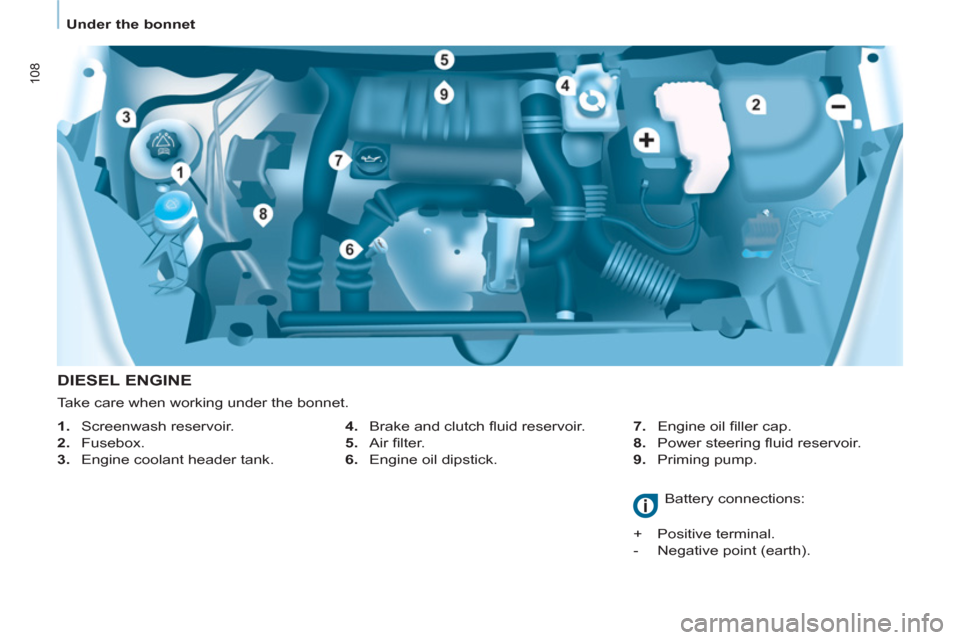

Under the bonnet

108


DIESEL ENGINE


4.
Brake and clutch fl uid reservoir.

5.
Air fi lter.

6.
Engine oil dipstick.
7.
Engine oil fi ller cap.

8.
Power steering fl uid reservoir.

9.
Priming pump.



1.
Screenwash reservoir.

2.
Fusebox.

3.
Engine coolant header tank.

Battery connections:
+ Positive terminal.
- Negative point (earth). Take care when working under the bonnet.

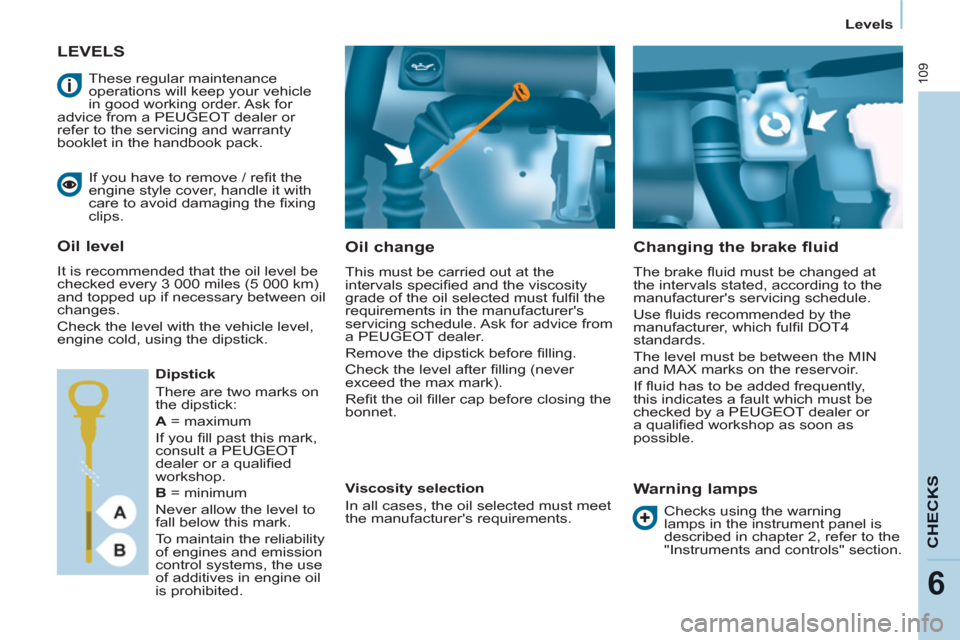

Levels
109
CHECK
S
6
LEVELS

Oil change

This must be carried out at the
intervals specifi ed and the viscosity
grade of the oil selected must fulfi l the
requirements in the manufacturer's
servicing schedule. Ask for advice from
a PEUGEOT dealer.
Remove the dipstick before fi lling.
Check the level after fi lling (never
exceed the max mark).
Refi t the oil fi ller cap before closing the
bonnet.

Changing the brake fluid

The brake fl uid must be changed at
the intervals stated, according to the
manufacturer's servicing schedule.
Use fl uids recommended by the
manufacturer, which fulfi l DOT4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
If fl uid has to be added frequently,
this indicates a fault which must be
checked by a PEUGEOT dealer or
a qualifi ed workshop as soon as
possible.


Warning lamps

If you have to remove / refi t the
engine style cover, handle it with
care to avoid damaging the fi xing
clips.

Oil level

It is recommended that the oil level be
checked every 3 000 miles (5 000 km)
and topped up if necessary between oil
changes.
Check the level with the vehicle level,
engine cold, using the dipstick.

Dipstick
There are two marks on
the dipstick:

A
= maximum
If you fi ll past this mark,
consult a PEUGEOT
dealer or a qualifi ed
workshop.

B
= minimum
Never allow the level to
fall below this mark.
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited.

Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements.
These regular maintenance
operations will keep your vehicle
in good working order. Ask for
advice from a PEUGEOT dealer or
refer to the servicing and warranty
booklet in the handbook pack.
Checks using the warning
lamps in the instrument panel is
described in chapter 2, refer to the
"Instruments and controls" section.

145

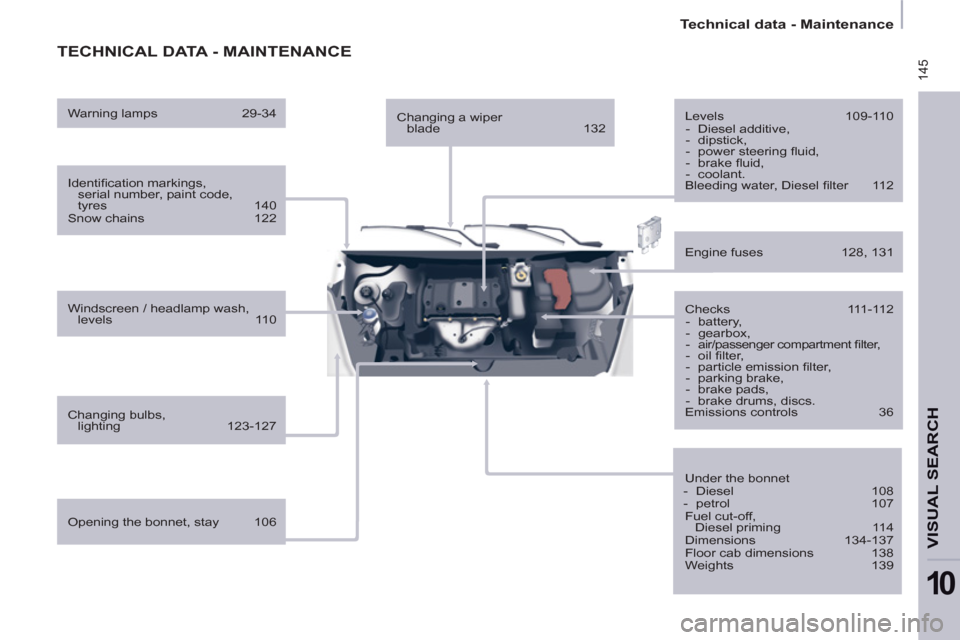

Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE


Identifi cation markings,
serial number, paint code,
tyres 140
Snow chains 122

Windscreen / headlamp wash,
levels 110

Changing bulbs,
lighting 123-127
Checks 111-112


- battery,

- gearbox,

- air/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls 36
Engine fuses 128, 131

Under the bonnet


- Diesel 108

- petrol 107
Fuel cut-off,
Diesel priming 114
Dimensions 134-137
Floor cab dimensions 138
Weights 139

Opening the bonnet, stay 106
Levels 109-110


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant.
Bleeding water, Diesel fi lter 112
Warning lamps 29-34

Changing a wiper
blade 132
