Peugeot Partner 2014.5 Owner's Manual - RHD (UK, Australia)

149
Partner-2-VU_en_Chap08_Aide-rapide_ed02-2014
QUICK HELP
8

150
Partner-2-VU_en_Chap09_Caract-technique_ed02-2014

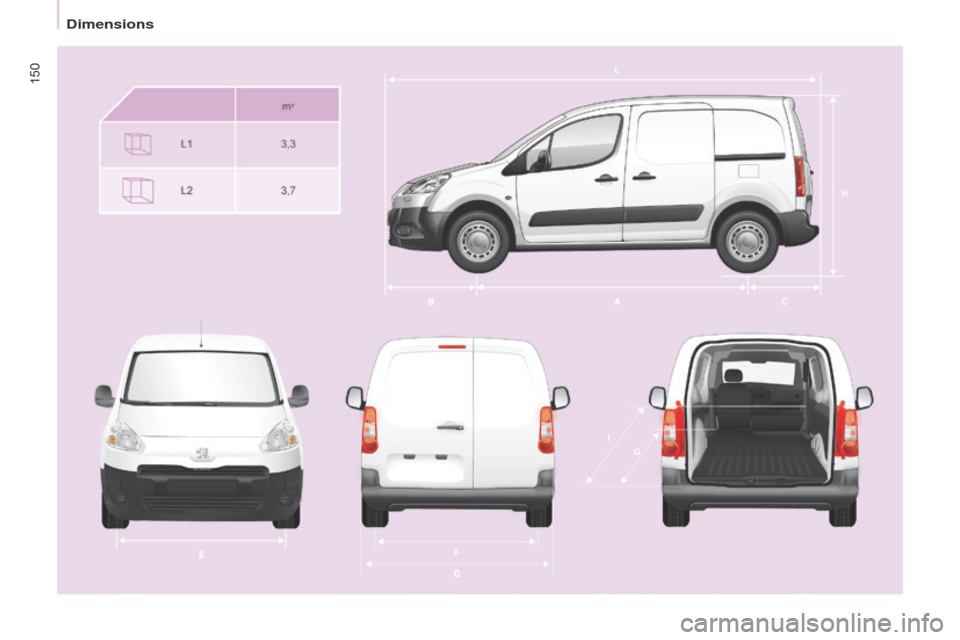

Dimensions

151
Partner-2-VU_en_Chap09_Caract-technique_ed02-2014
VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 43804628
H Overall height 1805-1834
A Wheelbase 2728
B Front overhang 925
C Rear overhang 727975
D Width over panels: without mirrors
1810
with mirrors 2112
E Width of front track 1505
F Width of rear track 1554
G Useable rear floor length 18002050
I Useable length with front passenger seat
folded 3000

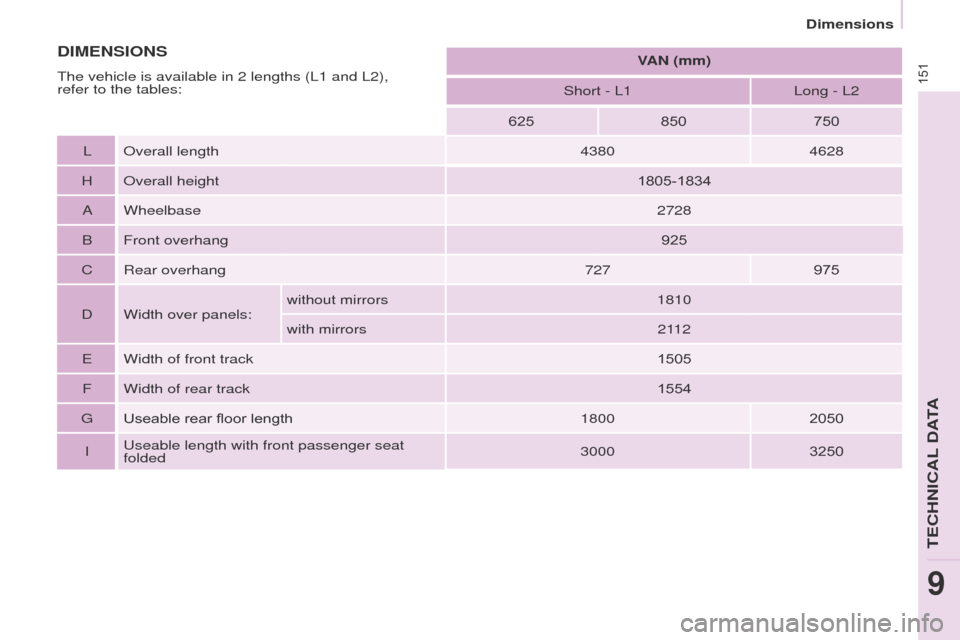

3250DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:
Dimensions
TECHNICAL DATA
9

152
Partner-2-VU_en_Chap09_Caract-technique_ed02-2014

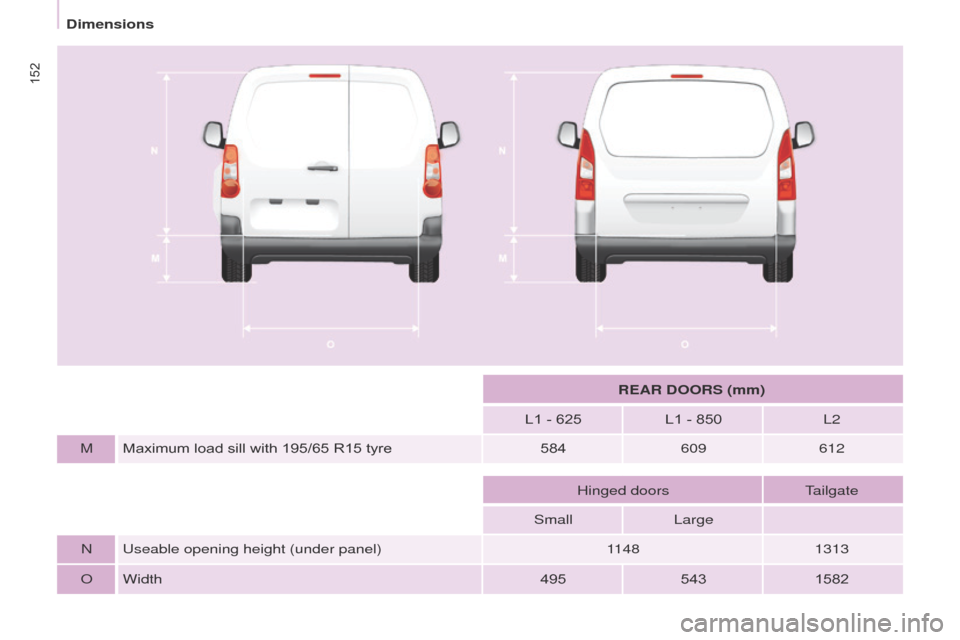

REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum load sill with 195/65 R15 tyre 584609612
Hinged doors Tailgate
Small Large
N Useable opening height (under panel) 11481313
O Width 4955431582
Dimensions

153
Partner-2-VU_en_Chap09_Caract-technique_ed02-2014

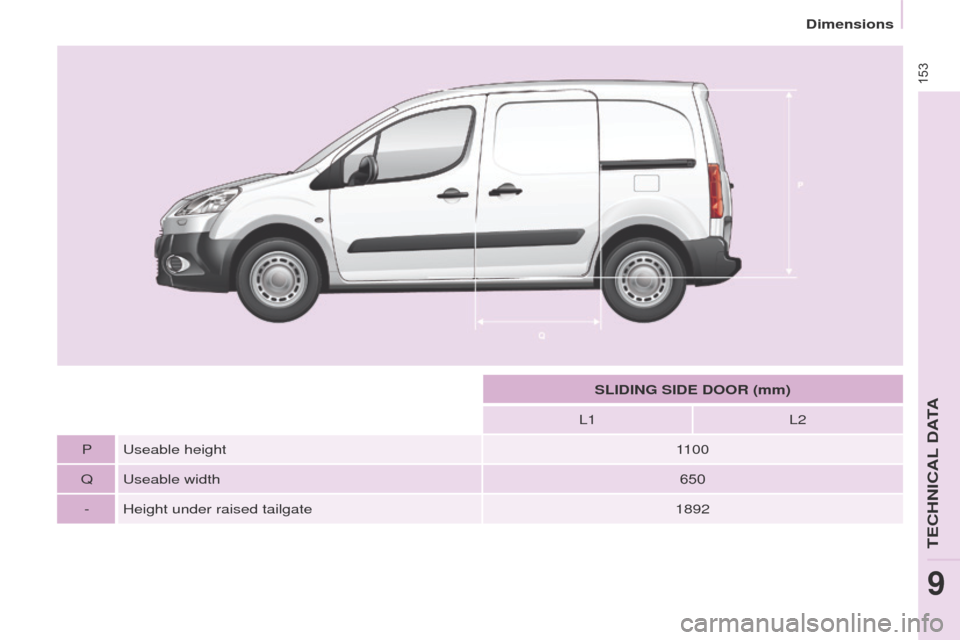

SLIDING SIDE DOOR (mm)
L1 L2
P Useable height 1100
Q Useable width 650
- Height under raised tailgate 1892
Dimensions
TECHNICAL DATA
9

154
Partner-2-VU_en_Chap09_Caract-technique_ed02-2014

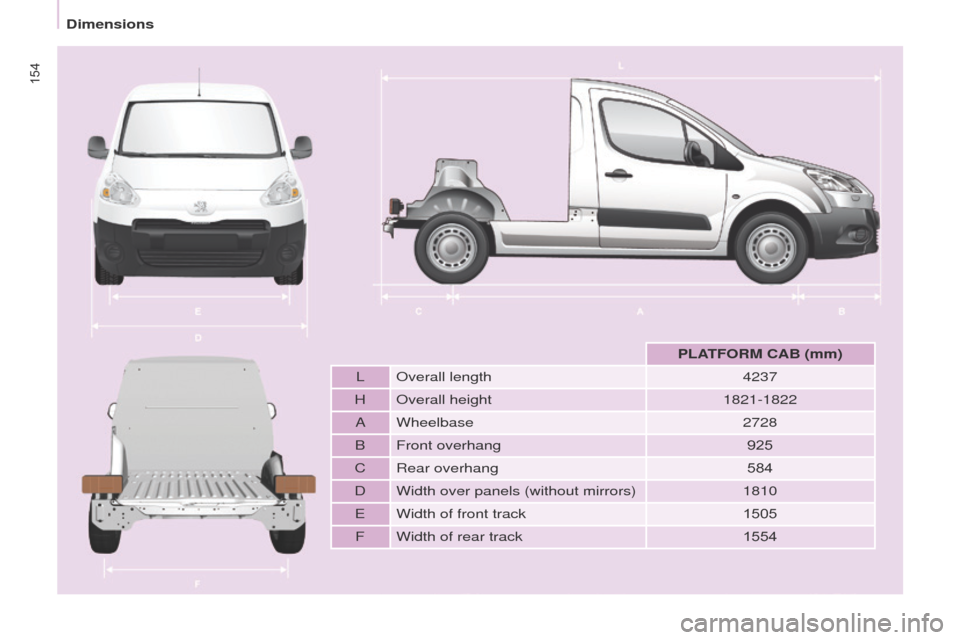

PLATFORM CAB (mm)
L Overall length 4237
H Overall height 1821-1822
A Wheelbase 2728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1810
E Width of front track 1505
F Width of rear track 1554
Dimensions

155
Partner-2-VU_en_Chap09_Caract-technique_ed02-2014
WEIGHTS AND TOWED LOADS
The weights and towable loads for your
vehicle can be found on the vehicle's
registration certificate.
These values, expressed in kg, are
laos present on the manufacturer's
plate or label.The recommended nose weight is
the downward force on the towball
(removable with or without tools).
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To find
out your vehicle's towing capacities
and its gross train weight, consult a
PEUGEOT dealer.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order to protect the engine. When the
ambient temperature is higher than
37
°C, limit the towed weight.
Refer to chapter 9, "Identification
markings" section.
ENGINE CHARACTERISTICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO
2 emissions...) for your
vehicle are given in the registration
document.
These characteristics correspond
to the values type-approved
on a test bed, under conditions
defined in European legislation
(Directive

1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a PEUGEOT dealer or a qualified
workshop. GVW: gross vehicle weight, the
maximum authorised weight.
GTW: gross train weight, the maximum
weight for vehicle plus trailer.
Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).
TECHNICAL DATA
9
Weights

156
Partner-2-VU_en_Chap09_Caract-technique_ed02-2014
IDENTIFICATION MARKINGS
A. Manufacturer's plate.C. Tyres and paint colour code.
B. Serial number.
This is located on the right-hand
middle pillar.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label C, on the front door gives:
-

the wheel and tyre sizes,
-


the tyre pressures, laden and
unladen
-


the tyre pressure for the spare
wheel,
-


the paint colour code.The tyre pressures should be
checked when the tyres are cold,
at least once a month.
Identification markings

10.1
Partner-2-VU_en_Chap10a_BTA_ed02-2014
EMERGENCY OR ASSIST ANCE CALL

10.2
Partner-2-VU_en_Chap10a_BTA_ed02-2014
EMERGENCY OR ASSIST ANCE CALL
In an emergency, press this button for more than
2
seconds. Flashing of the green LED and a voice
message confirm that the call has been made to the
"PEUGEOT Connect SOS" centre*.
The green LED remains on (without flashing) when communication is
established. It goes off at the end of communication.
When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confirmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confirms that the call has been made**.
Pressing this button again immediately cancels the request. The green
LED goes off. Cancellation is confirmed by a voice message
To cancel a call, tell the "PEUGEOT Connect SOS" call centre that the
call was a mistake.
"PEUGEOT Connect SOS" immediately locates your vehicle, starts
communication with you in your language**, and where necessary sends
the appropriate public emergency services**. In countries where the
service is not available, or when the locating service has been expressl\
y
declined, the call sent directly to the emergency services (112) without the
vehicle location. If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*

Subject to the general conditions for the service available from dealers\

and to technological and technical limitations. If the orange LED flashes: there is a system
fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a PEUGEOT

dealer.
If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the configuration of these services
and, if desired, modified to suit your wishes. In a multi-lingual country ,
configuration is possible in the official national language of your choice.
For technical reasons and in particular to improve the quality of
"PEUGEOT CONNECT services" services to customers, the manufacturer
reserves the right to carry out updates to the vehicle's on-board telema\
tic
system.
PEUGEOT Connect SOS PEUGEOT Connect Assistance
Operation of the system
** Depending on the geographical cover of "PEUGEOT Connect SOS",
"PEUGEOT Connect Assistance" and the official national language
selected by the owner of the vehicle.
The list of countries covered and PEUGEOT CONNECT services services
is available from dealers or at www.peugeot.co.uk.
