brake pads Peugeot Partner 2015 Owner's Manual

5
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2014
EXTERIORRemote control 18-19
Changing the battery ,
reinitialisation

19
Key


18
Starting


50
Hill start assist


51
Central locking /


unlocking

18, 27
Locking / unlocking


the load space

18, 27
Filler cap, fuel


tank
119-120
Fuel cut-off, Diesel priming
120
AdBlue additive, topping up

121-125, 126-128
Wiper blades


146
Door mirrors


82-83
Side repeater


139
Front lamps, foglamps, direction indicators


52-54, 137-139Headlamp beam height adjustment 54
Changing front bulbs 137-139
Headlamp wash

56, 1
16
Snow cover

135
Front doors


21
Sliding side door


22
Key


18
Opening the bonnet


1
12
Inflation, pressures

156
T

owing, lifting

147
T

owbar

107-108
Rear parking


sensors

86-87
Number plate


lamp

141
Spare wheel, jack,


changing a wheel,
tools

131-135
Rear lamps,
direction indicators 52-53, 140-141
3rd brake lamp
141
Changing rear

bulbs

137, 140-141
Load space,


opening

18, 27
Doors, tailgate


23-24, 26
Accessories

109-110
Roof bars

81
Rear roof flap


25
Emergency control


26 Dimensions


150-153
Floor cab

dimensions
154
Brakes, pads

85, 1
15, 117
Emergency braking

88
ABS, EBFD


88
ASR, DSC


89
"Grip control"


90-91
T

yre, pressures
156Tyre under-inflation detection 39-40
Snow chains
136
1
OVERVIEW
Location

14
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2014
TECHNICAL DATA - MAINTENANCE
Identification markings, serial number, paint code,
tyres

156
Snow chains


136
Windscreen / headlamp wash, levels

116
Changing bulbs, lighting
137-141 Checks
117-118
-

battery
,
-

gearbox,- air/passenger compartment filter,- oil filter,
-
particle filter ,
-

parking brake,
-


brake pads,
-


brake drums, discs.
Emissions controls


39
Engine fuses


142, 145
Under the bonnet: -


Diesel

1
14
-

petrol

1
13
Fuel cut-off, Diesel priming
120
AdBlue additive

121-128
Opening the bonnet, stay


1

12 Levels

1
15-116
-
Diesel additive,
-

dipstick,
-

power steering fluid,
-

brake fluid,
-

coolant.
Bleeding water
, Diesel filter
1
18
Warning lamps

30-37
Dimensions


150-153
Floor cab dimensions


154
Engines / W

eights

155
Location

11 7
Partner-2-VU_en_Chap07_Verification_ed02-2014

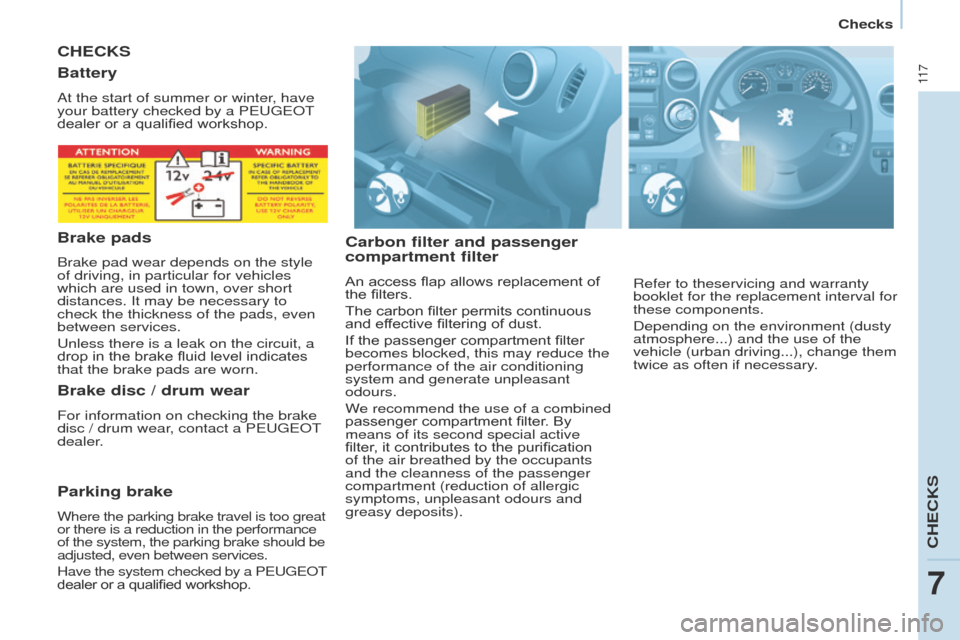

CHECKSCarbon filter and passenger
compartment filter
An access flap allows replacement of
the filters.
The carbon filter permits continuous
and effective filtering of dust.
If the passenger compartment filter
becomes blocked, this may reduce the
performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
passenger compartment filter. By
means of its second special active
filter, it contributes to the purification
of the air breathed by the occupants
and the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits).
Battery
At the start of summer or winter, have
your battery checked by a PEUGEOT
dealer or a qualified workshop.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
Unless there is a leak on the circuit, a
drop in the brake fluid level indicates
that the brake pads are worn.
Brake disc / drum wear
For information on checking the brake
disc / drum wear, contact a PEUGEOT
dealer.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.
Refer to theservicing and warranty
booklet for the replacement interval for
these components.
Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.
CHECKS
7
Checks

11 8
Partner-2-VU_en_Chap07_Verification_ed02-2014
Bleeding water from the Diesel
filterManual gearbox
Have the level checked in accordance with
the manufacturer's servicing schedule.
Only use products recommended
by PEUGEOT or products
of equivalent quality and
specification.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and offers
specific products.
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
After washing the vehicle dampness,
or in winter, ice may form on the brake
discs and pads: braking efficiency may
be reduced. Make some light brake
applications to dry and de-ice the
brakes.
If this warning lamp comes
on, bleed the filter. Otherwise
bleed regularly each time the
engine oil is changed.
To drain the water, unscrew the bleed
screw located on the filter.
Operate until all of the water no longer
flows in the transparent pipe, then
tighten the bleed screw.
Particle filter (Diesel)
Maintenance of the particle filter must
be carried out by a PEUGEOT dealer.
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.
Oil filter
Change the filter regularly in
accordance with the manufacturer's
servicing schedule.
HDi engines use advanced
technology. All work requires
special training, which is assured
by a PEUGEOT dealer.
Depending on country of sale.
Checks
