belt Peugeot Partner Tepee 2012 Owner's Manual

2

Contents
Key 19
Doors 22
Tailgate 24
Rear roof fl ap 27
Central locking 28
Instrument panel 29
Adjusting the time 30
Warning lamps 31
Fuel gauge 37
Coolant 37
Tyre under-infl ation
detection 38
Service indicator 39
Lighting rheostat 40
Gearbox 41
Gear shift indicator 41
6-speed electronic
gearbox system 42
Steering
wheel adjustment 44
Stop & Start 45
Starting and stopping 48
Hill start assist 49Lighting
control 50
wipers 53
Cruise control 55
Speed limiter 58
Heating/Manual air
conditioning 61
automatic 63
De-icing and
demisting 65
Front seats 67
Rear bench seat 69
Rear seats
(5 seat version) 72
Rear seats
(7 seat version) 75
Adjustments 82
Front fi ttings 84
Zenith roof 88
Roof bars 93
Courtesy lights 94
Load space cover
(5 seat version) 95
Load space cover
(7 seat version) 99
Mirrors 101
Electric windows 103
2. READY TO SET OFF
19-49
4. SAFETY
104-126
Presentation 4
Exterior 6
Instruments and controls 8
Centre console 9
Sitting comfortably 10
Visibility 11
Driving safely 12
Passenger compartment
space 13
Rear fi ttings 14
Child safety 15
Ventilation 16
Eco-driving 17
1. FAMILIARISATION
4-18
Hazard warning lamps 104
Parking brake 104
Parking sensors 105
Anti-lock braking system
(ABS) 107
Emergency braking
assistance 107
Traction control (ASR) and
stability control (ESP) 108
"Grip control" 109
Seat belts 111
Airbags 114
Deactivating the
passenger's airbag 117
Child seats 118
Recommended seats 120
Installing 121
Isofi x seats 124
Child lock 125
3. EASE OF USE and
COMFORT 50-103

2
34
3
3
10
Interior

Steering wheel
Storage compartments


1.

Forwards-backwards
adjustment.
2.
Angle.

3.
Seat cushion
height.
4.
Head restraint
height and
angle.
Driver's seat
67 44 86
111
101

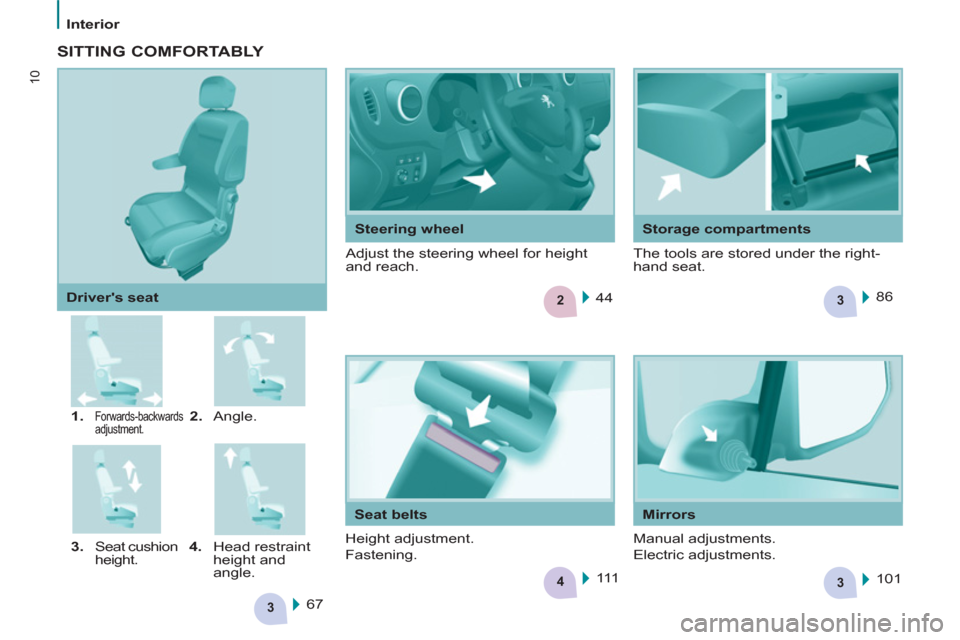

SITTING COMFORTABLY

The tools are stored under the right-
hand seat. Adjust the steering wheel for height
and reach.

Mirrors
Manual adjustments.
Electric adjustments.
Seat belts
Height adjustment.
Fastening.

32

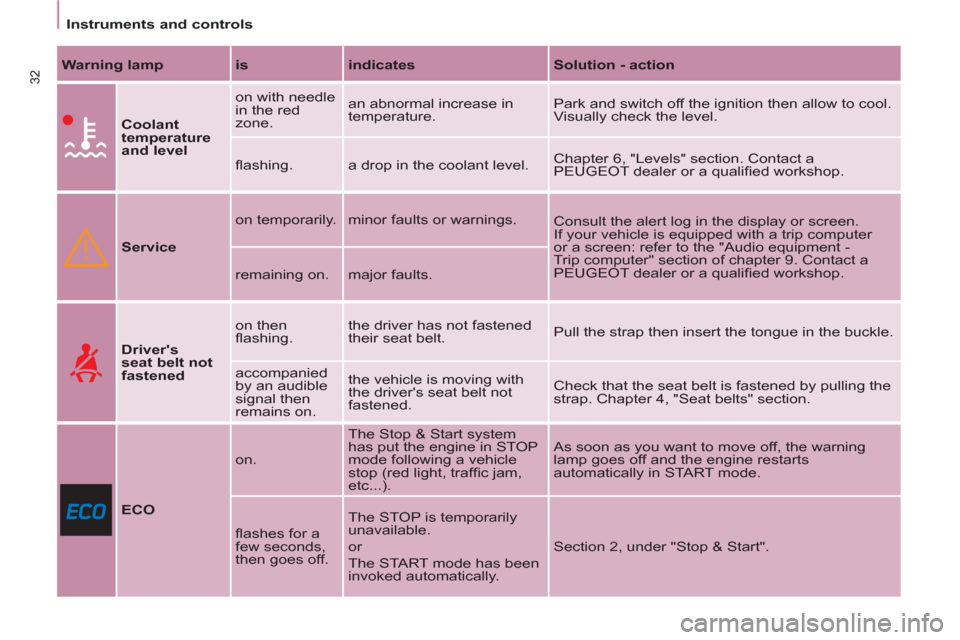

Instruments and controls


Warning lamp

is

indicates

Solution - action




Coolant
temperature
and level
on with needle
in the red
zone. an abnormal increase in
temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
fl ashing. a drop in the coolant level. Chapter 6, "Levels" section. Contact a
PEUGEOT dealer or a qualifi ed workshop.



Service
on temporarily. minor faults or warnings.
Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer
or a screen: refer to the "Audio equipment -
Trip computer" section of chapter 9. Contact a
PEUGEOT dealer or a qualifi ed workshop.
remaining on. major faults.



Driver's
seat belt not
fastened
on then
fl ashing. the driver has not fastened
their seat belt. Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's seat belt not
fastened. Check that the seat belt is fastened by pulling the
strap. Chapter 4, "Seat belts" section.


ECO
on. The Stop & Start system
has put the engine in STOP
mode following a vehicle
stop (red light, traffi c jam,
etc...). As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.
fl ashes for a
few seconds,
then goes off. The STOP is temporarily
unavailable.
or
The START mode has been
invoked automatically. Section 2, under "Stop & Start".

45
READY TO SET OFF
22


Stop & Start

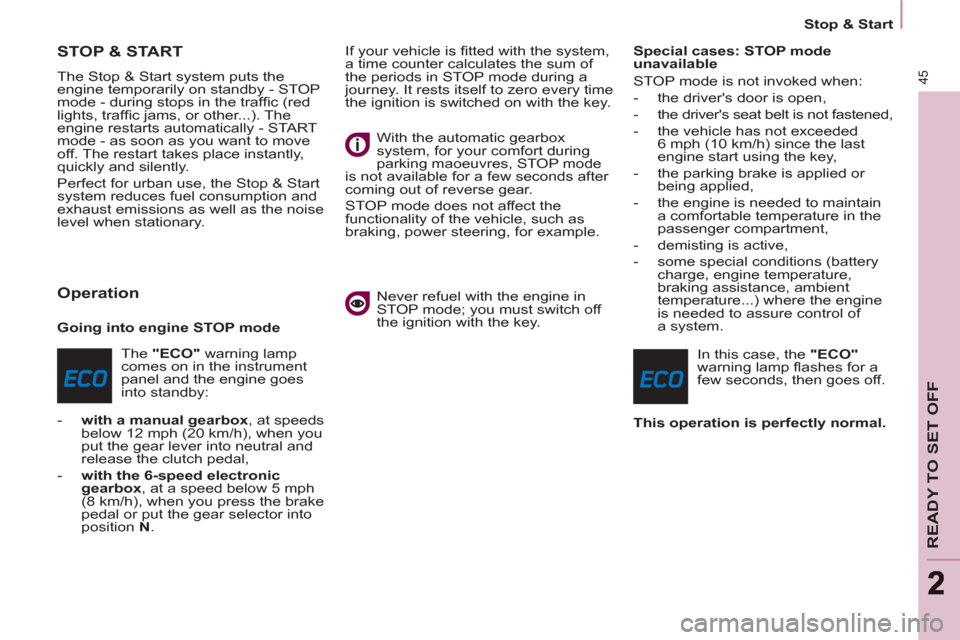

STOP & START

The Stop & Start system puts the
engine temporarily on standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, or other...). The
engine restarts automatically - START
mode - as soon as you want to move
off. The restart takes place instantly,
quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp
comes on in the instrument
panel and the engine goes
into standby:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal,

- with the 6-speed electronic
gearbox
, at a speed below 5 mph
(8 km/h), when you press the brake
pedal or put the gear selector into
position N
. If your vehicle is fi tted with the system,
a time counter calculates the sum of
the periods in STOP mode during a
journey. It rests itself to zero every time
the ignition is switched on with the key.
With the automatic gearbox
system, for your comfort during
parking maoeuvres, STOP mode
is not available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as
braking, power steering, for example.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded
6 mph (10 km/h) since the last
engine start using the key,

- the parking brake is applied or
being applied,

- the engine is needed to maintain
a comfortable temperature in the
passenger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of
a system.
In this case, the "ECO"

warning lamp fl ashes for a
few seconds, then goes off.

This operation is perfectly normal.

46


Stop & Start

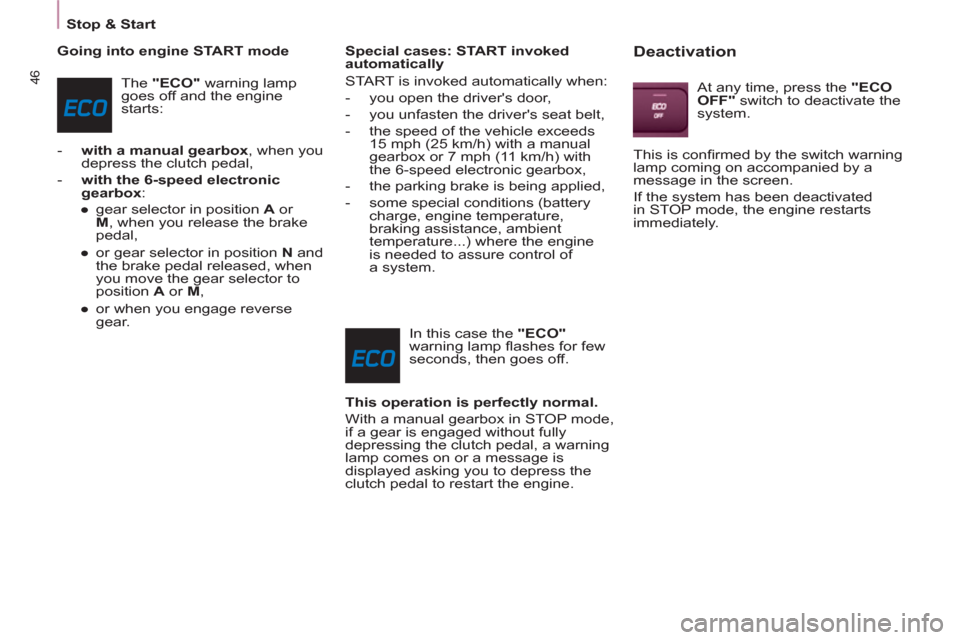

Going into engine START mode
The "ECO"
warning lamp
goes off and the engine
starts:


- with a manual gearbox
, when you
depress the clutch pedal,

- with the 6-speed electronic
gearbox
:


●
gear selector in position A
or
M
, when you release the brake
pedal,

●
or gear selector in position N
and
the brake pedal released, when
you move the gear selector to
position A
or M
,

●
or when you engage reverse
gear.


Special cases: START invoked
automatically
START is invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox or 7 mph (11 km/h) with
the 6-speed electronic gearbox,

- the parking brake is being applied,

- some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of
a system.
In this case the "ECO"

warning lamp fl ashes for few
seconds, then goes off.

This operation is perfectly normal.

With a manual gearbox in STOP mode,
if a gear is engaged without fully
depressing the clutch pedal, a warning
lamp comes on or a message is
displayed asking you to depress the
clutch pedal to restart the engine.



Deactivation

At any time, press the "ECO
OFF"
switch to deactivate the
system.
This is confi rmed by the switch warning
lamp coming on accompanied by a
message in the screen.
If the system has been deactivated
in STOP mode, the engine restarts
immediately.

74





Seats






Removing the seat



- If necessary, move the front
seats forward and lower the head
restraint.

- Place the seat in the fully folded
position.


Good practice

Following the various operations:


- do not remove a head restraint
without storing it and fi x it to a
support,

- ensure that the passengers can
always access the seat belts and
fasten them easily,

- passengers must never take
their seat without adjusting and
fastening their seat belt.

Refer to the "fully folded position"
described on the previous page.

- Press the red lever to release the
front feet.

- Tilt the entire seat rearwards by
approximately 45° without releasing
the lever.

- Release the lever.

- Lift the seat vertically
to the limit of
the anchorages.

- Straighten the seat by tilting it
forwards then lift it.



Putting the seat back in place



- Tilt the seat forward by 45°.

- Place the hooks between the
two bars.

- Fold back the seat to fi x the rear
anchoring points.

- Pull the control to return the seat
back to its initial position.

- Raise the head restraint.
Check that no object is obstructing
the anchoring recesses or preventing
correct locking of the seats.

77
EASE OF USE
andCOMFOR
T
3





Seats





Adjusting the angle of the seat back


- Operate the control and adjust the
angle.


Placing the seat in the table position


- Lower the head restraint fully.

- Operate the control to fold the seat
back onto the seat cushion.

Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely.

Placing the seat in the fully folded
position


- Place the seat in the table position.

- Pull the red strap, located behind
the seat, to release the feet of the
seat from their anchorage on the
fl oor.

- Tilt the entire seat forwards.



Row 2 seat adjustments

Returning the seat to its original
position


- Fold back the entire seat.
Before folding the seat, ensure
that:


- in row 3, no passenger's foot is at
one of the seat anchorages on the
fl oor,

- the seat is locked securely on the
fl oor,

- the seat belt is available for the
passenger.

78





Seats

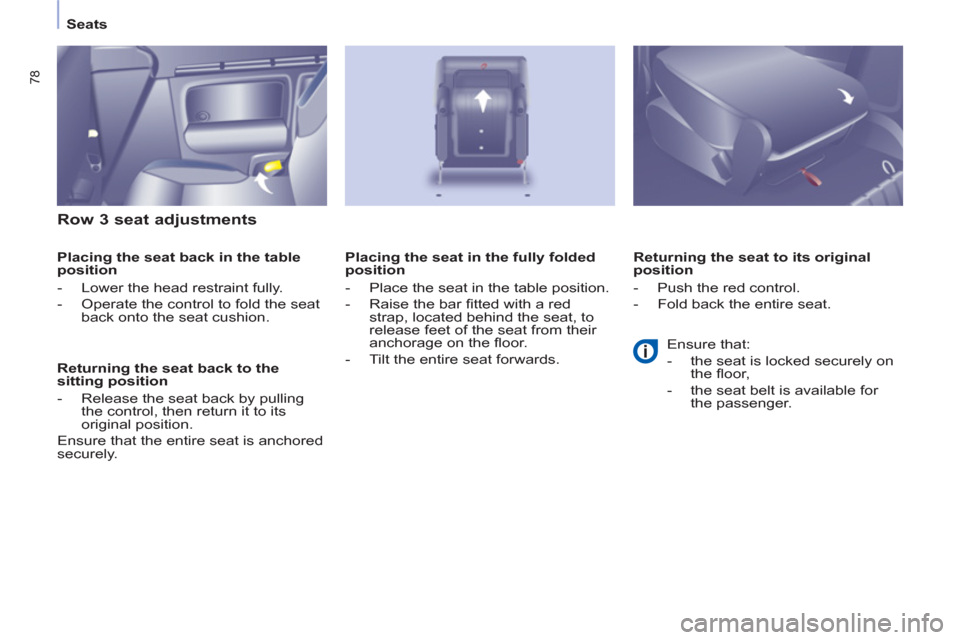

Row 3 seat adjustments


Placing the seat back in the table
position


- Lower the head restraint fully.

- Operate the control to fold the seat
back onto the seat cushion.


Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely.
Returning the seat to its original
position


- Push the red control.

- Fold back the entire seat.
Placing the seat in the fully folded
position


- Place the seat in the table position.

- Raise the bar fi tted with a red
strap, located behind the seat, to
release feet of the seat from their
anchorage on the fl oor.

- Tilt the entire seat forwards.
Ensure that:


- the seat is locked securely on
the fl oor,

- the seat belt is available for
the passenger.

79
EASE OF USE
andCOMFOR
T
3





Seats

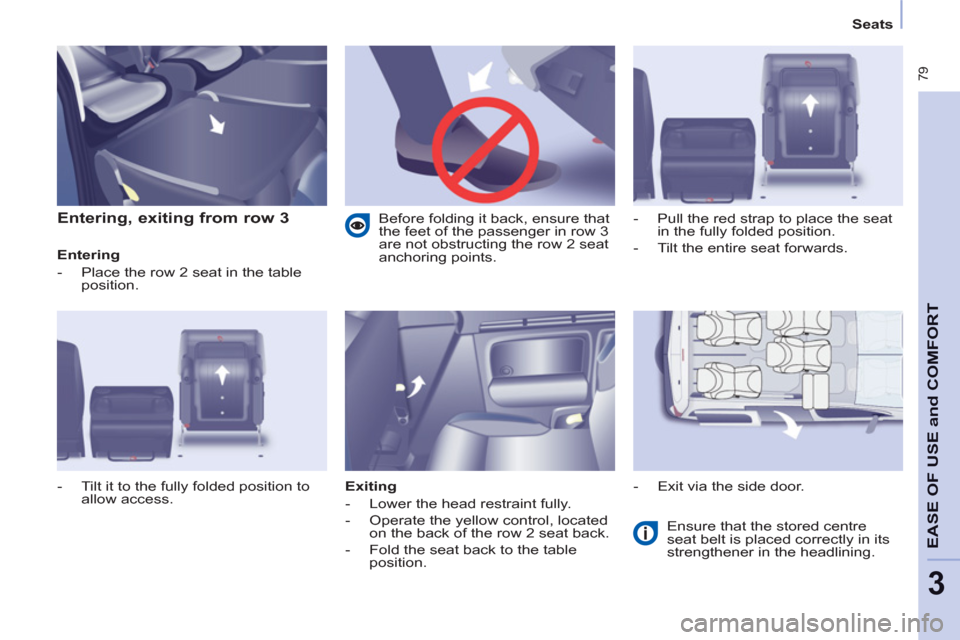

Entering, exiting from row 3


Entering


- Place the row 2 seat in the table
position.

Exiting


- Lower the head restraint fully.

- Operate the yellow control, located
on the back of the row 2 seat back.

- Fold the seat back to the table
position. Ensure that the stored centre
seat belt is placed correctly in its
strengthener in the headlining.
- Tilt it to the fully folded position to
allow access.
- Pull the red strap to place the seat
in the fully folded position.

- Tilt the entire seat forwards.

- Exit via the side door.
Before folding it back, ensure that
the feet of the passenger in row 3
are not obstructing the row 2 seat
anchoring points.

81
EASE OF USE
andCOMFOR
T
3





Seats

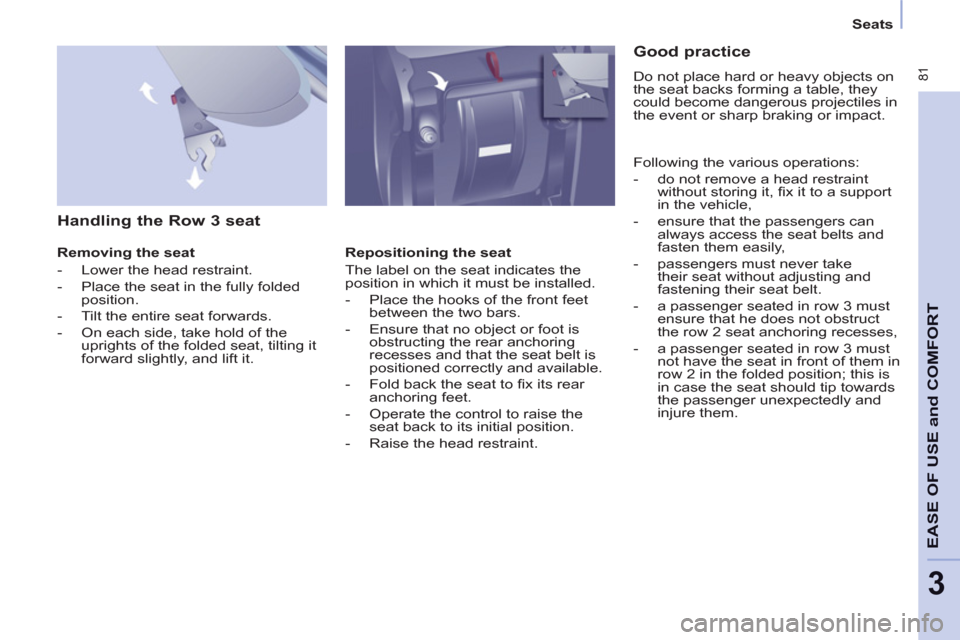

Handling the Row 3 seat


Removing the seat


- Lower the head restraint.

- Place the seat in the fully folded
position.

- Tilt the entire seat forwards.

- On each side, take hold of the
uprights of the folded seat, tilting it
forward slightly, and lift it.

Repositioning the seat
The label on the seat indicates the
position in which it must be installed.


- Place the hooks of the front feet
between the two bars.

- Ensure that no object or foot is
obstructing the rear anchoring
recesses and that the seat belt is
positioned correctly and available.

- Fold back the seat to fi x its rear
anchoring feet.

- Operate the control to raise the
seat back to its initial position.

- Raise the head restraint.




Good practice

Do not place hard or heavy objects on
the seat backs forming a table, they
could become dangerous projectiles in
the event or sharp braking or impact.
Following the various operations:


- do not remove a head restraint
without storing it, fi x it to a support
in the vehicle,

- ensure that the passengers can
always access the seat belts and
fasten them easily,

- passengers must never take
their seat without adjusting and
fastening their seat belt.

- a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 seat anchoring recesses,

- a passenger seated in row 3 must
not have the seat in front of them in
row 2 in the folded position; this is
in case the seat should tip towards
the passenger unexpectedly and
injure them.
