Peugeot Partner Tepee 2017 Owner's Manual

199
Partner2VP_en_Chap09_Caract-technique_ed02-2016Partner2VP_en_Chap09_Caract-technique_ed02-2016
Diesel Engines / Weights
5-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked
trailer (kg) Recommended nose
weight (kg)
1.6 HDi 75 hp 5-speed manual -600 70
1.6 HDi 75 hp FAP 5-speed manual -715 70
BlueHDi 75 hp Euro
65-speed manual
-720 70
1.6 HDi 90 hp 5-speed manual 3.75735 70
1.6 HDi 92 hp FAP 5-speed manual 3.75715 70
1.6 e-HDi 92 hp FAP 5-speed manual 3.75690 70
1.6 BlueHDi 100 hp Euro 6 5-speed manual
3.75600 70
1.6 BlueHDi 100 hp S&S 5-speed manual
3.75600
70
6-speed electronic 60070
1.6 HDi 115 hp FAP 5-speed manual 3.75735 70
1.6 BlueHDi 120 hp Euro 6 6-speed manual
3.75600 70
FAP: particle filter.
e-HDi: model equipped with Stop & Start.
TECHNICAL DATA
9
Weights

200
Partner2VP_en_Chap09_Caract-technique_ed02-2016Partner2VP_en_Chap09_Caract-technique_ed02-2016
7-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked
trailer (kg) Recommended nose
weight (kg)
1.6 HDi 92 hp FAP 5-speed manual 3.75750 70
1.6 BlueHDi 100 hp Euro 6 5-speed manual
3.75600 70
1.6 BlueHDi 100 hp Euro 6 S&S 5-speed manual
3.75600 70
1.6 HDi 115 hp FAP 5-speed manual 3.75750 70
1.6 BlueHDi 120 hp Euro 6 6-speed manual
3.75600 70
FAP: particle filter.
e-HDi: model equipped with Stop & Start.
Weights

201
Partner2VP_en_Chap09_Caract-technique_ed02-2016Partner2VP_en_Chap09_Caract-technique_ed02-2016
IDENTIFICATION MARKINGS
A. Manufacturer's plate.C.
T
yres and paint colour code.
The label C, on the front door
gives:
-
the wheel and tyre sizes,
-

the tyre pressures, laden and
unladen,
-

the tyre pressure of the spare
wheel,
-

the paint colour code.
The tyre pressures should be checked
when cold, at least once a month.
B. Serial number
.
This is engraved on the front right
wheelarch.
If your vehicle is fitted with the
system, refer to the "Under-
inflation detection" section in
Chapter 3.
TECHNICAL DATA
9
Identification markings

202
Partner2VP_en_Chap09_Caract-technique_ed02-2016Partner2VP_en_Chap09_Caract-technique_ed02-2016

203
Partner2VP_en_Chap10a_SMEGplus_ed02-2016
7-inch touch screen
GPS satellite navigation - Multimedia audio - Bluetooth® telephone
Contents
First steps
2 04
Steering mounted controls
20

6
Menus


207
Navigation


208
Navigation - Guidance
2

16
Traffic
2

20
Radio Media

2
22
Radio

2
28
DAB (Digital Audio Broadcasting) radio

2
30
Media
2

32
Settings


234
Connected services
2

42
MirrorLink
TM 2 42
CarPlay® 246
T
elephone
2
48
Frequently asked questions

2
56
The system is protected in such a way that it will only operate in
your vehicle. As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.
Audio and Telematics
TECHNOLOGY on BOARD
10

204
Partner2VP_en_Chap10a_SMEGplus_ed02-2016
First steps
Use the buttons above the touch screen for
access to the menu carousel, then press the
virtual buttons in the touch screen.
Each menu is displayed in one or two pages
(primary page and secondary page).Secondary page
Primary page In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.
Audio and Telematics

205
Partner2VP_en_Chap10a_SMEGplus_ed02-2016
Volume adjustment (each source is independent,
including traffic announcements (TA) and
navigation instructions).
Mute the sound by pressing simultaneously on
the volume increase and reduce buttons.
Unmute the sound by pressing one of the
two


volume buttons. Press Menu
to display the menu
carousel.
Increase volume.
Reduce volume.
Selecting the audio source (depending on
version):
-

"

FM" / "DAB"* / "AM"* stations.
-

"

USB" memory stick.
-
S

martphone via MirrorLink
TM or CarPlay®.
- T
elephone connected by Bluetooth®* and
Bluetooth®* audio streaming.
-
M
edia player connected to the auxiliary
socket (jack, cable not supplied).
* Depending on equipment.
Short-cuts: using the touch buttons in the upper
band of the touch screen, it is possible to go
directly to the selection of the audio source or
the list of stations (or titles, depending on the
s o u r c e).
The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures. In very high temperatures, the volume
may be limited to protect the system.
The return to normal takes place when
the temperature in the passenger
compartment drops.
To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.
Audio and Telematics
TECHNOLOGY on BOARD
10

206
Partner2VP_en_Chap10a_SMEGplus_ed02-2016
Steering mounted controls
Radio: select the previous/next
preset station.
Media: select a genre / artist / folder
from the list.
Select the previous/next entry in a
menu.Decrease volume.
Radio: automatic search for a higher
frequency.
Media: Select next track.
Media, press and hold: fast for ward.
Jump in the list.
Mute: cut the sound by pressing
the volume increase and decrease
buttons simultaneously.
Restore the sound by pressing one of
the two volume buttons. Radio: automatic search for a lower
frequency.
Media: select previous track.
Media, press and hold: fast back.
Jump in the list.
Change the audio source.
Confirm a selection.
Call/end call on the telephone.
Press for more than 2 seconds:
access to the telephone menu. Increase volume.
Audio and Telematics

207
Partner2VP_en_Chap10a_SMEGplus_ed02-2016
Menus
Settings
Radio Media
Navigation
Driving
Connected services Telephone
Adjust the settings for sound (balance,
ambience,
...), colour schemes and the display
(language, units, date, time,


...).
Select an audio source, a radio station, display
photographs.
Enter navigation settings and choose a
destination.
Access to the trip computer.
Activate, deactivate or enter settings for certain
vehicle functions.
Operate certain applications on your
smartphone via MirrorLink
TM or CarPlay®.
Connect a telephone by Bluetooth
®.
Access to the CarPlay® function after
connection of your smartphone by USB cable.
(Depending on equipment)
(Depending on equipment)
Audio and Telematics
TECHNOLOGY on BOARD
10

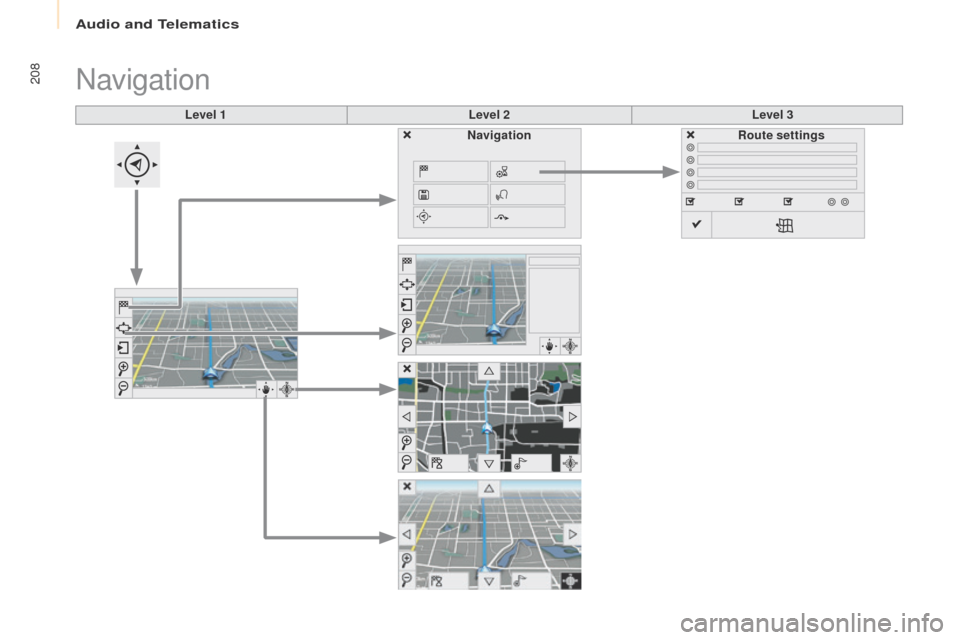

208
Partner2VP_en_Chap10a_SMEGplus_ed02-2016
Level 1Level 2Level 3
Navigation
NavigationRoute settings
Audio and Telematics
