fuse box location Peugeot Partner Tepee 2017 Owner's Manual

8
Partner2VP_en_Chap01_vue-ensemble_ed02-2016
ASR-ESC 119
Parking sensors 1 15-116
Electric mirrors

1
10
Headlamp beam height adjustment 60
Stop & Start
53-55
Cruise control

64-66
Speed limiter


67-69
Lighting


58-60
Foglamps

59
LED daytime running lamps

59
Automatic illumination of headlamps


59-60
INSTRUMENTS AND
CONTROLS
Dashboard, passenger
compartment fuses 187-189
Opening the bonnet

154
Parking brake


1
14Instrument panels, screens,
dials 28-29
Setting the time in the instrument panel
29
W
arning lamps, indicator
lamps
32-39
Indicators, fuel gauge

40, 47-48
Lighting dimmer

48
Gear shift indicator

50
Wipers
61-62
Automatic rain sensitive wipers
6
1
Screen wash
62, 158
T
rip computer
63
Steering wheel adjustment
49
Horn 114
Ignition switch

55
6-speed electronic

gearbox 51-52
Steering mounted controls: -
T
ouch screen
206
-

PEUGEOT
Connect Sound
(RD5) 267
Location

10
Partner2VP_en_Chap01_vue-ensemble_ed02-2016

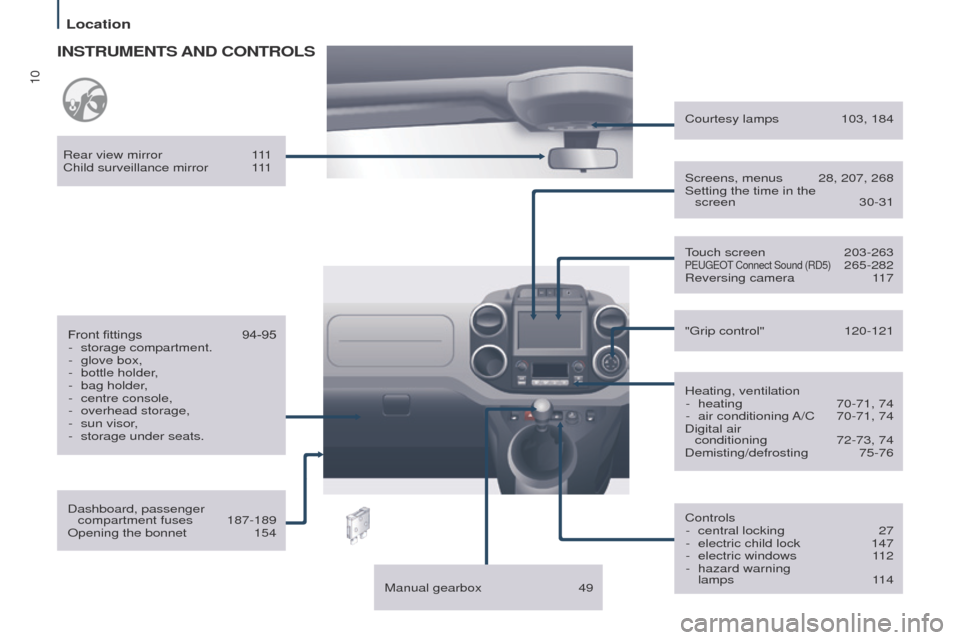

INSTRUMENTS AND CONTROLS
Dashboard, passenger compartment fuses 187-189
Opening the bonnet

154
Front fittings


94-95
-

storage compartment.
-

glove box,
-

bottle holder
,
-
bag holder
,
-
centre console,
-

overhead storage,
-

sun visor
,
-
storage under seats.
Rear view mirror

1
11
Child surveillance mirror
1
11
Manual gearbox
49T

ouch screen
203-263PEUGEOT Connect Sound (RD5) 265-282
Reversing camera
1 17
Controls -

central locking


27
-


electric child lock


147
-


electric windows


1
12
-

hazard warning


lamps
114
"Grip control"

120-121
Heating, ventilation -


heating


70-71, 74
-


air conditioning

A/C

70-71, 74
Digital air


conditioning

72-73, 74
Demisting/defrosting

75-76
Courtesy lamps

103, 184
Screens, menus


28, 207, 268
Setting the time in the


screen

30-31
Location

12
Partner2VP_en_Chap01_vue-ensemble_ed02-2016

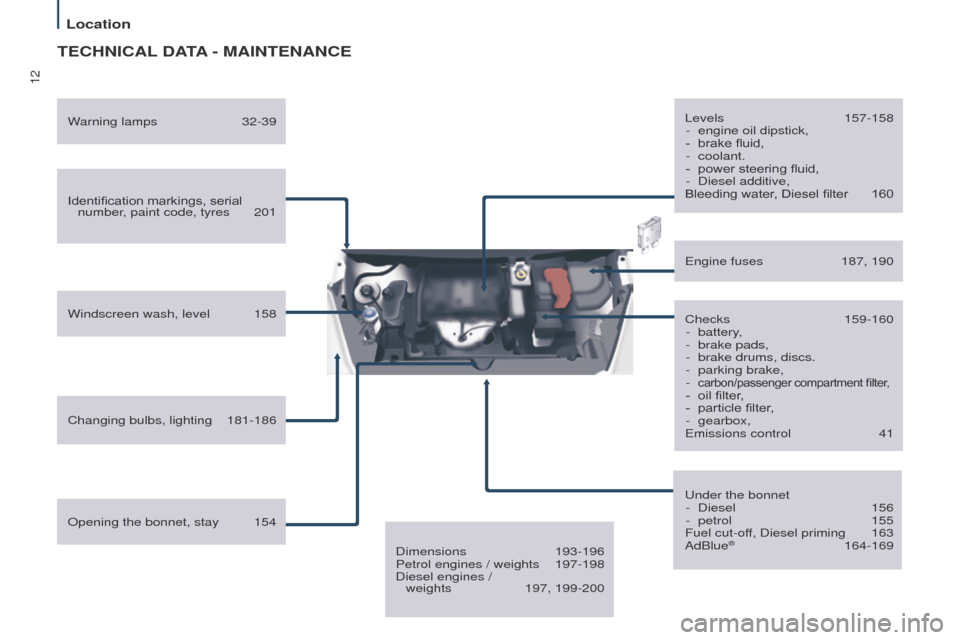

TECHNICAL DATA - M AINTENANCE
Identification markings, serial
number, paint code, tyres 201
Windscreen wash, level

158
Changing bulbs, lighting


181-186 Checks


159-160
-


battery
,
-

brake pads,
-


brake drums, discs.
-


parking brake,
-


carbon/passenger compartment filter,- oil filter,
- particle filter ,
-

gearbox,
Emissions control


41
Engine fuses


187, 190
Opening the bonnet, stay


154 Levels


157-158
-

engine oil dipstick,
-

brake fluid,
-

coolant.
-

power steering fluid,
-

Diesel additive,
Bleeding water
, Diesel filter
160
W

arning lamps

32-39
Under the bonnet-


Diesel

156
-


petrol

155
Fuel cut-of

f, Diesel priming
163
AdBlue® 164-169
Dimensions

193-196
Petrol engines / weights

197-198
Diesel engines /


weights

197, 199-200
Location

190
Partner2VP_en_Chap08_Aide-rapide_ed02-2016Partner2VP_en_Chap08_Aide-rapide_ed02-2016

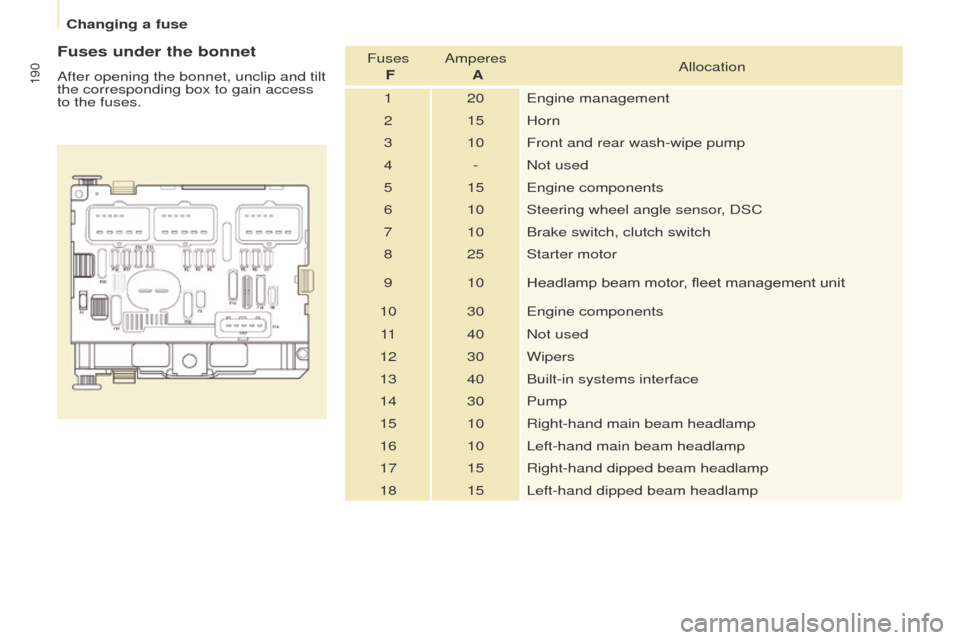

Fuses under the bonnet
After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses.Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 - Not used
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter motor
9 10 Headlamp beam motor, fleet management unit
10 30 Engine components 11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp
Changing a fuse
