17
Partner2VP_en_Chap02_eco-conduite_ed02-2016
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to
the rear seats.
Limit the loads carried in the
vehicle and reduce wind resistance
(roof bars, roof rack, bicycle
carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks
after use.
At the end of winter, remove snow
tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
-
before a long journey
,
-

at each change of season,
-


after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil filter

, air filter, passenger
compartment filter...) and observe the
schedule of operations recommended
in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the
SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT
dealer or a qualified workshop without
delay to have the emissions of nitrogen
oxides brought back to the legal level. When refuelling, do not continue after
the third cut-off of the nozzle to avoid
any overflow.
At the wheel of your new vehicle,
it is only after the first 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to
a consistent average.
2
ECO-DRIVING
Motoring & the Environment

78
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Never drive with the head
restraints removed; they must be
in place and correctly adjusted.
Adjustable armrestFront heated seats control
Each front seat may be fitted with a
control located on the side part of the
cushion.
Press to switch on the cushion heating.
Press again to switch it off.
Head restraint height
To raise the head restraint, slide it vertically
upwards.
To lower the head restraint, press the
button and slide the head restraint vertically
downwards.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, press the
button and pull the head restraint upwards.
To re-install the head restraint, engage
the rods in the holes making sure they are
aligned with the seat back.
To access the vertical position, raise
the armrest until it locks.
Lower the armrest to return it to a
position for use.
To remove the armrest, press the
release button from the vertical position
and move aside the armrest.
To put the armrest back in place, clip it
in the vertical position.
If the vehicle is fitted with the additional
console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.
Seats

79
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
REAR BENCH SEAT
Each 1/3 - 2/3 section can be fully
folded, then removed individually.
Head restraint
The 1/3 - 2/3 split rear bench seat is fitted
with "comma" shape head restraints.
High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
EASE OF USE and COMFORT
4
Seats

82
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
REAR SEATS (5 SEAT VERSION)Head restraint
Each seat can be removed individually.
Each time a seat is returned to the
sitting position or after removing then
refitting a seat, check that it is locked
on the floor securely.
The three independent rear seats
are fitted with "comma" shape head
restraints.
The back of the centre seat, folded
onto the seat cushion, has a shell
which serves as a table with cup
holder. High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Seats

84
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

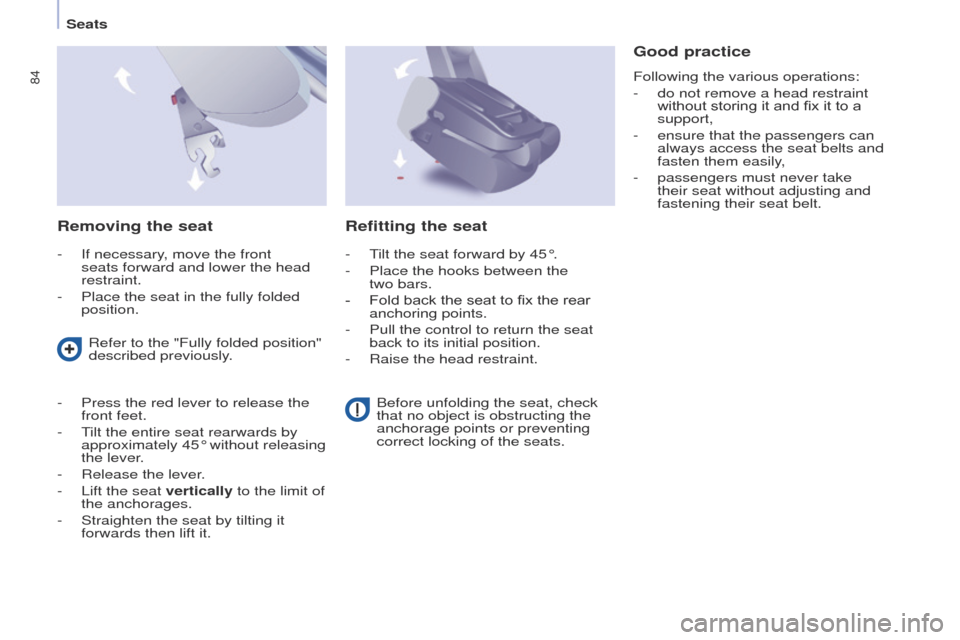

Removing the seat
- If necessary, move the front
seats forward and lower the head
restraint.
-

Place the seat in the fully folded
position.
Good practice
Following the various operations:
-
do not remove a head restraint
without storing it and fix it to a
support,
-


ensure that the passengers can
always access the seat belts and
fasten them easily

,
-

passengers must never take
their seat without adjusting and
fastening their seat belt.
Refer to the "Fully folded position"
described previously

.
-

Press the red lever to release the
front feet.
-


T

ilt the entire seat rearwards by
approximately 45° without releasing
the lever.
-

Release the lever

.
-

Lift the seat

vertically to the limit of
the anchorages.
-

Straighten the seat by tilting it
forwards then lift it.
Refitting the seat
- Tilt the seat forward by 45°.
-
Place the hooks between the
two

bars.
-

Fold back the seat to fix the rear
anchoring points.
-


Pull the control to return the seat
back to its initial position.
-


Raise the head restraint. Before unfolding the seat, check
that no object is obstructing the
anchorage points or preventing
correct locking of the seats.
Seats

85
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Head restraint
This is of the "comma" shape type.
High position: press the tab, lift and
raise the head restraint.
Low position: push the tab and press
the top of the head restraint to lower it.
To remove the head restraint: place it
in the high position, lift it, then remove
it.
Store it inside the vehicle, securing it
firmly.
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed and must
be replaced in the specified position,
indicated by a symbol on its label.
The seats of row 2 and row 3 are
independent and adjustable.
REAR SEATS (7 SEAT VERSION)
EASE OF USE and COMFORT
4
Seats

91
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

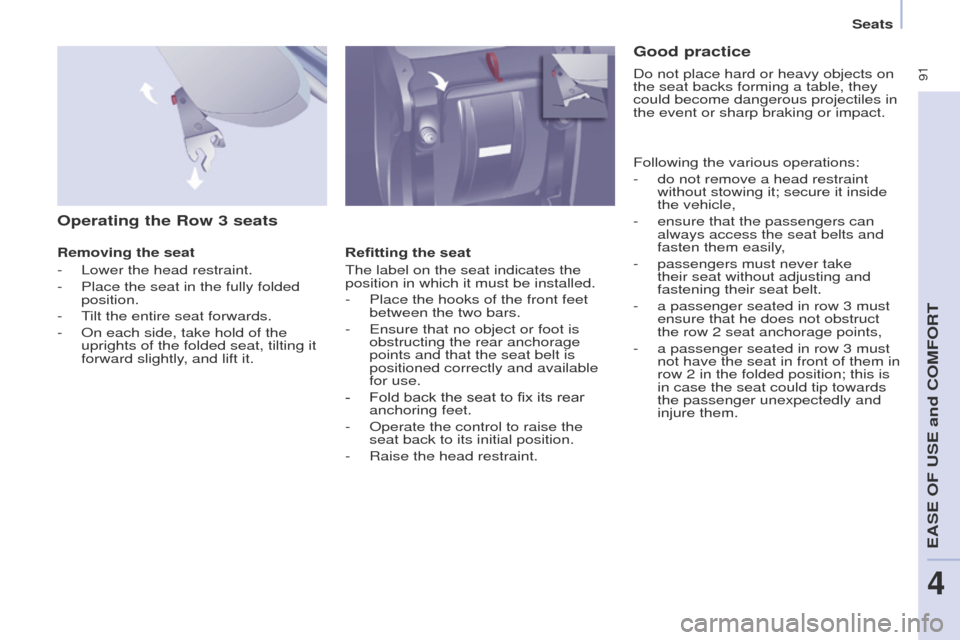

Operating the Row 3 seats
Removing the seat
-
Lower the head restraint.
-


Place the seat in the fully folded
position.
-


T
ilt the entire seat forwards.
-

On each side, take hold of the
uprights of the folded seat, tilting it
forward slightly

, and lift it. Refitting the seat
The label on the seat indicates the
position in which it must be installed.
-

Place the hooks of the front feet
between the two bars.
-


Ensure that no object or foot is
obstructing the rear anchorage
points and that the seat belt is
positioned correctly and available
for use.
-


Fold back the seat to fix its rear
anchoring feet.
-


Operate the control to raise the
seat back to its initial position.
-


Raise the head restraint.
Good practice
Following the various operations:
-
do not remove a head restraint
without stowing it; secure it inside
the vehicle,
-


ensure that the passengers can
always access the seat belts and
fasten them easily

,
-

passengers must never take
their seat without adjusting and
fastening their seat belt.
-


a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 seat anchorage points,
-


a passenger seated in row 3 must
not have the seat in front of them in
row 2 in the folded position; this is
in case the seat could tip towards
the passenger unexpectedly and
injure them.
Do not place hard or heavy objects on
the seat backs forming a table, they
could become dangerous projectiles in
the event or sharp braking or impact.
EASE OF USE and COMFORT
4
Seats

95
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

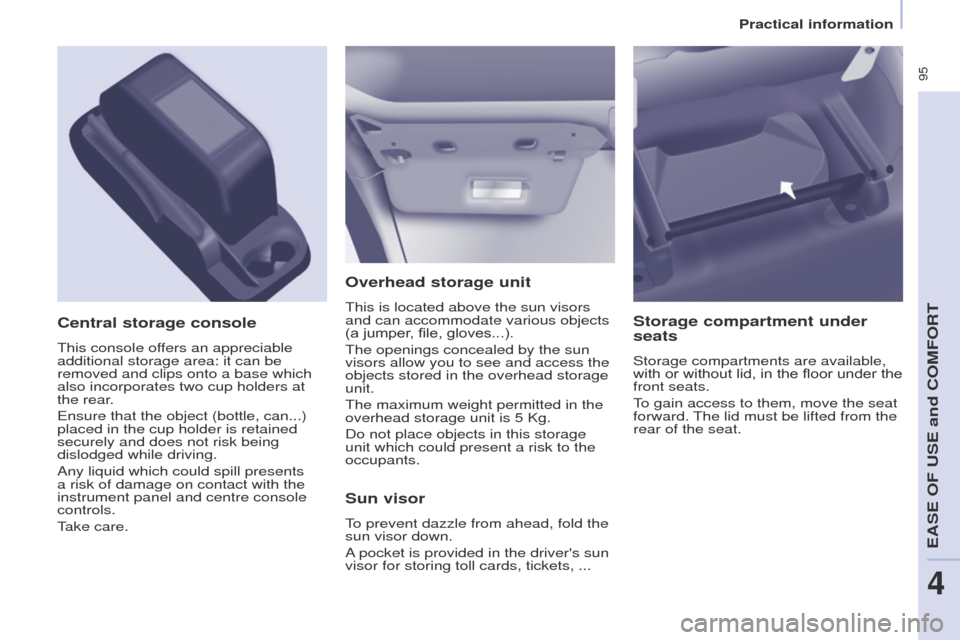

Overhead storage unit
This is located above the sun visors
and can accommodate various objects
(a jumper, file, gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
The maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.
Central storage console
This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.
Sun visor
To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun
visor for storing toll cards, tickets, ...
Storage compartment under
seats
Storage compartments are available,
with or without lid, in the floor under the
front seats.
To gain access to them, move the seat
forward. The lid must be lifted from the
rear of the seat.
EASE OF USE and COMFORT
4
Practical information

103
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

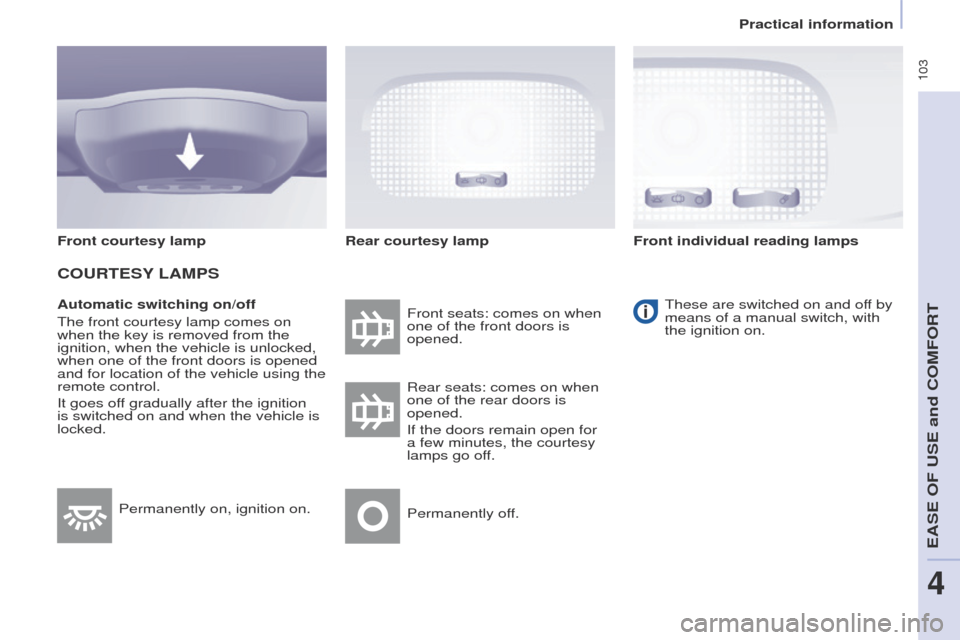

Automatic switching on/off
The front courtesy lamp comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked.Front seats: comes on when
one of the front doors is
opened.
These are switched on and off by
means of a manual switch, with
the ignition on.
Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps go off.
Permanently off.
Permanently on, ignition on.
Front courtesy lamp
COURTESY
LAMPS
Rear courtesy lamp Front individual reading lamps
EASE OF USE and COMFORT
4
Practical information

104
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

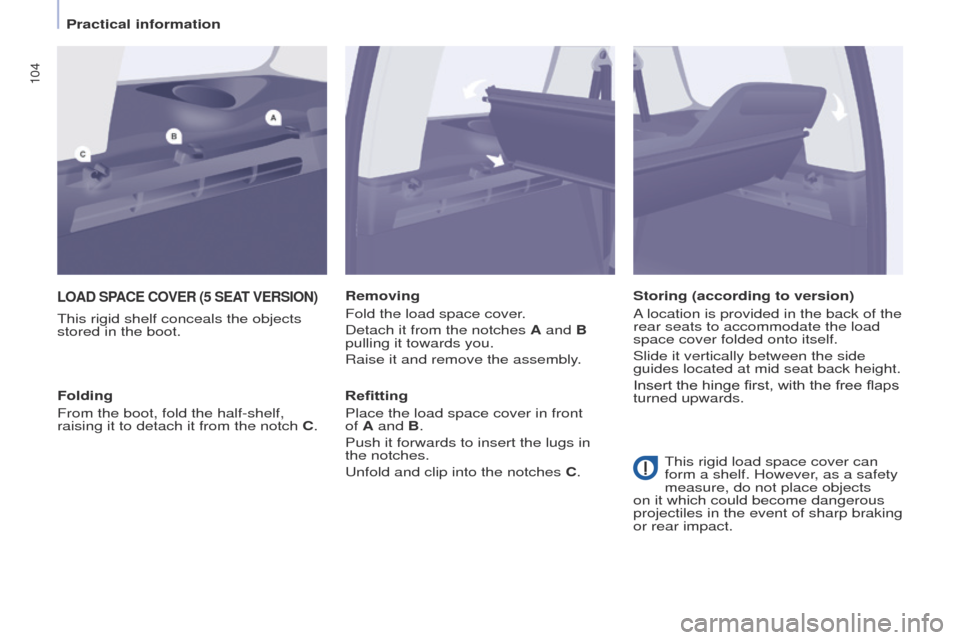

LOAD SPACE COVER (5 SEAT VERSION)
This rigid shelf conceals the objects
stored in the boot.Removing
Fold the load space cover.
Detach it from the notches A and B
pulling it towards you.
Raise it and remove the assembly.
Refitting
Place the load space cover in front
of
A and B.
Push it forwards to insert the lugs in
the notches.
Unfold and clip into the notches C.
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch C. Storing (according to version)
A location is provided in the back of the
rear seats to accommodate the load
space cover folded onto itself.
Slide it vertically between the side
guides located at mid seat back height.
Insert the hinge first, with the free flaps
turned upwards.
This rigid load space cover can
form a shelf. However, as a safety
measure, do not place objects
on it which could become dangerous
projectiles in the event of sharp braking
or rear impact.
Practical information
