PONTIAC BONNEVILLE 2001 Manual PDF

2-4

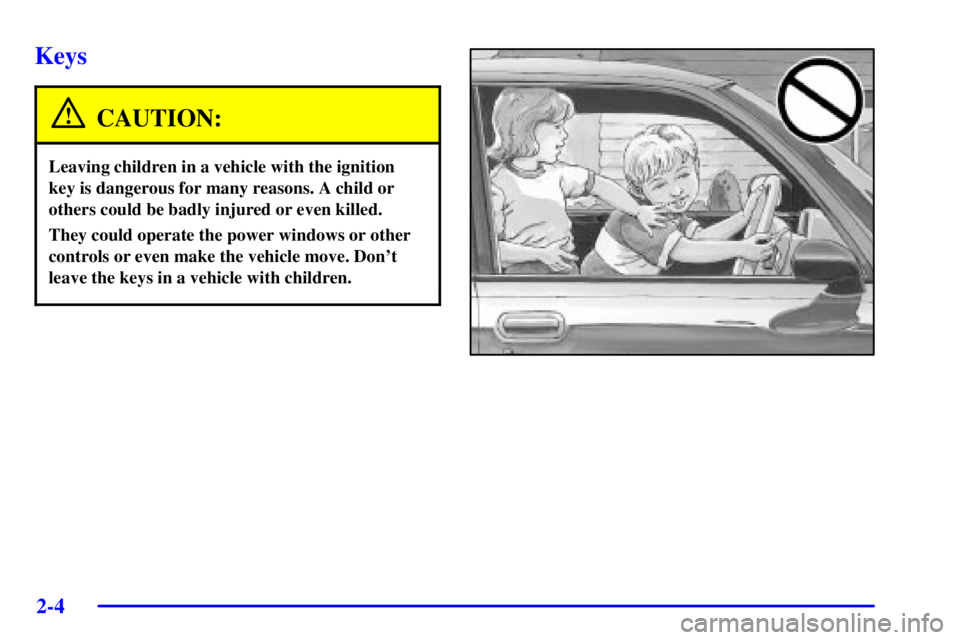

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.

2-5
There is a master key
that works in all of the lock
cylinders (driver's door,
trunk, ignition and
glove box).
There is also a VALET key
which only operates the
driver's door and
the ignition.Your vehicle has the PASS
-Key
III vehicle theft
system. Both the master and VALET key have a
transponder in the key head that matches a decoder in
the vehicle's instrument panel. If a replacement key or
any additional key is needed, you must purchase this key
from your dealer. The key will have PK3 stamped on it.
Keep the bar code tag that came with the original keys.
Give this tag to your dealer if you need a new key made.
Any new PASS
-Key III key must be programmed before
it will start your vehicle. See ªPASS
-Key
III in
the Index for more information on programming your
new key.
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever lock
your keys inside. You may even have to damage
your vehicle to get in. So be sure you have
extra keys.

2-6

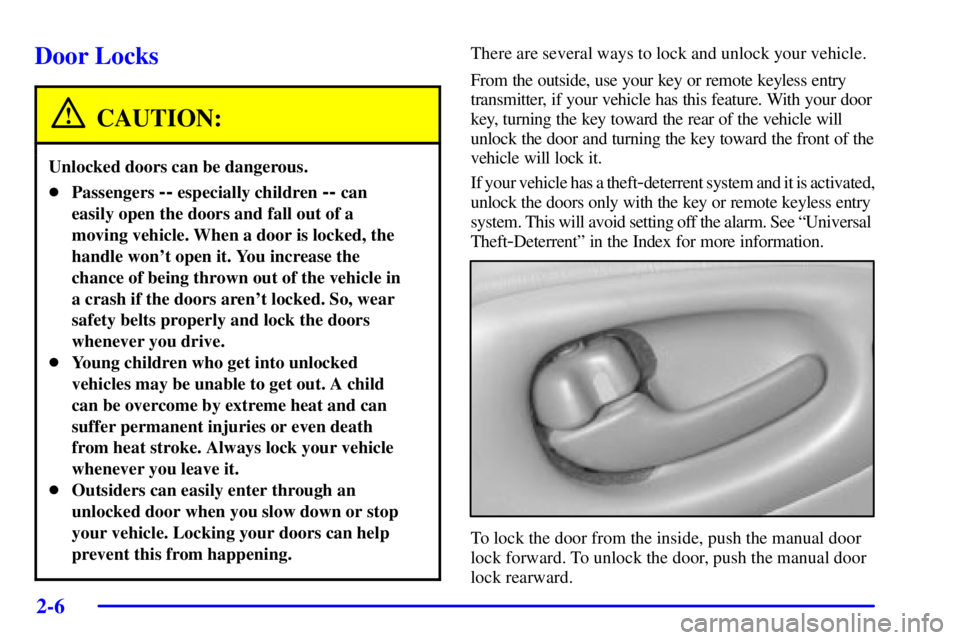

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or remote keyless entry
transmitter, if your vehicle has this feature. With your door
key, turning the key toward the rear of the vehicle will
unlock the door and turning the key toward the front of the
vehicle will lock it.
If your vehicle has a theft
-deterrent system and it is activated,
unlock the doors only with the key or remote keyless entry
system. This will avoid setting off the alarm. See ªUniversal
Theft
-Deterrentº in the Index for more information.
To lock the door from the inside, push the manual door
lock forward. To unlock the door, push the manual door
lock rearward.

2-7 Central Door Unlocking System
If your vehicle has a theft-deterrent system, all doors
will unlock if the key is held in the outside key cylinder
unlock position for more than two seconds. The doors
will also unlock if the key is turned to the unlock
position twice in three seconds.
Power Door Locks
With power door locks,
you can lock or unlock
all the doors on your
vehicle using the driver's
or front passenger's door
lock switch.
Programmable Automatic Door Locks
Close the doors and turn on the ignition. Every time you
move the shift lever out of PARK (P), all of the doors
will lock. And, every time you stop and move the shift
lever into PARK (P), the doors will unlock. If someone
needs to get out while you're not in PARK (P), have that
person use the manual door lock or the power door lock
switch. When the door is closed again, it will not lock
automatically. Just use the manual door lock or the
power door lock switch to lock the door again.
Overriding Lock Delay
If you need to lock your doors before shifting out of
PARK (P), just use the manual door lock or the power
door lock switch to lock the doors.
Personalization Programming
You can program the automatic door lock feature to
change to the following modes:
Mode 0: No automatic door lock or unlock.
Mode 1: All doors automatically lock when shifted
out of PARK (P). No automatic door unlock.
Mode 2: All doors automatically lock when shifted
out of PARK (P). Only the driver's door automatically
unlocks when shifted into PARK (P).

2-8
Mode 3: All doors automatically lock when shifted out
of PARK (P). All doors automatically unlock when
shifted into PARK (P).
Mode 4: All doors automatically lock when shifted out
of PARK (P). Only the driver's door automatically
unlocks when the key is turned to OFF (DIC equipped
vehicles only).
Mode 5: All doors automatically lock when shifted out
of PARK (P). All doors automatically unlock when the
key is turned to OFF (DIC equipped vehicles only).
If your vehicle is not equipped with remote keyless
entry, use the following procedure to change modes:
1. Keep all doors closed, the vehicle in PARK (P) and
the ignition on throughout this procedure.
2. Press and hold the driver's power door lock switch in
LOCK through Step 3.
3. Cycle the shift lever, starting in PARK (P), out of
PARK (P) and then back into PARK (P), to advance
by one mode for each cycle.
After the first cycle, you will hear a door locking
action, which identifies the current mode.
4. Release the power door lock switch. The automatic door
locks will remain in the most recent mode selected.If your vehicle is equipped with remote keyless entry,
use the following procedure to change modes:
1. Keep all doors closed, the vehicle in PARK (P) and
the ignition on throughout this procedure.
2. Press and hold the driver's power door lock switch in
LOCK through Step 4.
3. Press the button with the lock symbol on the remote
keyless entry transmitter. The automatic door locks
will remain in the current mode.
4. Press the button with the lock symbol on the
transmitter again. Each time the transmitter's lock
button is pressed, the mode will advance by one,
going from 3 to 0 to 1, etc.
The door locks will cycle according to the mode
entered. (Mode ª0º has no feedback.)
5. Release the power door lock switch. The automatic door
locks will remain in the most recent mode selected.
This procedure changes the mode for only the
transmitter used to change this setting. The procedure
will need to be repeated for the second transmitter.
If your vehicle is equipped with the Driver Information
Center (DIC), you must program this feature through the
DIC. See ªDriver Information Center Personalization
Programmingº in the Index.

2-9 Delayed Locking
This feature lets the driver delay the actual locking of
the vehicle. When the driver's power door lock switch
or the remote keyless entry lock button is pressed, with
the key removed from the ignition and the driver's door
open, a chime will sound three times to signal that the
delayed locking system is active. When all doors have
been closed, the doors will lock automatically after
five seconds. If any door is opened before this, the
five
-second timer will reset itself once all the doors have
been closed again.
Pressing a power door lock switch or the remote keyless
entry lock button again will override this feature.
Personalization Programming
The delayed locking feature can be turned on or off.
If your vehicle is not equipped with remote keyless
entry, the delayed locking feature can be turned on or off
by using the following procedure:
1. Keep all doors closed, the vehicle in PARK (P) and
the ignition on throughout this procedure.
2. Press and hold the driver's power door lock switch in
LOCK through Step 4.3. Cycle the parking lamp switch from off to on
six times. On the sixth cycle, the doors will unlock to
confirm that the feature has been turned on. Your
doors will remain locked if delayed locking is off.
If the doors unlock, delayed locking is on.
4. To change modes, cycle the parking lamp switch once
more. A locking action will confirm the new mode.
5. Release the power door lock switch.
To turn the feature off, repeat the previous procedure.
If your vehicle is equipped with remote keyless entry, your
vehicle can be programmed to each driver's preference for
each of the transmitters. Use the following procedure to
turn the feature off using the corresponding transmitter:
1. Keep all doors closed, the vehicle in PARK (P) and
the ignition on throughout this procedure.
2. Press and hold the power door lock switch in LOCK
throughout this procedure. All the doors will lock.
3. Press the button with the unlock symbol on the
transmitter. The lock delay is still on and all the
doors will unlock.
4. Press the button with the unlock symbol on the
transmitter again. Lock delay is now off and all the
doors will lock.
5. Release the power door lock switch.

2-10
To turn this feature on, repeat the previous procedure.
This procedure changes the mode for only the
transmitter used to change this setting. The procedure
will need to be repeated for the second transmitter.
If your vehicle is equipped with the Driver Information
Center (DIC), you must program this feature through the
DIC. See ªDriver Information Center Personalization
Programmingº in the Index.
Rear Door Security Lock
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
To use one of these locks:
1. Move the lever all the way up to the
ENGAGED position.
2. Close the door.
3. Do the same thing to the other rear door lock.The rear doors of your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open a rear door when the security lock is on:
1. Unlock the door.
2. Then open the door from the outside.
If you don't cancel the security lock feature, adults or
older children who ride in the rear seat won't be able to
open the rear door from the inside. You should let adults
and older children know how these security locks work,
and how to cancel the locks.
To cancel the rear door lock:
1. Unlock the door and open the door from the outside.
2. Move the lever all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
The power door locks will not work if the key is in the
ignition and any door is open. You can override this
feature by holding the driver's power door lock switch
for more than three seconds.

2-11 Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from the inside. Then get out and
close the door. You may also use the lock button on the
remote keyless entry transmitter after shutting the doors.
If your vehicle has a theft
-deterrent system, see
ªUniversal Theft
-Deterrentº in the Index.
Remote Keyless Entry System
(If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-12
Operation
The driver's door will
unlock and the exterior
lamps may flash twice
when the button with
the unlock symbol
is pressed.
The fuel door will also unlock when unlock is pressed, if
you have the optional fuel door lock.
If the button with the unlock symbol is pressed again
within five seconds, all the doors will unlock. Pressing
the unlock button will also illuminate the interior lamps.
See ªIlluminated Entryº and ªSecurity Feedbackº in
the Index.All doors will lock, the exterior lamps may flash once
and the horn may chirp when the button with the lock
symbol is pressed. See ªSecurity Feedbackº in the
Index. Pressing the lock button may also turn off the
interior lamps if illuminated. If you have the optional
fuel door lock, the fuel door will also lock when the lock
button is pressed.
The trunk will unlock when the trunk symbol is pressed
when the ignition is in OFF. The trunk symbol will
also work when the ignition is on, but only while in
PARK (P) or NEUTRAL (N).
Instant Alarm
When the button with the horn symbol on the remote
keyless entry transmitter is pressed, the horn will sound
and the headlamps and taillamps will flash for up to
30 seconds. This can be turned off by pressing the
instant alarm button again or by turning the ignition to
ON. If your vehicle has the Universal Theft
-Deterrent
feature, you may also turn off the alarm by unlocking
the vehicle with a key. See ªUniversal Theft
-Deterrentº
in the Index.

2-13
Personalization Features
The following list of features that are available on your
vehicle can be programmed to each driver's preference
for each of the remote keyless entry transmitters:

Programmable Automatic Door Locks

Security Feedback

Delayed Locking

Perimeter Lighting

Seat and Mirror Recall
If your vehicle is equipped with the Driver Information
Center (DIC), you must program these features
through the DIC. See ªDriver Information Center
Personalization Programmingº in the Index.
For more detailed information and programming
instructions, refer to the Index for each individual
feature listed above.Security Feedback
This feature provides feedback to the driver when the
vehicle receives a command from the remote keyless
entry transmitter. Feedback is only provided if all
doors are closed, the ignition is off and the Retained
Accessory Power is inactive. The following modes may
be selected:

Mode 1: No feedback when locking or
unlocking vehicle.

Mode 2: Parking lamps and the daytime running
lamps will flash twice when unlocking the vehicle
and will flash once when locking the vehicle.

Mode 3: Horn will chirp when all doors are
unlocked (second unlock button press) and when
locking the vehicle.

Mode 4: Parking lamps and the daytime running
lamps will flash twice each time the button with the
unlock symbol is pressed; the horn will chirp when
all doors are unlocked. Parking lamps and the
exterior lamps will flash once and the horn will chirp
when locking the vehicle.
