coolant reservoir PONTIAC BONNEVILLE 2001 Owners Manual

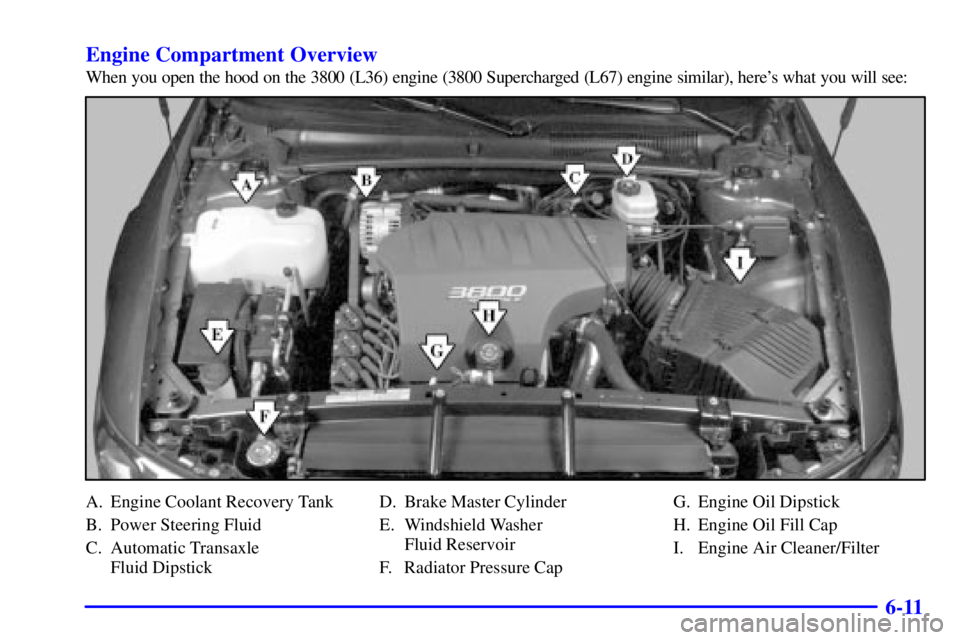

6-11 Engine Compartment Overview
When you open the hood on the 3800 (L36) engine (3800 Supercharged (L67) engine similar), here's what you will see:
A. Engine Coolant Recovery Tank
B. Power Steering Fluid
C. Automatic Transaxle
Fluid DipstickD. Brake Master Cylinder
E. Windshield Washer
Fluid Reservoir
F. Radiator Pressure CapG. Engine Oil Dipstick
H. Engine Oil Fill Cap
I. Engine Air Cleaner/Filter

6-26

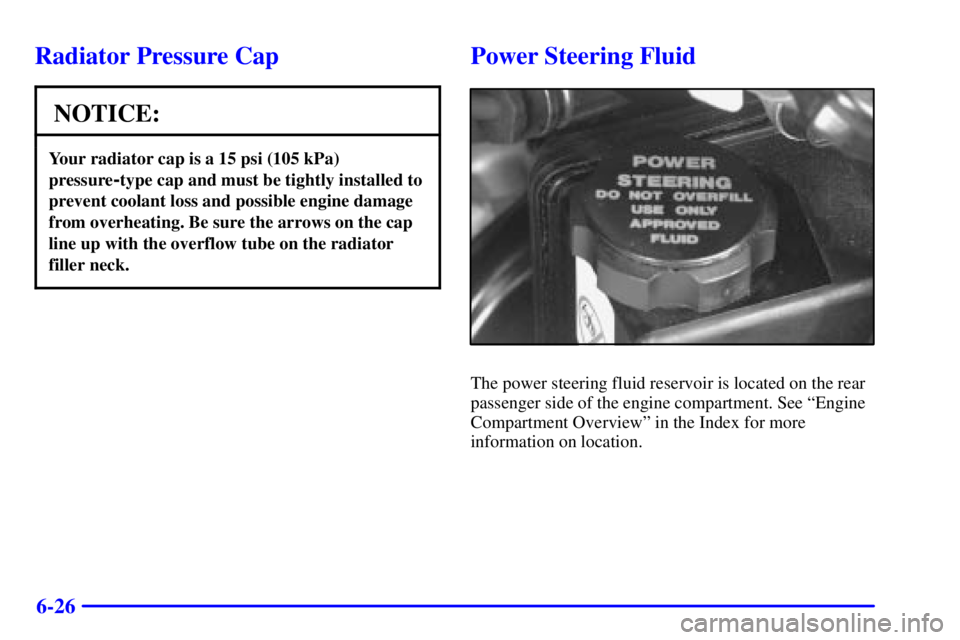

Radiator Pressure Cap
NOTICE:
Your radiator cap is a 15 psi (105 kPa)
pressure
-type cap and must be tightly installed to
prevent coolant loss and possible engine damage
from overheating. Be sure the arrows on the cap
line up with the overflow tube on the radiator
filler neck.
Power Steering Fluid
The power steering fluid reservoir is located on the rear
passenger side of the engine compartment. See ªEngine
Compartment Overviewº in the Index for more
information on location.
