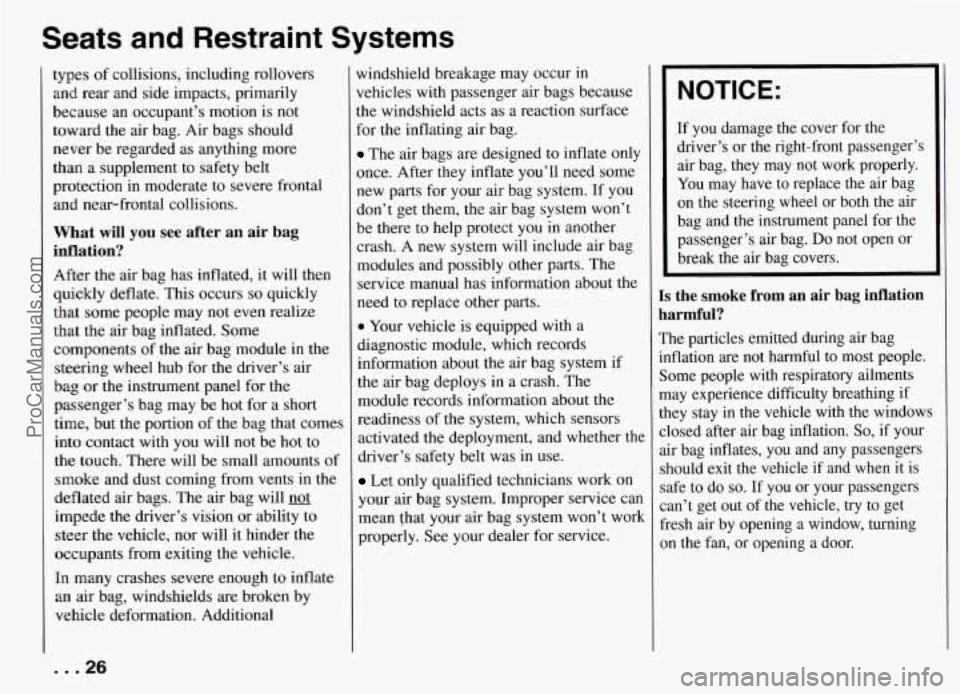

Seats and Restraint Systems
types of collisions, including rollovers
and rear and side impacts, primarily
because an occupant’s motion is not
toward the air bag. Air bags should
never be regarded as anything more
than a supplement to safety belt
protection in moderate to severe frontal
and near-frontal collisions.
What will you see after an air bag
inflation?
After the air bag has inflated, it will then
quickly deflate. This occurs
so quickly
that some people may not
even realize
that the air bag inflated. Some
components
of the air bag module in the
steering wheel hub for the driver’s air
bag or the instrument panel for the
passenger’s bag may be hot for a short
time, but the portion of the bag that comes
into contact with you will not be hot to
the touch. There will be small amounts
of
smoke and dust coming from vents in the
deflated air bags. The air bag will
not
impede the driver’s vision or ability to
steer the vehicle, nor will it hinder the
occupants from exiting the vehicle.
In many crashes severe enough
to inflate
an air bag, windshields are broken by
vehicle deformation. Additional
... 26
windshield breakage may occur in
vehicles with passenger air bags because
the windshield acts as a reaction surface
for the inflating air bag.
The air bags are designed to inflate only
once. After they inflate you’ll need some
new parts for your air bag system. If you
don’t get them, the air bag system won’t
be there to help protect you in another
crash. A new system will include air bag
modules and possibly other
parts. The
service manual has information about the
need to replace other parts.
0 Your vehicle is equipped with a
diagnostic module, which records
information about the air bag system if
the air bag deploys in a crash. The
module records information about the
readiness of the system, which sensors
activated the deployment, and whether the
driver’s safety belt was in use.
Let only qualified technicians work on
your air bag system. Improper service can
mean that your air bag system won’t work
properly. See your dealer for service.
NOTICE:
If you damage the cover for the
driver’s or the right-front passenger’s
air bag, they may not work properly.
You may have to replace the air bag
on the steering wheel or both the air
bag and the instrument panel for the
passenger’s air bag.
Do not open or
break the air bag covers.
1s the smoke from an air bag inflation
harmful?
The particles emitted during air bag
inflation are not harmful to most people.
Some people with respiratory ailments
may experience difficulty breathing if
they stay in the vehicle with the windows
closed after air bag inflation.
So, if your
air bag inflates, you and any passengers
should exit the vehicle if and when it is
safe to do
so. If you or your passengers
can’t get out
of the vehicle, try to get
fresh air by opening a window, turning
on the fan, or opening a door.
ProCarManuals.com

Should interference to this system occur,
try this:
0 Check to determine if battery
replacement is necessary. See the
instructions on battery replacement.
0 Check the distance. You may be too
far from your vehicle. This product
has a maximum range.
Check the location. Other vehicles or
objects may be blocking the signal.
0 See your Pontiac dealer or a qualified
technician for service.
Changes or modifications to this system
by other than an authorized service
facility could void authorization
to use
this equipment.
Operation
The driver’s door will unlock automatically when “UNLOCK’
is
pressed. If “UNLOCK” is pressed again
within five seconds, the passenger door
will also unl‘ock. All doors will lock when
“DOQR’ is pressed. The hatch will
unlock when the opened trunk symbol is
pressed, but only when the ignition switch is
not in “Run”, and the transmission is
in
“P” (Park) if you have an automatic
transmission. If you have a manual
transmission, the parking brake must
be set.
The system will turn on the interior lights
for about
40 seconds, or until the ignition
switch is turned to “Run”, when you
unlock the doors or hatch. The interior
lights
will come on for about two seconds
when you lock the doors.
Matching Transmitter(s) to Your
Vehicle
Each key chain transmitter is coded to
prevent another transmitter from
unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be
purchased through your dealer.
Remember to bring any remaining
transmitters with you when you go to
your dealer. When the dealer matches the
replacement transmitter to your vehicle,
the remaining transmitter must also be
matched. Once the new transmitter is
coded, the lost transmitter will not unlock
your vehicle. You
can match a transmitter to as many
different vehicles as you own, provided
they are equipped with exactly the same
model system. (General Motors offers
several different models of these systems
on their vehicles.) Each vehicle can have
onlv two transmitters matched to
it.
45 ...
ProCarManuals.com

Features and Controls
When starting your engine in very cold
weather (below 0°F or
- 18”C), do this:
1.
2.
With your foot off the accelerator
pedal, turn the ignition key to “Start”
and hold it there. When the engine
starts, let go of the key. Use the
accelerator pedal to maintain engine
speed, if you have to, until your
engine has
run for a while.
If your engine still won’t start (or
starts but then stops), it could be
flooded with too much gasoline.
Try
pushing your accelerator pedal all the
way to the floor and holding it there
as you hold the key
in “Start” for
about three seconds. If the vehicle
starts briefly but then stops again, do
the same thing, but this time keep the
pedal down for five or six seconds.
This clears
the extra gasoline from
the engine.
NOTICE:
Your engine is designed to work with
the electronics in your vehicle. If you
add electrical parts or accessories,
you could change the way
the fuel
injection system operates. Before
adding electrical equipment, check
with your dealer. If you don’t, your
engine might not perform properly.
If you
ever have to have your vehicle
towed, see the part of this manual
that tells how to do it without
damaging your vehicle. See “Towing
Your Vehicle” in the Index.
Driving through Deep
Standing Water
NOTICE:
If you drive too quickly through deep
puddles or standing water, water can
come in through your engine’s air
intake and badly damage your
engine. If you can’t avoid deep
puddles or standing water, drive
through them very slowly.
Performance Mode Switch
(Option)
This switch lets you change from a
normal driving mode to a performance
mode. When you start the engine, the switch will be in normal mode. For
general driving conditions, use the
normal mode. It will remain
in normal
unless you select the “PERFORM”
feature.
For a firmer shift and increased
performance, you may choose the
“PERFORM, mode. The light in the
center
of the switch will light up when
selected. The switch will then remain in
“PERFORMANCE’ mode until the
engine is shut off, when it will go back to
normal mode.
... 54
ProCarManuals.com

C L
S
c
V
S
b
tc
V
P
n
U
C
S
F
tl
TRANSMISSION
INDEEAR@ START
Fecond-Gear Start
‘our vehicle may be equipped with a
econd-Gear Start feature. Press
“2ND
;EAR START” to provide more traction
vhen you are starting on ice or other
lippery surfaces. The transmission will
le in second gear when the vehicle begin;
3 move. After starting in second gear, tht
rehicle will upshift normally.
’his feature
is only for improved traction
then the road surface is slippery and is
lot intended for continuous use. Always
.se “NORMAL” for normal road
onditions.
You may press “2ND GEAR
;TART’’ again to turn off this feature.
Yhenever you start your vehicle, the
ransmission is in the “NORMAL” mode.
Engine Coolant Heater (Engine
Block Heater)
(OPTION)
In very cold weather, 0°F (- 18 “C) or
colder,
the engine coolant heater can help.
You’ll get easier starting and better fuel
economy during engine warm-up.
Usually, the coolant heater should be
plugged in a minimum of four hours prior
to starting your vehicle.
To use the coolant heater:
1. Turn off the engine.
2. Open the hood and unwrap the
electrical cord.
3. Plug it into a normal, grounded 110-volt outlet.
NOTICE:
After you’ve used the coolant heater,
be sure to store the cord
as it was
before to keep it away from moving
engine parts. If
you don’t, it could be
damaged.
55.
ProCarManuals.com

Setting the Clock
The clock may be set with the ignition
on or off.
1. Press and hold “HR” until the correct
hour appears.
correct minute appears.
2. Press and hold “MIN” until the
NOTE: There will be
a two second delay
before the clock goes into the time-set
mode.
I
AM/FM Stereo with Cassette
Tape Player
To Play the Radio
Push “POWER” to turn the system on
or off.
Volume
Turn the “VOLUME” knob to adjust
the sound.
AM-FM
Press “AMEM” to get AM, FM1 or
FM2. The lighted display shows your
selection.
%ne
Press “TUNE” to release the knob.
Turn the knob
to choose radio stations.
Push “TUNE’ back
in to store it when
not tuning.
Recall
Press “RECALL” to recall the station
being played or the clock display.
You
can also press “RECALL” to display
the time when
the ignition is off.
Seek
Press “SEEK or A ” and the radio
will tune to
the next lower or higher
station and stay there.
109 ...
ProCarManuals.com

Shutting Off the Theft-Deterrent
Feature
If your audio system is secured (“SEC”
shows on display) and you wish to disable
it, enter your security code as follows,
pausing no more than
15 seconds between
steps:
1. Turn the ignition on. Make sure the
audio system is
off. The time will
show
on the display.
together until “SEC” shows on the
display.
3. Press “MIN.” “Oi>O,’ will appear on
the display.
4. Press “MIN’ again and hold until the
last two digits of your code appear.
Release
the button.
5. Press “HR’ until the first one or two
digits of your code appear.
6. Press “AM/FM.” If “---” shows, you
have shut off the theft-deterrent
feature. If “SEC” shows, your aud
system is still secured.
NOTE: If you lose or forget your security
code, see your dealer for assistance.
2. Press pushbuttons “1” and “4”
4
Unlocking the Audio System after a
Power Failure
If power is disrupted to the audio system
while in the “SEC” mode, the unit will
not work and “LOC” will show on the
display whenever the ignition is on. To
unlock the unit:
1. Press “MIN.” “000” will appear on
the display.
2. Press “MIN’ again and hold until the
last two digits of your code appear,
Release the button.
3. Press “HR’ until the first one or two
4. Press “AM/FM.” “SEC” will appear
digits
of your code appear.
on the display and the unit will work.
If “LOC” shows, the numbers did not
match and the unit is still locked.
How to Change Your Security Code
You can change your security code by
following these steps:
1. Using your old code, follow the
directions given under “Shutting
Off
the Theft-Deterrent Feature.”
2. Repeat directions of “Setfing Your
Security Code” with your new
security code.
Understanding Radio Reception
FM Stereo
FM stereo will give you the best sound.
But FM signals will reach only about
10 to 40 miles (16 to 65 km). And, tall
buildings or hills can interfere with
FM signals, causing the sound to come
and go.
AM
The range for most AM stations is greater
than for FM, especially at night. The
longer range, however, can cause stations
to interfere with each other. AM can pick
up noise from things like storms and
power lines. Try reducing the treble to
reduce this noise if you ever get it.
AM Stereo
This means the Delco@ system can
receive C-QUAM@ stereo broadcasts.
Many AM stations around the country
use C-QUAM@ to prodyce stereo, though
some do not. (C-QUAM@
is a registered
trademark
of Motorola, I&) If your
Delco@ system can get C-QUAM@, your
“STEREO” light will come on when
you’re receiving it.
121 ...
ProCarManuals.com

Service and Appearance Care
Brake Adjustment
Every time you make a moderate brake stop, your disc brakes adjust for wear. If
you rarely make a moderate or heavier
stop, then your brakes might not adjust
correctly. If you drive in that way,
then
- very carefully - make a few
moderate brake stops about every
1,000
miles (1 600 km), so your brakes will
adjust properly.
If your brake pedal goes down farther
than normal, your rear drum brakes may
need adjustment. Adjust them by backing
up and firmly applying the brakes a few
times.
Replacing Brake System Parts
The braking system on a modern vehicle
is complex. Its many parts have to be of
top quality and work well together if the
vehicle is to have really good braking.
Vehicles we design and test have
top-quality GM brake parts in them, as
your Pontiac does when it is new. When
you replace parts of your braking system
- for example, when your brake linings
wear down and you have to have new
ones put in
- be sure you get new
genuine GM replacement parts. If you
don’t, your brakes may no longer work
. . .208
properly. For example, if someone puts in
brake linings that are wrong for your
vehicle, the balance between your front
and rear brakes can change, for the worse.
The braking performance you’ve come to
expect can change in many other ways if
someone puts in the wrong replacement
brake parts.
Battery
Every new Pontiac has a Delco Freedom@
battery.
You never have to add water to
one of these. When it’s time for a new
battery, we recommend a Delco
Freedom@ battery. Get one that has the
catalog number shown on the original
battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle
for
25 days or more, take off the black,
negative
(-) cable from the battery. This
will help keep your battery from running
down. Contact your dealer
to learn how to
prepare your vehicle for longer storage
periods.
ProCarManuals.com

Some PSP’s pertaining to a particular
model year vehicle may be published in
later years, and these would be listed in
the later year’s index. When you order
an index for a model year that
is not over
yet, we’ll send you the most recently
published issue. Check the ordering form
for indexes for earlier model years.
Cut out the ordering form, fill
it out, and
mail it in. We will then see to
it that an
index is mailed to you. There is no charge
for indexes for the 1990- 1994 model
years.
roll-Free Telephone Number
[f you want an additional ordering form
For an index, just call toll-free and we’ll
Je happy to send you one. Automated
:ecording equipment will take your name
and mailing address. The number to call
4 VERY IMPORTANT REMINDER:
rhese PSP’s are meant for technicians.
rhey are not meant for the “do-it-
yourselfer.’’ Technicians have the
:quipment, tools, safety instructions, and
mow-how to do a job quickly and safely.
IS 1-800-551-4123.
Pontiac Service Publications
You can get these by using the order
form. Pontiac Division Service Manuals
are intended for use by professional
qualified technicians. Attempting repairs
or service without the appropriate
training, tools, and equipment could
cause injury to you or others and damage
to your vehicle that may cause it not to
operate properly.
265 . I ..
ProCarManuals.com

Lights Gages and Indicators. Warning
. . 90
Interior
..................... 78
Low Coolant
................. 98
Low Oil .................... 97
Low Traction
................ 94
Main Control
................ 76
Malfunction Indicator Lamp
.... 95
Operation of
................. 76
Safety Belt Reminder
.......... 18
Service Engine
Soon .......... 95
Skip Shift
................... 61
Traction Control System
Warning
.................. 93
Lights On Reminder
............. 76
Limited-Slip Rear Axle
.......... 62
Loading Your Vehicle
........... 2 13
Lock Control. Remote
........... 44
Locks. Door
................... 43
Locks. Power Door
............. 44
Loss of Control ................ 135
Low Coolant Light
.............. 98
Low Oil Light
................. 97
Low Traction Light
............. 94
Lubricant. Rear Axle
............ 201
Lubricants. Recommended
....... 253
Main Fuse Block
............. 230
Main Light Control
............. 76
Maintenance Inspections. Periodic
.......... 25 1 Maintenance
Record
..................... 255
Schedule .................... 239 .
Services, Scheduled ........... 242
Underbody
.................. 226
When Trailer Towing
.......... 149
Malfunction Indicator tamp
...... 95
Manual
Adjust Mirrors
............... 79
Front Seat
................... 8
Remote Control Mirror
........ 79
Seat. Four-Way
............... 8
Transmission (Five-Speed) ..... 59
Transmission (Six-Speed)
...... 60
Transmission Fluid
............ 200
Windows
................... 67
Map Lights. Front
.............. 79
Map Pocket
................... 84
Master Cylinder. Brake
.......... 206
Mirrors Control. Electric
.............. 80
Convex Outside .............. 79
Inside Daymight Rearview
..... 79
Manual Adjust
............... 79
Manual Remote Control
........ 79
Visor Vanity. Covered
......... 85
Mode Switch. Performance ....... 54
Mountain Roads. Hill and ... ; .... 14
New Vehicle “Break-In”
....... 50
Night Driving .................. 136 Night Vision
................... 136
Nuts.
Wheel ................... 234
Odometer. Speedometer and
..... 89
Odometer. Trip
................. 90
Off-Road Recovery
............. 133
Oil. Engine .................... 191
Operation
of Lights ............. 76
Overheating. Engine
............ 161
Owner Checks and Services ....... 248
P (Park) Shifting into .......... 64
P (Park). Shifting out
of .......... 65
Paint
Chemical Spotting
............ 226
Finish Care
.................... 225
Finish Damage
................ 226
Foreign Material
............... 226
Brake
...................... 63
On Hills (Trailer Towing) ....... 148
Over Things That Burn ........ 66
Your Vehicle ................. 65
Parts. Replacement
.............. 234
PASS-Key I1
................... 49
Passenger Positions (Safety Belts) . . 27
Rear Seat
................... 28
Right Front .................. 27
Passengers. Rear Seat
(Safety Belts)
................ 28
Passing
....................... 134
Parking
..
273 ...
ProCarManuals.com

Index
Pedal Travel. Brake ............. 207
Performance Mode Switch
........ 54
Periodic Maintenance Inspections
. . 251
Pontiac Roadside Assistance
...... 262
Pontiac Service Publications
(Ordering Information)
........ 265
Power Door Locks
.................. 44
Retained Accessory ........... 52
Seat. Six-Way
................ 9
Steering
.................... 132
Steering Fluid
................ 204
Windows
................... 68
Pregnancy. Safety Belt Use
during
...................... 27
Pressure Cap. Radiator
........... 204
Problems on
we Road ........... 15 1
Publications. Service
............ 263
Questions Many People Ask about
Safety Belts
- and the Answers.
Here are
.................. 17
Radiator Pressure Cap
.......... 204
Radiator. How to Add Coolant
to the
................... .165. 167
Radio Reception. Understanding
... 121
Radio.
To Play the
A" Stereo with Cassette
Tape Player
............... 109 Radio.
To Play
the
AM/FM Stereo with Cassette
Tape Player and Graphic
Equalizer
............... 1 12
AM/FM Stereo with Compact
Disc Player
................ 115
A" Stereo with Compact
Disc Player and Graphic
Equalizer
............... 1 18
Rain. Driving in the
............. 137
Rear
Rainy Weather Tips. Some Other ... 138
Axle
....................... 201
Axle. Limited-Slip
............ 62
Seat Passengers (Safety Belts) ... 28
Seat. Securing a Child Restraint
in the
..................... 33
Seatback. Folding
............. 13
Towing Hook-Ups
............ 160
Window Defogger
............ 107
Rearview Mirror. Inside
Daymight
................... 79
Recommended Fluids
and Lubricants
............... 253
Recovery. Off-Road
............. 133
Release Hatch
...................... 47
Hatch. Remote
............... 47
Hood
....................... 188
Reminder Light. Safety Belt
...... 18
Reminder. Lights On
............ 76 Remote Hatch Release
........... 47
Remote Lock Control
............ 44
Replacement Air Filter
.................... 196
Battery. Remote Lock Control
... 44
Bulbs (Part Numbers) .......... 232
Bulbs (Service)
............... 209
Parts
....................... 234
Wheel
...................... 220
Wheels. Used
................ 220
Replacing Brake System Parts
..... 208
Replacing Safety Belts after a Crash
..................... 40
Reporting Safety Defects
......... 261
Restraint Systems. Seats and
...... 7
Restraints Checking Your System
......... 40
Child
....................... 31
Head
....................... 12
Where to Put the
.............. 31
Retained Accessory Power
........ 52
Right Front Passenger Position (Safety Belts)
................ 27
Right Front Seat. Securing a Child
Restraint in the
............... 35
Road. Problems on the ........... 151
Road. Your Driving and the
....... 125
Roads. Hill and Mountain
........ 141
Roadside Assistance. Canadian
.... 263
Roadside Assistance. Pontiac
...... 262
... 274
ProCarManuals.com
