stop start PONTIAC FIREBIRD 1995 User Guide

Low Traction Light Engine Coolant Temperature Gage
LOW
TRAC
When your anti-lock system is adjusting brake pressure to
help avoid a braking skid, the
LOW TRAC light will
appear
on your instrument cluster. If you have the traction
control system,
this light will also come on when the
system is limiting wheel spin. Slippery road conditions
may
exist if this light comes on, so adjust your driving
accordingly. The light will stay on for a few seconds after
the
anti-lock system stops adjusting brake pressure or the
traction control system stops limiting wheel spin.
This gage shows the engine coolant temperature. If the
gage pointer moves into the red area, your engine is too
hot! It means that your engine coolant has overheated. If
you have been operating your vehicle under normal
driving conditions, you should pull
off the road, stop
your vehicle and turn
off the engine as soon as possible.
In “Problems on the Road,”this manual shows what to
do. See “Engine Overheating” in the Index.
The LOW TRAC light also comes on briefly, as a bulb
check, when the engine is started.
If the light doesn’t
come
on then, have it fixed so it will be there to tell you
when the anti-lock brake system or traction control
system
is active.
2-72
ProCarManuals.com

before any problem is apparent, which may prevent more serious damage to your vehicle. The system is also
designed to assist your service technician in correctly
diagnosing any malfunction.
The SERVICE ENGINE SOON light should come on,
as
a check to show you it is working, when the ignition
is on and the engine is not running. This light will also
come on during a malfunction in one or two ways:
Light on steady - - indicates a system malfunction
has been detected. Drive the vehicle to the dealer for
service at your first opportunity.
Light Flashing - - indicates a misfire has been
detected which may damage the emission control
system. The damage may be reduced'by lowering the
vehicle speed, reducing the amount of cargo being
hauled or trailered, avoiding hard acceleration, or by
avoiding steep uphill grades.
If these actions are
effective, the light will stop flashing and remain on
steady. Drive the vehicle to a dealer for service.
If
the light continues to flash, stop the vehicle. Wait for
a steady light to come on, then drive the vehicle to
the nearest dealer for service.
These following conditions also may cause the
SERVICE ENGINE
SOON light to come on.
Low Fuel/Out of Fuel - - As the vehicle starts to run out
of fuel the SERVICE ENGINE SOON light may come
on as a result of
an engine misfire. Filling your gasoline
tank should correct this condition. Make sure to install
the gas cap fully. It will require a few driving trips to
turn the light
off.
Poor Quality Fuel - - Be sure to fuel your vehicle with
quality fuel. Your engine may not run efficiently on poor
fuel. Poor fuel may cause stalling, hesitation or misfire.
These conditions may go away when the engine is
warmed-up. However, poor quality fuel may cause the
SERVICE ENGINE SOON light to come
on.
Have a dealer check the vehicle. If no problems are
found, you may want to change to another brand of fuel.
Driving Through Standing Water -- Driving your
vehicle through puddles
of deep standing -w.a&r may
result in a temporary misfire condition. This condition
will usually correct itself- shortly after the electrical
system dries out.
It will require a few driving trips to
turn the light off.
2-75
ProCarManuals.com

For NEXT to work properly, your tape must have at
least three seconds of silence between each selection.
The radio will not play during this operation.
FWD (Forward): Press this button to rapidly advance
to another part of the tape. Press PROG or FWD again
to stop it. The radio will play during this operation.
REV (Reverse): Press this button to rapidly rewind the
tape. Press PROG or
REV again to stop it. The radio
will play during this operation.
To Play the Next Selection
The radio will not play during this operation.
PROG (Program): Press this button to switch from one
side of the tape to the other or to stop the tape from
searching.
Noise Reduction
00 Press this button to reduce background noise. This
symbol will appear in the display.
Dolby@ B Noise Reduction manufactured under license
from Dolby Laboratories Licensing Corporation. Dolby
and the
00 symbol are trademarks of Dolby
Laboratories Licensing Corporation.
To Stop the Tape Player
Turn the power off or turn the ignition key off. The
cassette stays in the player and will resume playing
at the point where it stopped.
Press A” to stop playing the cassette and switch
to the radio. Press TAPE-PLAY to restart the cassette
at the point where it stopped.
Press EJECT to remove the cassette or stop the
cassette and switch to radio. EJECT will work with
the ignition or radio
off. Press EJECT to load a
cassette when the radio is
off.
NOTE: This radio has a “broken tape” feature that will
eject broken or misfed tapes. Because of
this feature,
CD changers that plug into the tape deck will not work
in this system.
Diagnostic Tape Error Indicator
When the cassette player detects a problem with the
cassette tape either just after it is loaded or while it is
playing,
it will attempt to work around the epor. If the
tape player cannot continue to play the cassette, it will
eject it and switch to the radio mode.
3-8
ProCarManuals.com

RECALL: Press this button to see what track is playing.
Press
it again within five seconds to see how long it has
been playing.
The track number also appears when the disc is inserted.
PREV (Previous): Press this button or SEEK to hear
the current track again.
If you press and hold this button, or press it more than
once, the disc
will return to previous tracks.
NEXT Press this button or SEEK A to hear the
next track now (instead
of waiting until the present track
is finished).
If you press and hold this button or press it more than
once, the disc will advance further.
REV (Reverse): Press and hold this button to rapidly
return
to a passage. Release it to play the passage. The
radio will play during this operation and the display will
show elapsed time.
FWD (Forward): Press and hold this button to quickly
advance within a track. Release it to resume playing.
The radio will play during this operation.
RDM (Random): Press this button to hear a random
selection
of tracks. Press it again to turn off random
Play.
To Stop the Disc Player
Turn the power off or turn the ignition key off. The
disc stays in the player and will resume playing at
the point where it stopped.
0 Press A" to stop playing the disc and switch to
radio. Press CD/PLAY to restart the disc at the point,
where it stopped.
Press EJECT to eject the disc or stop the disc and
switch to radio. EJECT will work with the ignition
or radio
off. Press EJECT to load a disc when the
audio system is off.
3-11
ProCarManuals.com

Avoid needless heavy braking. Some people drive in
spurts
-- heavy acceleration followed by heavy braking
-- rather than keeping pace with traffic. This is a
mistake. Your brakes may not have time to cool between
hard stops. Your brakes will wear out much faster
if you
do a lot
of heavy braking. If you keep pace with the
traffic and allow realistic following distances, you will
eliminate a lot of unnecessary braking. That means
better braking and longer brake
life.
If your engine ever stops while you’re driving, brake
normally but don’t pump your brakes.
If you do, the
pedal may get harder to push down.
If your engine
stops, you will still have some power brake assist. But
you will use it when you brake. Once the power assist is
used up, it may take longer to stop and the brake pedal
will be harder to push.
Anti-Lock Brakes (ABS)
Your Pontiac has an advanced electronic braking system
that will help prevent a braking skid.
INOP
This light on the
instrument panel will
come on briefly when
you start your vehicle.
When you start your vehicle, or when you begin to drive
away, you may hear a momentary motor or clicking
noise. And you may even notice that your brake pedal
moves a little while this is going on. This is the ABS
system testing itself. If there’s a problem with the
anti-lock brake system, the anti-lock brake system
warning light will stay on or flash.
See “Anti-Lock Brake System Warning Light’’ in the
Index.
4-6
ProCarManuals.com

Do not get too close to the vehicle you want to pass
while you’re awaiting
an opportunity. For one thing,
following too closely reduces your area of vision,
especially if you’re following a larger vehicle.
Also,
you won’t have adequate space if the vehicle ahead
suddenly slows or stops. Keep back a reasonable
distance.
When it looks like a chance to pass is coming up,
start to accelerate but stay in the right lane and don’t
get too close. Time your move
so you will be
increasing speed as the time comes to move into the
other lane.
If the way is clear to pass, you will have a
“running start” that more than makes up for the
distance you would lose by dropping back. And
if
something happens to cause you to cancel your pass,
you need only slow down and drop back again and
wait for another opportunity.
If other cars are lined up to pass a slow vehicle, wait
your turn. But take care that someone isn’t trying to
pass you as you pull out to pass the slow vehicle. Remember
to glance over your shoulder and check
the blind spot.
Check your mirrors, glance over your shoulder, and
start your left lane change signal before moving out
of the right lane to pass. When you are far enough
ahead of the passed vehicle to see its front in your
inside mirror, activate your right lane change signal
and move back into the right lane. (Remember that
your right outside mirror is convex. The vehicle you
just passed may seem to be farther away from you
than it really is.)
Try not to pass more than one vehicle at a time on
two-lane roads. Reconsider before passing the next
vehicle.
Don’t overtake a slowly moving vehicle too rapidly.
Even though the brake lights are not flashing, it may
be slowing down or starting to turn.
If you’re being passed, make it easy for the
following driver to get ahead of you. Perhaps you
can ease a little
to the right.
4-14
ProCarManuals.com

Loss of Control
Let’s review what driving experts say about what
happens when the three control systems (brakes, steering and acceleration) don’t have enough friction where the
tires meet the road to do what the driver has asked.
In any emergency, don’t give up. Keep trying to steer and constantly seek an escape route or area of less
danger.
Skidding
In a skid, a driver can lose control of the vehicle.
Defensive drivers avoid most skids by taking reasonable
care suited to existing conditions, and by not
“overdriving” those conditions. But skids are always
possible.
The three types of skids correspond to your Pontiac’s
three control systems. In the braking skid your wheels
aren’t rolling. In the steering or cornering skid, too
much speed or steering
in a curve causes tires to slip and
lose cornering force. And in the acceleration skid too
much throttle causes the driving wheels to spin.
A cornering skid is best handled by easing your foot off
the accelerator pedal.
If you have the traction control system, remember: It
helps avoid only the acceleration skid.
If you do not have traction control, or if the system is
off, then an acceleration skid is also best handled by
easing your foot
off the accelerator pedal.
If your vehicle starts to slide, ease your foot off the
accelerator pedal and quickly steer the way you want the
vehicle to go.
If you start steering quickly enough, your
vehicle may straighten out. Always be ready for a
second skid if it occurs.
Of course, traction is reduced when water, snow, ice,
gravel, or other material is on the road.
For safety, you’ll
want to slow down and adjust your driving to these
conditions.
It is important to slow down on slippery
surfaces because stopping distance
will be longer and
vehicle control more limited.
While driving on a surface with reduced traction, try
your best to avoid sudden steering, acceleration, or
braking (including engine braking by shifting to a lower
gear). Any sudden changes could cause the tires to slide.
You may not realize the surface is slippery until your
vehicle is skidding. Learn to recognize warning clues
--
such as enough water, ice or packed snow on the road to
make
a “mirrored surface” -- and slow down when you
have any doubt.
Remember: Any anti-lock brake system (ABS) helps
avoid only the braking skid.
4-15
ProCarManuals.com

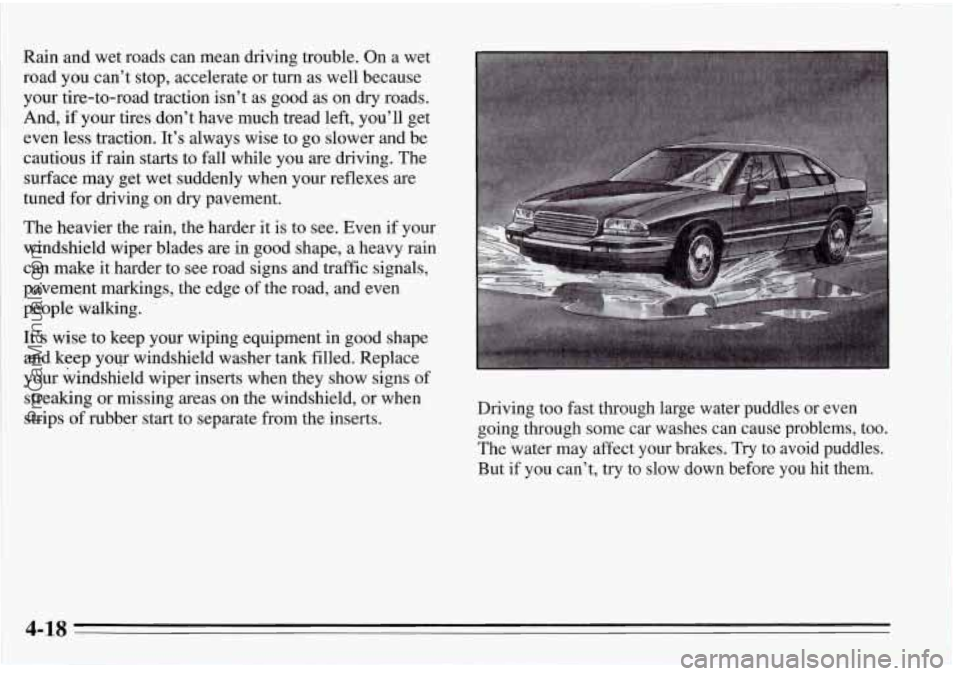

Rain and wet roads can mean driving trouble. On a wet
road you can’t stop, accelerate or turn as well because
your tire-to-road traction isn’t as good as on dry roads.
And, if your tires don’t have much tread left, you’ll get
even less traction. It’s always wise to go slower and be
cautious if rain
starts to fall while you are driving. The
surface may get wet suddenly when your reflexes are
tuned for driving on dry pavement.
The heavier the rain, the harder it is to see. Even if your
windshield wiper blades are in good shape, a heavy rain
can make it harder to see road signs and traffic signals,
pavement markings, the edge of the road, and even
people walking.
.
It’s wise to keep your wiping equipment in good shape
and keep yoqr windshield washer tank filled. Replace
your windshield wiper inserts when they show signs of
streaking or missing areas on the windshield, or when ~
strips
of rubber start to separate from the inserts. Driving too fast through large water puddles or even
going through some car washes can cause problems, too.
The water may affect your brakes. Try to avoid puddles.
But if you can’t, try to slow down before you
hit them.
ProCarManuals.com

Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have a
different turn signal flasher and extra wiring. The green
arrows on your instrument panel will flash whenever
you signal a turn or lane change. Properly hooked up,
the trailer lamps will also flash, telling other drivers
you’re about to turn, change lanes or stop.
When towing a trailer, the green arrows on your
instrument panel will flash for turns even if the bulbs on
the trailer are burned out. Thus, you may think drivers
behind you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade.
If you don’t shift
down, you might have to use your brakes
so much that
they would get hot and no longer work well.
On a long uphill grade, shift down and reduce your
speed to around
45 mph (70 km/h) to reduce the
possibility of engine and transmission overheating.
If you are towing a trailer and you have an automatic
transmission with Overdrive, you may prefer
to driving
in THIRD
(D) instead of OVERDRIVE (or, as you need
to, a lower gear). Or, if you have
a manual transmission
with FIFTH (or SIXTH) gear and you are towing a
trailer, it’s better not to use FIFTH (or
SIXTH) gear.
Just drive in FOURTH (drive in FIFTH if you have a
six-speed manual transmission) or, as you need to, a
lower gear.
4-37
ProCarManuals.com

Parking on Hills
You really should not park your vehicle, with a trailer
attached, on a
hill. If something goes wrong, your rig
could
start to move. People can be injured, and both
your vehicle and the trailer can be damaged.
But if you ever have to park your rig on a hill, here’s
how to
do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) yet, or into gear for a manual transmission.
2. Have someone place chocks under the trailer wheels.
3. When the wheel chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes, Then apply your parking
brake, and then shift to PARK (P), or REVERSE (R)
for a manual transmission.
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal down
while you:
Start your engine;
0 Shift into a gear; and
0 Release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more on this. Things that
are especially important in trailer
operation
are automatic transmission fluid (don’t
overfill), engine oil, axle lubricant, belts, cooling
system, and brake adjustment. Each
of these is covered
in this manual, and the Index will help you find them
quickly.
If you’re trailering, it’s a good idea to review
these sections before you start your trip.
Check periodically to see that all hitch nuts and bolts are
tight.
4-38
ProCarManuals.com
