boot PONTIAC FIREBIRD 1997 Owners Manual

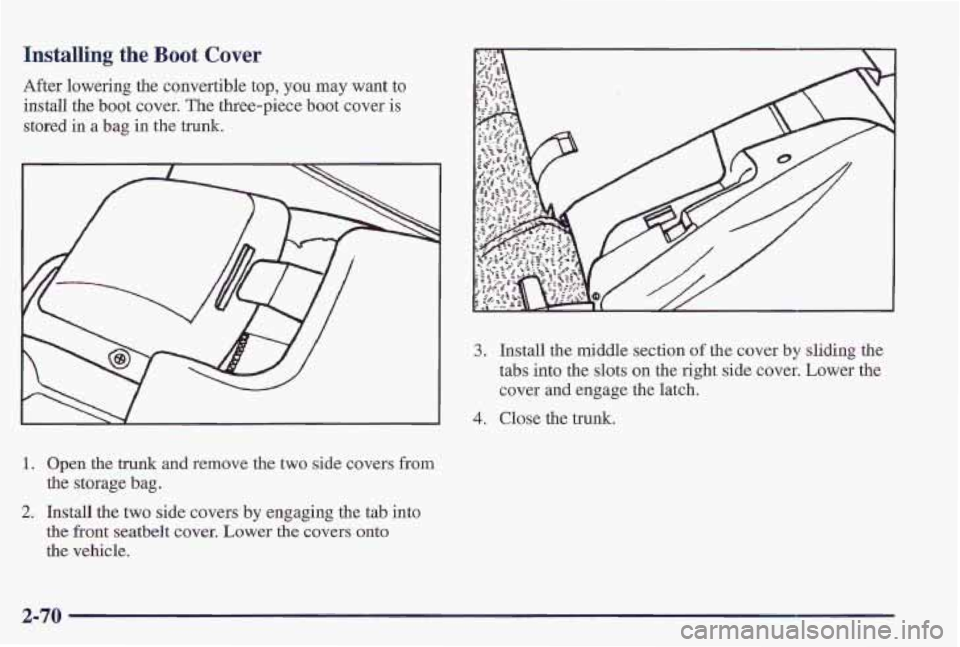

Installing the Boot Cover
After lowering the convertible top, you may want to
install the boot cover, The three-piece boot cover is
stored in
a bag in the trunk.
3. Install the middle section of the cover by sliding the
tabs into the slots on the right side cover. Lower the
cover and engage the latch.
4. Close the trunk.
1. Open the trunk and remove the two side covers from
the storage bag.
2. Install the two side covers by engaging the tab into
the front seatbelt cover. Lower
the covers onto
the vehicle.
2-70

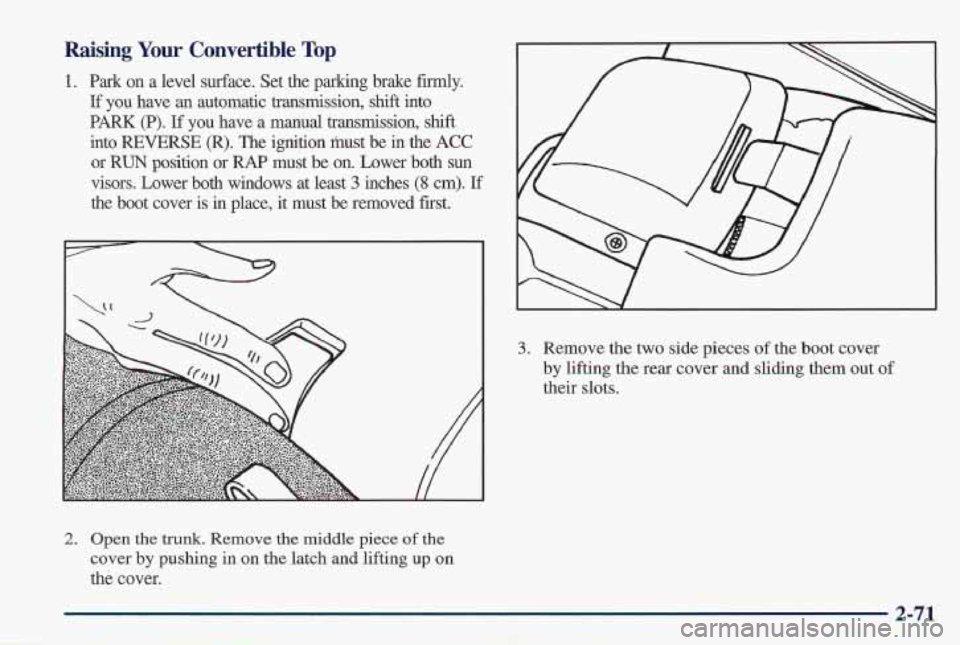

Raising Your Convertible Top
1. Park on a level surface. Set the parking brake firrnly.
If you have an automatic transmission, shift into
PARK
(P). If you have a manual transmission, shift
into REVERSE (R). The ignition must be in the ACC
or RUN position or RAP must be on. Lower both sun
visors. Lower both windows at least
3 inches (8 cm). If
the boot cover is in place, it must be removed first.
3. Remove the two side pieces of the boot cover
by lifting the rear cover and sliding them out
of
their slots.
2. Open the trunk. Remove the middle piece of the
cover by pushing in on the latch and lifting up on
the cover.
