Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:

Turn and Lane
-Change Signals

Headlamp High/Low
-Beam Changer

Windshield Wipers

Windshield Washer

Cruise Control
Turn and Lane-Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever will
return automatically.
An arrow on the
instrument panel
cluster will flash in
the direction of the
turn or lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don't
flash but just stay on as you signal a turn or lane change,
a signal bulb may be burned out and other drivers won't
see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check the fuse (see ªFuses and Circuit
Breakersº in the Index).

2-52 Headlamp High/Low-Beam Changer
When the high beams are
on, this light located on the
instrument panel cluster
also will be on.
To change the headlamps from low beam to high or
from high beam to low, pull the turn signal lever all the
way toward you. Then release it.
Windshield Wipers
You can control the windshield wipers by turning the
band with the wiper symbol on it, located on the turn
signal/multifunction lever.
For a single wiping cycle, turn the band to MIST.
Hold it there until the wipers start, then let go.
The wipers will stop after one cycle. If you want
more cycles, hold the band on MIST longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow. Turn the band to choose the delay time.
The closer to LO, the shorter the delay.For steady wiping at low speed, turn the band away
from you to the LO position. For high
-speed wiping,
turn the band further, to HI. To stop the wipers,
turn the band to OFF.
Damaged wiper blades may prevent you from seeing
well enough to drive safely. To avoid damage, be sure to
clear ice and snow from the wiper blades before using
them. If they're frozen to the windshield, carefully
loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers.
A circuit breaker will stop them until the motor cools.
Clear away snow or ice to prevent an overload.
Windshield Washer
There is a paddle with the word PUSH on it at the top of
the turn signal/multifunction lever. To spray washer fluid
on the windshield, push the paddle briefly. The washer
will continue to spray until you release the paddle.
The wipers will clear the window and wipe a few more
times before stopping or returning to the previous setting.
See ªWindshield Washer Fluidº in the Index.

2-83
The main components of your instrument panel are the following:
A. Fog Lamp Switch
B. Exterior Lamp Control
C. Air Vents
D. Instrument Panel Cluster
E. Horn
F. Audio System
G. Glove Box
H. Remote Hatch Release
I. Audio Steering Wheel Controls (If Equipped)
J. Rear Window Defogger ButtonK. Convertible Top Switch (If Equipped)
L. Traction Control System Switch (Option)
M. Ashtray
N. Shift Lever (Automatic Transmission Shown)
O. Cupholders
P. Front Console
Q. Parking Brake Lever
R. Cigarette Lighter
S. Accessory Power Outlet
T. Comfort Controls

2-84 Instrument Panel Cluster
Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You'll know how
fast you're going, your engine's rpms, about how much fuel you have left and many other things you'll need to know
to drive safely and economically.
5.7L V8 Engine shown, 3800 V6 Engine similar (United States shown, Canada similar)

2-85 Speedometer and Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven, in either miles (used in the United States) or
kilometers (used in Canada).
You may wonder what happens if your vehicle needs a
new odometer installed. If possible, the new one has to
be set to the same reading the old one had. If it can't be,
then it's set at zero, and a label on the driver's door must
show the old reading and when the new one was installed.
Trip Odometer
The trip odometer can tell you how far your vehicle has
been driven since you last set the trip odometer to zero.
To set the trip odometer to zero, press the TRIP
OIL/RESET knob on the instrument panel cluster.
Tachometer
The tachometer displays the engine speed in thousands
of revolutions per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer
in the red area, or engine damage may occur.

2-97 Service Vehicle Light
This warning light should
come on in your instrument
panel cluster for a
three
-second bulb check
when you first start your
vehicle. If the light doesn't
come on, have it serviced.
This light will stay on steady if you have certain
non
-emission related vehicle problems. These problems
may not be obvious and may affect vehicle performance
or durability. Consult a qualified dealer for necessary
repairs to maintain top vehicle performance.
Check Gages Light
This warning light will
come on briefly when
you start the engine.
If the light comes on and stays on while you are driving,
check your gages to see if they are in the warning areas.
Hatch Ajar Light
This warning light should
come on in your instrument
panel cluster for a
three
-second bulb check
when you first start your
vehicle. If the light doesn't
come on, have it serviced.
This light will stay on steady if your hatch is open or
ajar and the ignition key is in RUN.
Fuel Gage
United States Canada
Your fuel gage tells you about how much fuel you have
left when the ignition is on.

2-98
When the indicator nears empty, you still have a little
fuel left, but you should get more soon.
Here are four things that some owners ask about.
All these things are normal and do not indicate that
anything is wrong with the fuel gage.

At the gas station, the gas pump shuts off before
the gage reads full.

It takes more (or less) fuel to fill up than the gage
reads. For example, the gage reads half full, but it
took more (or less) than half of the tank's capacity
to fill it.

The gage pointer may move while cornering, braking
or speeding up.

The gage may not indicate empty when the ignition
is turned off.
Low Fuel Light
If your fuel is low, your vehicle's CHECK GAGES
light on your instrument panel cluster will come on.
See ªCheck Gages Lightº in the Index.
Reduced Engine Power Light
(V6 Engine Only)
The REDUCED ENG PWR
warning light should come
on in your instrument panel
cluster for a three
-second
bulb check when you first
start your vehicle.
If the light doesn't come on, have it serviced.
If the REDUCED ENG PWR warning light comes on,
a noticeable reduction in the vehicle's performance may
occur. The vehicle may be driven at a reduced speed
while the REDUCED ENG PWR light is on, but
acceleration and speed may be reduced. Anytime this
warning light stays on, the vehicle should be taken to
an authorized Pontiac dealer as soon as possible for
diagnosis and repair.

5-9
Engine Overheating
You will find a coolant temperature gage on your
instrument panel cluster. See ªEngine Coolant
Temperature Gageº in the Index.
Overheated Engine Protection
Operating Mode
This emergency operating mode allows your vehicle
to be driven to a safe place in an emergency situation.
If an overheated engine condition exists, an overheat
protection mode which alternates firing groups of
cylinders helps prevent engine damage. In this mode, you will notice a significant loss in power
and engine performance. The low coolant light may
come on and the temperature gage will indicate an
overheat condition exists. Driving extended miles (km)
and/or towing a trailer in the overheat protection mode
should be avoided.NOTICE:
After driving in the overheated engine protection
operating mode, to avoid engine damage, allow
the engine to cool before attempting any repair.
The engine oil will be severely degraded.
Repair the cause of coolant loss, change the oil
and reset the oil life system. See ªEngine Oilº
in the Index.

6-12

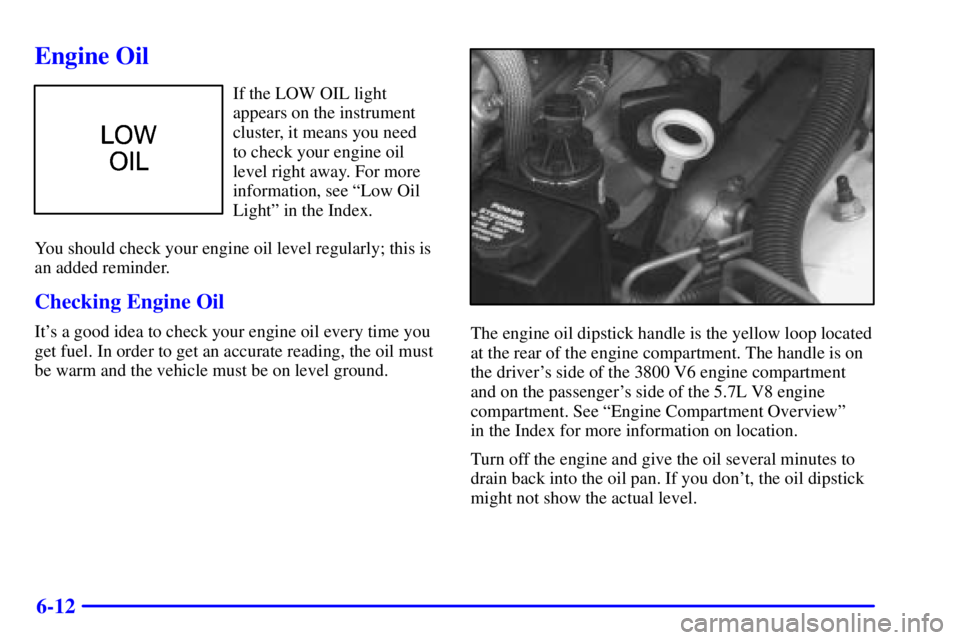

Engine Oil
If the LOW OIL light
appears on the instrument
cluster, it means you need
to check your engine oil
level right away. For more
information, see ªLow Oil
Lightº in the Index.
You should check your engine oil level regularly; this is
an added reminder.
Checking Engine Oil
It's a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.The engine oil dipstick handle is the yellow loop located
at the rear of the engine compartment. The handle is on
the driver's side of the 3800 V6 engine compartment
and on the passenger's side of the 5.7L V8 engine
compartment. See ªEngine Compartment Overviewº
in the Index for more information on location.
Turn off the engine and give the oil several minutes to
drain back into the oil pan. If you don't, the oil dipstick
might not show the actual level.

6-68
Instrument Panel Fuse Block
Fuse Usage
STOP/HAZARD Hazard Flashers,
Brake Switch Assembly
TURN B/U Traction Control Switch,
Back/Up Lamp Switch,
Turn Flasher, Daytime Running
Lamps (DRL) ModuleFuse Usage
STG
WHEEL CNTRLSteering Wheel Controls
RADIO ACCY Delco Monsoon Radio Amplifier,
Power Antenna, Remote CD
Player (Hatch)
TAIL LPS Daytime Running Lamps (DRL)
Module, Headlamp Switch
HVAC HVAC Selector Switch,
Rear Defogger Switch/Timer
PWR ACCY Parking Lamp Relay, Hatch
Release Relay, Power Mirror
Switch, Radio, Shock Sensor,
Instrument Cluster
COURTESY Body Control Module (BCM)
GAUGES Body Control Module (BCM),
Brake
-Transmission Shift
Interlock (BTSI), Instrument
Panel Cluster, Daytime Running
Lamps (DRL) Module
