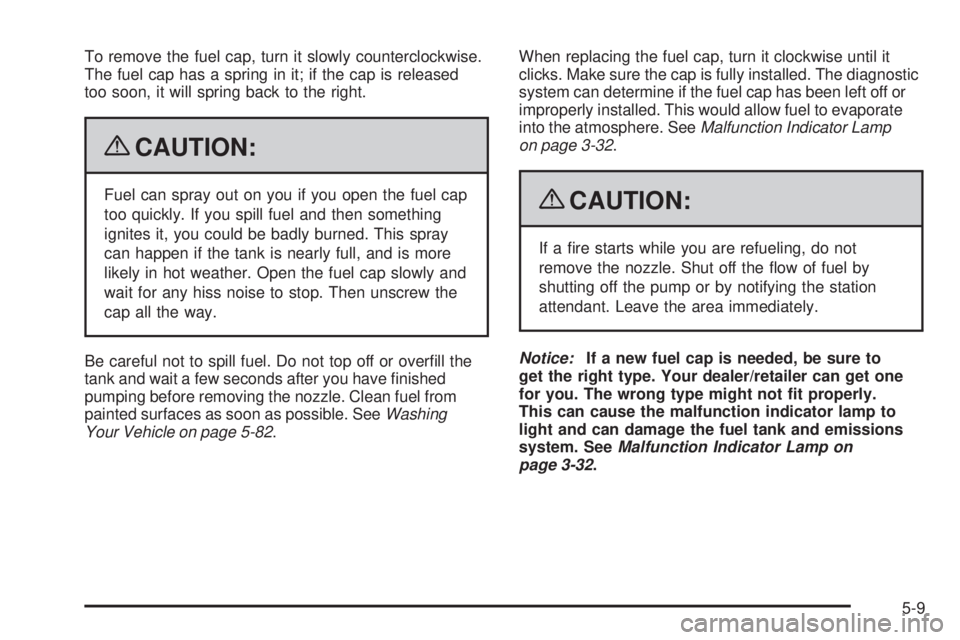

To remove the fuel cap, turn it slowly counterclockwise.
The fuel cap has a spring in it; if the cap is released
too soon, it will spring back to the right.
{CAUTION:
Fuel can spray out on you if you open the fuel cap
too quickly. If you spill fuel and then something
ignites it, you could be badly burned. This spray
can happen if the tank is nearly full, and is more
likely in hot weather. Open the fuel cap slowly and
wait for any hiss noise to stop. Then unscrew the
cap all the way.
Be careful not to spill fuel. Do not top off or overll the
tank and wait a few seconds after you have nished
pumping before removing the nozzle. Clean fuel from
painted surfaces as soon as possible. SeeWashing
Your Vehicle on page 5-82.When replacing the fuel cap, turn it clockwise until it
clicks. Make sure the cap is fully installed. The diagnostic
system can determine if the fuel cap has been left off or
improperly installed. This would allow fuel to evaporate
into the atmosphere. SeeMalfunction Indicator Lamp
on page 3-32.{CAUTION:
If a re starts while you are refueling, do not
remove the nozzle. Shut off the ow of fuel by
shutting off the pump or by notifying the station
attendant. Leave the area immediately.
Notice:If a new fuel cap is needed, be sure to
get the right type. Your dealer/retailer can get one
for you. The wrong type might not t properly.
This can cause the malfunction indicator lamp to
light and can damage the fuel tank and emissions
system. SeeMalfunction Indicator Lamp on
page 3-32.
5-9

How to Add Coolant to the Coolant
Surge Tank
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot enough.
Do not spill coolant on a hot engine.
Notice:This vehicle has a specic coolant ll
procedure. Failure to follow this procedure could
cause the engine to overheat and be severely
damaged.
{CAUTION:
An electric engine cooling fan under the hood can
start up even when the engine is not running and
can cause injury. Keep hands, clothing, and tools
away from any underhood electric fan.
{CAUTION:
Steam and scalding liquids from a hot cooling
system can blow out and burn you badly. They are
under pressure, and if you turn the surge tank
pressure cap — even a little — they can come out
at high speed. Never turn the cap when the cooling
system, including the surge tank pressure cap, is
hot. Wait for the cooling system and surge tank
pressure cap to cool if you ever have to turn the
pressure cap.
If no coolant is visible in the surge tank, add coolant as
follows:
1. Remove the coolant surge tank pressure cap when
the cooling system, including the coolant surge tank
pressure cap and upper radiator hose, is no longer
hot. Turn the pressure cap slowly counterclockwise
about two or two and one-half turns.
If you hear a hiss, wait for that to stop. This will
allow any pressure still left to be vented out
the discharge hose.
5-26

4. Turn the front turn signal bulb socket
counterclockwise.
5. Pull the front turn signal bulb socket out of the lamp
housing.
6. Press the bulb inward and turn it counterclockwise
to remove it from the bulb socket.
7. Install the new bulb into the socket by pressing it in
and turning it clockwise.8. Install the socket into the lamp housing by turning it
clockwise.
9. Reconnect the wiring harness connector at the rear
of the bulb.
10. Reinstall the headlamp assembly using the
three bolts.
5-45

Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps
To replace a taillamp, turn signal lamp, stoplamp, or
back-up bulb:
1. Open the liftgate or trunk. SeeLiftgate (Hatchback)
on page 2-10orTrunk (Sedan) on page 2-8.
2. Remove the two screws and the lamp assembly.
3. Turn the bulb socket counterclockwise and remove
the socket.
4. Press the bulb in and turn counterclockwise to
remove from the socket.
5. Press the new bulb in and turn clockwise to install
the bulb into the socket.
6. Turn the bulb socket clockwise to reinstall.
7. Reinstall the lamp assembly and two screws. Hatchback
Sedan
5-47

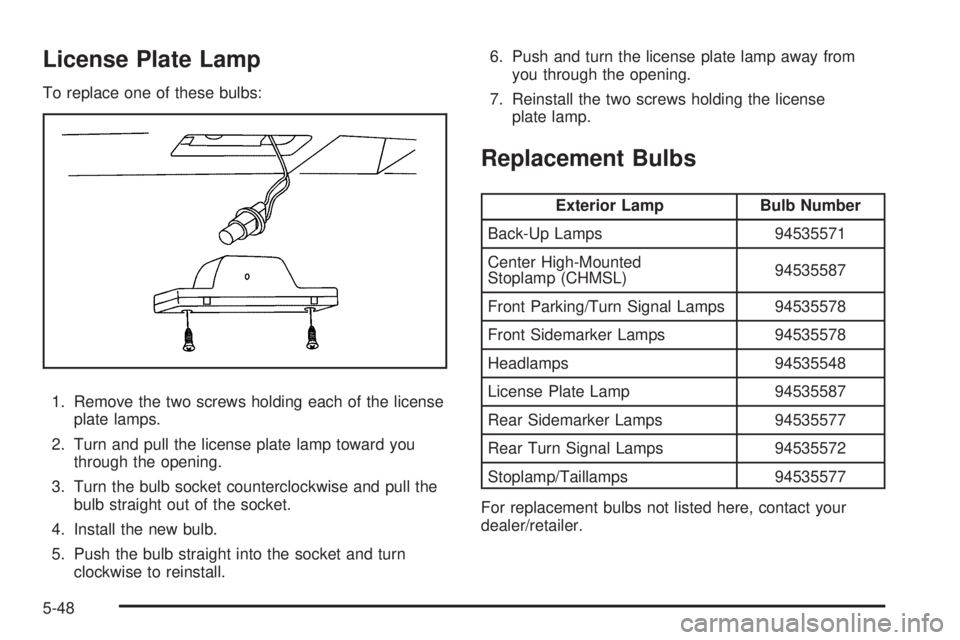

License Plate Lamp
To replace one of these bulbs:
1. Remove the two screws holding each of the license
plate lamps.
2. Turn and pull the license plate lamp toward you
through the opening.
3. Turn the bulb socket counterclockwise and pull the
bulb straight out of the socket.
4. Install the new bulb.
5. Push the bulb straight into the socket and turn
clockwise to reinstall.6. Push and turn the license plate lamp away from
you through the opening.
7. Reinstall the two screws holding the license
plate lamp.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up Lamps 94535571
Center High-Mounted
Stoplamp (CHMSL)94535587
Front Parking/Turn Signal Lamps 94535578
Front Sidemarker Lamps 94535578
Headlamps 94535548
License Plate Lamp 94535587
Rear Sidemarker Lamps 94535577
Rear Turn Signal Lamps 94535572
Stoplamp/Taillamps 94535577
For replacement bulbs not listed here, contact your
dealer/retailer.
5-48

5. Turn the retainer counterclockwise and remove it
from the compact spare.
6. Remove the compact spare tire. SeeCompact
Spare Tire on page 5-78for more information.
Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check before proceeding. SeeChanging
a Flat Tire on page 5-70.
2. If your vehicle has wheel covers, turn the four
plastic caps counterclockwise by hand or by
using the wheel wrench. The plastic nuts do
not come off of the cover.3. Remove the wheel cover using the at end of the
jack handle. Pry along the edge of the wheel cover
until it comes off.
Store the wheel cover in the cargo area until you
have the at tire repaired or replaced.
4. Turn the wheel nuts counterclockwise to loosen
them. Do not remove them yet.
5-73

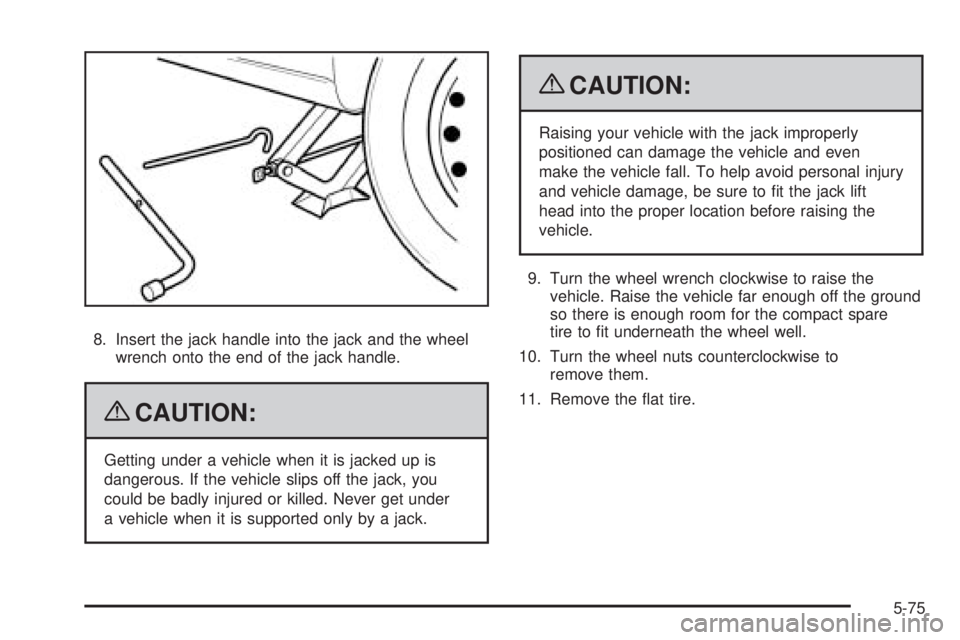

8. Insert the jack handle into the jack and the wheel
wrench onto the end of the jack handle.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal injury
and vehicle damage, be sure to t the jack lift
head into the proper location before raising the
vehicle.
9. Turn the wheel wrench clockwise to raise the
vehicle. Raise the vehicle far enough off the ground
so there is enough room for the compact spare
tire to t underneath the wheel well.
10. Turn the wheel nuts counterclockwise to
remove them.
11. Remove the at tire.
5-75

{CAUTION:
Never use oil or grease on bolts or nuts because
the nuts might come loose. The vehicle’s wheel
could fall off, causing a crash.
14. Install the wheel nuts with the rounded end of the
nuts toward the wheel. Tighten each nut by hand
clockwise until the wheel is held against the hub.
15. Lower the vehicle by turning the wheel wrench
counterclockwise. Lower the jack completely.
{CAUTION:
Wheel nuts that are improperly or incorrectly
tightened can cause the wheels to become loose or
come off. The wheel nuts should be tightened with
a torque wrench to the proper torque specication
after replacing. Follow the torque specication
supplied by the aftermarket manufacturer when
using accessory locking wheel nuts. SeeCapacities
and Specifications on page 5-93for original
equipment wheel nut torque specications.Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper torque
specication. SeeCapacities and Specifications on
page 5-93for the wheel nut torque specication.
16. Tighten the wheel nuts
rmly in a crisscross
sequence, as shown.
Notice:Wheel covers will not t on your vehicle’s
compact spare. If you try to put a wheel cover
on the compact spare, the cover or the spare could
be damaged.
5-77

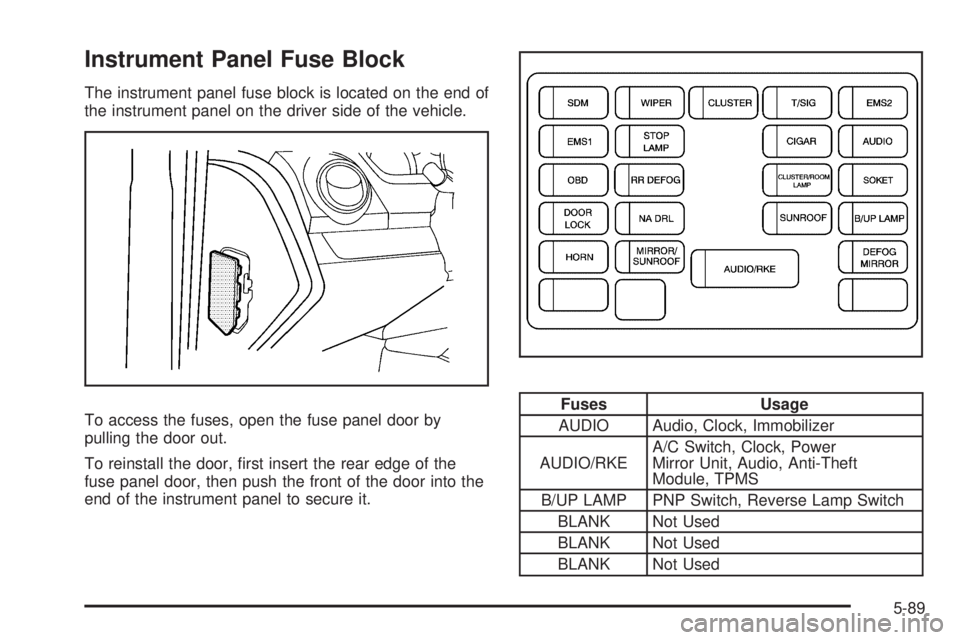

Instrument Panel Fuse Block
The instrument panel fuse block is located on the end of
the instrument panel on the driver side of the vehicle.
To access the fuses, open the fuse panel door by
pulling the door out.
To reinstall the door, rst insert the rear edge of the
fuse panel door, then push the front of the door into the
end of the instrument panel to secure it.
Fuses Usage
AUDIO Audio, Clock, Immobilizer
AUDIO/RKEA/C Switch, Clock, Power
Mirror Unit, Audio, Anti-Theft
Module, TPMS
B/UP LAMP PNP Switch, Reverse Lamp Switch
BLANK Not Used
BLANK Not Used
BLANK Not Used
5-89

Care of
Safety Belts................................................5-82
CD, MP3 .......................................................3-51
Center High-Mounted Stoplamp (CHMSL)...........5-46
Central Door Unlock System.............................. 2-6
Chains, Tire...................................................5-69
Charging System Light....................................3-28
Check
Engine Lamp..............................................3-32
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-86
Child Restraints
Infants and Young Children...........................1-36
Lower Anchors and Tethers for Children..........1-44
Older Children.............................................1-32
Securing a Child Restraint in a
Rear Seat Position...................................1-51
Securing a Child Restraint in the
Right Front Seat Position..........................1-54
Systems.....................................................1-39
Where to Put the Restraint...........................1-42
Cigarette Lighter.............................................3-17
Circuit Breakers..............................................5-88
Cleaning
Aluminum Wheels........................................5-84
Exterior Lamps/Lenses.................................5-83
Fabric/Carpet..............................................5-80Cleaning (cont.)
Finish Care.................................................5-83
Glass Surfaces............................................5-82
Instrument Panel, Vinyl, and Other
Plastic Surfaces.......................................5-81
Interior.......................................................5-79
Interior Plastic Components...........................5-81
Leather......................................................5-81
Tires..........................................................5-85
Underbody Maintenance...............................5-86
Washing Your Vehicle...................................5-82
Weatherstrips..............................................5-82
Windshield and Wiper Blades........................
5-84
Climate Control System...................................3-18
Outlet Adjustment........................................3-21
Clock............................................................3-17
Clutch, Hydraulic.............................................5-21
Collision Damage Repair..................................7-11
Compact Spare Tire........................................5-78
Content Theft-Deterrent....................................2-15
Control of a Vehicle.......................................... 4-4
Coolant
Engine.......................................................5-23
Engine Temperature Gage............................3-30
Cooling System..............................................5-22
Courtesy Transportation...................................7-10
Cruise Control................................................3-10
3
