PONTIAC G5 2007 Owners Manual

4. At the wall measure from the ground
upward (A) to the recorded distance
from Step 3 and mark it.
5. Draw or tape a horizontal line (B) on the wall
the width of the vehicle at the height of the
mark in Step 4.
Notice:Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. Do not place
directly on the headlamp. This allows only the
beam of light from the headlamp being
adjusted to be seen on the at surface.
7. Locate the vertical headlamp aiming screws,
which are under the hood near each headlamp
assembly.
The adjustment screw can be turned with a
6 mm socket wrench.
8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal tape
line. Turn it clockwise or counterclockwise to
raise or lower the angle of the beam.
311

9. Make sure that the light from the headlamp is
positioned at the bottom edge of the horizontal
tape line. The lamp on the left (A) shows
the correct headlamp aim. The lamp on the
right (B) shows the incorrect headlamp aim.
10. Repeat Steps 7 through 9 for the opposite
headlamp.
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 318.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
312

Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps
A. Front Turn Signal/Parking Lamp
B. Sidemarker
C. HeadlampTo replace one of these bulbs, do the following:
1. Open the hood. SeeHood Release on
page 277for more information.
2. Remove the two hex bolts from the headlamp
assembly.
313

3. Remove the two plastic fasteners from the
fascia.
4. Pull the front fascia back.
You may need someone else to assist you
with Steps 3 and 4.
5. Pull the headlamp assembly up on an angle
and towards the radiator to remove it.
6. Disconnect the bulb base from the wiring
harness by lifting the plastic locking tab.
7. To replace a headlamp bulb, do the following:
7.1. Disconnect the wiring harness from the
bulb socket.
7.2. Remove the black retainer by turning it
counterclockwise.8. Turn the bulb socket for the headlamp, front
turn signal, or parking lamp counterclockwise.
For the sidemarker bulb, you will need to
use a tool to assist in turning the bulb socket.
9. Pull the old bulb out of the socket.
10. Install a new bulb.
11. Reinstall the bulb assembly by reversing
Steps 1 through 8.
When reinstalling the headlamp assembly,
rst make sure that the wiring harness is
in its original position. If not, the headlamp
assembly will not t correctly.
You will also need to line up the two tabs
on the bottom of the assembly that t into
two slots in the headlamp assembly bracket.
314

Center High-Mounted
Stoplamp (CHMSL)
To replace a CHMSL bulb, do the following:
1. Open the trunk. SeeTrunk on page 98for
more information.
2. Locate the CHMSL bulb assembly in the
trunk lid.
3. Press the plastic tabs to release the bulb
assembly.
4. Pull the bulb assembly down to access the
bulbs.
5. Remove the bulb by pulling it straight out.
6. Install a new bulb.
7. Align the tabs in the bulb assembly with the
assembly in the trunk lid. Push the bulb
assembly back into place until it snaps in.
You may need to use a tool to guide the tabs
into the assembly.
315

Taillamps and Turn Signal Lamps
(Coupe)
To replace a taillamp or rear turn signal bulb,
do the following:
1. Open the trunk. SeeTrunk on page 98for
more information.
2. Remove the screw retaining the taillamp
assembly.
3. Disconnect the wiring harness by lifting up on
the tab to release and pull it straight out.
4. Hold and turn the bulb socket clockwise and
then release it from the lamp housing.
5. Pull the old bulb straight out of the socket.
6. Install a new bulb.
7. Reverse Steps 2 through 4 to reinstall the
taillamp assembly.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps (Sedan)
To replace one of these bulbs, do the following:
1. Open the trunk. SeeTrunk on page 98
for more information.
2. Remove the fastener which holds down the
trunk trim. Once you have removed the trim,
there will be one more fastener to remove.
3. Remove the outer two screws from the
taillamp assembly.
4. Disconnect the wiring harness by lifting up on
the tab to release and pull it straight out.
5. Remove the taillamp from the quarter panel.
316

A. Sidemarker
B. Stoplamp/Turn Signal/Taillamp
C. Back-up
6. Locate the bulb you need to change.
7. Remove the taillamp bulb socket from the
assembly by turning it counterclockwise.
8. Pull the old bulb out of the socket.
9. Install a new bulb.
10. Reverse Steps 1 through 6 to reinstall the
taillamp assembly.
Back-Up Lamps (Coupe)
To replace a back-up lamp bulb, do the following:
1. Remove the two screws from the face of the
back-up lamp.
2. Pull the lamp straight out from the fascia
pocket.
3. Hold and turn the bulb socket clockwise and
then release it from the lamp housing.
4. Pull the old bulb out of the socket.
5. Install a new bulb.
6. Reverse Steps 1 through 3 to reinstall the
back-up lamp assembly.
317

License Plate Lamp
To replace one of these bulbs, do the following:
1. Remove the two screws holding each of the
license plate lamps.
2. Turn and pull the license plate lamp toward
you through the opening.
3. Turn the bulb socket counterclockwise and
pull the bulb straight out of the socket.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to reinstall the
license plate lamp.
Replacement Bulbs
Exterior Lamps Bulb Number
Back-Up Lamps 921
Center High-Mounted
Stoplamp (CHMSL)912
Front Parking/Turn Signal Lamps 3157KX
Halogen Headlamps,
High/Low-Beam9007 LL
License Plate Lamp and
Sidemarker194
Stoplamp, Taillamp and Turn
Signal Lamps3057KX
For replacement bulbs not listed here, contact
your dealer.
318

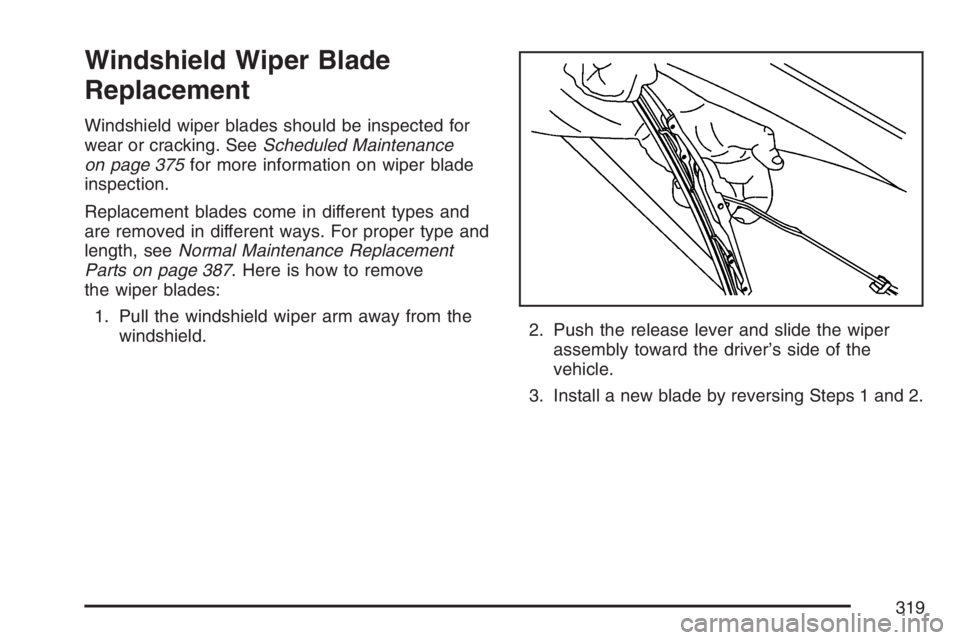

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeScheduled Maintenance
on page 375for more information on wiper blade
inspection.
Replacement blades come in different types and
are removed in different ways. For proper type and
length, seeNormal Maintenance Replacement
Parts on page 387. Here is how to remove
the wiper blades:
1. Pull the windshield wiper arm away from the
windshield.2. Push the release lever and slide the wiper
assembly toward the driver’s side of the
vehicle.
3. Install a new blade by reversing Steps 1 and 2.
319

Tires
Your new vehicle comes with high-quality tires
made by a leading tire manufacturer. If you ever
have questions about your tire warranty and where
to obtain service, see your GM Warranty booklet
for details. For additional information refer to
the tire manufacturer’s booklet included with your
vehicle.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your vehicle’s tires can
cause overheating as a result of too
much friction. You could have an
air-out and a serious accident. See
Loading Your Vehicle on page 249.
CAUTION: (Continued)
CAUTION: (Continued)

Underinated tires pose the same
danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
Tire pressure should be checked when
your vehicle’s tires are cold. See
Inflation - Tire Pressure on page 327.
Overinated tires are more likely to be
cut, punctured, or broken by a sudden
impact — such as when you hit a
pothole. Keep tires at the
recommended pressure.
Worn, old tires can cause accidents.
If the tire’s tread is badly worn, or if
your vehicle’s tires have been
damaged, replace them.
320
