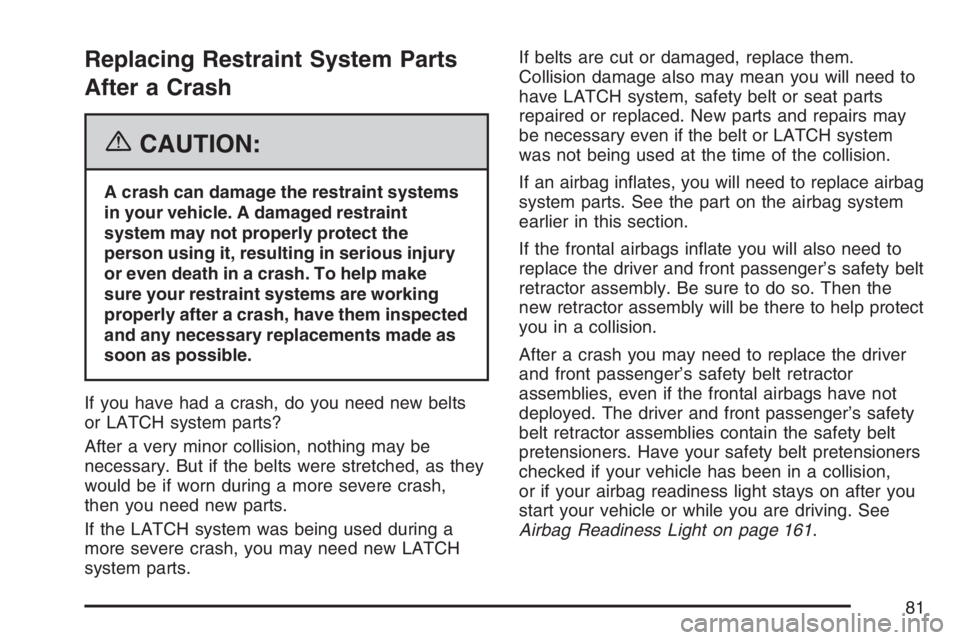

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made as
soon as possible.
If you have had a crash, do you need new belts
or LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the
new retractor assembly will be there to help protect
you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after you
start your vehicle or while you are driving. See
Airbag Readiness Light on page 161.
81

✍NOTES
82

Keys.............................................................. 85
Remote Keyless Entry (RKE) System.......... 86
Remote Keyless Entry (RKE) System
Operation................................................. 87
Doors and Locks.......................................... 94
Door Locks................................................. 94
Power Door Locks....................................... 95
Delayed Locking.......................................... 95
Automatic Door Lock................................... 96
Programmable Automatic Door Unlock........ 96
Rear Door Security Locks (Sedan).............. 96
Lockout Protection....................................... 97
Trunk.......................................................... 98
Windows...................................................... 100
Manual Windows....................................... 100
Power Windows........................................ 101
Sun Visors................................................ 102
Theft-Deterrent Systems............................. 102
Content Theft-Deterrent............................. 102
PASS-Key
®III+......................................... 104
PASS-Key®III+ Operation......................... 104Starting and Operating Your Vehicle......... 106
New Vehicle Break-In................................ 106
Ignition Positions....................................... 107
Retained Accessory Power (RAP)............. 110
Starting the Engine.................................... 110
Engine Coolant Heater.............................. 112
Automatic Transaxle Operation.................. 113
Manual Transaxle Operation...................... 116
Parking Brake........................................... 118
Shifting Into Park (P)
(Automatic Transaxle)............................ 119
Shifting Out of Park (P)
(Automatic Transaxle)............................ 121
Parking Over Things That Burn................. 122
Engine Exhaust......................................... 123
Running the Engine While Parked............. 124
Mirrors......................................................... 125
Manual Rearview Mirror............................. 125
Manual Rearview Mirror with OnStar
®....... 125
Outside Remote Control Mirror.................. 125
Outside Power Mirrors............................... 126
Outside Convex Mirror............................... 126
Section 2 Features and Controls
83

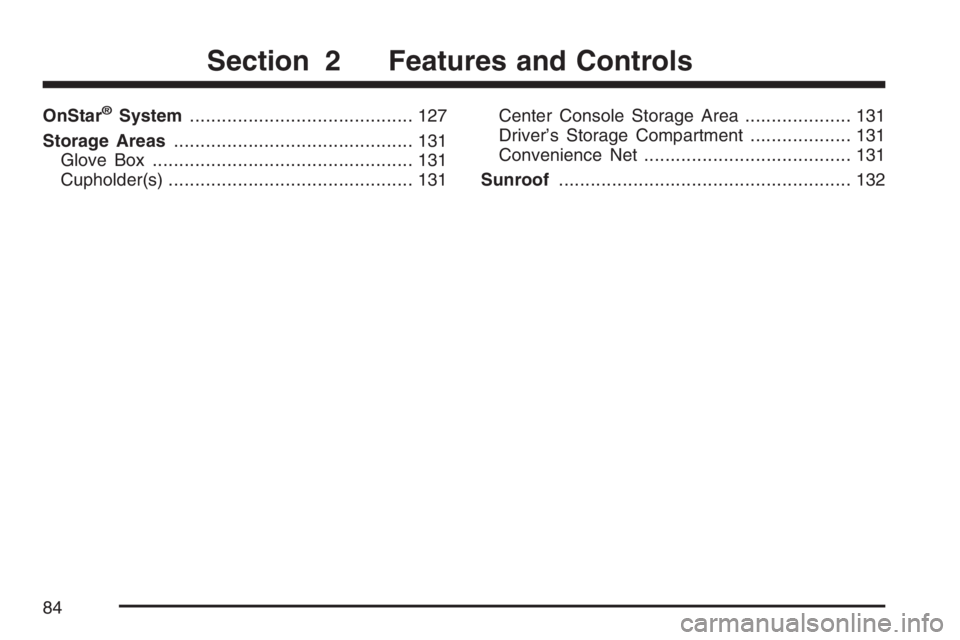

OnStar®System.......................................... 127
Storage Areas............................................. 131
Glove Box................................................. 131
Cupholder(s).............................................. 131Center Console Storage Area.................... 131
Driver’s Storage Compartment................... 131
Convenience Net....................................... 131
Sunroof....................................................... 132
Section 2 Features and Controls
84

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed.
Do not leave the keys in a vehicle with
children.
85

One key is used for the
ignition, the doors and
all other locks.
When a new vehicle is delivered, the dealer
removes the key tag from the key and gives it to the
rst owner. Each tag has a code on it that tells your
dealer or a qualied locksmith how to make extra
keys. Keep the tag in a safe place. If you lose your
key, you will be able to have a new one made easily
using the tag.
If you need a new key, contact your dealer who can
obtain the correct key code. SeeRoadside
Assistance Program on page 399for more
information.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle to
get in. Be sure you have spare keys.Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
86

At times you may notice a decrease in range. This
is normal for any RKE system. If the transmitter
does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far
from your vehicle. You may need to stand
closer during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 87.
If you are still having trouble, see your dealer
or a qualied technician for service.
Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors may be locked and unlocked,
and the trunk can be opened from about 3 feet
(1 m) up to 197 feet (60 m) away with the remote
keyless entry transmitter. If your vehicle has
the remote vehicle start feature, you can also start
the vehicle’s engine with the Remote Keyless
Entry (RKE) transmitter.
The following functions may be available if your
vehicle has the RKE system.
Remote Keyless Entry
with Remote StartRemote Keyless Entry
without Remote Start
87

/(Remote Vehicle Start):If your vehicle has
this feature, the engine may be started from
outside the vehicle using the RKE transmitter. See
“Remote Vehicle Start” later in this section for
more detailed information.
Q(Lock):Press the lock button to lock all the
doors. The interior lamps will turn off after all of the
doors are closed. If enabled through the Driver
Information Center (DIC), the remote lock feedback
can be programmed to have the horn chirp
and/or the turn signals ash when the RKE
transmitter is used to lock the vehicle’s doors. See
“LOCK HORN” and “LIGHT FLASH” underDIC
Vehicle Personalization on page 179for more
information.
Pressing the lock button may also arm the content
theft-deterrent system. SeeContent
Theft-Deterrent on page 102.
K(Unlock):Press the unlock button to unlock the
driver’s door. If the button is pressed again
within ve seconds, all remaining doors will unlock.
The interior lamps will turn on and stay on for
20 seconds or until the ignition is turned on.
If enabled through the DIC, the remote unlock
feedback can be programmed to have the
horn chirp and/or the turn signals ash when the
RKE transmitter is used to unlock the vehicle’s
doors. See “UNLOCK HORN” and “LIGHT FLASH”
underDIC Vehicle Personalization on page 179
for more information.
If enabled through the DIC, and it is dark enough
outside, the vehicle’s high-beam headlamps,
parking lamps, and back-up lamps will turn on
each time the unlock button on the transmitter is
pressed. These exterior lamps will stay on for
20 seconds, or until a door is opened. See “EXT
(Exterior) LIGHTS” underDIC Vehicle
Personalization on page 179for additional
information.
Pressing the unlock button on the RKE transmitter
will disarm the content theft-deterrent system.
SeeContent Theft-Deterrent on page 102.
88

V(Remote Trunk Release):The trunk will
open when this button on the transmitter is
pressed and held for about one second. You can
open the trunk with the transmitter when the
vehicle speed is less than 2 mph (3 km/h), when
the ignition is off, or when the vehicle shift lever is
in PARK (P), if your vehicle has an automatic
transaxle.
L(Vehicle Locator/Panic Alarm):This button
may be used to locate your vehicle. Press and
release this button to initiate vehicle locate. The
horn will sound three times and the headlamps and
turn signals will ash three times. Press and hold
the button for about three seconds to initiate the
panic alarm. The horn will sound and the
headlamps and turn signals will ash for
30 seconds. Press the button again to cancel the
panic alarm.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to
bring any additional transmitters so they can also
be re-coded to match the new transmitter.
Once your dealer has coded the new transmitter,
the lost transmitter will not unlock your vehicle.
Each vehicle can have a maximum of four
transmitters matched to it.
89

Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about four years.
The battery is weak if the transmitter will not work
at the normal range in any location. If you have
to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
The KEY FOB BATT LOW message in the
vehicle’s DIC will display if the RKE transmitter
battery is low.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.To replace the battery in the RKE transmitter do
the following:
1. Insert a at object, with a thin edge, into the
notch located below the vehicle locator/panic
alarm button, and separate the bottom half
from the top half of the transmitter.
2. Remove the battery and replace it with the new
one. Make sure the positive (+) side of the
battery faces up. Use one three-volt, CR2032,
or equivalent, type battery.
3. Snap the front and back together tightly so
moisture will not get inside the transmitter.
4. Test the operation of the transmitter with the
vehicle.
90
