glove box PONTIAC G5 2008 Owners Manual

Keys...............................................................2-2
Remote Keyless Entry (RKE) System................2-3
Remote Keyless Entry (RKE) System
Operation...................................................2-4
Remote Vehicle Start......................................2-6
Doors and Locks.............................................2-9
Door Locks....................................................2-9
Power Door Locks........................................2-10
Delayed Locking...........................................2-10
Automatic Door Lock.....................................2-11
Programmable Automatic Door Unlock.............2-11
Rear Door Security Locks (Sedan)..................2-11
Lockout Protection........................................2-12
Trunk..........................................................2-12
Windows........................................................2-14
Manual Windows..........................................2-14
Power Windows............................................2-15
Sun Visors...................................................2-16
Theft-Deterrent Systems..................................2-16
Content Theft-Deterrent.................................2-17
PASS-Key
®III+............................................2-18
PASS-Key®III+ Operation..............................2-19
Starting and Operating Your Vehicle................2-20
New Vehicle Break-In....................................2-20
Ignition Positions..........................................2-21
Retained Accessory Power (RAP)...................2-24
Starting the Engine.......................................2-24Engine Coolant Heater..................................2-26
Automatic Transmission Operation...................2-27
Manual Transmission Operation......................2-30
Parking Brake..............................................2-32
Shifting Into PARK (P) (Automatic
Transmission)...........................................2-33
Shifting Out of PARK (P) (Automatic
Transmission)...........................................2-35
Parking Your Vehicle.....................................2-35
Parking Over Things That Burn.......................2-36
Engine Exhaust............................................2-36
Running the Vehicle While Parked..................2-37
Mirrors...........................................................2-38
Manual Rearview Mirror.................................2-38
Manual Rearview Mirror with OnStar
®..............2-38
Outside Remote Control Mirror.......................2-38
Outside Power Mirrors...................................2-39
Outside Convex Mirror...................................2-39
OnStar
®System.............................................2-40
Storage Areas................................................2-43
Glove Box...................................................2-43
Cupholder(s)................................................2-43
Center Console Storage.................................2-43
Driver’s Storage Compartment........................2-43
Convenience Net..........................................2-43
Sunroof.........................................................2-44
Section 2 Features and Controls
2-1

OnStar®System
OnStar uses several innovative technologies and live
advisors to provide you with a wide range of safety,
security, information, and convenience services. If your
airbags deploy, the system is designed to make an
automatic call to OnStar Emergency advisors who can
request emergency services be sent to your location.
If you lock your keys in the vehicle, call OnStar at
1-888-4-ONSTAR and they can send a signal to unlock
your doors. If you need roadside assistance, press
the OnStar button and they can contact Roadside
Service for you.OnStar service is provided to you subject to the OnStar
Terms and Conditions. You may cancel your OnStar
service at any time by contacting OnStar. A complete
OnStar Owner’s Guide and the OnStar Terms and
Conditions are included in the vehicle’s OnStar
Subscriber glove box literature. For more information,
visit onstar.com or onstar.ca, contact OnStar at
1-888-4-ONSTAR (1-888-466-7827) or TTY
1-877-248-2080, or press the OnStar button to speak
with an OnStar advisor 24 hours a day, 7 days a week.
Not all OnStar features are available on all vehicles.
To check if your vehicle is equipped to provide the
services described below, or for a full description of
OnStar services and system limitations, see the OnStar
Owner’s Guide in your glove box or visit onstar.com.
OnStar Services
For new vehicles with OnStar, the Safe & Sound Plan,
or the Directions & Connections Plan is included for
one year from the date of purchase. You can extend
this plan beyond the rst year, or upgrade to the
Directions & Connections Plan. For more information,
press the OnStar button to speak with an advisor.
Some OnStar services (such as Remote Door Unlock or
Stolen Vehicle Location Assistance) may not be
available until you register with OnStar.
2-40

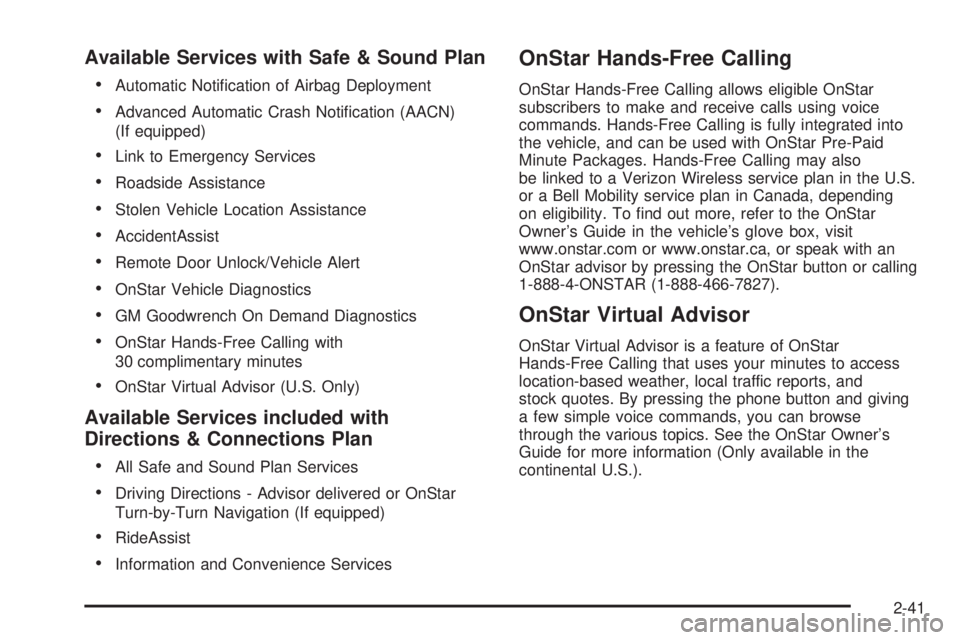

Available Services with Safe & Sound Plan

Automatic Notication of Airbag Deployment
Advanced Automatic Crash Notication (AACN)
(If equipped)
Link to Emergency Services
Roadside Assistance
Stolen Vehicle Location Assistance
AccidentAssist
Remote Door Unlock/Vehicle Alert
OnStar Vehicle Diagnostics
GM Goodwrench On Demand Diagnostics
OnStar Hands-Free Calling with
30 complimentary minutes
OnStar Virtual Advisor (U.S. Only)
Available Services included with
Directions & Connections Plan

All Safe and Sound Plan Services
Driving Directions - Advisor delivered or OnStar
Turn-by-Turn Navigation (If equipped)
RideAssist
Information and Convenience Services
OnStar Hands-Free Calling
OnStar Hands-Free Calling allows eligible OnStar
subscribers to make and receive calls using voice
commands. Hands-Free Calling is fully integrated into
the vehicle, and can be used with OnStar Pre-Paid
Minute Packages. Hands-Free Calling may also
be linked to a Verizon Wireless service plan in the U.S.
or a Bell Mobility service plan in Canada, depending
on eligibility. To nd out more, refer to the OnStar
Owner’s Guide in the vehicle’s glove box, visit
www.onstar.com or www.onstar.ca, or speak with an
OnStar advisor by pressing the OnStar button or calling
1-888-4-ONSTAR (1-888-466-7827).
OnStar Virtual Advisor
OnStar Virtual Advisor is a feature of OnStar
Hands-Free Calling that uses your minutes to access
location-based weather, local traffic reports, and
stock quotes. By pressing the phone button and giving
a few simple voice commands, you can browse
through the various topics. See the OnStar Owner’s
Guide for more information (Only available in the
continental U.S.).
2-41

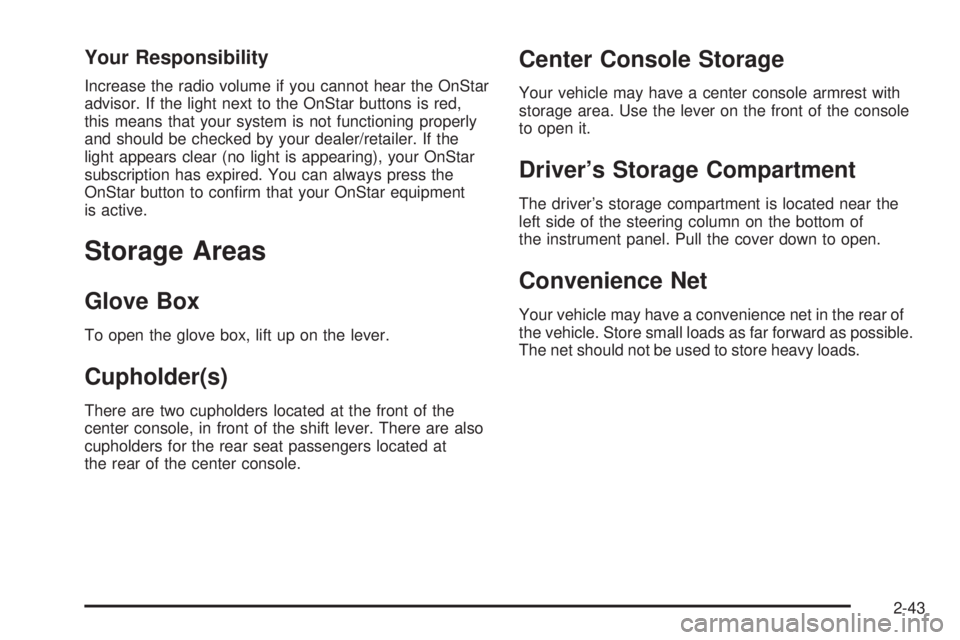

Your Responsibility
Increase the radio volume if you cannot hear the OnStar
advisor. If the light next to the OnStar buttons is red,
this means that your system is not functioning properly
and should be checked by your dealer/retailer. If the
light appears clear (no light is appearing), your OnStar
subscription has expired. You can always press the
OnStar button to conrm that your OnStar equipment
is active.
Storage Areas
Glove Box
To open the glove box, lift up on the lever.
Cupholder(s)
There are two cupholders located at the front of the
center console, in front of the shift lever. There are also
cupholders for the rear seat passengers located at
the rear of the center console.
Center Console Storage
Your vehicle may have a center console armrest with
storage area. Use the lever on the front of the console
to open it.
Driver’s Storage Compartment
The driver’s storage compartment is located near the
left side of the steering column on the bottom of
the instrument panel. Pull the cover down to open.
Convenience Net
Your vehicle may have a convenience net in the rear of
the vehicle. Store small loads as far forward as possible.
The net should not be used to store heavy loads.
2-43

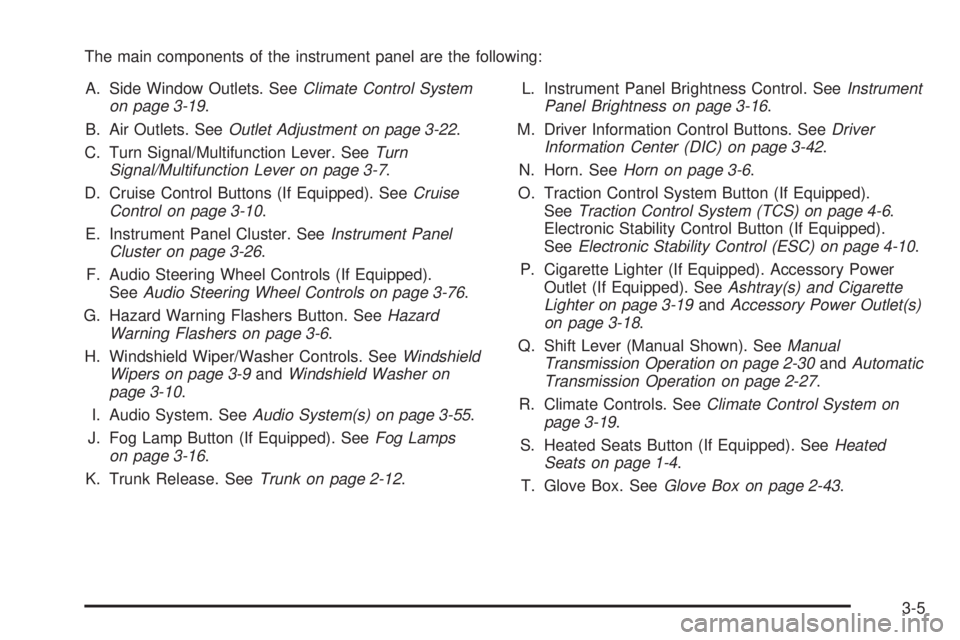

The main components of the instrument panel are the following:
A. Side Window Outlets. SeeClimate Control System
on page 3-19.
B. Air Outlets. SeeOutlet Adjustment on page 3-22.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7.
D. Cruise Control Buttons (If Equipped). SeeCruise
Control on page 3-10.
E. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-26.
F. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on page 3-76.
G. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 3-6.
H. Windshield Wiper/Washer Controls. SeeWindshield
Wipers on page 3-9andWindshield Washer on
page 3-10.
I. Audio System. SeeAudio System(s) on page 3-55.
J. Fog Lamp Button (If Equipped). SeeFog Lamps
on page 3-16.
K. Trunk Release. SeeTrunk on page 2-12.L. Instrument Panel Brightness Control. SeeInstrument
Panel Brightness on page 3-16.
M. Driver Information Control Buttons. SeeDriver
Information Center (DIC) on page 3-42.
N. Horn. SeeHorn on page 3-6.
O. Traction Control System Button (If Equipped).
SeeTraction Control System (TCS) on page 4-6.
Electronic Stability Control Button (If Equipped).
SeeElectronic Stability Control (ESC) on page 4-10.
P. Cigarette Lighter (If Equipped). Accessory Power
Outlet (If Equipped). SeeAshtray(s) and Cigarette
Lighter on page 3-19andAccessory Power Outlet(s)
on page 3-18.
Q. Shift Lever (Manual Shown). SeeManual
Transmission Operation on page 2-30andAutomatic
Transmission Operation on page 2-27.
R. Climate Controls. SeeClimate Control System on
page 3-19.
S. Heated Seats Button (If Equipped). SeeHeated
Seats on page 1-4.
T. Glove Box. SeeGlove Box on page 2-43.
3-5

Passenger Compartment Air Filter
Passenger compartment air, both outside air and
recirculated air, is routed through a passenger
compartment lter. The lter removes certain particles
from the air, including pollen and dust particles.
Reductions in airow, which may occur more quickly in
dusty areas, indicate that the lter needs to be
replaced early.
The lter should be replaced as part of routine
scheduled maintenance. SeeScheduled Maintenance
on page 6-4for replacement intervals. See your
dealer/retailer for details on changing the lter. To nd
out what type of lter to use, seeMaintenance
Replacement Parts on page 6-14.To access the passenger compartment air lter you
must go through the glove box.
1. Open the glove box and remove all articles from
the inside.
2. Tilt the glove box door down by squeezing on each
side of the glove box until the door can be lowered
from its track. Lower the glove box door.
3-23

3. Open the passenger compartment air lter door by
reaching through the opening in the back of the
glove box and raising the tab until the door can be
opened downward.4. Remove the lter by sliding it out of the housing.
When installing a new air lter make sure the
AIR FLOW arrow is pointing downward. Reverse
Steps 1 through 5 making sure the glove box door
goes back into place.
3-24

Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling the Tank............................................. 5-8
Fuels in Foreign Countries.............................. 5-7
Gage.........................................................3-41
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-6
Running Out of...........................................2-37
Fuses
Engine Compartment Fuse Block...................5-99
Floor Console Fuse Block.............................5-97
Fuses and Circuit Breakers...........................5-97
Windshield Wiper.........................................5-96
G
Gage
Fuel..........................................................3-41
Speedometer..............................................3-27
Tachometer.................................................3-27
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-6
Glove Box.....................................................2-43
GM Mobility Reimbursement Program.................. 7-6
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-7
Headlamp
Aiming.......................................................5-39
Headlamp Wiring............................................5-96
Headlamps....................................................3-14
Bulb Replacement.......................................5-42
Daytime Running Lamps...............................3-15
Flash-to-Pass............................................... 3-8
Halogen Bulbs............................................5-42
Headlamps, Front Turn Signal, Sidemarker,
and Parking Lamps..................................5-42
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-15
Wiper Activated...........................................3-14
Heated Seats................................................... 1-4
Heater...........................................................3-19
Height Adjuster, Driver Seat............................... 1-3
Highbeam On Light.........................................3-41
Highway Hypnosis...........................................4-18
Hill and Mountain Roads..................................4-19
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn............................................................... 3-6
How to Wear Safety Belts Properly...................1-15
Hydraulic Clutch.............................................5-19
6

Seats
Driver Seat Height Adjuster............................. 1-3
Easy Entry Seat............................................ 1-8
Head Restraints............................................ 1-7
Heated Seats............................................... 1-4
Manual Lumbar............................................. 1-3
Reclining Seatbacks...................................... 1-4
Split Folding Rear Seat.................................. 1-9
Securing a Child Restraint
Rear Seat Position......................................1-45
Right Front Seat Position..............................1-48
Security Light.................................................3-40
Service........................................................... 5-3
Accessories and Modications......................... 5-3
Adding Equipment to the Outside of
Your Vehicle.............................................. 5-5
California Perchlorate Materials
Requirements............................................ 5-4
California Proposition 65 Warning.................... 5-3
Doing Your Own Work................................... 5-4
Engine Soon Light.......................................3-37
Publications Ordering Information...................7-16
Service, Scheduling Appointments.....................7-10
Servicing Your Airbag-Equipped Vehicle..............1-64
Setting the Clock............................................3-56
Sheet Metal Damage.......................................5-93Shifting Into Park (P).......................................2-33
Shifting Out of Park (P)...................................2-35
Signals, Turn and Lane-Change.......................... 3-8
Spare Tire
Compact....................................................5-85
Installing....................................................5-78
Removing...................................................5-73
Storing.......................................................5-83
Specications, Capacities...............................5-102
Speedometer..................................................3-27
Split Folding Rear Seat..................................... 1-9
Start Vehicle, Remote....................................... 2-6
Starting the Engine.........................................2-24
Steering........................................................4-12
Steering Wheel Controls, Audio.........................3-76
Steering Wheel, Tilt Wheel................................. 3-7
Storage Areas
Center Console Storage Area........................2-43
Convenience Net.........................................2-43
Cupholder(s)...............................................2-43
Driver’s Storage Compartment.......................2-43
Glove Box..................................................2-43
Stuck in Sand, Mud, Ice, or Snow.....................4-24
Sun Visors.....................................................2-16
Sunroof.........................................................2-44
11
