CAUTION: (Continued)
3. Turn off the engine and do not restart while
the vehicle is raised.
4. Do not allow passengers to remain in the
vehicle.
To be even more certain the vehicle will not move,
you should put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side, at the
opposite end of the vehicle.
When the vehicle has a at tire (B), use the following
example as a guide to assist you in the placement
of wheel blocks (A).A. Wheel Block
B. Flat Tire
The following information explains how to use the jack
and change a tire.
5-81

Removing the Spare Tire and Tools
The equipment you will need is located in the trunk.
Base Models
1. Open the trunk. SeeTrunk on page 2-12.
2. Lift the trunk liner to access the spare tire and
tools.
5-82

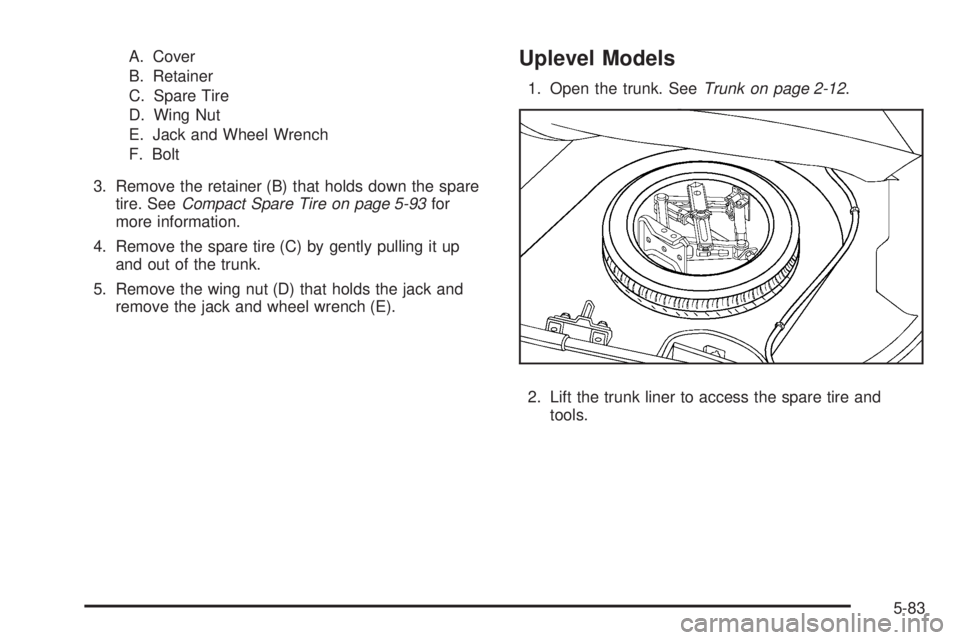

A. Cover
B. Retainer
C. Spare Tire
D. Wing Nut
E. Jack and Wheel Wrench
F. Bolt
3. Remove the retainer (B) that holds down the spare
tire. SeeCompact Spare Tire on page 5-93for
more information.
4. Remove the spare tire (C) by gently pulling it up
and out of the trunk.
5. Remove the wing nut (D) that holds the jack and
remove the jack and wheel wrench (E).Uplevel Models
1. Open the trunk. SeeTrunk on page 2-12.
2. Lift the trunk liner to access the spare tire and
tools.
5-83

A. Retainer
B. Jack and Wheel Wrench
C. Spare Tire
D. Foam Support
E. Bolt
3. Remove the retainer (A) that holds down the jack,
wheel wrench (B) and spare tire (C).
4. Remove the spare tire by gently pulling it up and
out of the trunk.
The tools you will be using include the jack (A) and
wheel wrench (B).
5-84

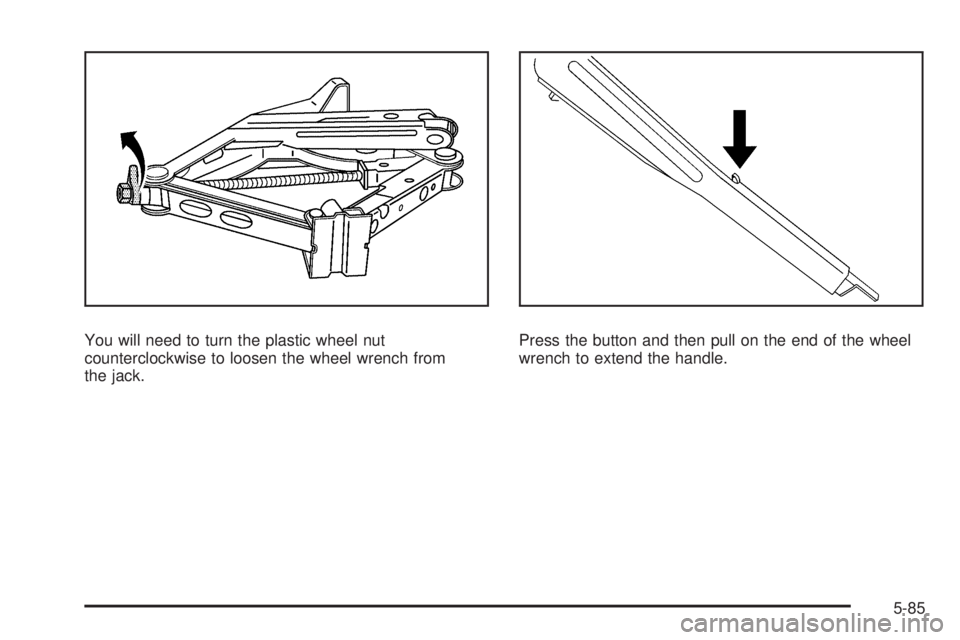

You will need to turn the plastic wheel nut
counterclockwise to loosen the wheel wrench from
the jack.Press the button and then pull on the end of the wheel
wrench to extend the handle.
5-85

Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check before preceding. SeeChanging
a Flat Tire on page 5-80.
2. If your vehicle has plastic wheel covers, use the
wheel wrench to loosen the plastic wheel nut caps.
Once you have loosened the plastic wheel nut caps
with the wheel wrench, you can nish loosening
them with your ngers. The plastic nut caps do not
come off.
3. If necessary, use the at end of the wheel wrench
to pry along the edge of the wheel cover until it
comes off.
Store the wheel cover in the trunk until you have
the at tire repaired or replaced.4. Turn the wheel wrench counterclockwise to loosen
all the wheel nuts. Do not remove them yet.
Notice:Make sure that the jack lift head is in the
correct position or you may damage your vehicle.
The repairs would not be covered by your warranty.
5-86

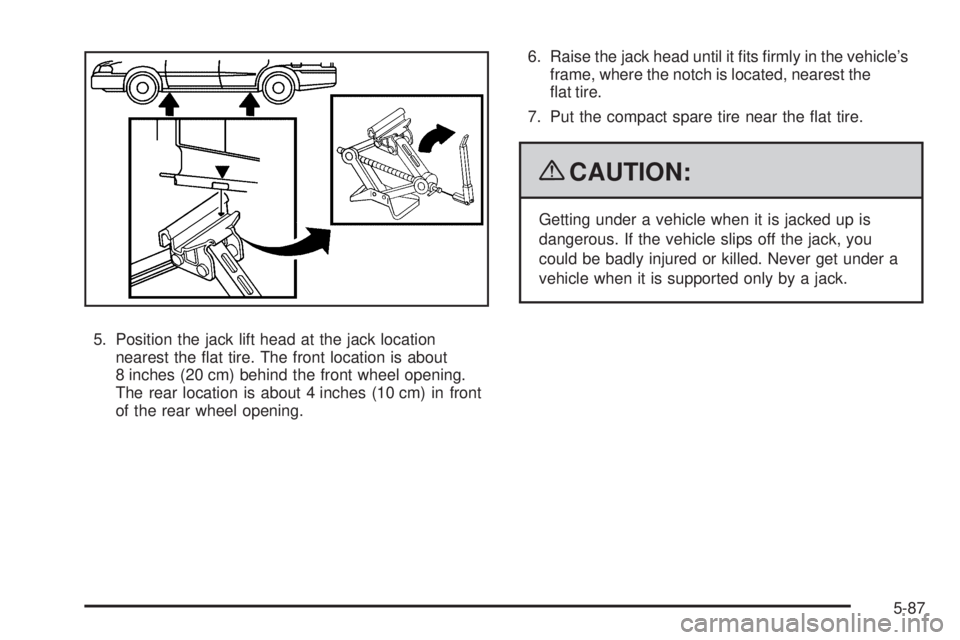

5. Position the jack lift head at the jack location
nearest the at tire. The front location is about
8 inches (20 cm) behind the front wheel opening.
The rear location is about 4 inches (10 cm) in front
of the rear wheel opening.6. Raise the jack head until it ts rmly in the vehicle’s
frame, where the notch is located, nearest the
at tire.
7. Put the compact spare tire near the at tire.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
5-87

{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to t the jack lift head into
the proper location before raising the vehicle.
8. Turn the jack handle clockwise to raise the vehicle.
Raise the vehicle far enough off the ground so
there is enough room for the compact spare tire to
t under the vehicle.9. Remove all of the
wheel nuts.
5-88

{CAUTION:
Rust or dirt on a wheel, or on the parts to which it is
fastened, can make wheel nuts become loose after
time. The wheel could come off and cause an
accident. When changing a wheel, remove any rust
or dirt from places where the wheel attaches to the
vehicle. In an emergency, use a cloth or a paper
towel to do this; but be sure to use a scraper or wire
brush later, if needed, to get all the rust or dirt off.
SeeChanging a Flat Tire on page 5-80.
10. Remove any rust or dirt
from the wheel bolts,
mounting surfaces, and
spare wheel.11. Place the compact spare tire on the wheel-mounting
surface.{CAUTION:
Never use oil or grease on bolts or nuts because
the nuts might come loose. The vehicle’s wheel
could fall off, causing a crash.
12. Reinstall the wheel nuts with the rounded end
of the nuts toward the wheel. Tighten each nut
clockwise by hand until the wheel is held against
the hub.
13. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.
5-89

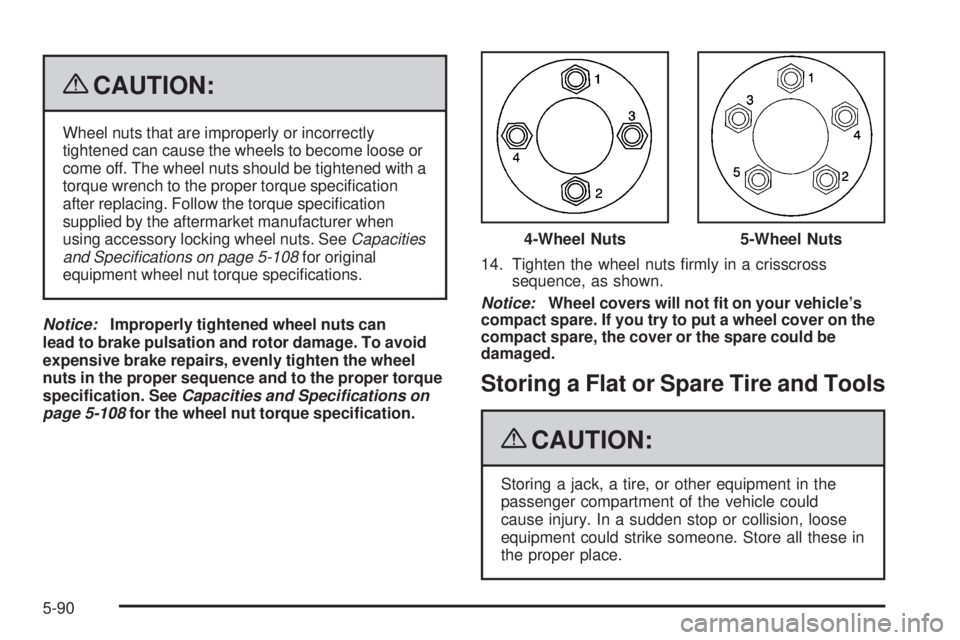

{CAUTION:
Wheel nuts that are improperly or incorrectly
tightened can cause the wheels to become loose or
come off. The wheel nuts should be tightened with a
torque wrench to the proper torque specication
after replacing. Follow the torque specication
supplied by the aftermarket manufacturer when
using accessory locking wheel nuts. SeeCapacities
and Specifications on page 5-108for original
equipment wheel nut torque specications.
Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper torque
specication. SeeCapacities and Specifications on
page 5-108for the wheel nut torque specication.14. Tighten the wheel nuts rmly in a crisscross
sequence, as shown.
Notice:Wheel covers will not t on your vehicle’s
compact spare. If you try to put a wheel cover on the
compact spare, the cover or the spare could be
damaged.
Storing a Flat or Spare Tire and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these in
the proper place.4-Wheel Nuts
5-Wheel Nuts
