Shifting Into Park (P)
(Automatic Transaxle)
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
use the steps that follow. If you are
pulling a trailer, seeTowing a Trailer on
page 296.Use the following procedure to shift into PARK (P):
1. Hold the brake pedal down with your right
foot and set the parking brake.
2. Move the shift lever into PARK (P) by holding
in the button on the shift lever and pushing
the lever all the way toward the front of
the vehicle.
3. Turn the ignition key to OFF.
4. Remove the key and take it with you. If you
can leave your vehicle with the ignition key in
your hand, your vehicle is in PARK (P).
136

Leaving Your Vehicle With the Engine
Running (Automatic Transaxle)
{CAUTION:
It can be dangerous to leave your vehicle
with the engine running. Your vehicle
could move suddenly if the shift lever is
not fully in PARK (P) with the parking
brake rmly set. And, if you leave the
vehicle with the engine running, it could
overheat and even catch re. You or
others could be injured. Do not leave
your vehicle with the engine running.
If you have to leave your automatic transaxle
vehicle with the engine running, be sure
your vehicle is in PARK (P) and your parking
brake is rmly set before you leave it. After you
have moved the shift lever into PARK (P), hold the
regular brake pedal down. Then, see if you can
move the shift lever away from PARK (P) without
rst pushing the button.If you can, it means that the shift lever was not
fully locked into PARK (P).
Torque Lock (Automatic Transaxle)
If you are parking on a hill and you do not shift your
automatic transaxle into PARK (P) properly, the
weight of the vehicle may put too much force on
the parking pawl in the transaxle. You may nd it
difficult to pull the shift lever out of PARK (P). This is
called torque lock. To prevent torque lock, set the
parking brake and then shift into PARK (P) properly
before you leave the driver’s seat. To nd out how,
see “Shifting Into Park (P)” previously in the section.
When you are ready to drive, move the shift lever
out of PARK (P) before you release the parking
brake.
If torque lock does occur, you may need to have
another vehicle push yours a little uphill to take
some of the pressure from the parking pawl in the
transaxle, so you can pull the shift lever out of
PARK (P).
137

Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the
gas carbon monoxide (CO), which you
cannot see or smell. It can cause
unconsciousness and death.
You might have exhaust coming in if:
Your exhaust system sounds strange
or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a
collision.
Your vehicle was damaged when
driving over high points on the road
or over road debris.
CAUTION: (Continued)
CAUTION: (Continued)

Repairs were not done correctly.
Your vehicle or exhaust system has
been modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows
down to blow out any CO; and
Have your vehicle xed immediately.
140

Running the Engine While Parked
It is better not to park with the engine running. But if
you ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust
into your vehicle. See the earlier caution
underEngine Exhaust on page 140.
Also, idling in a closed-in place can let
deadly carbon monoxide (CO) into your
vehicle even if the climate control fan is at
the highest setting. One place this can
happen is a garage. Exhaust — with
CO — can come in easily. NEVER park
in a garage with the engine running.
Another closed-in place can be a blizzard.
SeeWinter Driving on page 282.
{CAUTION:
It can be dangerous to get out of your
vehicle if the automatic transaxle shift
lever is not fully in PARK (P) with the
parking brake rmly set. Your vehicle can
roll. Do not leave your vehicle when the
engine is running unless you have to.
If you have left the engine running, the
vehicle can move suddenly. You or others
could be injured. To be sure your vehicle
will not move, even when it is on fairly
level ground, always set the parking brake
and move the automatic transaxle shift
lever to PARK (P), or the manual transaxle
shift lever to NEUTRAL.
Follow the proper steps to be sure your vehicle
will not move. If you have an automatic transaxle,
seeShifting Into Park (P) (Automatic Transaxle)
on page 136.
If you are parking on a hill and if you are pulling a
trailer, seeTowing a Trailer on page 296.
141

Sunshade
The automatic sunshade
control is located on the
headliner, between
the map lamp controls.
The sunshade can be independently opened or
closed while the panoramic sunroof is closed.
To express-open or express-close the sunshade,
press and release the control rearward or forward.
The sunshade will retract to the full-open or closed
position. To stop the movement of the sunshade,
press the control a second time. To close the
sunshade to a particular position, continue to press
the control and release it when the desired position
is reached.
Neither the panoramic sunroof nor the sunshade
can be opened or closed if the vehicle has an
electrical failure.
Retractable Hardtop
The following procedures explain the proper
operation of the retractable hardtop. The retractable
hardtop will not operate if the trunk cargo cover is
not in place.
If the retractable hardtop is lowered or raised
multiple times, the engine should be running while
doing so to prevent drain on the vehicle’s battery.
{CAUTION:
When the retractable hardtop is opened or
closed, people can be injured by the parts
that move: the hardtop and its mechanism,
the trunk lid, and the side windows. Keep
people away from these parts when you are
lowering or raising the top.
153

Lowering the Retractable Hardtop
Notice:Leaving the retractable hardtop down
and exposing the interior of your vehicle to
outdoor conditions may cause damage. Always
close the retractable hardtop if leaving your
vehicle outdoors.
Notice:Lowering the top if it is damp, wet, or
dirty can cause stains, mildew, and damage
to the inside of your vehicle. Dry off the
top before lowering it.
Notice:If you lower the retractable hardtop in
cold weather (0°F/−18°C or lower), you may
damage top components. Do not lower
the retractable hardtop in cold weather.
1. Park on a level surface and apply the parking
brake. Shift the automatic transaxle into
PARK (P). The vehicle must be in PARK (P),
and the engine must be running, or the ignition
turned to the ON position, to operate the
retractable hardtop.2. The trunk cargo cover must be fully closed,
and the trunk must be closed before lowering
the hardtop.
3. Make sure that nothing or no one is on or
around the hardtop. Make sure there is
nothing on top or in front of the cargo cover.
154

As the switch is being pressed the windows and
trunk lid will open. The hardtop will automatically
lower into the trunk, and the trunk lid will close and
latch. If the engine is on, a chime will sound when
the hardtop has lowered completely. The Driver
Information Center (DIC) will display TOP MOVE
COMPLT to signal the procedure is complete. See
DIC Warnings and Messages on page 212for more
information.After the hardtop has lowered completely, release
the switch. If you continue to press the switch for
about two seconds after the hardtop has completely
lowered, the windows will automatically close.
If pressure is released from the switch before the
hardtop cycle is complete, the cycle will stop and
the Driver Information Center (DIC) will display the
TOP NOT SECURE message. Always press and
hold the switch until a chime sounds, if the engine
is on, and the Driver Information Center (DIC)
displays the TOP MOVE COMPLT to signal the
procedure is complete. SeeDIC Warnings and
Messages on page 212for more information.
156

The hardtop will not operate if the vehicle has an
electrical failure. If an electrical failure occurs,
see your dealer for service.
If your vehicle has an electrical failure while
operating the hardtop, and must be towed to a
dealer for service, your vehicle should be towed
by atbed with the vehicle facing backwards.
Consult your dealer or professional towing service
if you need to have your disabled vehicle towed.
SeeRoadside Assistance Program on page 456.Raising the Retractable Hardtop
1. Park on a level surface and apply the parking
brake. Shift the automatic transaxle into
PARK (P). The vehicle must be in PARK (P),
and the engine must be running, or the ignition
turned to the ON position, to operate the
retractable hardtop.
2. The trunk cargo cover must be fully closed,
and the trunk must be closed before raising
the hardtop.
157

4. The hardtop switch
is located on the
headliner between
the front reading
lamps.
Press and hold the switch forward to raise the
hardtop. The switch must be pressed until
the cycle is complete.
As the switch is being pressed the hardtop will raise
from the trunk and move into place. The hardtop
and trunk lid will close and latch. If the engine is on,
a chime will sound when the hardtop has raised
completely. The Driver Information Center (DIC)
will display the TOP MOVE COMPLT message to
signal the procedure is complete. SeeDIC
Warnings and Messages on page 212for more
information.
159

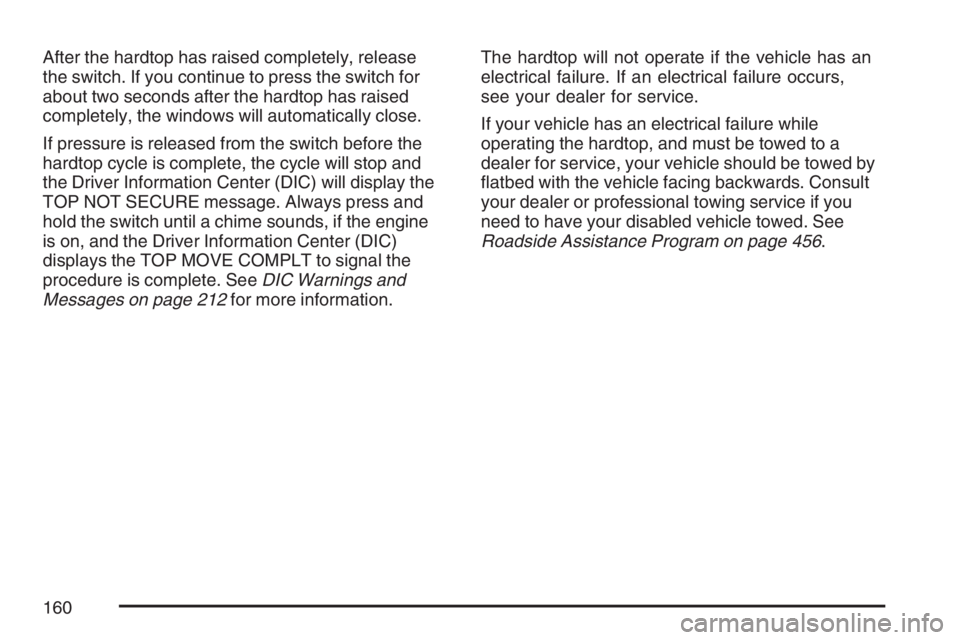

After the hardtop has raised completely, release
the switch. If you continue to press the switch for
about two seconds after the hardtop has raised
completely, the windows will automatically close.
If pressure is released from the switch before the
hardtop cycle is complete, the cycle will stop and
the Driver Information Center (DIC) will display the
TOP NOT SECURE message. Always press and
hold the switch until a chime sounds, if the engine
is on, and the Driver Information Center (DIC)
displays the TOP MOVE COMPLT to signal the
procedure is complete. SeeDIC Warnings and
Messages on page 212for more information.The hardtop will not operate if the vehicle has an
electrical failure. If an electrical failure occurs,
see your dealer for service.
If your vehicle has an electrical failure while
operating the hardtop, and must be towed to a
dealer for service, your vehicle should be towed by
atbed with the vehicle facing backwards. Consult
your dealer or professional towing service if you
need to have your disabled vehicle towed. See
Roadside Assistance Program on page 456.
