PONTIAC G6 2007 Owners Manual

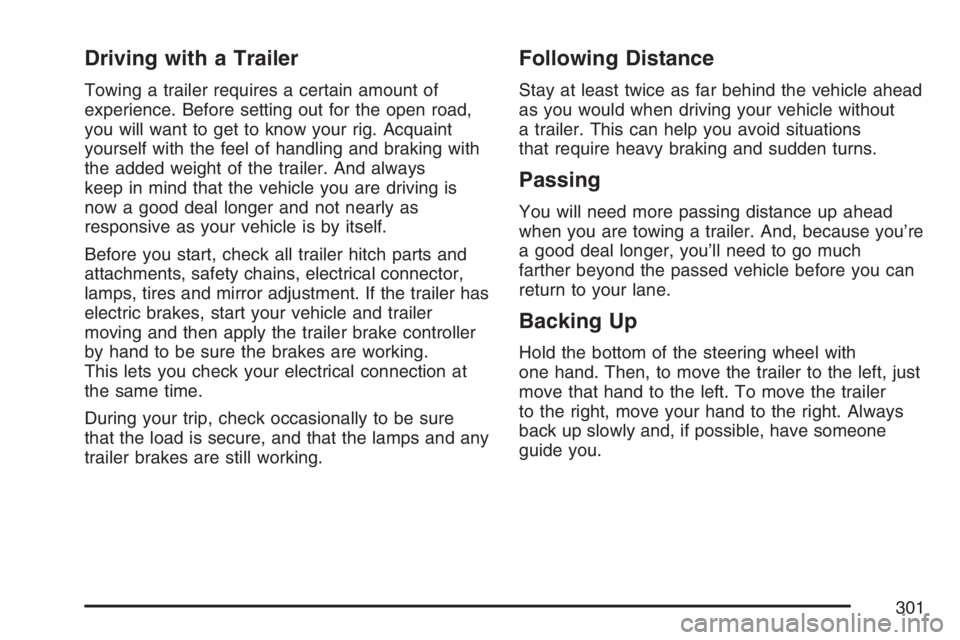

Driving with a Trailer
Towing a trailer requires a certain amount of
experience. Before setting out for the open road,
you will want to get to know your rig. Acquaint
yourself with the feel of handling and braking with
the added weight of the trailer. And always
keep in mind that the vehicle you are driving is
now a good deal longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check all trailer hitch parts and
attachments, safety chains, electrical connector,
lamps, tires and mirror adjustment. If the trailer has
electric brakes, start your vehicle and trailer
moving and then apply the trailer brake controller
by hand to be sure the brakes are working.
This lets you check your electrical connection at
the same time.
During your trip, check occasionally to be sure
that the load is secure, and that the lamps and any
trailer brakes are still working.
Following Distance
Stay at least twice as far behind the vehicle ahead
as you would when driving your vehicle without
a trailer. This can help you avoid situations
that require heavy braking and sudden turns.
Passing
You will need more passing distance up ahead
when you are towing a trailer. And, because you’re
a good deal longer, you’ll need to go much
farther beyond the passed vehicle before you can
return to your lane.
Backing Up
Hold the bottom of the steering wheel with
one hand. Then, to move the trailer to the left, just
move that hand to the left. To move the trailer
to the right, move your hand to the right. Always
back up slowly and, if possible, have someone
guide you.
301

Making Turns
Notice:Making very sharp turns while
trailering could cause the trailer to come in
contact with the vehicle. Your vehicle could be
damaged. Avoid making very sharp turns
while trailering.
When you are turning with a trailer, make wider
turns than normal. Do this so your trailer will not
strike soft shoulders, curbs, road signs, trees or
other objects. Avoid jerky or sudden maneuvers.
Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal asher and/or extra wiring.
Check with your dealer. The arrows on your
instrument panel will ash whenever you signal a
turn or lane change. Properly hooked up, the
trailer lamps will also ash, telling other drivers you
are about to turn, change lanes or stop.When towing a trailer, the arrows on your
instrument panel will ash for turns even if the bulbs
on the trailer are burned out. Thus, you may think
drivers behind you are seeing your signal when
they are not. It is important to check occasionally to
be sure the trailer bulbs are still working.
Driving On Grades
When towing a trailer on long uphill grades and
the outside temperature is above 85°F (29°C),
reduce your vehicle speed to 45 mph (72 km/h) to
avoid overheating the engine cooling system.
Reduce speed and shift to a lower gearbeforeyou
start down a long or steep downgrade. If you do
not shift down, you might have to use your brakes
so much that they would get hot and no longer
work well.
302

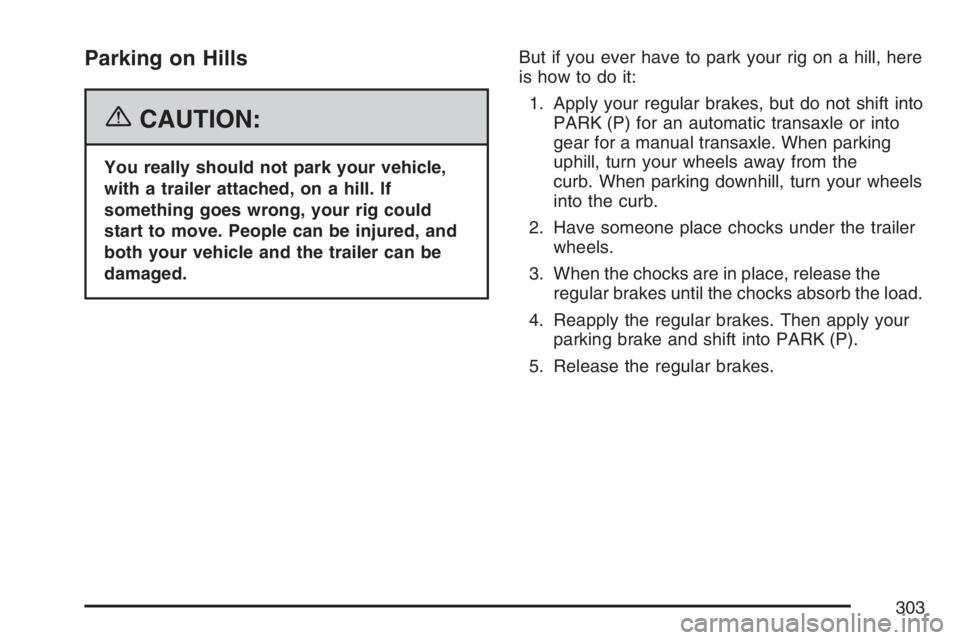

Parking on Hills
{CAUTION:
You really should not park your vehicle,
with a trailer attached, on a hill. If
something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.But if you ever have to park your rig on a hill, here
is how to do it:
1. Apply your regular brakes, but do not shift into
PARK (P) for an automatic transaxle or into
gear for a manual transaxle. When parking
uphill, turn your wheels away from the
curb. When parking downhill, turn your wheels
into the curb.
2. Have someone place chocks under the trailer
wheels.
3. When the chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P).
5. Release the regular brakes.
303

When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you are pulling a trailer. See the Maintenance
Schedule for more on this. Things that are
especially important in trailer operation are
automatic transaxle uid (do not overll), engine
oil, drive belt, cooling system and brake system.
Each of these is covered in this manual, and
the Index will help you nd them quickly. If you
are trailering, it is a good idea to review this
information before you start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat
during severe operating conditions. SeeEngine
Overheating on page 342.
304

Service........................................................ 308
Accessories and Modications................... 308
California Proposition 65 Warning.............. 309
Doing Your Own Service Work.................. 309
Adding Equipment to the Outside of
Your Vehicle.......................................... 310
Fuel............................................................. 310
Gasoline Octane........................................ 310
Gasoline Specications.............................. 310
California Fuel........................................... 311
Additives................................................... 311
Fuels in Foreign Countries........................ 312
Filling the Tank......................................... 313
Filling a Portable Fuel Container............... 315
Checking Things Under
the Hood.................................................. 316
Hood Release........................................... 317
Engine Compartment Overview.................. 318
Engine Oil................................................. 325
Engine Oil Life System.............................. 328
Engine Air Cleaner/Filter............................ 330
Automatic Transaxle Fluid
(2.4L L4 and 3.5L V6 Engines).............. 332Automatic Transaxle Fluid
(3.6L Engine)......................................... 332
Automatic Transaxle Fluid
(3.9L V6 Engine).................................... 335
Manual Transaxle Fluid............................. 338
Hydraulic Clutch........................................ 338
Engine Coolant.......................................... 339
Pressure Cap............................................ 342
Engine Overheating................................... 342
Overheated Engine Protection
Operating Mode..................................... 344
Cooling System......................................... 345
Power Steering Fluid ................................. 349
Windshield Washer Fluid........................... 350
Brakes...................................................... 352
Battery...................................................... 355
Jump Starting............................................ 356
Bulb Replacement....................................... 361
Halogen Bulbs........................................... 361
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps............. 362
Center High-Mounted
Stoplamp (CHMSL) (Sedan)................... 363
Section 5 Service and Appearance Care
305

Center High-Mounted Stoplamp (CHMSL)
(Retractable Hardtop and Coupe)........... 364
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up
Lamps (Sedan)...................................... 364
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps (Coupe) ... 365
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps
(Retractable Hardtop)............................. 367
License Plate Lamp................................... 368
Replacement Bulbs................................... 368
Windshield Wiper Blade Replacement....... 369
Tires............................................................ 370
Winter Tires.............................................. 372
Tire Sidewall Labeling............................... 372
Tire Terminology and Denitions............... 376
Ination - Tire Pressure............................. 379
High-Speed Operation............................... 381
Tire Inspection and Rotation...................... 381
When It Is Time for New Tires.................. 383
Buying New Tires...................................... 383
Different Size Tires and Wheels................ 385Uniform Tire Quality Grading..................... 386
Wheel Alignment and Tire Balance............ 387
Wheel Replacement.................................. 388
Tire Chains............................................... 389
If a Tire Goes Flat.................................... 390
Changing a Flat Tire................................. 390
Removing the Spare Tire and Tools.......... 392
Removing the Flat Tire and Installing
the Spare Tire....................................... 394
Storing a Flat or Spare Tire
and Tools.............................................. 400
Compact Spare Tire.................................. 403
Appearance Care........................................ 404
Cleaning the Inside of Your Vehicle.......... 404
Fabric/Carpet............................................. 406
Leather...................................................... 407
Instrument Panel, Vinyl, and Other Plastic
Surfaces................................................ 407
Care of Safety Belts.................................. 408
Weatherstrips............................................ 408
Washing Your Vehicle............................... 408
Cleaning Exterior Lamps/Lenses................ 409
Finish Care............................................... 409
Windshield and Wiper Blades.................... 410
Section 5 Service and Appearance Care
306

Aluminum Wheels...................................... 410
Tires......................................................... 411
Sheet Metal Damage................................. 411
Finish Damage.......................................... 411
Underbody Maintenance............................ 412
Chemical Paint Spotting............................ 412
Vehicle Care/Appearance Materials............ 413
Vehicle Identication.................................. 414
Vehicle Identication Number (VIN)........... 414
Service Parts Identication Label............... 414Electrical System........................................ 415
Add-On Electrical Equipment..................... 415
Windshield Wiper Fuses............................ 415
Power Windows and Other Power
Options.................................................. 415
Fuses........................................................ 415
Instrument Panel Fuse Block..................... 416
Engine Compartment Fuse Block............... 418
Rear Compartment Fuse Block.................. 421
Capacities and Specications.................... 424
Section 5 Service and Appearance Care
307

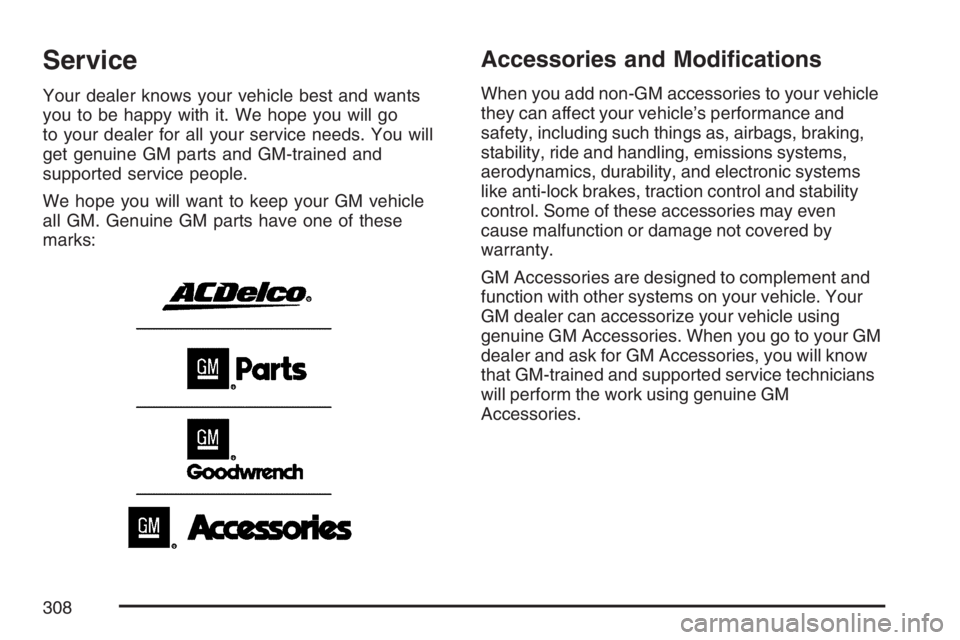

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will go
to your dealer for all your service needs. You will
get genuine GM parts and GM-trained and
supported service people.
We hope you will want to keep your GM vehicle
all GM. Genuine GM parts have one of these
marks:
Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and stability
control. Some of these accessories may even
cause malfunction or damage not covered by
warranty.
GM Accessories are designed to complement and
function with other systems on your vehicle. Your
GM dealer can accessorize your vehicle using
genuine GM Accessories. When you go to your GM
dealer and ask for GM Accessories, you will know
that GM-trained and supported service technicians
will perform the work using genuine GM
Accessories.
308

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm. Engine exhaust,
many parts and systems (including some inside
the vehicle), many uids, and some component
wear by-products contain and/or emit these
chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service
your vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 468.
309

Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 92.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 446.
Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
Fuel
Use of the recommended fuel is an important part
of the proper maintenance of your vehicle. To
help keep your engine clean and maintain optimum
vehicle performance, GM recommends the use
of gasoline advertised as TOP TIER Detergent
Gasoline.
Gasoline Octane
Use regular unleaded gasoline with a posted
octane rating of 87 or higher. If the octane rating is
less than 87, you may notice an audible knocking
noise when you drive, commonly referred to as
spark knock. If this occurs, use a gasoline rated at
87 octane or higher as soon as possible. If you are
using gasoline rated at 87 octane or higher and you
hear heavy knocking, your engine needs service.
Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines may
contain an octane-enhancing additive called
methylcyclopentadienyl manganese
tricarbonyl (MMT). General Motors recommends
against the use of gasolines containing MMT. See
Additives on page 311for additional information.
310
