PONTIAC G6 2008 Owners Manual

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-26.
B. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
C. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-21.
D. Engine Coolant Surge Tank. SeeEngine Coolant on
page 5-30.
E. Pressure Cap. SeePressure Cap on page 5-33.F. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-42.
G. Battery. SeeBattery on page 5-45.
H. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-41.
I. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 5-112.
5-15

When you open the hood on the 3.5L V6 engine, this is what you see:
5-16

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-26.
B. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-40.
C. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-21.
E. Engine Coolant Surge Tank. SeeEngine Coolant on
page 5-30.F. Pressure Cap. SeePressure Cap on page 5-33.
G. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-42.
H. Battery. SeeBattery on page 5-45.
I. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 5-112.
J. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-41.
5-17

When you open the hood on the 3.6L V6 engine, this is what you see:
5-18

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-26.
B. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-40.
C. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-21.
E. Electric Engine Cooling Fans (Out of View). See
Cooling System on page 5-36.
F. Engine Coolant Surge Tank. SeeEngine Coolant on
page 5-30.
G. Pressure Cap. SeePressure Cap on page 5-33.H. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-42.
I. Automatic Transmission Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transmission Fluid (3.9L Engine) on page 5-27or
Automatic Transmission Fluid (2.4L L4, 3.5L
and 3.6L V6 Engines) on page 5-30.
J. Battery. SeeBattery on page 5-45.
K. Underhood Fuse Block. SeeEngine Compartment
Fuse Block on page 5-112.
L. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-41.
5-19

When you open the hood on the 3.9L V6 engine, this is what you see:
5-20

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-26.
B. Engine Coolant Bleed Valve.
C. Power Steering Fluid. SeePower Steering Fluid on
page 5-40.
D. Automatic Transmission Fluid Dipstick (Out of View).
See “Checking the Fluid Level” underAutomatic
Transmission Fluid (3.9L Engine) on page 5-27or
Automatic Transmission Fluid (2.4L L4, 3.5L
and 3.6L V6 Engines) on page 5-30.
E. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
F. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-21.
G. Engine Coolant Surge Tank. SeeEngine Coolant on
page 5-30.
H. Pressure Cap. SeePressure Cap on page 5-33.
I. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-42.
J. Battery. SeeBattery on page 5-45.
K. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-41.
L. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 5-112.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-14for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it
again, keeping the tip down and check the level.
5-21

When to Add Engine OilIf the oil is below the MIN mark for the L4 engine or
below the cross-hatched area at the tip of the dipstick for
the V6 engine, add at least one quart/liter of the
recommended oil. This section explains what kind of oil
to use. For engine oil crankcase capacity, see
Capacities and Specifications on page 5-119.
Notice:Do not add too much oil. If the engine has
so much oil that the oil level gets above the
upper mark that shows the proper operating range,
the engine could be damaged.
SeeEngine Compartment
Overview on page 5-14for
the location of the
engine oil ll cap.
Be sure to add enough oil to put the level somewhere in
the proper operating range. Push the dipstick all the
way back in when you are through. L4 Engine
V6 Engine
5-22

What Kind of Engine Oil to Use
Look for three things:
GM6094M
Your vehicle’s engine requires oil meeting
GM Standard GM6094M. Look for and use only an
oil that meets GM Standard GM6094M.
SAE 5W-30
As shown in the viscosity chart, SAE 5W-30 is best
for your vehicle.These numbers on an oil container show its
viscosity, or thickness. Do not use other viscosity
oils such as SAE 20W-50.
Oils meeting these
requirements should
have the starburst
symbol on the container.
This symbol indicates
that the oil has
been certied by the
American Petroleum
Institute (API).
Look for this information on the oil container, and
use only those oils that are identied as meeting
GM Standard GM6094M and have the starburst symbol
on the front of the oil container.
Notice:Use only engine oil identied as meeting
GM Standard GM6094M and showing the American
Petroleum Institute Certied For Gasoline Engines
starburst symbol. Failure to use the recommended
oil can result in engine damage not covered by
your warranty.
5-23

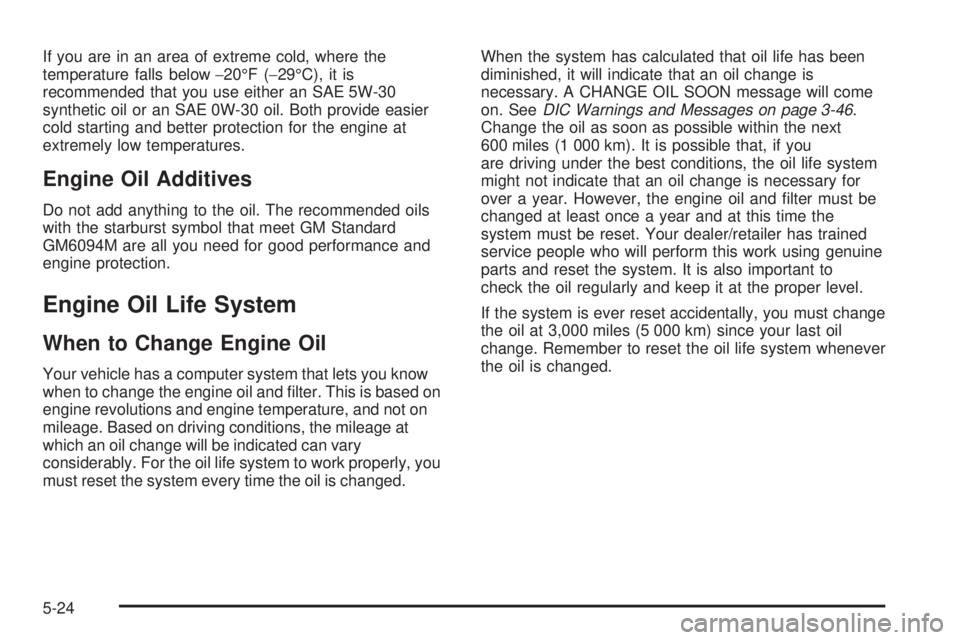

If you are in an area of extreme cold, where the
temperature falls below−20°F (−29°C), it is
recommended that you use either an SAE 5W-30
synthetic oil or an SAE 0W-30 oil. Both provide easier
cold starting and better protection for the engine at
extremely low temperatures.
Engine Oil Additives
Do not add anything to the oil. The recommended oils
with the starburst symbol that meet GM Standard
GM6094M are all you need for good performance and
engine protection.
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you know
when to change the engine oil and lter. This is based on
engine revolutions and engine temperature, and not on
mileage. Based on driving conditions, the mileage at
which an oil change will be indicated can vary
considerably. For the oil life system to work properly, you
must reset the system every time the oil is changed.When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary. A CHANGE OIL SOON message will come
on. SeeDIC Warnings and Messages on page 3-46.
Change the oil as soon as possible within the next
600 miles (1 000 km). It is possible that, if you
are driving under the best conditions, the oil life system
might not indicate that an oil change is necessary for
over a year. However, the engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your dealer/retailer has trained
service people who will perform this work using genuine
parts and reset the system. It is also important to
check the oil regularly and keep it at the proper level.
If the system is ever reset accidentally, you must change
the oil at 3,000 miles (5 000 km) since your last oil
change. Remember to reset the oil life system whenever
the oil is changed.
5-24
