CHECK TIRE PRESS (Pressure)
On vehicles with the Tire Pressure Monitor System
(TPMS), this message displays when the pressure in
one or more of the vehicle’s tires needs to be checked.
If a tire pressure message appears on the DIC, stop
as soon as you can. Have the tire pressures checked
and set to those shown on the Tire Loading Information
label. SeeTires on page 5-59,Loading the Vehicle
on page 4-20, andInflation - Tire Pressure on
page 5-67. The DIC also shows the tire pressure
values. SeeDIC Operation and Displays on page 3-43.
If the tire pressure is low, the low tire pressure
warning light comes on. SeeTire Pressure Light on
page 3-37.
DOOR AJAR
This message displays if one or more of the vehicle’s
doors are not closed properly. Make sure that the
door(s) are closed completely.
ENGINE DISABLED
This message displays if the starting of the engine is
disabled. Have your vehicle serviced by your
dealer/retailer immediately.
ENG (Engine) PWR (Power) REDUCED
This message displays to inform you that the vehicle
has reduced engine power to avoid damaging the
engine. Reduced engine power can affect the vehicle’s
ability to accelerate. If this message is on, but there
is no reduction in performance, proceed to your
destination. The performance may be reduced the next
time the vehicle is driven. The vehicle may be driven
at a reduced speed while this message is on, but
acceleration and speed may be reduced. Anytime this
message stays on, the vehicle should be taken to
your dealer/retailer for service as soon as possible.
ICE POSSIBLE
This message displays when the outside air temperature
is cold enough to create icy road conditions. Adjust
your driving accordingly.
KEY FOB BATT (Battery) LOW
This message displays if the Remote Keyless Entry
(RKE) transmitter battery is low. Replace the battery in
the transmitter. See “Battery Replacement” under
Remote Keyless Entry (RKE) System Operation on
page 2-4.
3-47

Antilock Brake System (ABS)
This vehicle has the Antilock Brake System (ABS),
an advanced electronic braking system that will
help prevent a braking skid.
When the engine is started and the vehicle begins to
drive away, ABS checks itself. A momentary motor
or clicking noise might be heard while this test is going
on, and it might even be noticed that the brake pedal
moves a little. This is normal.
If there is a problem with
ABS, this warning light
stays on. SeeAntilock
Brake System (ABS)
Warning Light on
page 3-35.Let us say the road is wet and you are driving safely.
Suddenly, an animal jumps out in front of you. You slam
on the brakes and continue braking. Here is what
happens with ABS:
A computer senses that the wheels are slowing down.
If one of the wheels is about to stop rolling, the computer
will separately work the brakes at each wheel.
ABS can change the brake pressure to each wheel, as
required, faster than any driver could. This can help
the driver steer around the obstacle while braking hard.
As the brakes are applied, the computer keeps
receiving updates on wheel speed and controls braking
pressure accordingly.
Remember: ABS does not change the time needed to get
a foot up to the brake pedal or always decrease stopping
distance. If you get too close to the vehicle in front of you,
there will not be enough time to apply the brakes if that
vehicle suddenly slows or stops. Always leave enough
room up ahead to stop, even with ABS.
4-5

Notice:Ignoring these steps could result in costly
damage to your vehicle that would not be covered
by your warranty.
Trying to start your vehicle by pushing or pulling it
will not work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice:If the other vehicle’s system is not a 12-volt
system with a negative ground, both vehicles can
be damaged. Only use vehicles with 12-volt systems
with negative grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles are not touching
each other. If they are, it could cause a ground
connection you do not want. You would not be able
to start your vehicle, and the bad grounding
could damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake rmly on both vehicles involved in
the jump start procedure. Put an automatic
transmission in P (PARK) or a manual transmission
in NEUTRAL before setting the parking brake.Notice:If you leave the radio or other accessories
on during the jump starting procedure, they could be
damaged. The repairs would not be covered by the
warranty. Always turn off the radio and other
accessories when jump starting the vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlet. Turn off
the radio and all lamps that are not needed. This
will avoid sparks and help save both batteries. And
it could save the radio!
4. Open the hoods and locate the batteries. Find the
positive (+) and negative (−) terminal locations on
each vehicle. SeeEngine Compartment Overview
on page 5-14for more information on location.
5-47

{CAUTION:
An electric fan can start up even when the engine is
not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
{CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a ashlight if
you need more light.
Be sure the battery has enough water. You do not
need to add water to the battery installed in your
new vehicle. But if a battery has ller caps, be
sure the right amount of uid is there. If it is low,
add water to take care of that rst. If you do not,
explosive gas could be present.
Battery uid contains acid that can burn you. Do
not get it on you. If you accidentally get it in your
eyes or on your skin, ush the place with water
and get medical help immediately.5. Check that the jumper cables do not have loose or
missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
things you should know. Positive (+) will go
to positive (+) or to a remote positive (+) terminal if
the vehicle has one. Negative (−) will go to a
heavy, unpainted metal engine part or to a remote
negative (−) terminal if the vehicle has one.
Do not connect positive (+) to negative (−)oryou
will get a short that would damage the battery
and maybe other parts too. And do not connect the
negative (−) cable to the negative (−) terminal on
the dead battery because this can cause sparks.
{CAUTION:
Fans or other moving engine parts can injure you
badly. Keep your hands away from moving parts
once the engine is running.
5-48

(c)Visually inspect hoses and have them replaced if they
are cracked, swollen, or deteriorated. Inspect all pipes,
fittings and clamps; replace with genuine parts as
needed. To help ensure proper operation, a pressure test
of the cooling system and pressure cap and cleaning the
outside of the radiator and air conditioning condenser is
recommended at least once a year.
(d)Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and wiper blades, if
contaminated. Replace wiper blades that are worn or
damaged. See Windshield Wiper Blade Replacement on
page 5-58 and Windshield and Wiper Blades on
page 5-106 for more information.
(e)Make sure the safety belt reminder light and safety
belt assemblies are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired. Have any torn or frayed safety
belts replaced. Also see Checking the Restraint Systems
on page 1-76.
(f)Lubricate all key lock cylinders, door hinges and
latches, hood hinges and latches, and trunk lid hinges
and latches. More frequent lubrication may be required
when exposed to a corrosive environment. Applying
silicone grease on weatherstrips with a clean cloth will
make them last longer, seal better, and not stick or
squeak.(g)Check system for interference or binding and for
damaged or missing parts. Replace parts as needed.
Replace any components that have high effort or
excessive wear. Do not lubricate accelerator or cruise
control cables.
(h)Change automatic transmission fluid and filter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i)Drain, flush, and refill cooling system. This service can
be complex; you should have your dealer/retailer perform
this service. See Engine Coolant on page 5-33 for what to
use. Inspect hoses. Clean radiator, condenser, pressure
cap, and filler neck. Pressure test the cooling system and
pressure cap.
(j)A fluid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the fluid level checked. Add fluid if needed.
(k)If driving regularly under dusty conditions, inspect
the filter at each engine oil change.
6-8

Care of
Safety Belts..............................................5-104
Center Console Storage Area...........................2-43
Center High-Mounted Stoplamp (CHMSL)...........5-53
Chains, Tire...................................................5-84
Charging System Light....................................3-34
Check
Engine Lamp..............................................3-38
Checking Things Under the Hood......................5-12
Chemical Paint Spotting.................................5-108
Child Restraints
Child Restraint Systems...............................1-43
Infants and Young Children...........................1-39
Lower Anchors and Tethers for Children..........1-48
Older Children.............................................1-36
Securing a Child Restraint in a Rear Seat
Position..................................................1-56
Securing a Child Restraint in the Right Front
Seat Position...........................................1-58
Where to Put the Restraint...........................1-46
Cleaning
Aluminum Wheels......................................5-107
Exterior Lamps/Lenses................................5-105
Fabric/Carpet............................................5-103
Finish Care...............................................5-106
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-104Cleaning (cont.)
Interior.....................................................5-102
Leather....................................................5-104
Tires........................................................5-107
Underbody Maintenance.............................5-108
Washing Your Vehicle.................................5-105
Weatherstrips............................................5-105
Windshield and Wiper Blades......................5-106
Climate Control System...................................3-20
Automatic...................................................3-24
Outlet Adjustment........................................3-28
Clock, Setting.................................................3-53
Collision Damage Repair..................................7-11
Compact Spare Tire......................................5-101
Compass.......................................................2-38
Content Theft-Deterrent....................................2-17
Control of a Vehicle.......................................... 4-3
Convenience Net............................................2-43
Coolant
Engine.......................................................5-33
Engine Temperature Gage............................3-37
Cooling System..............................................5-32
Courtesy Lamps.............................................3-16
Cruise Control................................................3-10
Cruise Control Light........................................3-41
Cupholders....................................................2-43
3

E
Easy Entry Seat.............................................1-10
EDR .............................................................7-16
Electrical System
Add-On Equipment.....................................5-109
Engine Compartment Fuse Block.................5-112
Fuses......................................................5-110
Instrument Panel Fuse Block.......................5-110
Power Windows and Other Power Options....5-110
Rear Compartment Fuse Block....................5-115
Windshield Wiper Fuses.............................5-109
Electronic Immobilizer
PASS-Key
®III+...........................................2-19
Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-19
Engine
Air Cleaner/Filter.................................5-26, 5-27
Check and Service Engine Soon Lamp...........3-38
Coolant......................................................5-33
Coolant Heater............................................2-25
Coolant Temperature Gage...........................3-37
Drive Belt Routing.......................................6-15
Engine Compartment Overview......................5-14
Exhaust.....................................................2-35
Oil .............................................................5-21Engine (cont.)
Oil Life System...........................................5-24
Overheated Protection Operating Mode...........5-39
Overheating................................................5-37
Starting......................................................2-23
Entry/Exit Lighting...........................................3-16
Event Data Recorders.....................................7-17
Extender, Safety Belt.......................................1-35
F
Filter
Engine Air Cleaner..............................5-26, 5-27
Finish Damage.............................................5-107
Fixed Mast Antenna........................................3-69
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-85
Flat Tire, Changing.........................................5-86
Flat Tire, Storing.............................................5-94
Fluid
Automatic Transmission................................5-29
Power Steering...........................................5-39
Windshield Washer......................................5-40
5

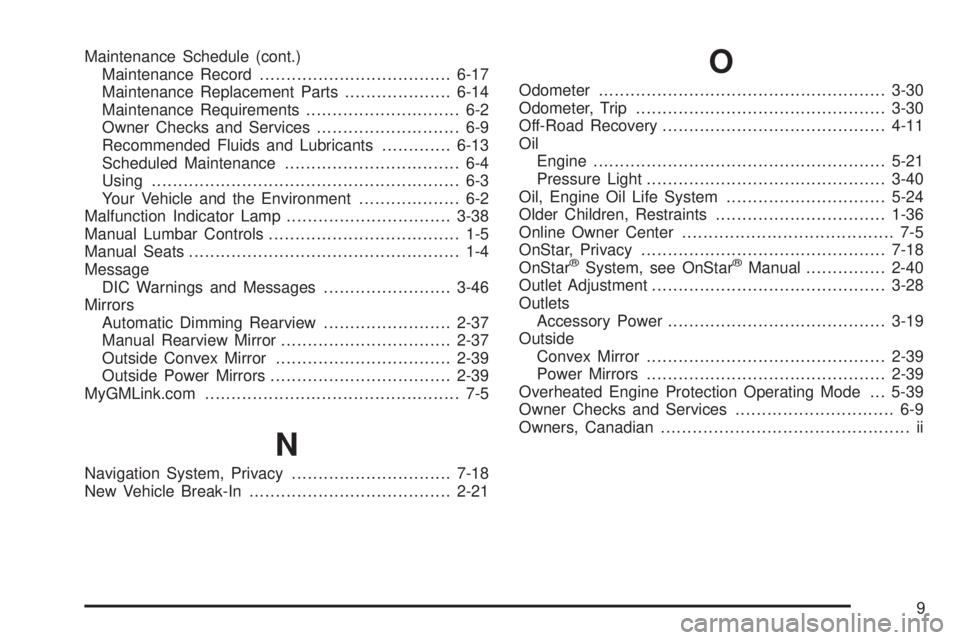

Maintenance Schedule (cont.)
Maintenance Record....................................6-17
Maintenance Replacement Parts....................6-14
Maintenance Requirements............................. 6-2
Owner Checks and Services........................... 6-9
Recommended Fluids and Lubricants.............6-13
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Lamp...............................3-38
Manual Lumbar Controls.................................... 1-5
Manual Seats................................................... 1-4
Message
DIC Warnings and Messages........................3-46
Mirrors
Automatic Dimming Rearview........................2-37
Manual Rearview Mirror................................2-37
Outside Convex Mirror.................................2-39
Outside Power Mirrors..................................2-39
MyGMLink.com................................................ 7-5
N
Navigation System, Privacy..............................7-18
New Vehicle Break-In......................................2-21
O
Odometer......................................................3-30
Odometer, Trip...............................................3-30
Off-Road Recovery..........................................4-11
Oil
Engine.......................................................5-21
Pressure Light.............................................3-40
Oil, Engine Oil Life System..............................5-24
Older Children, Restraints................................1-36
Online Owner Center........................................ 7-5
OnStar, Privacy..............................................7-18
OnStar
®System, see OnStar®Manual...............2-40
Outlet Adjustment............................................3-28
Outlets
Accessory Power.........................................3-19
Outside
Convex Mirror.............................................2-39
Power Mirrors.............................................2-39
Overheated Engine Protection Operating Mode . . . 5-39
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
9
