check engine PONTIAC G6 2009 Owner's Manual

Service............................................................5-4
Accessories and Modications..........................5-4
California Proposition 65 Warning.....................5-5
California Perchlorate Materials Requirements.....5-5
Doing Your Own Service Work.........................5-5
Adding Equipment to the Outside of the
Vehicle......................................................5-6
Fuel................................................................5-6
Gasoline Octane............................................5-7
Gasoline Specications....................................5-7
California Fuel...............................................5-7
Additives.......................................................5-8
Fuel E85 (85% Ethanol)..................................5-8
Fuels in Foreign Countries...............................5-9
Filling the Tank............................................5-10
Filling a Portable Fuel Container.....................5-12
Checking Things Under the Hood....................5-12
Hood Release..............................................5-13
Engine Compartment Overview.......................5-14
Engine Oil...................................................5-21
Engine Oil Life System..................................5-24
Engine Air Cleaner/Filter
(3.5 L V6 Engine)......................................5-26Engine Air Cleaner/Filter (All Other Engines).....5-27
Automatic Transmission Fluid
(2.4L L4, 3.5L and 3.6L V6 Engines)............5-29
Automatic Transmission Fluid
(3.9L Engine)............................................5-29
Cooling System............................................5-32
Engine Coolant.............................................5-33
Pressure Cap...............................................5-37
Engine Overheating.......................................5-37
Overheated Engine Protection
Operating Mode........................................5-39
Power Steering Fluid.....................................5-39
Windshield Washer Fluid................................5-40
Brakes........................................................5-42
Battery........................................................5-45
Jump Starting...............................................5-46
Headlamp Aiming...........................................5-51
Bulb Replacement..........................................5-51
Halogen Bulbs..............................................5-51
Headlamps, Front Turn Signal, Sidemarker,
and Parking Lamps....................................5-52
Center High-Mounted Stoplamp (CHMSL)
(Sedan)...................................................5-53
Section 5 Service and Appearance Care
5-1

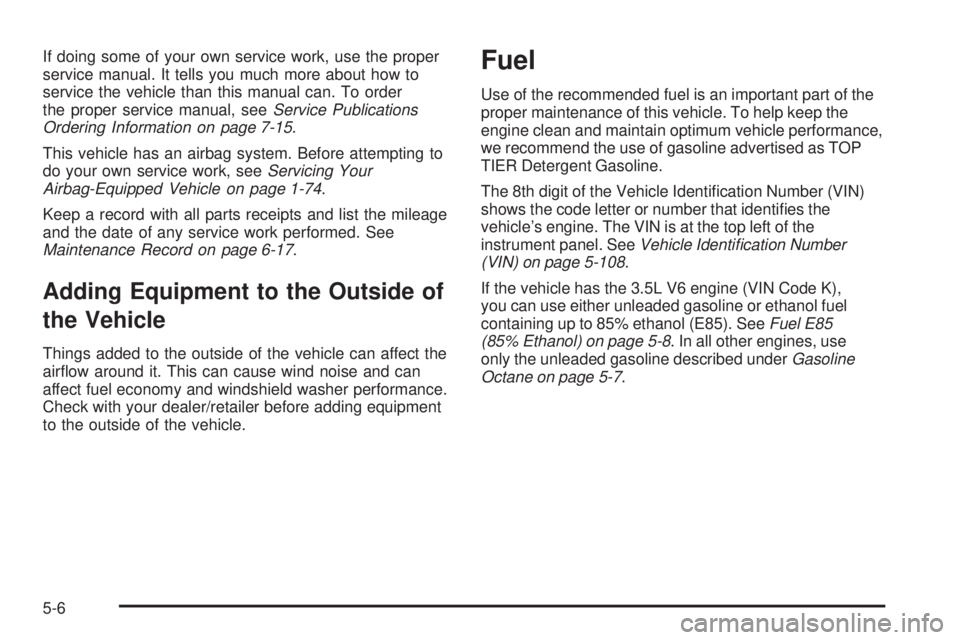

If doing some of your own service work, use the proper
service manual. It tells you much more about how to
service the vehicle than this manual can. To order
the proper service manual, seeService Publications
Ordering Information on page 7-15.
This vehicle has an airbag system. Before attempting to
do your own service work, seeServicing Your
Airbag-Equipped Vehicle on page 1-74.
Keep a record with all parts receipts and list the mileage
and the date of any service work performed. See
Maintenance Record on page 6-17.
Adding Equipment to the Outside of
the Vehicle
Things added to the outside of the vehicle can affect the
airow around it. This can cause wind noise and can
affect fuel economy and windshield washer performance.
Check with your dealer/retailer before adding equipment
to the outside of the vehicle.
Fuel
Use of the recommended fuel is an important part of the
proper maintenance of this vehicle. To help keep the
engine clean and maintain optimum vehicle performance,
we recommend the use of gasoline advertised as TOP
TIER Detergent Gasoline.
The 8th digit of the Vehicle Identication Number (VIN)
shows the code letter or number that identies the
vehicle’s engine. The VIN is at the top left of the
instrument panel. SeeVehicle Identification Number
(VIN) on page 5-108.
If the vehicle has the 3.5L V6 engine (VIN Code K),
you can use either unleaded gasoline or ethanol fuel
containing up to 85% ethanol (E85). SeeFuel E85
(85% Ethanol) on page 5-8. In all other engines, use
only the unleaded gasoline described underGasoline
Octane on page 5-7.
5-6

Gasoline Octane
If the vehicle has the 2.4L L4 engine (VIN Code B),
the 3.5L V6 engine (VIN Code K), the 3.5L V6 engine
(VIN Code N), or the 3.9L V6 engine (VIN Code 1), use
regular unleaded gasoline with a posted octane rating of
87 or higher. If the octane rating is less than 87, you
might notice an audible knocking noise when you drive,
commonly referred to as spark knock. If this occurs, use a
gasoline rated at 87 octane or higher as soon as possible.
If you are using gasoline rated at 87 octane or higher and
you hear heavy knocking, the engine needs service.
If the vehicle has the 3.6L V6 engine (VIN Code 7), use
regular unleaded gasoline with a posted octane rating of
87 or higher. For best performance or trailer towing, you
could choose to use middle grade 89 octane unleaded
gasoline. If the octane rating is less than 87, you might
notice an audible knocking noise when you drive,
commonly referred to as spark knock. If this occurs, use a
gasoline rated at 87 octane or higher as soon as possible.
If you are using gasoline rated at 87 octane or higher and
you hear heavy knocking, the engine needs service.
Gasoline Specications
At a minimum, gasoline should meet ASTM specication
D 4814 in the United States or CAN/CGSB-3.5 or 3.511
in Canada. Some gasolines contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT). We recommend against the use of
gasolines containing MMT. SeeAdditives on page 5-8
for additional information.
California Fuel
If the vehicle is certied to meet California Emissions
Standards, it is designed to operate on fuels that meet
California specications. See the underhood emission
control label. If this fuel is not available in states adopting
California emissions standards, the vehicle will operate
satisfactorily on fuels meeting federal specications, but
emission control system performance might be affected.
The malfunction indicator lamp could turn on and the
vehicle might fail a smog-check test. SeeMalfunction
Indicator Lamp on page 3-38. If this occurs, return to your
authorized dealer/retailer for diagnosis. If it is determined
that the condition is caused by the type of fuel used,
repairs might not be covered by the vehicle warranty.
5-7

Filling a Portable Fuel Container
{CAUTION:
Never ll a portable fuel container while it is in the
vehicle. Static electricity discharge from the
container can ignite the fuel vapor. You can be
badly burned and the vehicle damaged if this
occurs. To help avoid injury to you and others:
Dispense fuel only into approved containers.
Do not ll a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed, or on
any surface other than the ground.
Bring the ll nozzle in contact with the inside
of the ll opening before operating the nozzle.
Contact should be maintained until the lling
is complete.
Do not smoke while pumping fuel.
Do not use a cellular phone while
pumping fuel.
Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing, and tools away from any
underhood electric fan.
{CAUTION:
Things that burn can get on hot engine parts and
start a re. These include liquids like fuel, oil,
coolant, brake uid, windshield washer and other
uids, and plastic or rubber. You or others could
be burned. Be careful not to drop or spill things
that will burn onto a hot engine.
5-12

A.Engine Air Cleaner/Filter (3.5 L V6 Engine) on
page 5-26orEngine Air Cleaner/Filter (All Other
Engines) on page 5-27.
B. Engine Cooling Fan. SeeCooling System on
page 5-32.
C. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
D. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-21.
E. Engine Coolant Surge Tank. SeeEngine Coolant
on page 5-33.F. Pressure Cap. SeeCooling System on page 5-32.
G. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 5-42.
H.Battery on page 5-45.
I. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
J.Engine Compartment Fuse Block on page 5-112.
5-15

A.Engine Air Cleaner/Filter (3.5 L V6 Engine) on
page 5-26orEngine Air Cleaner/Filter (All Other
Engines) on page 5-27.
B.Power Steering Fluid on page 5-39.
C. Engine Cooling Fan. SeeCooling System on
page 5-32.
D. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
E. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-21.
F. Engine Coolant Surge Tank. SeeEngine Coolant
on page 5-33.G. Pressure Cap. SeeCooling System on page 5-32.
H. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 5-42.
I.Battery on page 5-45.
J. SeeEngine Compartment Fuse Block on
page 5-112.
K. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
5-17

A.Engine Air Cleaner/Filter (3.5 L V6 Engine) on
page 5-26orEngine Air Cleaner/Filter (All Other
Engines) on page 5-27.
B.Power Steering Fluid on page 5-39.
C. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-21.
E. Electric Engine Cooling Fans (Out of View).
SeeCooling System on page 5-32.
F. Engine Coolant Surge Tank. SeeEngine Coolant on
page 5-33.
G. Pressure Cap. SeeCooling System on page 5-32.H. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-42.
I. Automatic Transmission Fluid Cap/Dipstick.
See “Checking the Fluid Level” underAutomatic
Transmission Fluid (2.4L L4, 3.5L and 3.6L V6
Engines) on page 5-29orAutomatic Transmission
Fluid (3.9L Engine) on page 5-29.
J.Battery on page 5-45.
K. Underhood Fuse Block. SeeEngine Compartment
Fuse Block on page 5-112.
L. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
5-19

A.Engine Air Cleaner/Filter (3.5 L V6 Engine) on
page 5-26orEngine Air Cleaner/Filter (All Other
Engines) on page 5-27.
B. Engine Coolant Bleed Valve.
C.Power Steering Fluid on page 5-39.
D. Automatic Transmission Fluid Dipstick (Out of View).
See “Checking the Fluid Level” underAutomatic
Transmission Fluid (2.4L L4, 3.5L and 3.6L V6
Engines) on page 5-29orAutomatic Transmission
Fluid (3.9L Engine) on page 5-29.
E. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-21.
F. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-21.
G. Engine Coolant Surge Tank. SeeEngine Coolant on
page 5-33.
H. Pressure Cap. SeeCooling System on page 5-32.
I. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 5-42.
J.Battery on page 5-45.
K. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
L.Engine Compartment Fuse Block on page 5-112.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-14for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it
again, keeping the tip down and check the level.
5-21

Cold Temperature Operation
If you are in an area of extreme cold, where the
temperature falls below−20°F (−29°C), use either an
SAE 5W-30 synthetic oil or an SAE 0W-30 engine
oil. Both provide easier cold starting for the engine at
extremely low temperatures. Always use an oil that
meets the required specication, GM6094M. See “What
Kind of Engine Oil to Use” for more information.
Engine Oil Additives / Engine Oil
Flushes
Do not add anything to the oil. The recommended oils
with the starburst symbol that meet GM Standard
GM6094M are all you need for good performance and
engine protection.
Engine oil system ushes are not recommended and
could cause engine damage not covered by the vehicle
warranty.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system that lets you know
when to change the engine oil and lter. This is based on
engine revolutions and engine temperature, and not on
mileage. Based on driving conditions, the mileage at
which an oil change will be indicated can vary
considerably. For the oil life system to work properly, you
must reset the system every time the oil is changed.
When the system has calculated that oil life has been
diminished, it will indicate that an oil change is necessary.
A CHANGE OIL SOON message will come on. SeeDIC
Warnings and Messages on page 3-46. Change the oil as
soon as possible within the next 600 miles (1 000 km).
It is possible that, if you are driving under the best
conditions, the oil life system might not indicate that an oil
change is necessary for over a year. However, the engine
oil and lter must be changed at least once a year and at
this time the system must be reset. Your dealer/retailer
has trained service people who will perform this work
using genuine parts and reset the system. It is also
important to check the oil regularly and keep it at the
proper level.
If the system is ever reset accidentally, you must change
the oil at 3,000 miles (5 000 km) since the last oil change.
Remember to reset the oil life system whenever the oil is
changed.
5-24

Automatic Transmission Fluid
(2.4L L4, 3.5L and 3.6L V6 Engines)
It is not necessary to check the transmission uid
level. A transmission uid leak is the only reason for
uid loss. If a leak occurs, take your vehicle to the
dealer/retailer and have it repaired as soon as possible.
Change the uid and lter at the intervals listed in
Additional Required Services on page 6-6and be sure
to use the transmission uid listed inRecommended
Fluids and Lubricants on page 6-13.
Notice:Use of the incorrect automatic transmission
uid may damage the vehicle, and the damages
may not be covered by the vehicle’s warranty.
Always use the automatic transmission uid listed
inRecommended Fluids and Lubricants on
page 6-13.For the 3.5L and 3.6L engines, the transmission uid
will not reach the end of the dipstick unless the
transmission is at operating temperature. If you need to
check the transmission uid level, please take the
vehicle to your dealer/retailer.
Automatic Transmission Fluid
(3.9L Engine)
When to Check and Change Automatic
Transmission Fluid
A good time to check the automatic transmission uid
level is when the engine oil is changed.
Change the uid and lter at the intervals listed in
Additional Required Services on page 6-6and be sure
to use the transmission uid listed inRecommended
Fluids and Lubricants on page 6-13.
5-29
