PONTIAC G6 2009 Owners Manual

Fuses Usage
1 Air Conditioner Clutch
2 Electronic Throttle ControlFuses Usage
3Engine Control Module (IGN 1)
(LZ4, LZE, LZ9)
4Transmission Control Module
Ignition 1
5-113

Fuses Usage
5 Mass Airow Sensor (LY7)
6 Emission
7 Left Headlamp Low Beam
8 Horn
9 Right Headlamp Low Beam
10 Front Fog Lamps
11 Left Headlamp High Beam
12 Right Headlamp High Beam
13Engine Control Module (Battery)
(LE5, LY7)
14 Windshield Wiper
15 Antilock Brake System (IGN 1)
16Engine Control Module (IGN 1)
(LE5, LY7)
17 Cooling Fan 1
18 Cooling Fan 2
19Run Relay, Heating, Ventilation, Air
Conditioning Blower
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Antilock Brake System
25 Body Control Module 2Fuses Usage
26 Starter
41 Electric Power Steering
42Transmission Control Module
Battery
43Ignition Module (LE5, LZ4, LZE,
LZ9), Odd Cylinder Injectors/Ignition
Coils (LY7)
44Injectors (LE5, LZ4, LZE, LZ9),
Even Cylinder Injectors/Ignition
Coils (LY7)
45 Rear Oxygen Sensors
46 Daytime Running Lamps
47 Center High-Mounted Stoplamp
50Front Power Windows
Coupe/Retractable Hardtop
51Engine Control Module (Battery)
(LZ4, LZE, LZ9)
52 AIR Solenoid
54 Regulated Voltage Control
55 Antilock Brake System (Battery)
Relays Usage
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
5-114

Relays Usage
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High Beam
36 Front Fog Lamps
37 Horn
38 Low Beam
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps
49 Center High-Mounted Stoplamp
53 AIR Solenoid
Diodes Usage
27 Wiper
Rear Compartment Fuse Block
The rear compartment fuse block is located in the trunk
of the vehicle. Access the fuse block through the
trunk panel on the driver side of the rear cargo area.
5-115

Fuses Usage
1Rear Quarter Windows (Retractable
Hardtop Only)
2 Driver Seat Controls
3 Retractable Hardtop
4 Not UsedFuses Usage
5 Emission 2, Canister Vent Solenoid
6Park Lamps, Instrument Panel
Dimming
7 Not Used
8 Not Used
5-116

Fuses Usage
9 Not Used
10 Sunroof Controls
11 Not Used
12 Retractable Hardtop Controller
13 Audio Amplier
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry System, XM
Satellite Radio
17 Back-up Lamps
18 Not Used
19 Not Used
20Cigarette Lighter, Auxiliary Power
Outlet
21 Not Used
22 Trunk Release
23 Rear Defog
24 Not Used
25 Fuel PumpRelays Usage
26 Rear Window Defogger
27 Park Lamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk Release
37 Fuel Pump
38 (Diode) Cargo Lamp
5-117

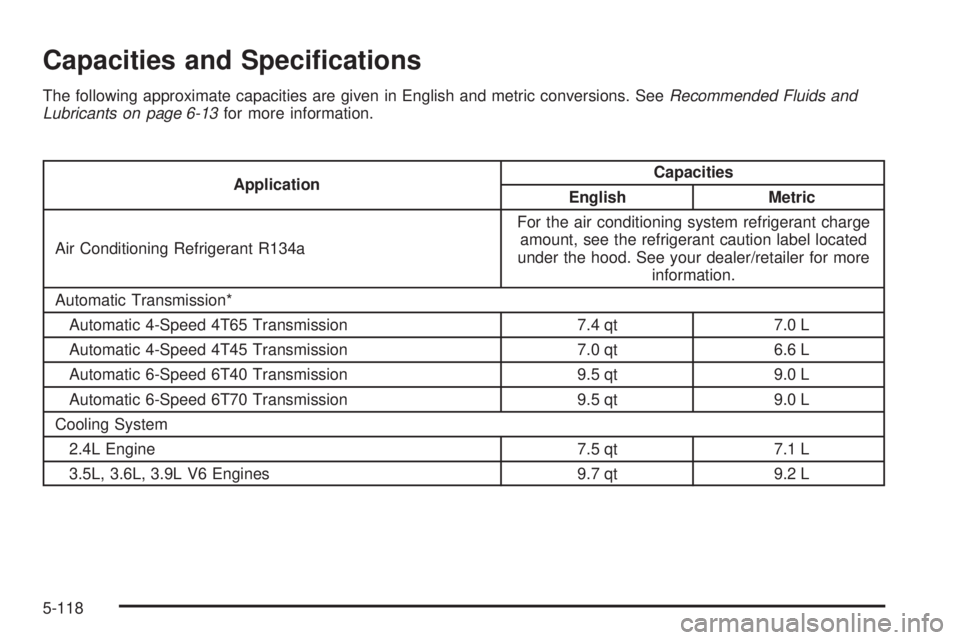

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricants on page 6-13for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Automatic Transmission*
Automatic 4-Speed 4T65 Transmission 7.4 qt 7.0 L
Automatic 4-Speed 4T45 Transmission 7.0 qt 6.6 L
Automatic 6-Speed 6T40 Transmission 9.5 qt 9.0 L
Automatic 6-Speed 6T70 Transmission 9.5 qt 9.0 L
Cooling System
2.4L Engine 7.5 qt 7.1 L
3.5L, 3.6L, 3.9L V6 Engines 9.7 qt 9.2 L
5-118

ApplicationCapacities
English Metric
Engine Oil with Filter
2.4L Engine 5.0 qt 4.7 L
3.5L and 3.9L Engines 4.0 qt 3.8 L
3.6L Engine 5.5 qt 5.2 L
Fuel Tank 16.3 gal 61.7 L
Wheel Nut Torque 100 lb ft 140Y
*Transmission uid capacity is approximate. SeeAutomatic Transmission Fluid (2.4L L4, 3.5L and 3.6L V6
Engines) on page 5-29orAutomatic Transmission Fluid (3.9L Engine) on page 5-29for information on checking
uid level.
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
2.4L L4 Engine B Automatic 0.040 in (1.01 mm)
3.5L V6 Engine K Automatic 0.040 in (1.01 mm)
3.5L V6 Engine N Automatic 0.040 in (1.01 mm)
3.6L V6 Engine 7 Automatic 0.040 in (1.01 mm)
3.9L V6 Engine 1 Automatic 0.040 in (1.01 mm)
5-119

✍NOTES
5-120

Maintenance Schedule......................................6-2
Introduction...................................................6-2
Maintenance Requirements..............................6-2
Your Vehicle and the Environment....................6-2
Using the Maintenance Schedule......................6-3
Scheduled Maintenance...................................6-4
Additional Required Services............................6-6
Maintenance Footnotes...................................6-7Owner Checks and Services............................6-9
At Each Fuel Fill............................................6-9
At Least Once a Month.................................6-10
At Least Once a Year...................................6-10
Recommended Fluids and Lubricants...............6-13
Maintenance Replacement Parts.....................6-14
Engine Drive Belt Routing..............................6-15
Maintenance Record.....................................6-17
Section 6 Maintenance Schedule
6-1

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Have you purchased the GM Protection Plan? The Plan
supplements the vehicle warranties. See the Warranty
and Owner Assistance booklet or your dealer/retailer for
details.
Maintenance Requirements
Notice:Maintenance intervals, checks, inspections,
replacement parts, and recommended uids and
lubricants as prescribed in this manual are necessary
to keep this vehicle in good working condition. Any
damage caused by failure to follow scheduled
maintenance might not be covered by the vehicle
warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
the vehicle in good working condition, but also helps
the environment. All recommended maintenance is
important. Improper vehicle maintenance can even affect
the quality of the air we breathe. Improper uid levels or
the wrong tire ination can increase the level of emissions
from the vehicle. To help protect the environment, and to
keep the vehicle in good condition, be sure to maintain
the vehicle properly.
