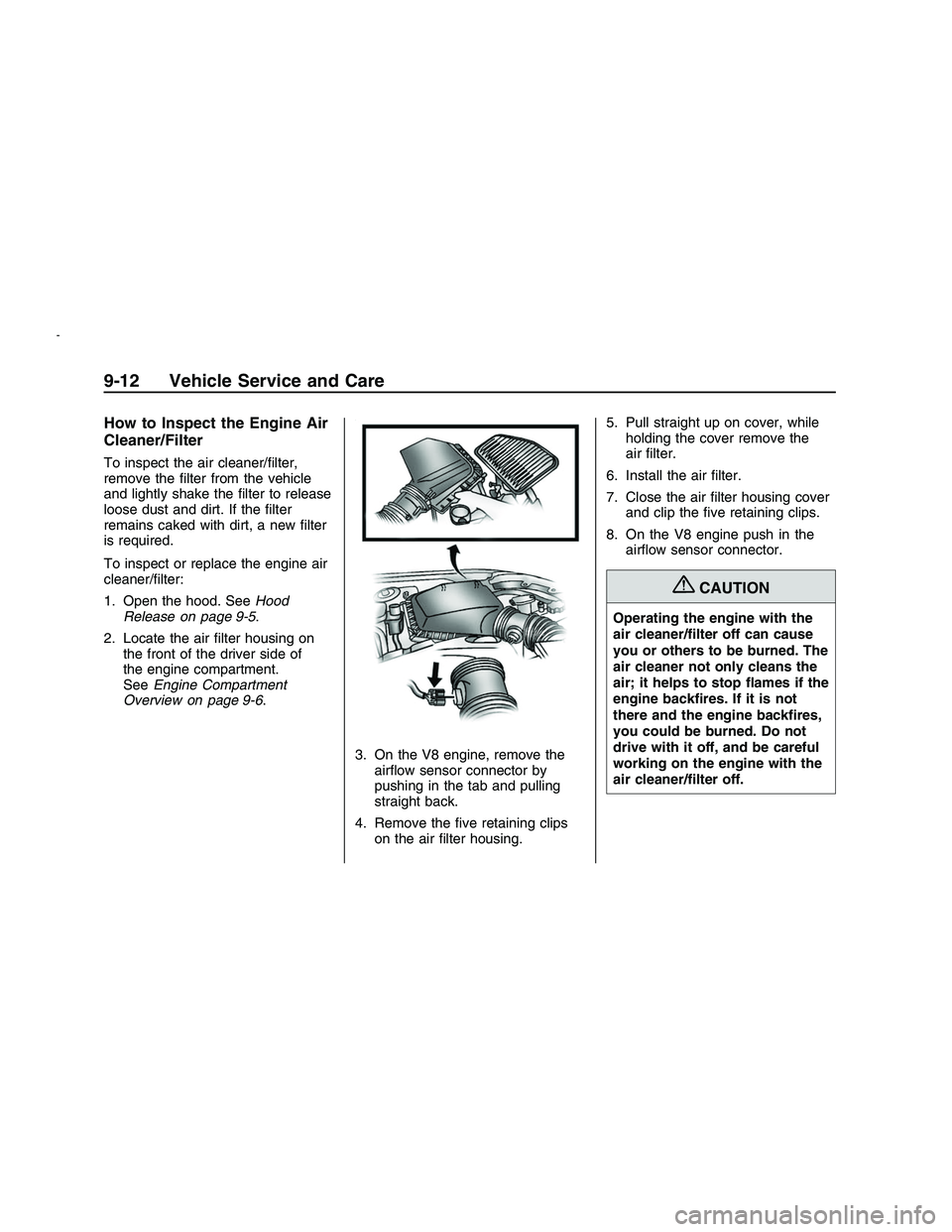

How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/ lter,
remove the lter from the vehicle
and lightly shake the lter to release
loose dust and dirt. If the lter
remains caked with dirt, a new lter
is required.
To inspect or replace the engine air
cleaner/ lter:
1. Open the hood. SeeHood
Release on page 9-5.
2. Locate the air lter housing on
the front of the driver side of
the engine compartment.
SeeEngine Compartment
Overview on page 9-6.
3. On the V8 engine, remove the
air ow sensor connector by
pushing in the tab and pulling
straight back.
4. Remove the ve retaining clips
on the air lter housing.5. Pull straight up on cover, while
holding the cover remove the
air lter.
6. Install the air lter.
7. Close the air lter housing cover
and clip the ve retaining clips.
8. On the V8 engine push in the
air ow sensor connector.
{CAUTION
Operating the engine with the
air cleaner/ lter off can cause
you or others to be burned. The
air cleaner not only cleans the
air; it helps to stop ames if the
engine back res. If it is not
there and the engine back res,
you could be burned. Do not
drive with it off, and be careful
working on the engine with the
air cleaner/ lter off.
9-12 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
Page 218 of 334

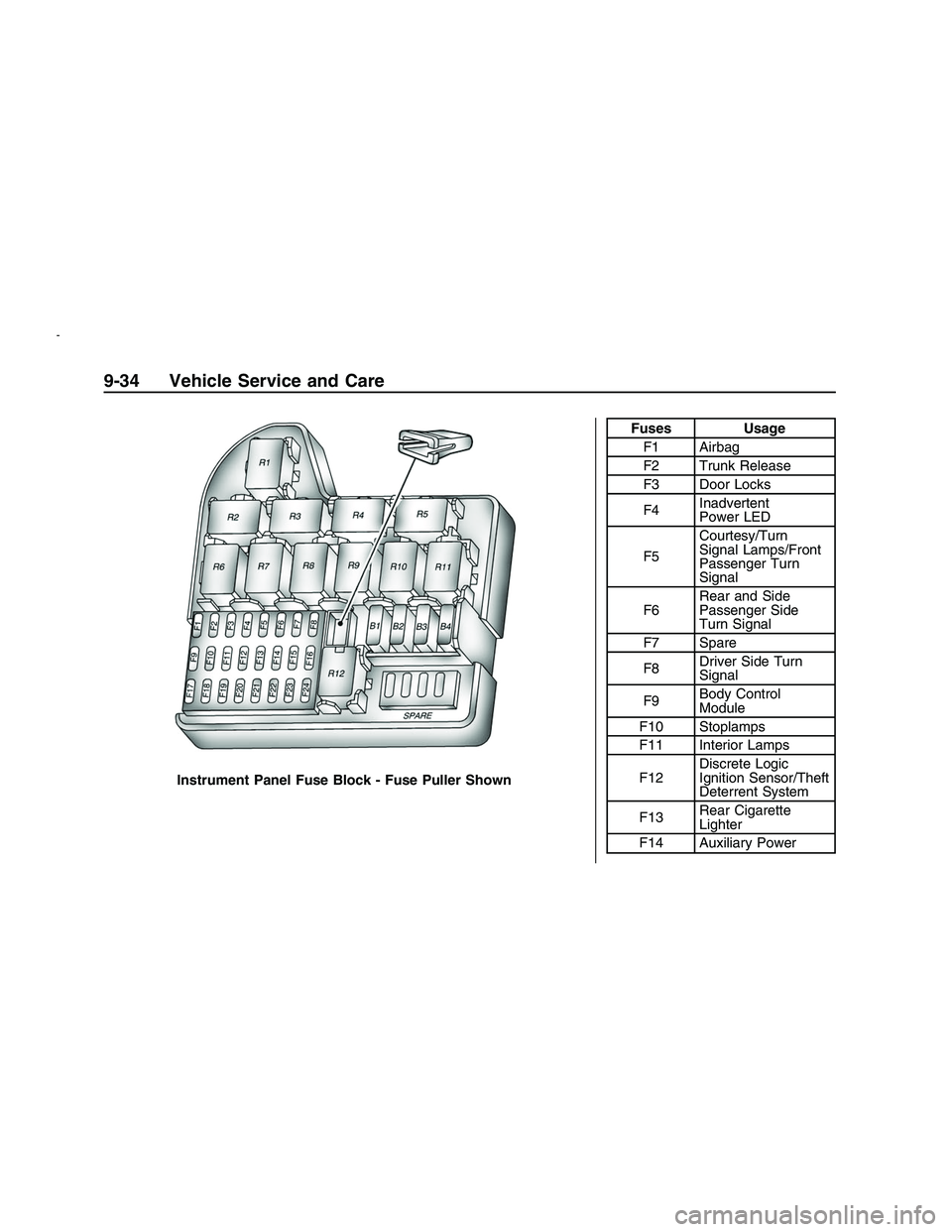

Fuses UsageF1 Airbag
F2 Trunk Release
F3 Door Locks
F4 Inadvertent
Power LED
F5 Courtesy/Turn
Signal Lamps/Front
Passenger Turn
Signal
F6 Rear and Side
Passenger Side
Turn Signal
F7 Spare
F8 Driver Side Turn
Signal
F9 Body Control
Module
F10 Stoplamps
F11 Interior Lamps
F12 Discrete Logic
Ignition Sensor/Theft
Deterrent System
F13 Rear Cigarette
Lighter
F14 Auxiliary Power
Instrument Panel Fuse Block - Fuse Puller Shown
9-34 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
Page 219 of 334
Fuses Usage
F15Outside Rearview
Mirrors
F16Sunroof/Automatic
Transmission
Shift Lock
F17 Sunroof
F18Automatic Occupant
Sensor
F19Driver Side
Heated Seat
F20Passenger Side
Heated Seat
F21Daytime Running
Lamps
F22Front Cigarette
Lighter
F23Steering Wheel
Controls
Backlighting
F24 Power Window
FUSE
PULLERFuse PullerCircuit
BreakersUsage
B1 Spare
B2 Power Windows
B3 Power Seats
B4 Spare
Relays Usage
R1Retain Accessory
Power 1
R2 Door Locks
R3Passenger Side
Door Lock
R4 Spare
R5 Trunk Release
R6 Driver Side Lock
R7Retain Accessory
Power 2
R8 Accessory
R9 Blower
R10 Spare
R11Daytime Running
Lamps
R12 Fuel Pump
Engine Compartment
Fuse Block
To open the fuse block cover,
remove the clip on cover.
Notice:Spilling liquid on any
electrical components on
your vehicle may damage it.
Always keep the covers on any
electrical component.
Vehicle Service and Care 9-35
2008 - Pontiac G8 Owner Manual
Page 222 of 334
Relays Usage
R15 Windshield Wiper
R16 Horn
R17Fan 1 (Engine
Cooling)
R18 Parking Lamps
R19Fan 2 (Engine
Cooling)
R20Fan 3 (Engine
Cooling)
Rear Compartment Fuse
Block
The rear compartment fuse block is
located on the left side of the
trunk behind a cover.Use the fuse puller, to remove and
replace fuses.
Fuses Usage
F1 Spare
F2 Ampli er
F3 XM Radio™
F4 Radio
F5Instrument/Display/
Remote Function
Actuator/Data Link
Connection
F6 Spare
F7 Spare
Fuses Usage
F8 OnStar™
F9 Spare
F10 ECM Battery
F11Regulated Voltage
Control Sensor
F12 Fuel Pump
Relays Usage
R1 Spare
R2 Spare
9-38 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
Page 233 of 334

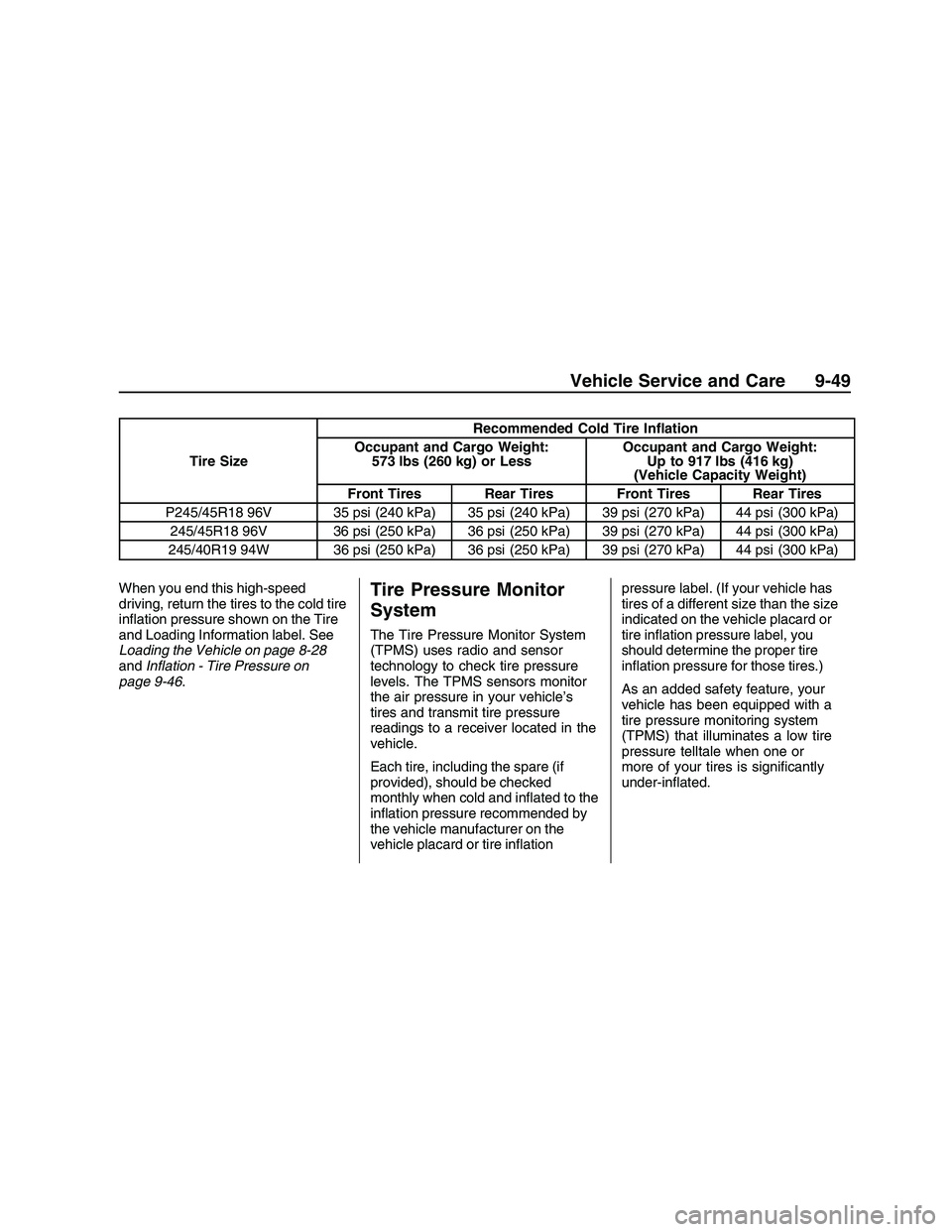

Tire SizeRecommended Cold Tire In ation
Occupant and Cargo Weight: 573 lbs (260 kg) or Less Occupant and Cargo Weight:
Up to 917 lbs (416 kg)
(Vehicle Capacity Weight)
Front Tires Rear Tires Front Tires Rear Tires
P245/45R18 96V 35 psi (240 kPa) 35 psi (240 kPa) 39 psi (270 kPa) 44 psi (300 kPa) 245/45R18 96V 36 psi (250 kPa) 36 psi (250 kPa) 39 psi (270 kPa) 44 psi (300 kPa)
245/40R19 94W 36 psi (250 kPa) 36 psi (250 kPa) 39 psi (270 kPa) 44 psi (300 kPa)
When you end this high-speed
driving, return the tires to the cold tire
in ation pressure shown on the Tire
and Loading Information label. See
Loading the Vehicle on page 8-28
and Inflation - Tire Pressure on
page 9-46 .
Tire Pressure Monitor
System
The Tire Pressure Monitor System
(TPMS) uses radio and sensor
technology to check tire pressure
levels. The TPMS sensors monitor
the air pressure in your vehicle’s
tires and transmit tire pressure
readings to a receiver located in the
vehicle.
Each tire, including the spare (if
provided), should be checked
monthly when cold and in ated to the
in ation pressure recommended by
the vehicle manufacturer on the
vehicle placard or tire in ation pressure label. (If your vehicle has
tires of a different size than the size
indicated on the vehicle placard or
tire in ation pressure label, you
should determine the proper tire
in ation pressure for those tires.)
As an added safety feature, your
vehicle has been equipped with a
tire pressure monitoring system
(TPMS) that illuminates a low tire
pressure telltale when one or
more of your tires is signi cantly
under-in ated.
Vehicle Service and Care 9-49
2008 - Pontiac G8 Owner Manual
Page 235 of 334

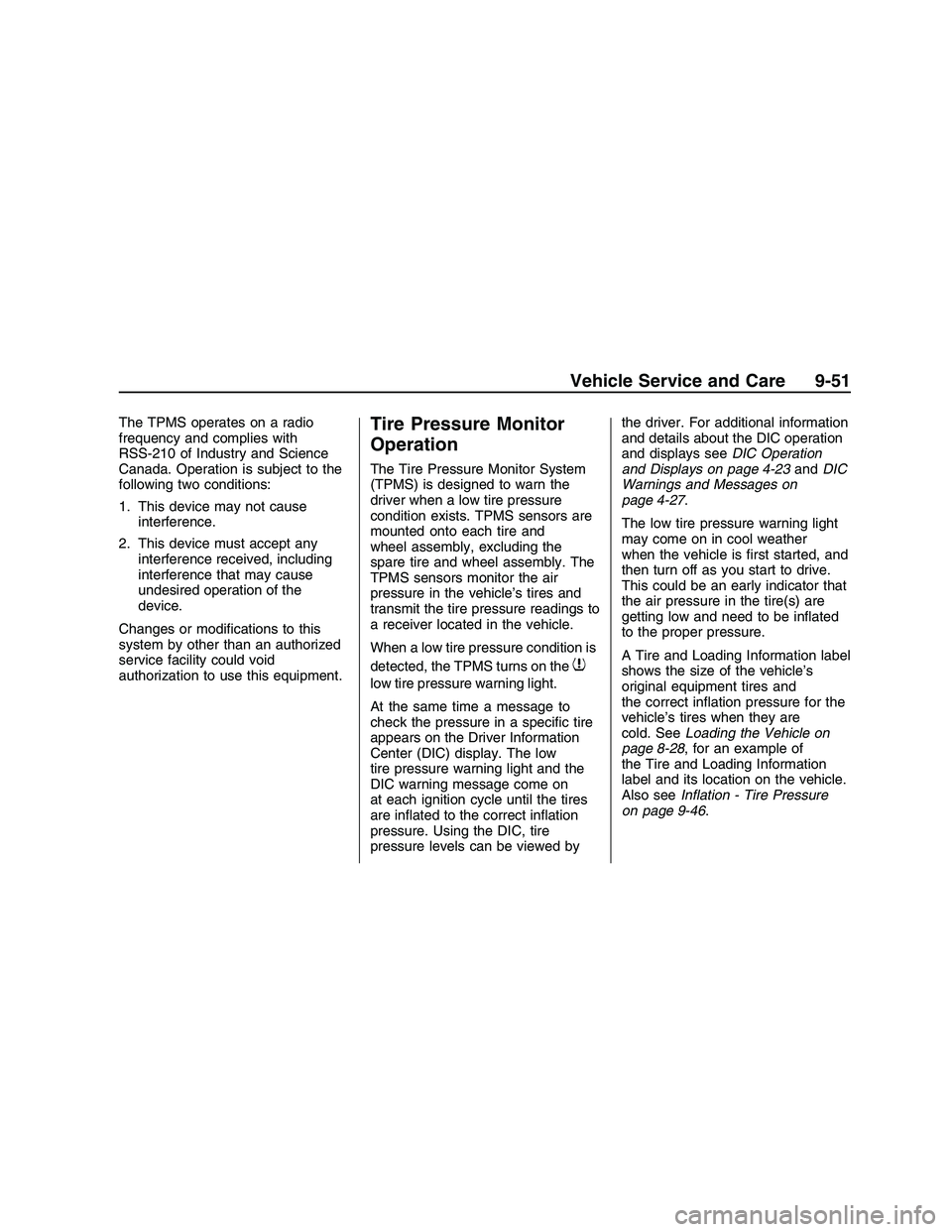

The TPMS operates on a radio
frequency and complies with
RSS-210 of Industry and Science
Canada. Operation is subject to the
following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modi cations to this
system by other than an authorized
service facility could void
authorization to use this equipment.Tire Pressure Monitor
Operation
The Tire Pressure Monitor System
(TPMS) is designed to warn the
driver when a low tire pressure
condition exists. TPMS sensors are
mounted onto each tire and
wheel assembly, excluding the
spare tire and wheel assembly. The
TPMS sensors monitor the air
pressure in the vehicle’s tires and
transmit the tire pressure readings to
a receiver located in the vehicle.
When a low tire pressure condition is
detected, the TPMS turns on the
7
low tire pressure warning light.
At the same time a message to
check the pressure in a speci c tire
appears on the Driver Information
Center (DIC) display. The low
tire pressure warning light and the
DIC warning message come on
at each ignition cycle until the tires
are in ated to the correct in ation
pressure. Using the DIC, tire
pressure levels can be viewed bythe driver. For additional information
and details about the DIC operation
and displays seeDIC Operation
and Displays on page 4-23andDIC
Warnings and Messages on
page 4-27.
The low tire pressure warning light
may come on in cool weather
when the vehicle is rst started, and
then turn off as you start to drive.
This could be an early indicator that
the air pressure in the tire(s) are
getting low and need to be in ated
to the proper pressure.
A Tire and Loading Information label
shows the size of the vehicle’s
original equipment tires and
the correct in ation pressure for the
vehicle’s tires when they are
cold. SeeLoading the Vehicle on
page 8-28, for an example of
the Tire and Loading Information
label and its location on the vehicle.
Also seeInflation - Tire Pressure
on page 9-46.
Vehicle Service and Care 9-51
2008 - Pontiac G8 Owner Manual
Page 236 of 334

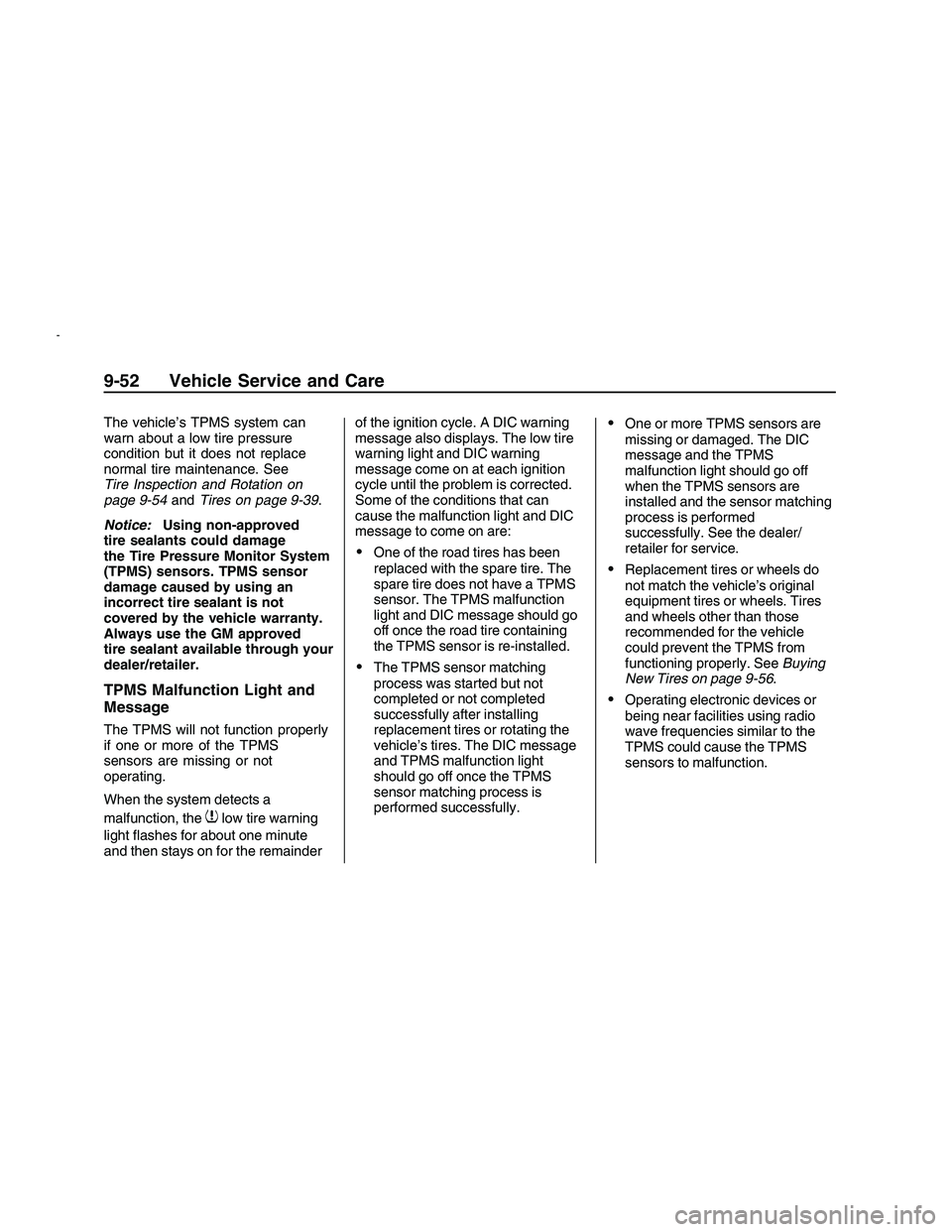

The vehicle’s TPMS system can
warn about a low tire pressure
condition but it does not replace
normal tire maintenance. See
Tire Inspection and Rotation on
page 9-54andTires on page 9-39.
Notice:Using non-approved
tire sealants could damage
the Tire Pressure Monitor System
(TPMS) sensors. TPMS sensor
damage caused by using an
incorrect tire sealant is not
covered by the vehicle warranty.
Always use the GM approved
tire sealant available through your
dealer/retailer.
TPMS Malfunction Light and
Message
The TPMS will not function properly
if one or more of the TPMS
sensors are missing or not
operating.
When the system detects a
malfunction, the
7low tire warning
light ashes for about one minute
and then stays on for the remainderof the ignition cycle. A DIC warning
message also displays. The low tire
warning light and DIC warning
message come on at each ignition
cycle until the problem is corrected.
Some of the conditions that can
cause the malfunction light and DIC
message to come on are:
One of the road tires has been
replaced with the spare tire. The
spare tire does not have a TPMS
sensor. The TPMS malfunction
light and DIC message should go
off once the road tire containing
the TPMS sensor is re-installed.
The TPMS sensor matching
process was started but not
completed or not completed
successfully after installing
replacement tires or rotating the
vehicle’s tires. The DIC message
and TPMS malfunction light
should go off once the TPMS
sensor matching process is
performed successfully.
One or more TPMS sensors are
missing or damaged. The DIC
message and the TPMS
malfunction light should go off
when the TPMS sensors are
installed and the sensor matching
process is performed
successfully. See the dealer/
retailer for service.
Replacement tires or wheels do
not match the vehicle’s original
equipment tires or wheels. Tires
and wheels other than those
recommended for the vehicle
could prevent the TPMS from
functioning properly. SeeBuying
New Tires on page 9-56.
Operating electronic devices or
being near facilities using radio
wave frequencies similar to the
TPMS could cause the TPMS
sensors to malfunction.
9-52 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
Page 237 of 334
If the TPMS is not functioning it
cannot detect or signal a low
tire condition. See the dealer/retailer
for service if the TPMS malfunction
light and DIC message comes
on and stays on.
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identi cation code. Any time one or
more of the TPMS sensors are
replaced or the vehicle’s tires are
rotated, the identi cation codes
need to be matched to the
new tire/wheel location. The sensors
are matched, to the tire/wheel
locations, in the following order:
driver side front tire, passenger side
front tire, passenger side rear
tire, and driver side rear tire using a
TPMS diagnostic tool. See your
dealer/retailer for service.The TPMS sensors can also be
matched to each tire/wheel position
by increasing or decreasing the
tire’s air pressure. When increasing
the tire’s pressure, do not exceed
the maximum in ation pressure
indicated on the tire’s sidewall. To
decrease the tire’s air-pressure
use the pointed end of the valve
cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match
each tire and wheel position.
If it takes longer than two minutes to
match any tire and wheel position,
the matching process stops and you
need to start over.The TPMS matching process is
outlined below:
1. Set the parking brake.
2. Turn the ignition switch to
ON/RUN with the engine off.
3. Press and hold the Remote
Keyless Entry (RKE) transmitter’s
lock and unlock buttons, at the
same time, for about ve seconds
to start the TPMS learn mode.
The horn chirps two times
indicating the TPMS receiver is
ready and in learn mode.
4. Start with the driver side front
tire. The driver side front
indicator lamp also comes on to
indicate that corner’s sensor
is ready to be learned.
5. Remove the valve cap from the
tire’s valve stem. Activate the
TPMS sensor by increasing
or decreasing the tire’s air
pressure for about eight seconds.
The horn chirps one time to
con rm the sensor identi cation
code has been matched to
the tire/wheel position.
Vehicle Service and Care 9-53
2008 - Pontiac G8 Owner Manual
Page 238 of 334

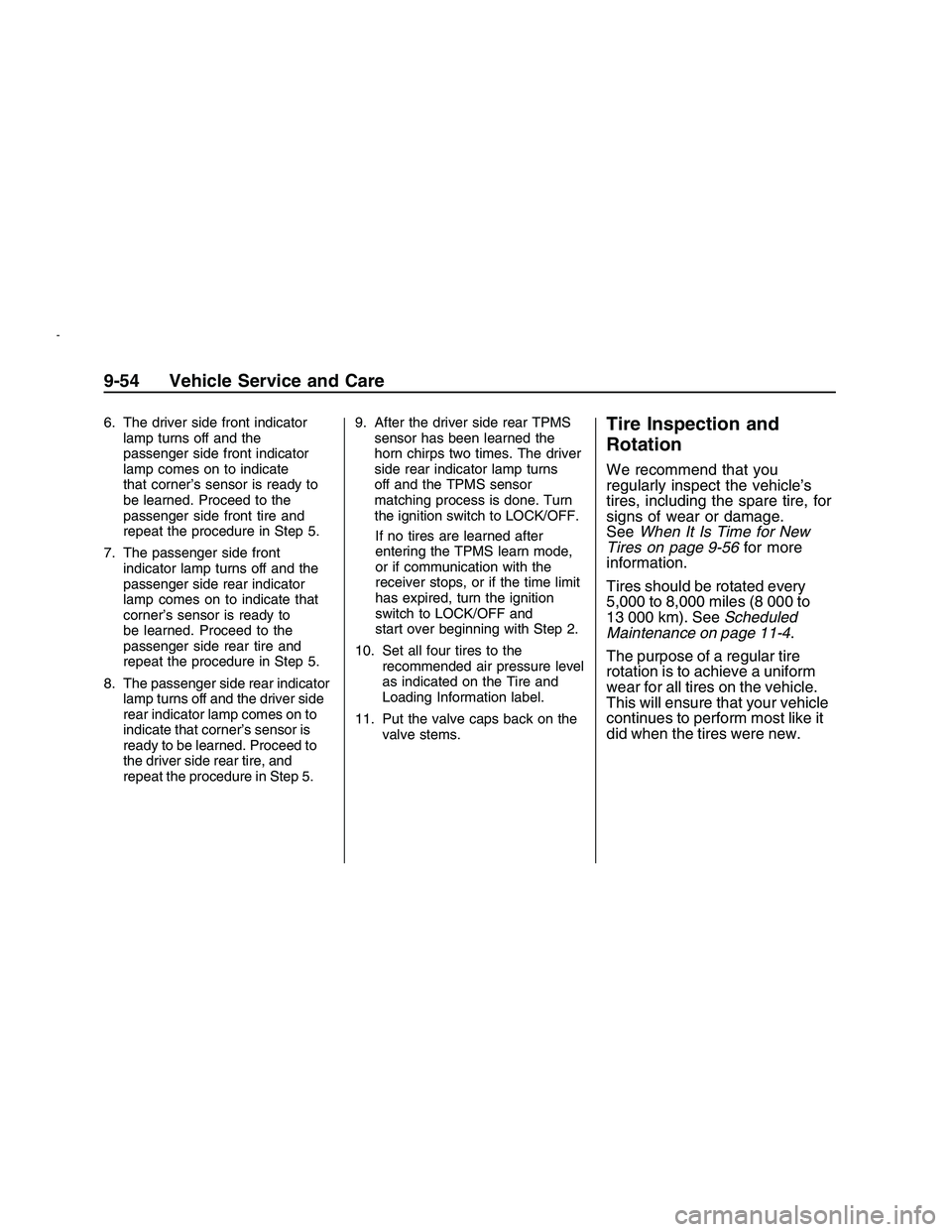

6. The driver side front indicator
lamp turns off and the
passenger side front indicator
lamp comes on to indicate
that corner’s sensor is ready to
be learned. Proceed to the
passenger side front tire and
repeat the procedure in Step 5.
7. The passenger side front
indicator lamp turns off and the
passenger side rear indicator
lamp comes on to indicate that
corner’s sensor is ready to
be learned. Proceed to the
passenger side rear tire and
repeat the procedure in Step 5.
8. The passenger side rear indicator
lamp turns off and the driver side
rear indicator lamp comes on to
indicate that corner’s sensor is
ready to be learned. Proceed to
the driver side rear tire, and
repeat the procedure in Step 5.9. After the driver side rear TPMS
sensor has been learned the
horn chirps two times. The driver
side rear indicator lamp turns
off and the TPMS sensor
matching process is done. Turn
the ignition switch to LOCK/OFF.
If no tires are learned after
entering the TPMS learn mode,
or if communication with the
receiver stops, or if the time limit
has expired, turn the ignition
switch to LOCK/OFF and
start over beginning with Step 2.
10. Set all four tires to the
recommended air pressure level
as indicated on the Tire and
Loading Information label.
11. Put the valve caps back on the
valve stems.Tire Inspection and
Rotation
We recommend that you
regularly inspect the vehicle’s
tires, including the spare tire, for
signs of wear or damage.
SeeWhen It Is Time for New
Tires on page 9-56for more
information.
Tires should be rotated every
5,000 to 8,000 miles (8 000 to
13 000 km). SeeScheduled
Maintenance on page 11-4.
The purpose of a regular tire
rotation is to achieve a uniform
wear for all tires on the vehicle.
This will ensure that your vehicle
continues to perform most like it
did when the tires were new.
9-54 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
Page 250 of 334

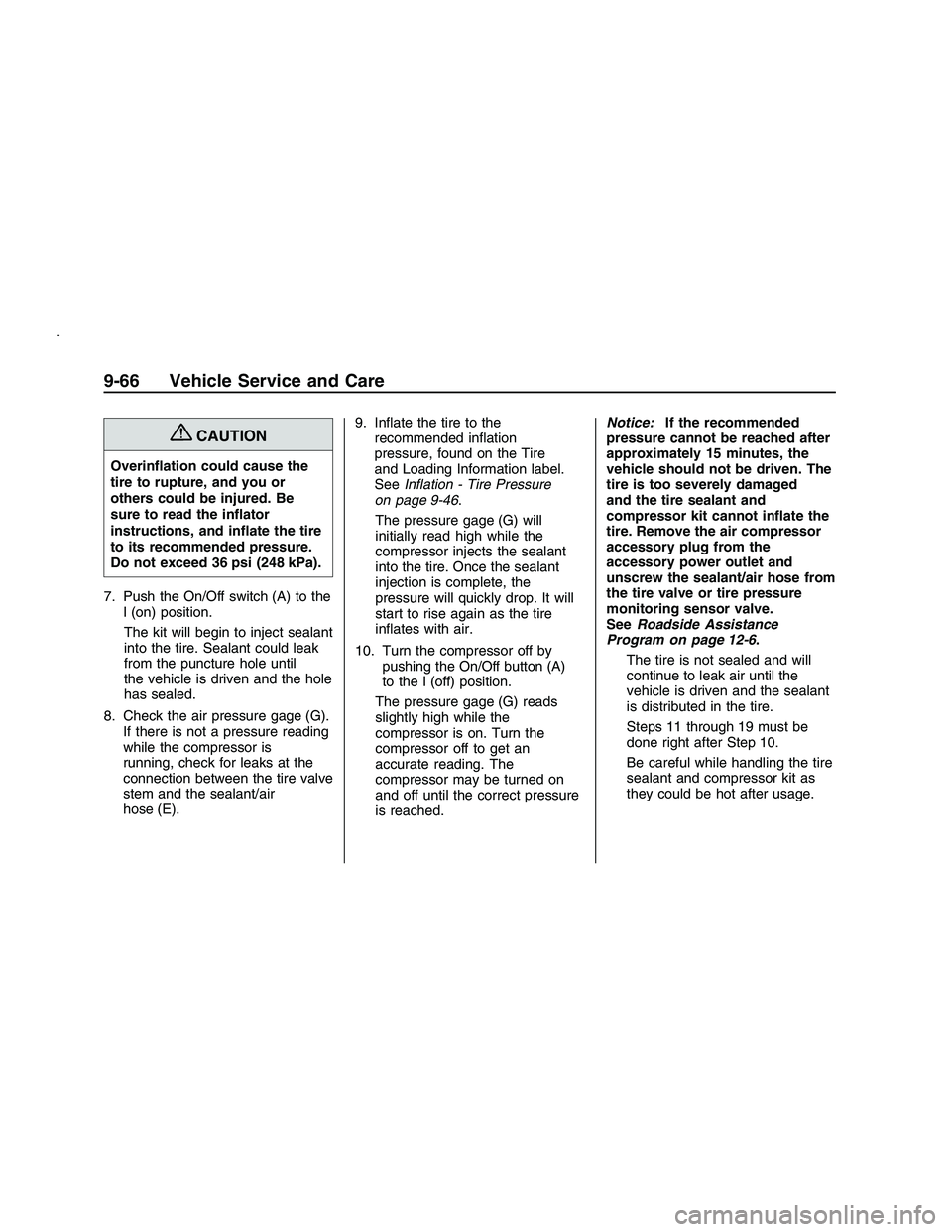

{CAUTION
Overin ation could cause the
tire to rupture, and you or
others could be injured. Be
sure to read the in ator
instructions, and in ate the tire
to its recommended pressure.
Do not exceed 36 psi (248 kPa).
7. Push the On/Off switch (A) to the
I (on) position.
The kit will begin to inject sealant
into the tire. Sealant could leak
from the puncture hole until
the vehicle is driven and the hole
has sealed.
8. Check the air pressure gage (G).
If there is not a pressure reading
while the compressor is
running, check for leaks at the
connection between the tire valve
stem and the sealant/air
hose (E).9. In ate the tire to the
recommended in ation
pressure, found on the Tire
and Loading Information label.
SeeInflation - Tire Pressure
on page 9-46.
The pressure gage (G) will
initially read high while the
compressor injects the sealant
into the tire. Once the sealant
injection is complete, the
pressure will quickly drop. It will
start to rise again as the tire
in ates with air.
10. Turn the compressor off by
pushing the On/Off button (A)
to the I (off) position.
The pressure gage (G) reads
slightly high while the
compressor is on. Turn the
compressor off to get an
accurate reading. The
compressor may be turned on
and off until the correct pressure
is reached.Notice:If the recommended
pressure cannot be reached after
approximately 15 minutes, the
vehicle should not be driven. The
tire is too severely damaged
and the tire sealant and
compressor kit cannot in ate the
tire. Remove the air compressor
accessory plug from the
accessory power outlet and
unscrew the sealant/air hose from
the tire valve or tire pressure
monitoring sensor valve.
SeeRoadside Assistance
Program on page 12-6.
The tire is not sealed and will
continue to leak air until the
vehicle is driven and the sealant
is distributed in the tire.
Steps 11 through 19 must be
done right after Step 10.
Be careful while handling the tire
sealant and compressor kit as
they could be hot after usage.
9-66 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
