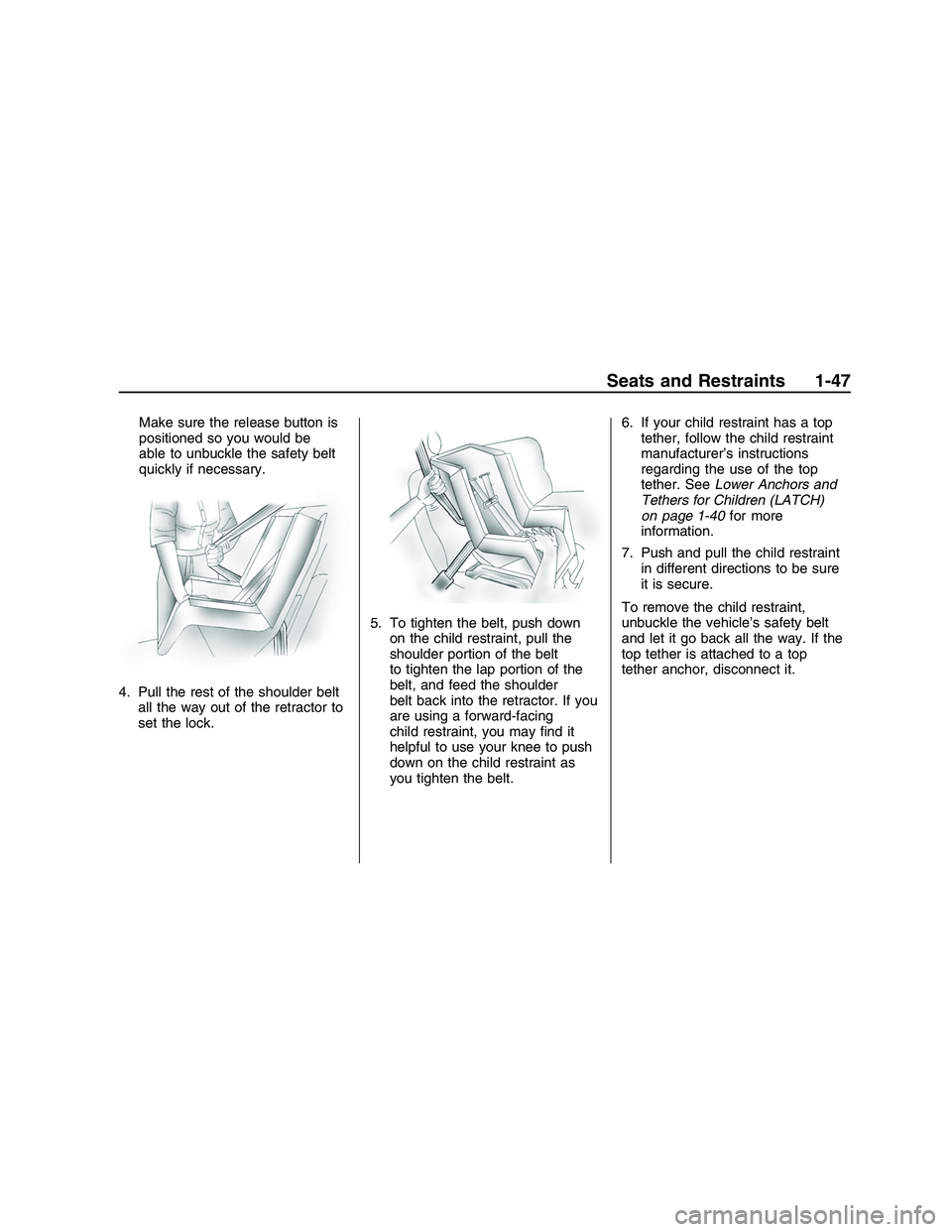

Make sure the release button is
positioned so you would be
able to unbuckle the safety belt
quickly if necessary.
4. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.5. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt
to tighten the lap portion of the
belt, and feed the shoulder
belt back into the retractor. If you
are using a forward-facing
child restraint, you may nd it
helpful to use your knee to push
down on the child restraint as
you tighten the belt.6. If your child restraint has a top
tether, follow the child restraint
manufacturer’s instructions
regarding the use of the top
tether. SeeLower Anchors and
Tethers for Children (LATCH)
on page 1-40for more
information.
7. Push and pull the child restraint
in different directions to be sure
it is secure.
To remove the child restraint,
unbuckle the vehicle’s safety belt
and let it go back all the way. If the
top tether is attached to a top
tether anchor, disconnect it.
Seats and Restraints 1-47
2008 - Pontiac G8 Owner Manual

Securing Child Restraints
(Right Front Seat)
This vehicle has airbags. A rear
seat is a safer place to secure
a forward-facing child restraint. See
Where to Put the Restraint on
page 1-38.
In addition, the vehicle has a
passenger sensing system which is
designed to turn off the right
front passenger frontal airbag under
certain conditions. SeePassenger
Sensing System on page 1-26
andPassenger Airbag Status
Indicator on page 4-14for more
information, including important
safety information.
A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously
injured or killed if the right
front passenger airbag inates.
This is because the back of
the rear-facing child restraint
would be very close to the
inating airbag. A child in a
forward-facing child restraint
can be seriously injured
or killed if the right front
passenger airbag inates and
the passenger seat is in a
forward position.
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag,
no system is fail-safe. No one
can guarantee that an airbag
will not deploy under some
unusual circumstance, even
though it is turned off.
(Continued)
CAUTION (Continued)
Secure rear-facing child
restraints in a rear seat, even if
the airbag is off. If you secure a
forward-facing child restraint in
the right front seat, always
move the front passenger seat
as far back as it will go. It is
better to secure the child
restraint in a rear seat.
SeePassenger Sensing System
on page 1-26for additional
information.
If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-40for how to install the
child restraint using LATCH. If
you secure a child restraint using a
safety belt and it uses a top
tether, seeLower Anchors and
Tethers for Children (LATCH) on
page 1-40for top tether anchor
locations.
1-48 Seats and Restraints
2008 - Pontiac G8 Owner Manual

Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with
the child restraint say that the top
strap must be anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.
You will be using the lap-shoulder
belt to secure the child restraint in
this position. Follow the instructions
that came with the child restraint.
1. Move the seat as far back as it
will go before securing the
forward-facing child restraint.
When the passenger sensing
system has turned off the
right front passenger frontal
airbag, the off indicator on the
passenger airbag status indicator
should light and stay lit when
the vehicle is started. See
Passenger Airbag Status
Indicator on page 4-14.2. Put the child restraint on
the seat.
3. Pick up the latch plate, and run
the lap and shoulder portions of
the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.
4. Push the latch plate into the
buckle until it clicks.
Make sure the release button is
positioned so you would be
able to unbuckle the safety belt
quickly if necessary.5. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.
Seats and Restraints 1-49
2008 - Pontiac G8 Owner Manual

6. To tighten the belt, push down on
the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt
and feed the shoulder belt back
into the retractor. If you are using
a forward-facing child restraint,
you may nd it helpful to use your
knee to push down on the child
restraint as you tighten the belt.7. Push and pull the child restraint
in different directions to be sure
it is secure.
If the airbag is off, the off indicator
in the passenger airbag status
indicator will come on and stay on
when the vehicle is started.
If a child restraint has been installed
and the on indicator is lit, turn the
vehicle off. Remove the child
restraint from the vehicle and
reinstall the child restraint.
If, after reinstalling the child restraint
and restarting the vehicle, the on
indicator is still lit, check to make
sure that the vehicle’s seatback is
not pressing the child restraint into
the seat cushion. If this happens,slightly recline the vehicle’s seatback
and adjust the seat cushion if
possible. Also make sure the child
restraint is not trapped under the
vehicle head restraint. If this
happens, adjust the head restraint.
If the on indicator is still lit, secure
the child in the child restraint in
a rear seat position in the vehicle
and check with your dealer/retailer.
To remove the child restraint,
unbuckle the vehicle’s safety belt
and let it go back all the way.
1-50 Seats and Restraints
2008 - Pontiac G8 Owner Manual

Keys, Doors and
Windows
Keys
Keys...................................2-2
Remote Keyless Entry
(RKE) System...................2-3
Remote Keyless Entry
(RKE) System Operation. . .2-4
Remote Vehicle Start..........2-6
Doors and Locks
Door Locks.........................2-8
Power Door Locks..............2-9
Rear Door Security Locks. . .2-9
Trunk................................2-10
Theft-Deterrent Systems
Theft-Deterrent Systems. . . .2-11
Immobilizer.......................2-11
Immobilizer Operation.......2-12
Content Theft-Deterrent.....2-13
Windows
Windows...........................2-14
Power Windows................2-15
Sun Visors........................2-15
Mirrors
Manual Rearview Mirror. . . .2-16
Compass..........................2-16
Outside Power Mirror(s). . . .2-17
Outside Convex Mirror......2-18
Sunroof
Sunroof.............................2-18
Keys, Doors and Windows 2-1
2008 - Pontiac G8 Owner Manual

Keys
{CAUTION
Leaving children in a vehicle
with the ignition key is
dangerous for many reasons,
children or others could be
badly injured or even killed.
They could operate the power
windows or other controls or
even make the vehicle move.
The windows will function with
the keys in the ignition and
children could be seriously
injured or killed if caught in the
path of a closing window. Do
not leave the keys in a vehicle
with children.One key, located inside the Remote
Keyless Entry (RKE) transmitter,
can be used for the ignition and all
locks except the glovebox.
Press the button on the RKE
transmitter to extend the key. Press
the button and the key blade to
retract the key.
A xed blade key is also supplied
for the glovebox.
See your dealer/retailer if a new key
is needed.
Notice:If you ever lock your
keys in the vehicle, you may have
to damage the vehicle to get in.
Be sure you have spare keys.
Contact Roadside Assistance
or OnStar if you are locked out of
the vehicle. SeeRoadside
Assistance Program on page 12-6
orOnStar
®System on page 4-36.
2-2 Keys, Doors and Windows
2008 - Pontiac G8 Owner Manual

Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
system operates on a radio
frequency subject to Federal
Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of
the FCC Rules. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.This device complies with RSS-210
of Industry Canada. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.If there is a decrease in the RKE
operating range, try this:Check the distance. The
transmitter may be too far from
the vehicle. Stand closer
during rainy or snowy weather.
Check the location. Other
vehicles or objects may be
blocking the signal. Take a few
steps to the left or right, hold
the transmitter higher, and
try again.
Check the transmitter’s battery.
See “Battery Replacement”
later in this section.
If the transmitter is still not
working correctly, see your
dealer/retailer or a qualied
technician for service.
Keys, Doors and Windows 2-3
2008 - Pontiac G8 Owner Manual

Remote Keyless Entry
(RKE) System Operation
The Remote Keyless Entry (RKE)
transmitter functions will work up to
195 feet (60 m) away, however,
the operating range may be
less while the vehicle is running.
There are other conditions
which can affect the performance of
the transmitter. SeeRemote
Keyless Entry (RKE) System on
page 2-3.The following functions may be
available if your vehicle has the RKE
system.Q(Lock):Press to lock all doors.
You can program the vehicle so
the turn signal indicators ash or the
horn sounds when pressing
Qon
the RKE transmitter. For more
information see “Flash Remote
Lock” and “Beep Remote Lock”
underDIC Vehicle Customization on
page 4-32.
If any door is open when
Qis
pressed, the horn will chirp ve
times as a reminder. All doors will
lock except the open door.
If the driver door is open when
Qis
pressed, all doors will lock except
the driver door.
Pressing
Qmay also arm the
content theft-deterrent system. See
Content Theft-Deterrent on
page 2-13.
K(Unlock):Press to unlock the
driver door or all doors depending
on the personalization setting.
To customize remote unlocking, see
“Two Stage Unlock” underDIC
Vehicle Customization on page 4-32.
You can program the vehicle so
the turn signal indicators ash when
pressing
Kon the RKE transmitter.
For more information see “Flash
Remote Unlock” underDIC Vehicle
Customization on page 4-32.
Pressing
Kmay also disarm the
content theft-deterrent system. See
Content Theft-Deterrent on
page 2-13.
V(Remote Trunk Release):
Press and hold to open the trunk.
RKE with Remote Start Shown
2-4 Keys, Doors and Windows
2008 - Pontiac G8 Owner Manual

L(Vehicle Locator/Panic
Alarm):Press and release one time
to locate your vehicle. The exterior
lamps will ash and the horn
will chirp.
Press and hold
Lfor at least
two seconds to sound the panic
alarm. The horn will sound and the
turn signals will ash until
Lis
pressed again or the key is placed
in the ignition and turned to
ON/RUN.
/(Remote Vehicle Start):If the
vehicle has this feature, press
/to start the engine from outside
the vehicle using the RKE
transmitter. SeeRemote Vehicle
Start on page 2-6for additional
information.
Personal Identity Keys
This system stores electronic
settings for two different keys. The
settings are stored when a
personal identity key is removed
from the ignition and recalled when
Qon the RKE transmitter is
pressed. For information on storing
climate control settings, radio
settings and trip computer settings,
see “Personal Identity Memories”
underRadio(s) on page 6-3,
“Ignition Keys” underClimate
Control System on page 7-1and
“Trip Computer” underDIC Vehicle
Customization on page 4-32.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to
prevent another transmitter from
unlocking your vehicle. If a
transmitter is lost or stolen, a
replacement can be purchased
through your dealer/retailer. Bringany additional transmitters so they
can also be re-coded to match
the new transmitter. Once your
dealer/retailer has coded the new
transmitter, the lost transmitter
will not unlock your vehicle.
Battery Replacement
The RKE transmitter has a lithium
battery which should last about
three years.
Have the battery replaced if the
Replace Battery in Remote
Key message displays in the DIC or
if the transmitter will not work at
the normal range in any location.
See “Replace Battery in Remote
Key” underDIC Warnings and
Messages on page 4-27.
The battery is not rechargeable.
See your dealer/retailer to replace
the battery.
Keys, Doors and Windows 2-5
2008 - Pontiac G8 Owner Manual

Remote Vehicle Start
Your vehicle may have this feature
which allows you to start the
engine from outside the vehicle.
/(Remote Vehicle Start):This
button will be on the RKE transmitter
if you have remote start.
To enable and disable remote start,
see “Remote Start” underDIC
Vehicle Customization on page 4-32.
Vehicles with an automatic climate
control system will default to a
heating or cooling mode depending
on the outside temperature during
a remote start. When the key
is turned to ON/RUN, the climate
control system will turn on at
the setting the vehicle was set to
when the vehicle was last turned off.Laws in some local communities
may restrict the use of remote
starters. For example, some laws
may require a person using remote
start to have the vehicle in view
when doing so. Check local
regulations for any requirements on
remote starting of vehicles.
If your vehicle is low on fuel, do not
use the remote start feature. The
vehicle may run out of fuel.
If your vehicle has the remote start
feature, the RKE transmitter
functions will have an increased
range of operation. However,
the range may be less while the
vehicle is running.
There are other conditions which
can affect the performance of
the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-3
for additional information.Starting the Engine Using
Remote Start
To start the engine using the remote
start feature:
1. PressQon the RKE transmitter.
2. Press and hold
/for about
two seconds. The turn signal
lamps will briey ash to conrm
the vehicle has been started.
The parking lamps will turn
on and remain on as long as the
engine is running. The vehicle’s
doors will be locked.
3. After entering the vehicle during
a remote start, insert and turn
the key to ON/RUN to drive
the vehicle.
After a remote start, the engine
will automatically shut off
after 10 minutes unless a time
extension has been done or
the vehicle’s key is inserted into
the ignition switch and turned
to ON/RUN.
2-6 Keys, Doors and Windows
2008 - Pontiac G8 Owner Manual
