Seats and Restraints......... 1-1
Front Seats
.................... 1-2
Rear Seats
.................... 1-5
Safety Belts
................... 1-5
Airbag System
..............1-19
Child Restraints
.............1-32
Keys, Doors and
Windows............................ 2-1
Keys
............................. 2-2
Doors and Locks
............ 2-8
Theft-Deterrent
Systems
...................2-11
Windows
......................2-14
Mirrors
.........................2-16
Sunroof
........................2-18
Storage.............................. 3-1
Storage
......................... 3-1
Instruments and
Controls............................. 4-1
Instrument Panel
Overview
.................... 4-2
Warning Lights, Gages,
and Indicators
............4-10Driver Information
Center (DIC)
.............4-23
OnStar
®System
............4-36
Lighting............................. 5-1
Lighting
......................... 5-1
Infotainment...................... 6-1
Audio System(s)
............. 6-1
Climate Controls............... 7-1
Climate Controls
............. 7-1
Driving and Operating....... 8-1
Starting and Operating Your
Vehicle
....................... 8-2
Driving Your Vehicle
......8-13
Fuel
............................8-32
Vehicle Service
and Care............................ 9-1
Service
.......................... 9-2
Owner Checks
................ 9-5
Headlamp Aiming
..........9-27
Bulb Replacement
.........9-29Electrical System
...........9-32
Tires
...........................9-39
Tire Changing
...............9-62
Jump Starting
...............9-80
Towing
........................9-84
Appearance Care
..........9-91
Technical Data.................10-1
Vehicle Identication
. . . . . . 10-1
Capacities and
Specications
............10-2
Service and
Maintenance.....................11-1
Service and
Maintenance
..............11-1
Customer Information. . . . . . 12-1
Customer Information
. . . . . 12-1
Reporting Safety
Defects
...................12-14
Vehicle Data Recording
and Privacy
.............12-16
Index................................... i-1
2008 Pontiac G8 Owner ManualM
2008 - Pontiac G8 Owner Manual

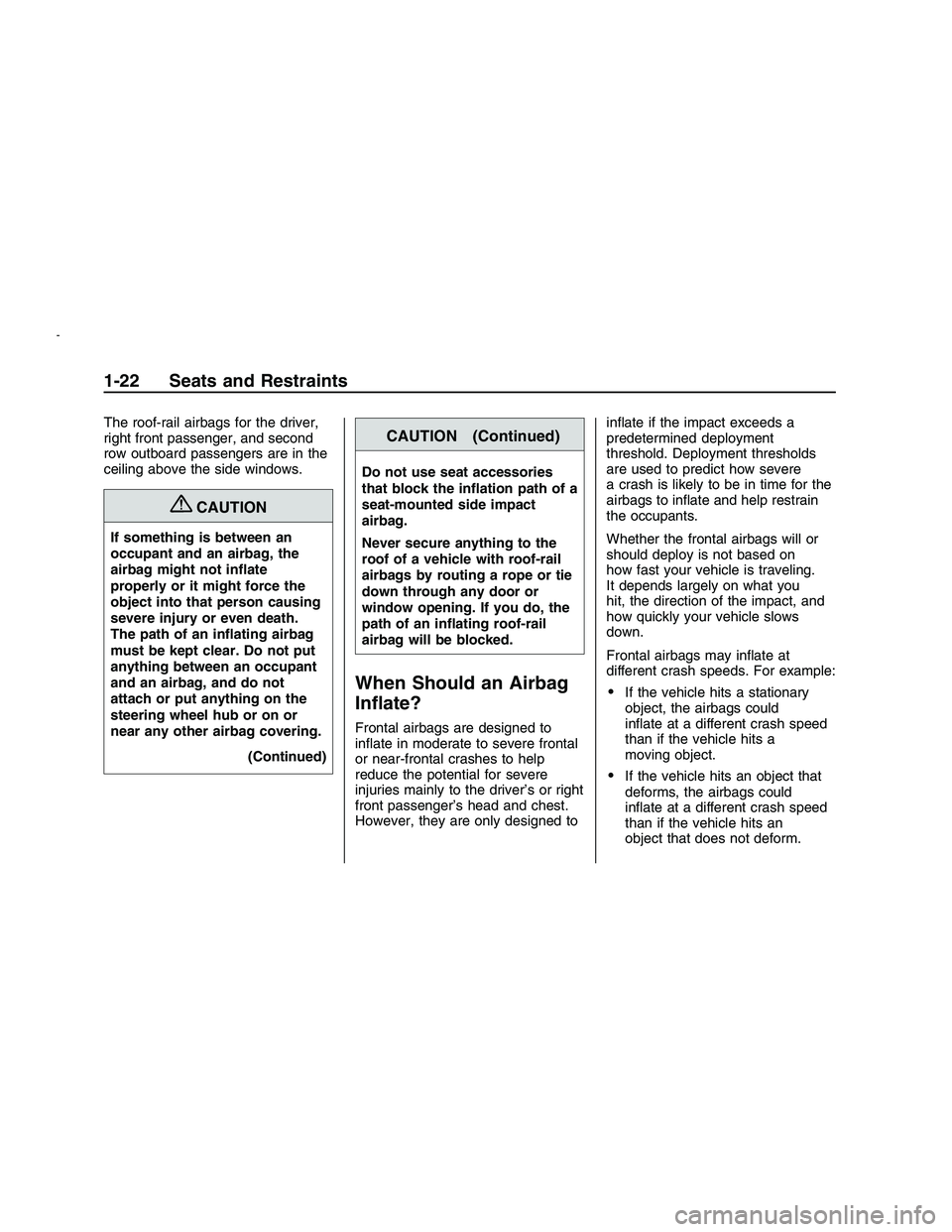

The roof-rail airbags for the driver,
right front passenger, and second
row outboard passengers are in the
ceiling above the side windows.
{CAUTION
If something is between an
occupant and an airbag, the
airbag might not inate
properly or it might force the
object into that person causing
severe injury or even death.
The path of an inating airbag
must be kept clear. Do not put
anything between an occupant
and an airbag, and do not
attach or put anything on the
steering wheel hub or on or
near any other airbag covering.
(Continued)
CAUTION (Continued)
Do not use seat accessories
that block the ination path of a
seat-mounted side impact
airbag.
Never secure anything to the
roof of a vehicle with roof-rail
airbags by routing a rope or tie
down through any door or
window opening. If you do, the
path of an inating roof-rail
airbag will be blocked.
When Should an Airbag
Inate?
Frontal airbags are designed to
inate in moderate to severe frontal
or near-frontal crashes to help
reduce the potential for severe
injuries mainly to the driver’s or right
front passenger’s head and chest.
However, they are only designed toinate if the impact exceeds a
predetermined deployment
threshold. Deployment thresholds
are used to predict how severe
a crash is likely to be in time for the
airbags to inate and help restrain
the occupants.
Whether the frontal airbags will or
should deploy is not based on
how fast your vehicle is traveling.
It depends largely on what you
hit, the direction of the impact, and
how quickly your vehicle slows
down.
Frontal airbags may inate at
different crash speeds. For example:
If the vehicle hits a stationary
object, the airbags could
inate at a different crash speed
than if the vehicle hits a
moving object.
If the vehicle hits an object that
deforms, the airbags could
inate at a different crash speed
than if the vehicle hits an
object that does not deform.
1-22 Seats and Restraints
2008 - Pontiac G8 Owner Manual

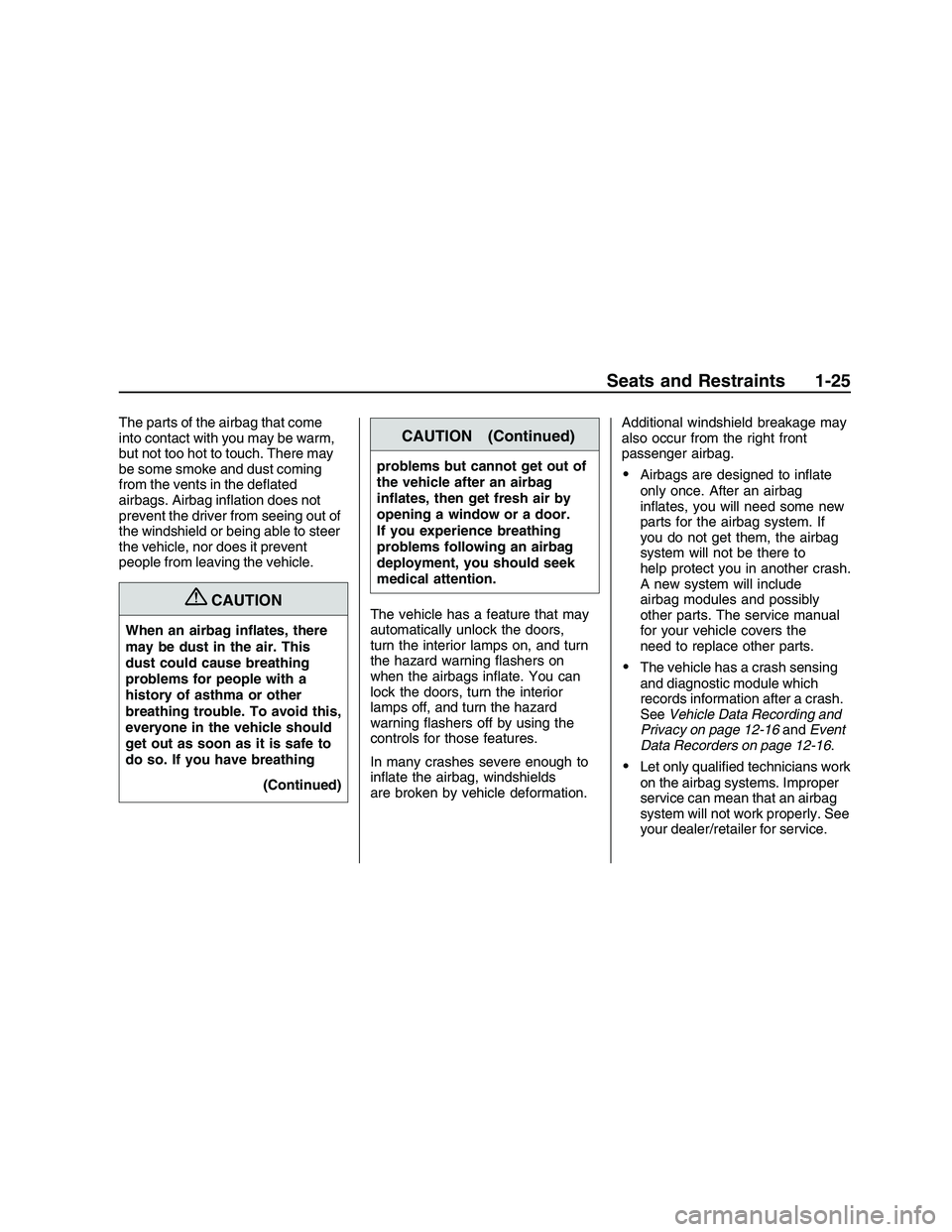

The parts of the airbag that come
into contact with you may be warm,
but not too hot to touch. There may
be some smoke and dust coming
from the vents in the deated
airbags. Airbag ination does not
prevent the driver from seeing out of
the windshield or being able to steer
the vehicle, nor does it prevent
people from leaving the vehicle.
{CAUTION
When an airbag inates, there
may be dust in the air. This
dust could cause breathing
problems for people with a
history of asthma or other
breathing trouble. To avoid this,
everyone in the vehicle should
get out as soon as it is safe to
do so. If you have breathing
(Continued)
CAUTION (Continued)
problems but cannot get out of
the vehicle after an airbag
inates, then get fresh air by
opening a window or a door.
If you experience breathing
problems following an airbag
deployment, you should seek
medical attention.
The vehicle has a feature that may
automatically unlock the doors,
turn the interior lamps on, and turn
the hazard warning ashers on
when the airbags inate. You can
lock the doors, turn the interior
lamps off, and turn the hazard
warning ashers off by using the
controls for those features.
In many crashes severe enough to
inate the airbag, windshields
are broken by vehicle deformation.Additional windshield breakage may
also occur from the right front
passenger airbag.Airbags are designed to inate
only once. After an airbag
inates, you will need some new
parts for the airbag system. If
you do not get them, the airbag
system will not be there to
help protect you in another crash.
A new system will include
airbag modules and possibly
other parts. The service manual
for your vehicle covers the
need to replace other parts.
The vehicle has a crash sensing
and diagnostic module which
records information after a crash.
SeeVehicle Data Recording and
Privacy on page 12-16andEvent
Data Recorders on page 12-16.
Let only qualied technicians work
on the airbag systems. Improper
service can mean that an airbag
system will not work properly. See
your dealer/retailer for service.
Seats and Restraints 1-25
2008 - Pontiac G8 Owner Manual

Keys, Doors and
Windows
Keys
Keys...................................2-2
Remote Keyless Entry
(RKE) System...................2-3
Remote Keyless Entry
(RKE) System Operation. . .2-4
Remote Vehicle Start..........2-6
Doors and Locks
Door Locks.........................2-8
Power Door Locks..............2-9
Rear Door Security Locks. . .2-9
Trunk................................2-10
Theft-Deterrent Systems
Theft-Deterrent Systems. . . .2-11
Immobilizer.......................2-11
Immobilizer Operation.......2-12
Content Theft-Deterrent.....2-13
Windows
Windows...........................2-14
Power Windows................2-15
Sun Visors........................2-15
Mirrors
Manual Rearview Mirror. . . .2-16
Compass..........................2-16
Outside Power Mirror(s). . . .2-17
Outside Convex Mirror......2-18
Sunroof
Sunroof.............................2-18
Keys, Doors and Windows 2-1
2008 - Pontiac G8 Owner Manual

Keys
{CAUTION
Leaving children in a vehicle
with the ignition key is
dangerous for many reasons,
children or others could be
badly injured or even killed.
They could operate the power
windows or other controls or
even make the vehicle move.
The windows will function with
the keys in the ignition and
children could be seriously
injured or killed if caught in the
path of a closing window. Do
not leave the keys in a vehicle
with children.One key, located inside the Remote
Keyless Entry (RKE) transmitter,
can be used for the ignition and all
locks except the glovebox.
Press the button on the RKE
transmitter to extend the key. Press
the button and the key blade to
retract the key.
A xed blade key is also supplied
for the glovebox.
See your dealer/retailer if a new key
is needed.
Notice:If you ever lock your
keys in the vehicle, you may have
to damage the vehicle to get in.
Be sure you have spare keys.
Contact Roadside Assistance
or OnStar if you are locked out of
the vehicle. SeeRoadside
Assistance Program on page 12-6
orOnStar
®System on page 4-36.
2-2 Keys, Doors and Windows
2008 - Pontiac G8 Owner Manual

Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
system operates on a radio
frequency subject to Federal
Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of
the FCC Rules. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.This device complies with RSS-210
of Industry Canada. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.If there is a decrease in the RKE
operating range, try this:Check the distance. The
transmitter may be too far from
the vehicle. Stand closer
during rainy or snowy weather.
Check the location. Other
vehicles or objects may be
blocking the signal. Take a few
steps to the left or right, hold
the transmitter higher, and
try again.
Check the transmitter’s battery.
See “Battery Replacement”
later in this section.
If the transmitter is still not
working correctly, see your
dealer/retailer or a qualied
technician for service.
Keys, Doors and Windows 2-3
2008 - Pontiac G8 Owner Manual

Remote Keyless Entry
(RKE) System Operation
The Remote Keyless Entry (RKE)
transmitter functions will work up to
195 feet (60 m) away, however,
the operating range may be
less while the vehicle is running.
There are other conditions
which can affect the performance of
the transmitter. SeeRemote
Keyless Entry (RKE) System on
page 2-3.The following functions may be
available if your vehicle has the RKE
system.Q(Lock):Press to lock all doors.
You can program the vehicle so
the turn signal indicators ash or the
horn sounds when pressing
Qon
the RKE transmitter. For more
information see “Flash Remote
Lock” and “Beep Remote Lock”
underDIC Vehicle Customization on
page 4-32.
If any door is open when
Qis
pressed, the horn will chirp ve
times as a reminder. All doors will
lock except the open door.
If the driver door is open when
Qis
pressed, all doors will lock except
the driver door.
Pressing
Qmay also arm the
content theft-deterrent system. See
Content Theft-Deterrent on
page 2-13.
K(Unlock):Press to unlock the
driver door or all doors depending
on the personalization setting.
To customize remote unlocking, see
“Two Stage Unlock” underDIC
Vehicle Customization on page 4-32.
You can program the vehicle so
the turn signal indicators ash when
pressing
Kon the RKE transmitter.
For more information see “Flash
Remote Unlock” underDIC Vehicle
Customization on page 4-32.
Pressing
Kmay also disarm the
content theft-deterrent system. See
Content Theft-Deterrent on
page 2-13.
V(Remote Trunk Release):
Press and hold to open the trunk.
RKE with Remote Start Shown
2-4 Keys, Doors and Windows
2008 - Pontiac G8 Owner Manual

L(Vehicle Locator/Panic
Alarm):Press and release one time
to locate your vehicle. The exterior
lamps will ash and the horn
will chirp.
Press and hold
Lfor at least
two seconds to sound the panic
alarm. The horn will sound and the
turn signals will ash until
Lis
pressed again or the key is placed
in the ignition and turned to
ON/RUN.
/(Remote Vehicle Start):If the
vehicle has this feature, press
/to start the engine from outside
the vehicle using the RKE
transmitter. SeeRemote Vehicle
Start on page 2-6for additional
information.
Personal Identity Keys
This system stores electronic
settings for two different keys. The
settings are stored when a
personal identity key is removed
from the ignition and recalled when
Qon the RKE transmitter is
pressed. For information on storing
climate control settings, radio
settings and trip computer settings,
see “Personal Identity Memories”
underRadio(s) on page 6-3,
“Ignition Keys” underClimate
Control System on page 7-1and
“Trip Computer” underDIC Vehicle
Customization on page 4-32.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to
prevent another transmitter from
unlocking your vehicle. If a
transmitter is lost or stolen, a
replacement can be purchased
through your dealer/retailer. Bringany additional transmitters so they
can also be re-coded to match
the new transmitter. Once your
dealer/retailer has coded the new
transmitter, the lost transmitter
will not unlock your vehicle.
Battery Replacement
The RKE transmitter has a lithium
battery which should last about
three years.
Have the battery replaced if the
Replace Battery in Remote
Key message displays in the DIC or
if the transmitter will not work at
the normal range in any location.
See “Replace Battery in Remote
Key” underDIC Warnings and
Messages on page 4-27.
The battery is not rechargeable.
See your dealer/retailer to replace
the battery.
Keys, Doors and Windows 2-5
2008 - Pontiac G8 Owner Manual

Remote Vehicle Start
Your vehicle may have this feature
which allows you to start the
engine from outside the vehicle.
/(Remote Vehicle Start):This
button will be on the RKE transmitter
if you have remote start.
To enable and disable remote start,
see “Remote Start” underDIC
Vehicle Customization on page 4-32.
Vehicles with an automatic climate
control system will default to a
heating or cooling mode depending
on the outside temperature during
a remote start. When the key
is turned to ON/RUN, the climate
control system will turn on at
the setting the vehicle was set to
when the vehicle was last turned off.Laws in some local communities
may restrict the use of remote
starters. For example, some laws
may require a person using remote
start to have the vehicle in view
when doing so. Check local
regulations for any requirements on
remote starting of vehicles.
If your vehicle is low on fuel, do not
use the remote start feature. The
vehicle may run out of fuel.
If your vehicle has the remote start
feature, the RKE transmitter
functions will have an increased
range of operation. However,
the range may be less while the
vehicle is running.
There are other conditions which
can affect the performance of
the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-3
for additional information.Starting the Engine Using
Remote Start
To start the engine using the remote
start feature:
1. PressQon the RKE transmitter.
2. Press and hold
/for about
two seconds. The turn signal
lamps will briey ash to conrm
the vehicle has been started.
The parking lamps will turn
on and remain on as long as the
engine is running. The vehicle’s
doors will be locked.
3. After entering the vehicle during
a remote start, insert and turn
the key to ON/RUN to drive
the vehicle.
After a remote start, the engine
will automatically shut off
after 10 minutes unless a time
extension has been done or
the vehicle’s key is inserted into
the ignition switch and turned
to ON/RUN.
2-6 Keys, Doors and Windows
2008 - Pontiac G8 Owner Manual

Extending Engine Run Time
To extend the engine run time by
10 minutes, repeat Steps 1 and 2
while the engine is still running.
The engine run time can only be
extended if it is the rst remote start
since the vehicle has been driven.
Remote start can be extended
one time.
If the remote start procedure is used
again before the rst 10 minute
time frame has ended, the rst
10 minutes will immediately expire
and the second 10 minute time
frame will start.
For example, if the lock button and
then the remote start buttons
are pressed again after the vehicle
has been running for ve minutes,
10 minutes are added, allowing
the engine to run for a total of
15 minutes.
A maximum of two remote starts or
remote start attempts are allowed
between ignition cycles.After your vehicle’s engine has been
started two times using the remote
start button, the vehicle’s ignition
switch must be turned to ON/RUN
and then back to LOCK/OFF
using the key before the remote
start procedure can be used again.
Shutting the Engine Off After
a Remote Start
To manually shut off the engine
after a remote start, do any of the
following:
Press/until the parking lamps
turn off.
Turn on the hazard warning
ashers.
Insert the vehicle’s key into the
ignition switch and turn the
switch to ON/RUN and then back
to LOCK/OFF.Conditions in Which Remote Start
Will Not Work
The remote vehicle start feature will
not operate if any of the following
occur:
The vehicle’s key is in the
ignition.
The vehicle’s hood or doors are
not closed.
The hazard warning ashers
are on.
There is an emission control
system malfunction.
The engine coolant temperature
is too high.
The oil pressure is low.
Two remote vehicle starts have
already been used. The
maximum number of remote
starts or remote start attempts
between ignition cycles with
the key is two.
The vehicle is not in PARK (P).
Keys, Doors and Windows 2-7
2008 - Pontiac G8 Owner Manual
