relay PONTIAC G8 2008 Owners Manual

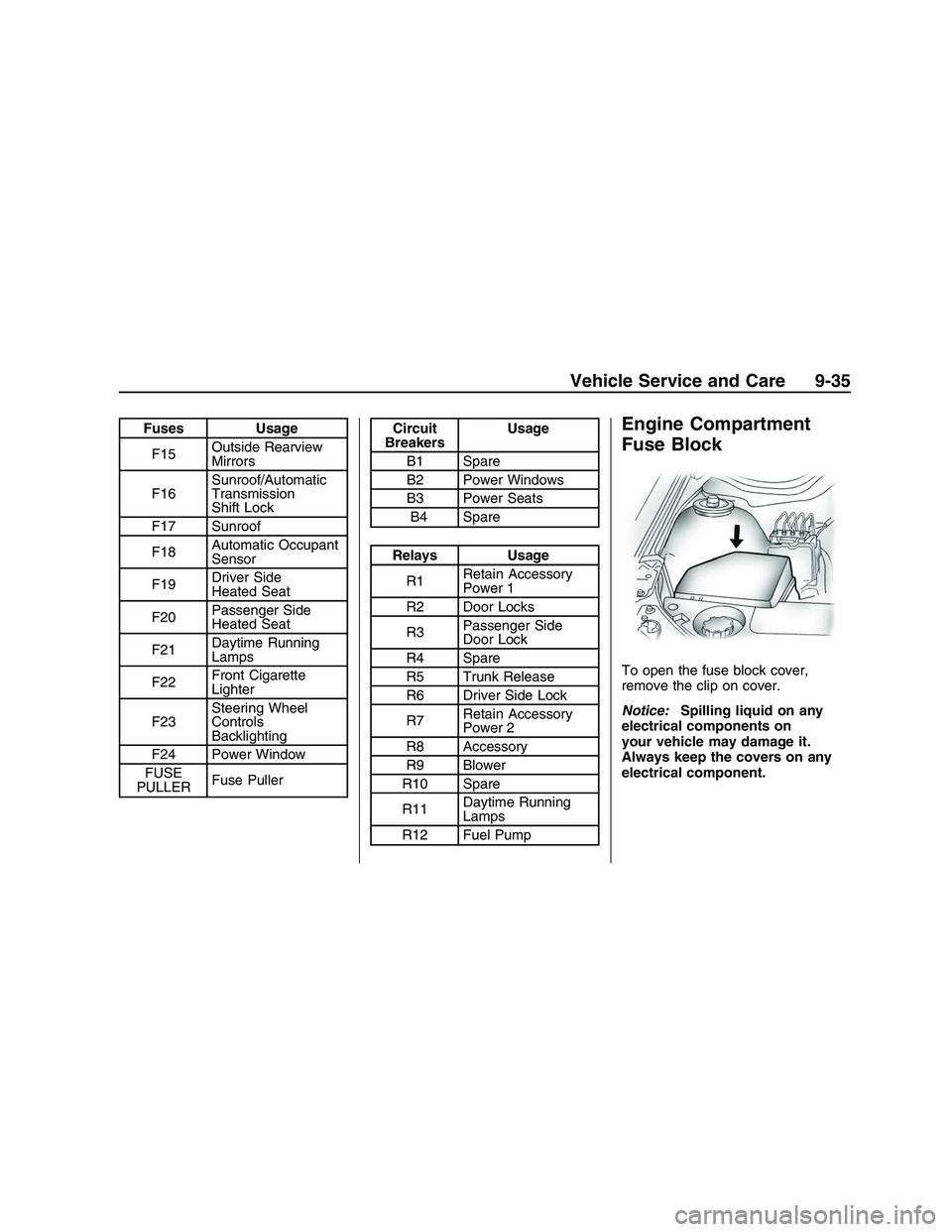

Fuses Usage
F15Outside Rearview
Mirrors
F16Sunroof/Automatic
Transmission
Shift Lock
F17 Sunroof
F18Automatic Occupant
Sensor
F19Driver Side
Heated Seat
F20Passenger Side
Heated Seat
F21Daytime Running
Lamps
F22Front Cigarette
Lighter
F23Steering Wheel
Controls
Backlighting
F24 Power Window
FUSE
PULLERFuse PullerCircuit
BreakersUsage
B1 Spare
B2 Power Windows
B3 Power Seats
B4 Spare
Relays Usage
R1Retain Accessory
Power 1
R2 Door Locks
R3Passenger Side
Door Lock
R4 Spare
R5 Trunk Release
R6 Driver Side Lock
R7Retain Accessory
Power 2
R8 Accessory
R9 Blower
R10 Spare
R11Daytime Running
Lamps
R12 Fuel Pump
Engine Compartment
Fuse Block
To open the fuse block cover,
remove the clip on cover.
Notice:Spilling liquid on any
electrical components on
your vehicle may damage it.
Always keep the covers on any
electrical component.
Vehicle Service and Care 9-35
2008 - Pontiac G8 Owner Manual

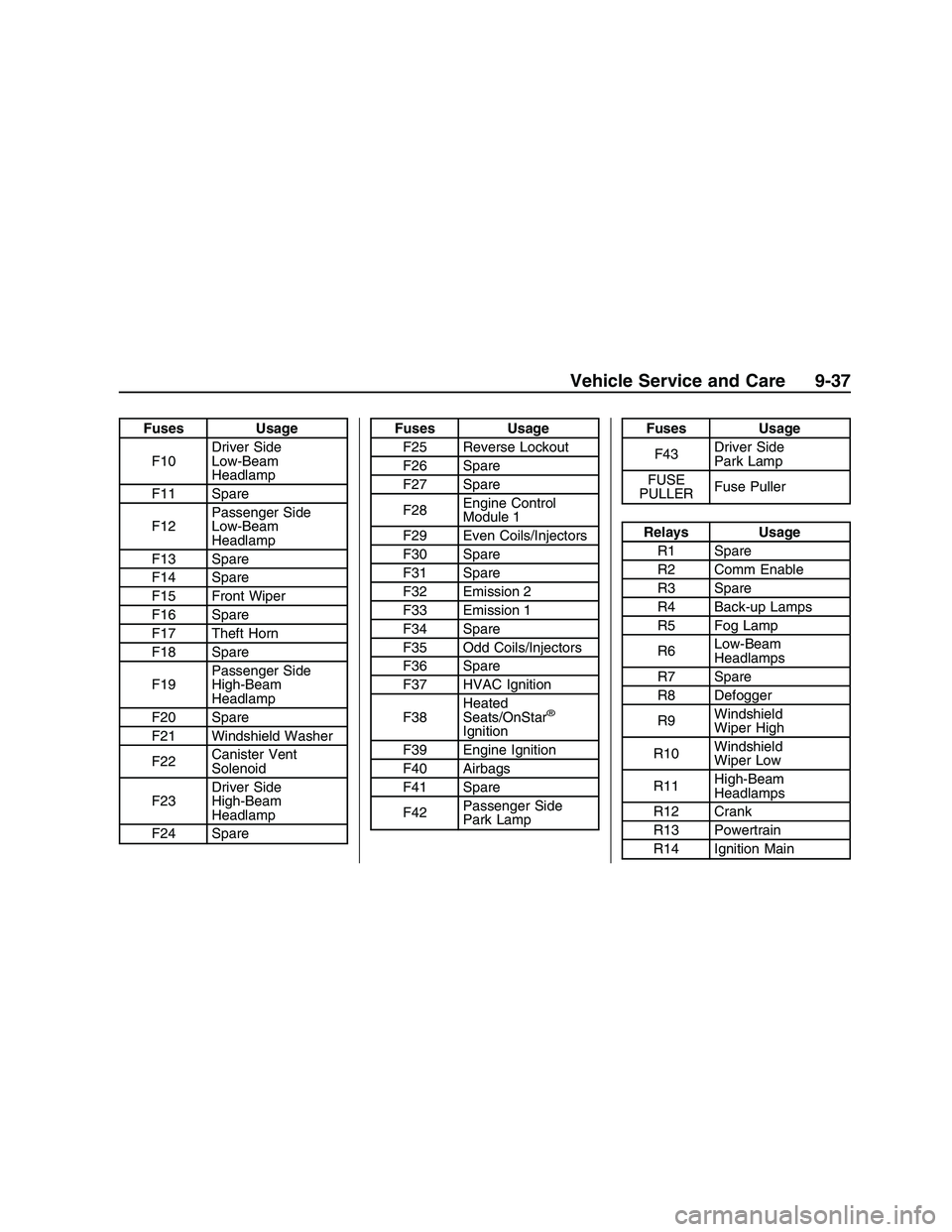

Fuses Usage
F10Driver Side
Low-Beam
Headlamp
F11 Spare
F12Passenger Side
Low-Beam
Headlamp
F13 Spare
F14 Spare
F15 Front Wiper
F16 Spare
F17 Theft Horn
F18 Spare
F19Passenger Side
High-Beam
Headlamp
F20 Spare
F21 Windshield Washer
F22Canister Vent
Solenoid
F23Driver Side
High-Beam
Headlamp
F24 SpareFuses Usage
F25 Reverse Lockout
F26 Spare
F27 Spare
F28Engine Control
Module 1
F29 Even Coils/Injectors
F30 Spare
F31 Spare
F32 Emission 2
F33 Emission 1
F34 Spare
F35 Odd Coils/Injectors
F36 Spare
F37 HVAC Ignition
F38Heated
Seats/OnStar
®
Ignition
F39 Engine Ignition
F40 Airbags
F41 Spare
F42Passenger Side
Park Lamp
Fuses Usage
F43Driver Side
Park Lamp
FUSE
PULLERFuse Puller
Relays Usage
R1 Spare
R2 Comm Enable
R3 Spare
R4 Back-up Lamps
R5 Fog Lamp
R6Low-Beam
Headlamps
R7 Spare
R8 Defogger
R9Windshield
Wiper High
R10Windshield
Wiper Low
R11High-Beam
Headlamps
R12 Crank
R13 Powertrain
R14 Ignition Main
Vehicle Service and Care 9-37
2008 - Pontiac G8 Owner Manual

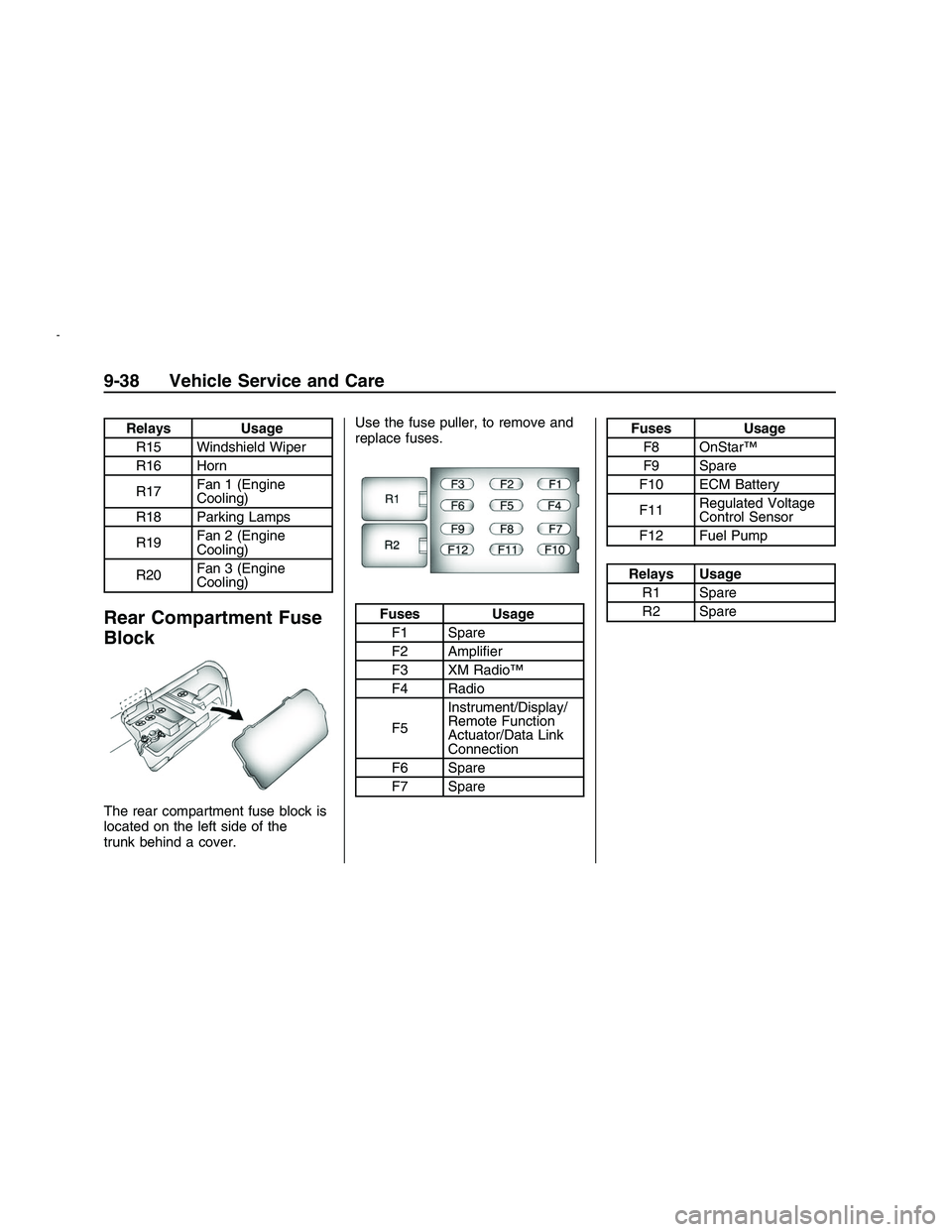

Relays Usage
R15 Windshield Wiper
R16 Horn
R17Fan 1 (Engine
Cooling)
R18 Parking Lamps
R19Fan 2 (Engine
Cooling)
R20Fan 3 (Engine
Cooling)
Rear Compartment Fuse
Block
The rear compartment fuse block is
located on the left side of the
trunk behind a cover.Use the fuse puller, to remove and
replace fuses.
Fuses Usage
F1 Spare
F2 Amplier
F3 XM Radio™
F4 Radio
F5Instrument/Display/
Remote Function
Actuator/Data Link
Connection
F6 Spare
F7 Spare
Fuses Usage
F8 OnStar™
F9 Spare
F10 ECM Battery
F11Regulated Voltage
Control Sensor
F12 Fuel Pump
Relays Usage
R1 Spare
R2 Spare
9-38 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
