torque PONTIAC G8 2008 Owners Manual

Then, see if you can move the shift
lever away from P (Park) without
rst pushing the button.
If you can, it means that the shift
lever was not fully locked into
P (Park).
Torque Lock
If you are parking on a hill and you
do not shift your automatic
transmission into P (Park) properly,
the weight of the vehicle may
put too much force on the parking
pawl in the transmission. You
may nd it difficult to pull the shift
lever out of P (Park). This is
called torque lock. To prevent torque
lock, set the parking brake and
then shift into P (Park) properly
before you leave the driver seat.
To nd out how, see “Shifting
Into Park” previously in the section.
When you are ready to drive, move
the shift lever out of P (Park) before
you release the parking brake.If torque lock does occur, you may
need to have another vehicle
push yours a little uphill to take
some of the pressure from the
parking pawl in the transmission,
so you can pull the shift lever out
of P (Park).Shifting Out of Park
To shift out of P (Park):
1. Apply the brake pedal.
2. Press the shift lever button.
3. Move the shift lever to the
desired position.
If you still are unable to shift out
of P (Park):
1. Fully release the shift lever
button.
2. Hold the brake pedal down and
press the shift lever button again.
3. Move the shift lever to the
desired position.If you still cannot move the shift
lever from P (Park), seeShift Lock
Manual Release on page 9-84.
Parking Over Things
That Burn
{CAUTION
Things that can burn could
touch hot exhaust parts under
your vehicle and ignite. Do not
park over papers, leaves, dry
grass, or other things that
can burn.
Driving and Operating 8-11
2008 - Pontiac G8 Owner Manual

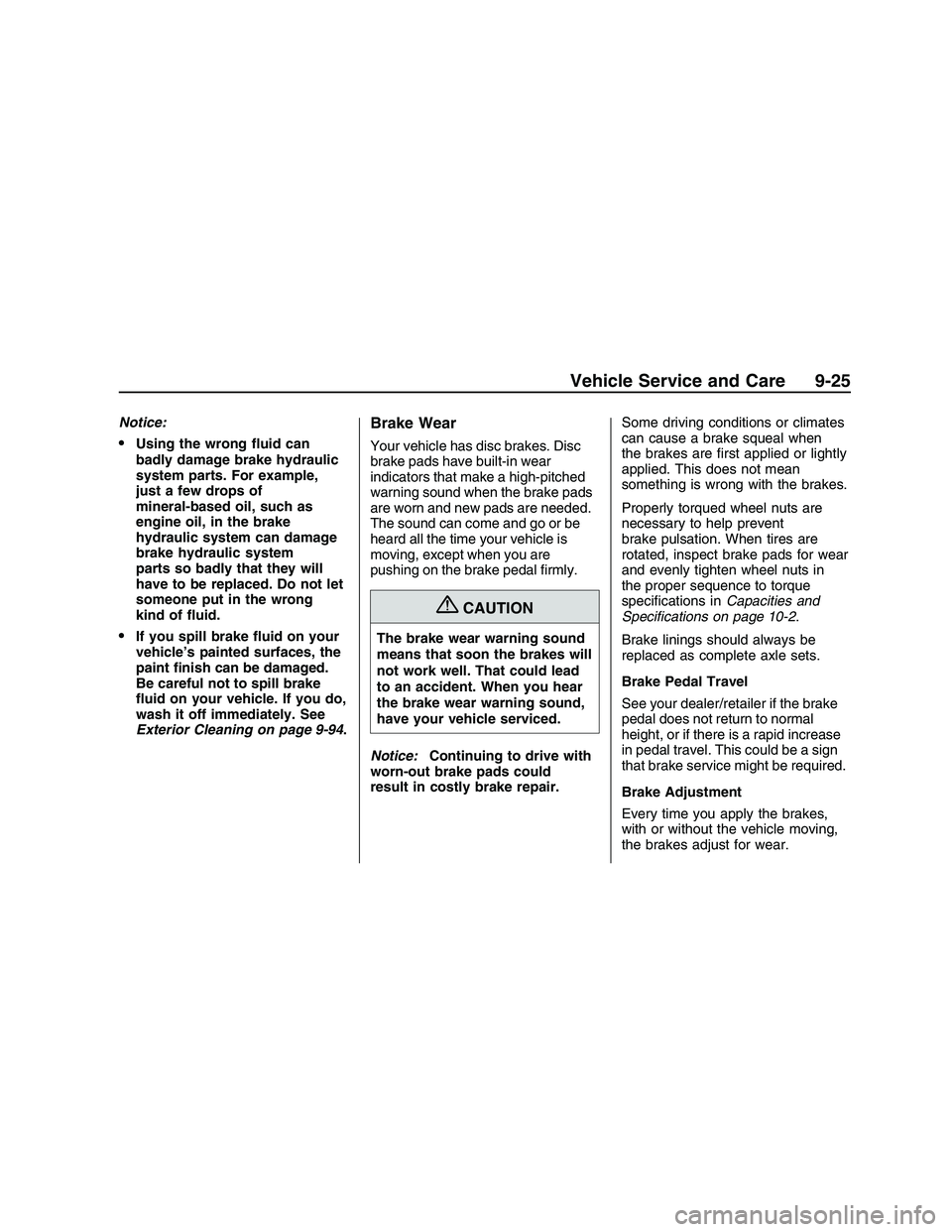

Notice:
Using the wrong uid can
badly damage brake hydraulic
system parts. For example,
just a few drops of
mineral-based oil, such as
engine oil, in the brake
hydraulic system can damage
brake hydraulic system
parts so badly that they will
have to be replaced. Do not let
someone put in the wrong
kind of uid.
If you spill brake uid on your
vehicle’s painted surfaces, the
paint nish can be damaged.
Be careful not to spill brake
uid on your vehicle. If you do,
wash it off immediately. See
Exterior Cleaning on page 9-94.
Brake Wear
Your vehicle has disc brakes. Disc
brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or be
heard all the time your vehicle is
moving, except when you are
pushing on the brake pedal rmly.
{CAUTION
The brake wear warning sound
means that soon the brakes will
not work well. That could lead
to an accident. When you hear
the brake wear warning sound,
have your vehicle serviced.
Notice:Continuing to drive with
worn-out brake pads could
result in costly brake repair.Some driving conditions or climates
can cause a brake squeal when
the brakes are rst applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent
brake pulsation. When tires are
rotated, inspect brake pads for wear
and evenly tighten wheel nuts in
the proper sequence to torque
specications inCapacities and
Specifications on page 10-2.
Brake linings should always be
replaced as complete axle sets.
Brake Pedal Travel
See your dealer/retailer if the brake
pedal does not return to normal
height, or if there is a rapid increase
in pedal travel. This could be a sign
that brake service might be required.
Brake Adjustment
Every time you apply the brakes,
with or without the vehicle moving,
the brakes adjust for wear.
Vehicle Service and Care 9-25
2008 - Pontiac G8 Owner Manual

Any time you notice unusual
wear, rotate the tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels.
SeeWhen It Is Time for New
Tires on page 9-56andWheel
Replacement on page 9-61.
When rotating the vehicle’s tires,
always use the correct rotation
pattern shown here.The compact spare tire, if the
vehicle has one, is not included
in the tire rotation.
After the tires have been rotated,
adjust the front and rear ination
pressures as shown on the Tire
and Loading Information label.
SeeInflation - Tire Pressure on
page 9-46andLoading the
Vehicle on page 8-28.
Reset the Tire Pressure Monitor
System. SeeTire Pressure
Monitor Operation on page 9-51.
Make certain that all wheel
nuts are properly tightened.
See “Wheel Nut Torque” under
Capacities and Specifications
on page 10-2.{CAUTION
Rust or dirt on a wheel, or
on the parts to which it is
fastened, can make wheel
nuts become loose after
time. The wheel could come
off and cause an accident.
When you change a wheel,
remove any rust or dirt from
places where the wheel
attaches to the vehicle. In an
emergency, you can use a
cloth or a paper towel to do
this; but be sure to use a
scraper or wire brush later,
if needed, to get all the rust
or dirt off. SeeChanging a
Flat Tire (V6 Engine) on
page 9-71.
Vehicle Service and Care 9-55
2008 - Pontiac G8 Owner Manual

14. Tighten the wheel nuts rmly in
a crisscross sequence, as
shown.{CAUTION
Incorrect or improperly
tightened wheel nuts can cause
the wheel to come loose and
even come off. This could lead
to a crash. If you have to replace
them, be sure to get new original
equipment wheel nuts. Stop
somewhere as soon as you can
and have the nuts tightened with
a torque wrench to the proper
torque specication. See
Capacities and Specifications
on page 10-2for wheel nut
torque specication.Notice:Improperly tightened
wheel nuts can lead to brake
pulsation and rotor damage. To
avoid expensive brake repairs,
evenly tighten the wheel nuts in
the proper sequence and to
the proper torque specication.
SeeCapacities and Specifications
on page 10-2for the wheel nut
torque specication.
Vehicle Service and Care 9-77
2008 - Pontiac G8 Owner Manual

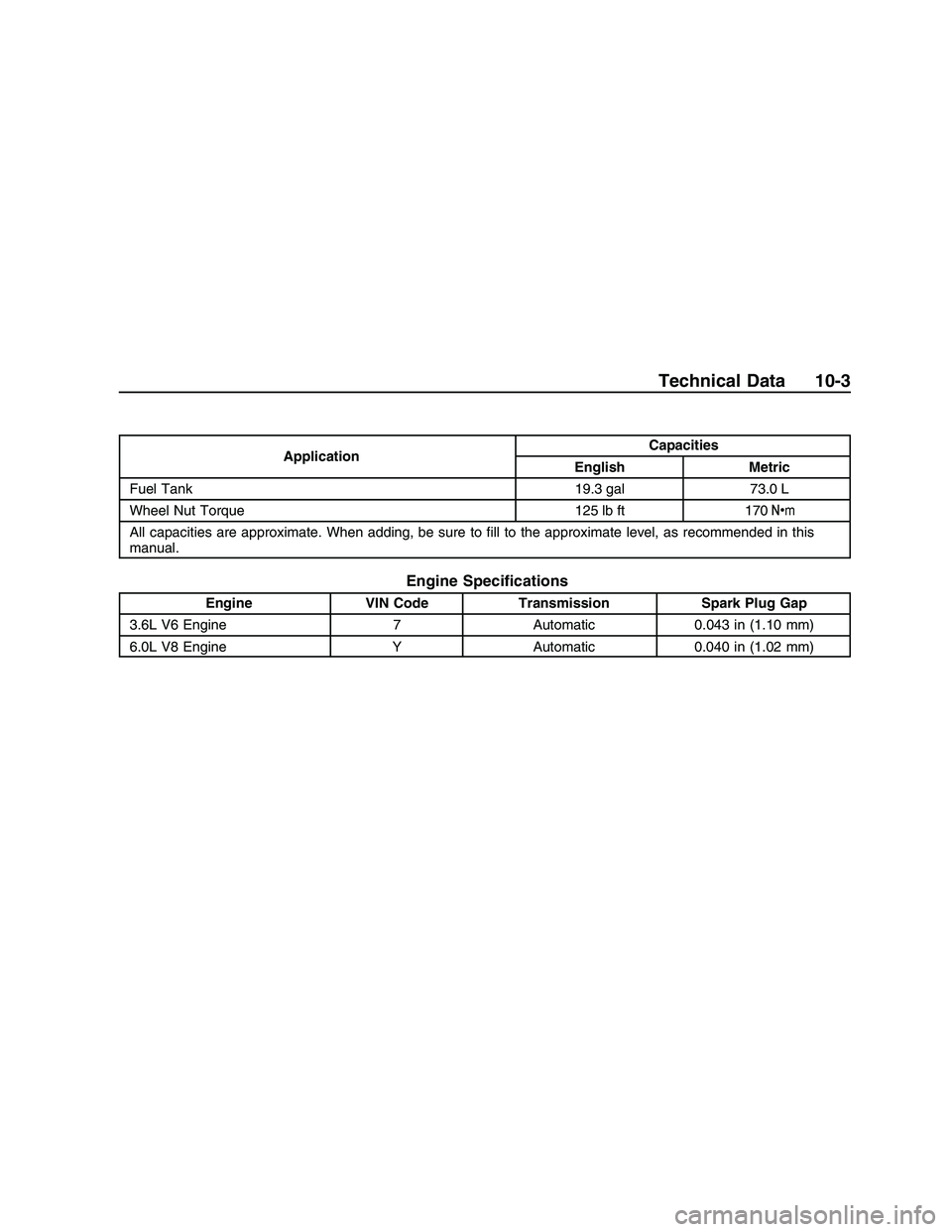

ApplicationCapacities
English Metric
Fuel Tank 19.3 gal 73.0 L
Wheel Nut Torque 125 lb ft 170 Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
3.6L V6 Engine 7 Automatic 0.043 in (1.10 mm)
6.0L V8 Engine Y Automatic 0.040 in (1.02 mm)
Technical Data 10-3
2008 - Pontiac G8 Owner Manual
