PONTIAC GRAND-AM 1994 Workshop Manual

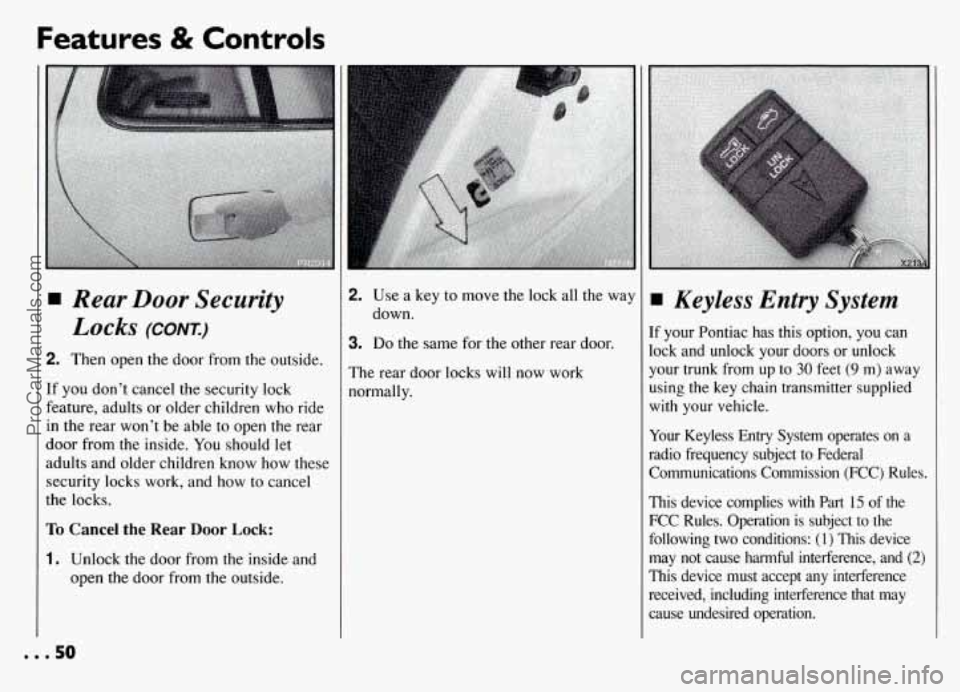

Features & Controls
Rear Door Security
Locks (CONT.)
2. Then open the door from the outside.
If you don’t cancel the security lock
feature, adults or older children who ride
in the rear won’t be able to open the rear
door from the inside. You should let
adults and older children’know how these
security locks work, and how to cancel
the locks.
To Cancel the Rear Door Lock:
1. Unlock the door from the inside and
open the door from the outside.
2. Use a key to move the lock all the way
down.
3. Do the same for the other rear door.
The rear door locks will now work
normally.
Keyless Entry System
If your Pontiac has this option, you can
lock and unlock your doors or unlock
your trunk from up to
30 feet (9 m) away
using the key chain transmitter supplied
with your vehicle.
Your Keyless Entry System operates on a
radio frequency subject to Federal
Communications Commission (FCC) Rules.
This device complies with Part 15 of the
FCC Rules. Operation is subject
to the
following two conditions:
(1) This device
may not cause harmful interference, and
(2)
This device must accept any interference
received, including interference that may cause undesired operation.
... 50
ProCarManuals.com

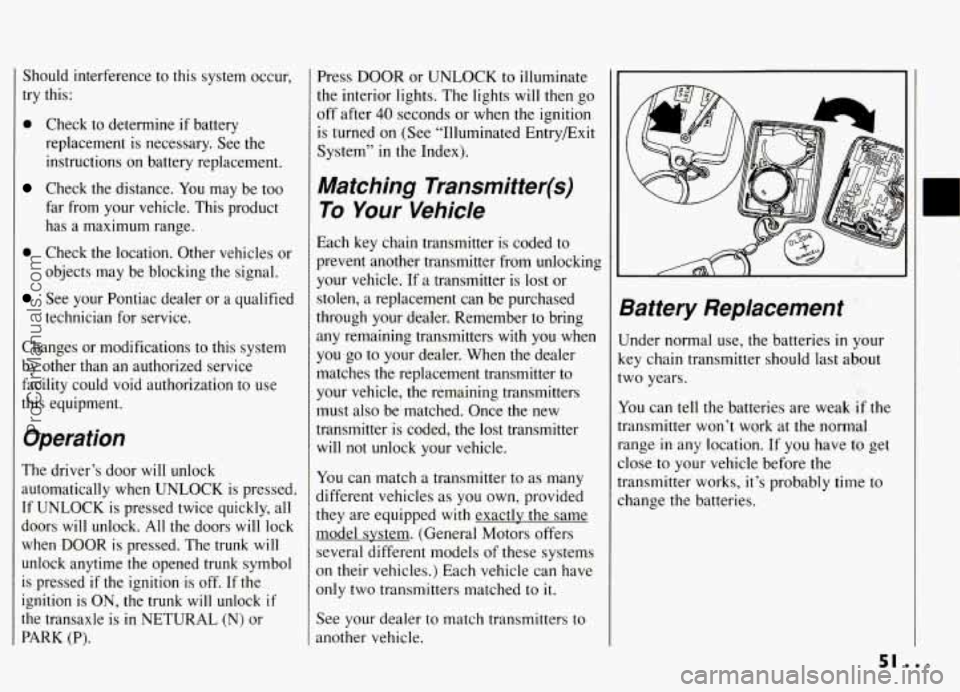

Should interference to this system occur,
try this:
0 Check to determine if battery
replacement is necessary. See the
instructions on battery replacement.
Check the distance. You may be too
far from your vehicle. This product
has a maximum range.
0 Check the location. Other vehicles or
objects may be blocking the signal.
See your Pontiac dealer or a qualified
technician for service.
Changes or modifications to this system
by other
than an authorized service
facility could void authorization to use
this equipment.
Operation
The driver’s door will unlock
automatically
when UNLOCK is pressed.
If UNLOCK
is pressed twice quickly, all
doors
will unlock. All the doors will lock
when DOOR is pressed. The trunk will
unlock anytime the opened trunk symbol is pressed
if the ignition is off. If the
ignition is
ON, the trunk will unlock if
the transaxle is in NETURAL (N) or
PARK (P).
Press DOOR or UNLOCK to illuminate
the interior lights. The lights will then go
off after
40 seconds or when the ignition
is turned on (See “Illuminated Entry/Exit
System”
in the Index).
Matching Transmitter(s)
To Your Vehicle
Each key chain transmitter is coded to
prevent another transmitter from unlocking
your vehicle. If a transmitter is lost or
stolen, a replacement can be purchased
through your dealer. Remember to bring
any remaining transmitters
with you when
you
go to your dealer. When the dealer
matches the replacement transmitter to
your vehicle,
the remaining transmitters
must also
be matched. Once the new
transmitter is coded, the lost transmitter
will not unlock your vehicle.
You can match a transmitter to as many
different vehicles as you own, provided
they are equipped
with exactly the same
model system. (General Motors offers
several different models of these systems
on
their vehicles.) Each vehicle can have
only two transmitters matched to
it.
See your dealer to match transmitters to
another vehicle.
3attery Replacement
Jnder normal use, the batteries in your
ey chain transmitter should last about
NO years.
‘ou can tell the batteries are weak i.f the
-ansmitter won’t work at
the normal
mge
in any location. If you have to get
lose to your vehicle before the
-ansmitter works, it’s probably
time to
hange the batteries.
51 ...
ProCarManuals.com

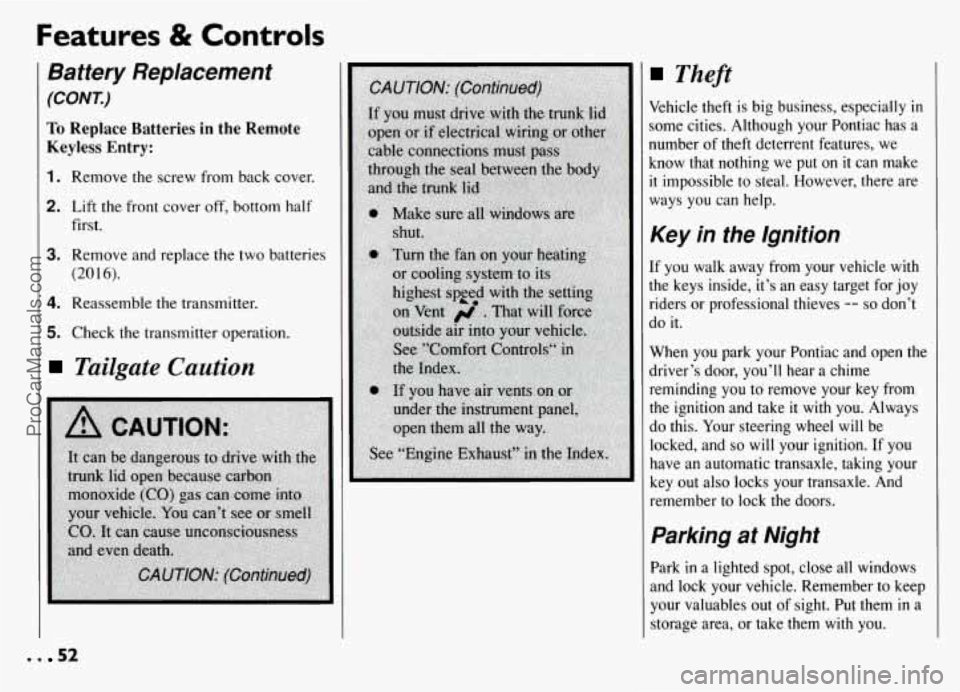

Features & Controls
Battery Replacement
(CONK)
To Replace Batteries in the Remote
Keyless Entry:
1. Remove the screw from back cover.
2. Lift the front cover off, bottom half
first.
3. Remove and replace the two batteries
(2016).
4. Reassemble the transmitter.
5. Check the transmitter operation.
Tailgate Caution
. . 52
Theft
Vehicle theft is big business, especially in
some cities. Although your Pontiac has a
number of theft deterrent features, we
know that nothing we put on
it can make
it impossible to steal. However, there are
ways you can help.
Key in the Ignition
If you walk away from your vehicle with
the keys inside, it’s an easy target for joy
riders or professional thieves
-- so don’t
do
it.
When you park your Pontiac and open the
driver’s door, you’ll hear a chime
reminding you to remove your key from
the ignition and take
it with you. Always
do this. Your steering wheel will be
locked, and
so will your ignition. If you
have an automatic transaxle, taking your
key out also locks your transaxle. And
remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows
and lock your vehicle. Remember to keep
your valuables out of sight. Put them
in a
storage area, or take them with you.
ProCarManuals.com

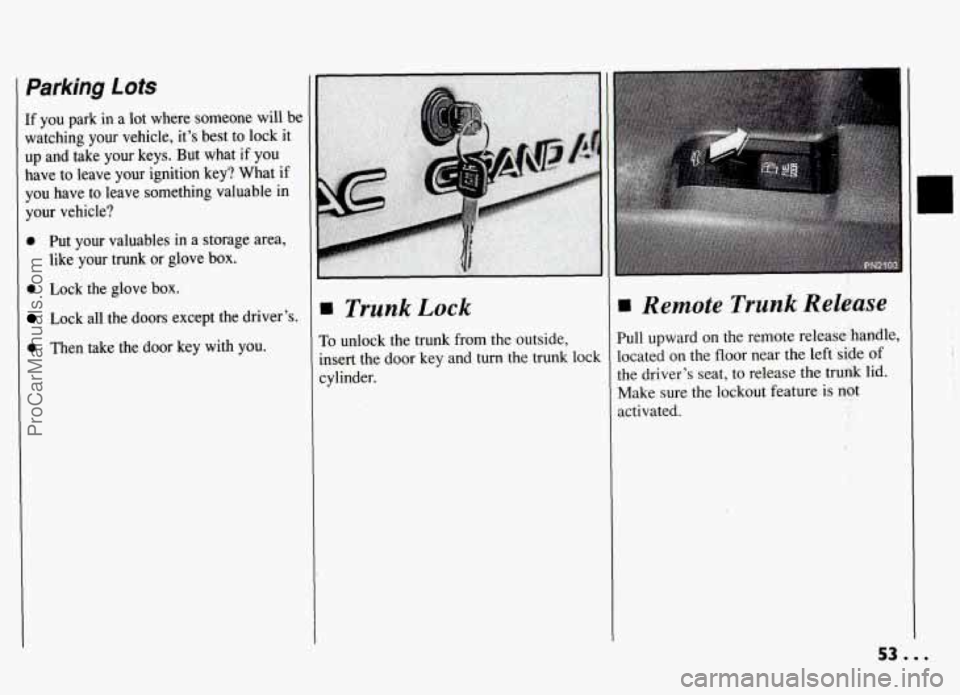

1 Parking Lots
If you park in a lot where someone will be
watching your vehicle, it's best to lock it
up and take your keys. But what if you
have to leave your ignition key? What if
you have to leave something valuable in
your vehicle?
e Put your valuables in a storage area,
like your trunk or glove box.
e Lock the glove box.
Lock all the doors except the driver's.
0 Then take the door key with you.
rn Trunk Lock
To unlock the trunk from the outside,
insert the door key and turn the trunk lock
cylinder.
G
rn Remote Trunk Release
Pull upward on the remote release.handle,
located
on the floor near the left side of
the driver's seat, to release the trui& lid.
Make sure the lockout feature
is not
activated.
53...
ProCarManuals.com

Features & Controls
. .

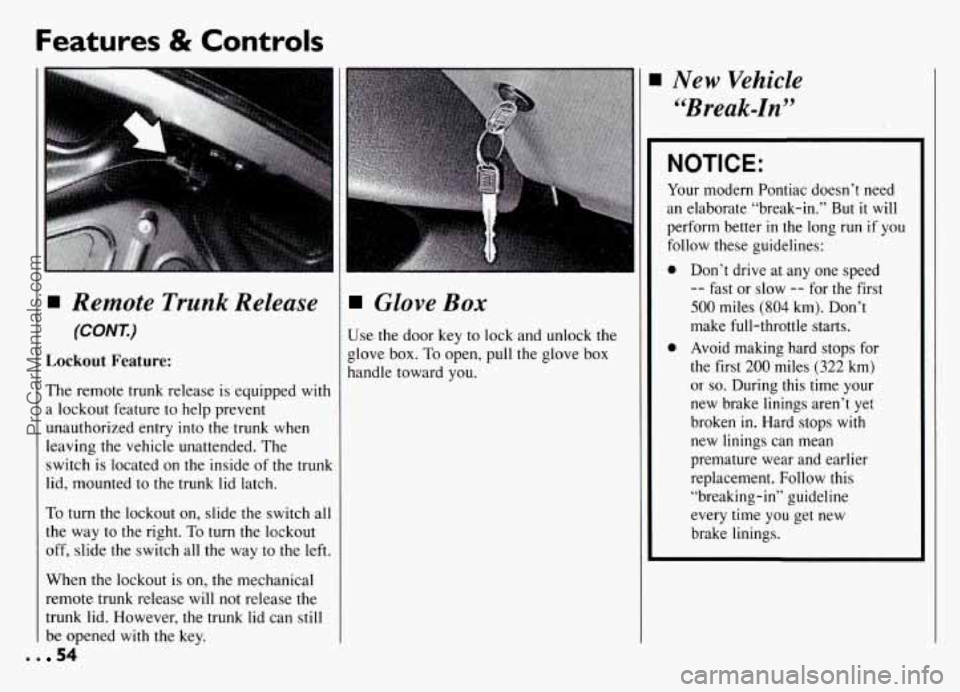

Remote Trunk Release
(CONT.)
Lockout Feature:
The remote trunk release is equipped wit1
a lockout feature to help prevent
unauthorized entry into the trunk when
leaving the vehicle unattended. The
switch is located on the inside of the trun
lid, mounted to the trunk lid latch.
To turn the lockout on, slide the switch a1
the way to the right.
To turn the lockout
off, slide the switch all the way to the lefi
When the lockout is on, the mechanical
remote trunk release will not release the
trunk lid. However, the trunk lid can still
be opened with the key.
54
Glove Box
Use the door key to lock and unlock the
glove box.
To open, pull the glove box
handle toward you.
New Vehicle
“Break-In”
NOTICE:
Your modem Pontiac doesn’t need
an elaborate “break-in.” But it
will
perform better in the long run if you
follow these guidelines:
0
0
Don’t drive at any one speed
-- fast or slow -- for the first
500 miles (804 km). Don’t
make full-throttle starts.
Avoid making hard stops for
the first
200 miles (322 km)
or so. During this time your
new brake linings aren’t yet
broken
in. Hard stops with
new linings can mean
premature wear and earlier
replacement. Follow this “breaking-in” guideline
every time you get new
brake linings.
ProCarManuals.com

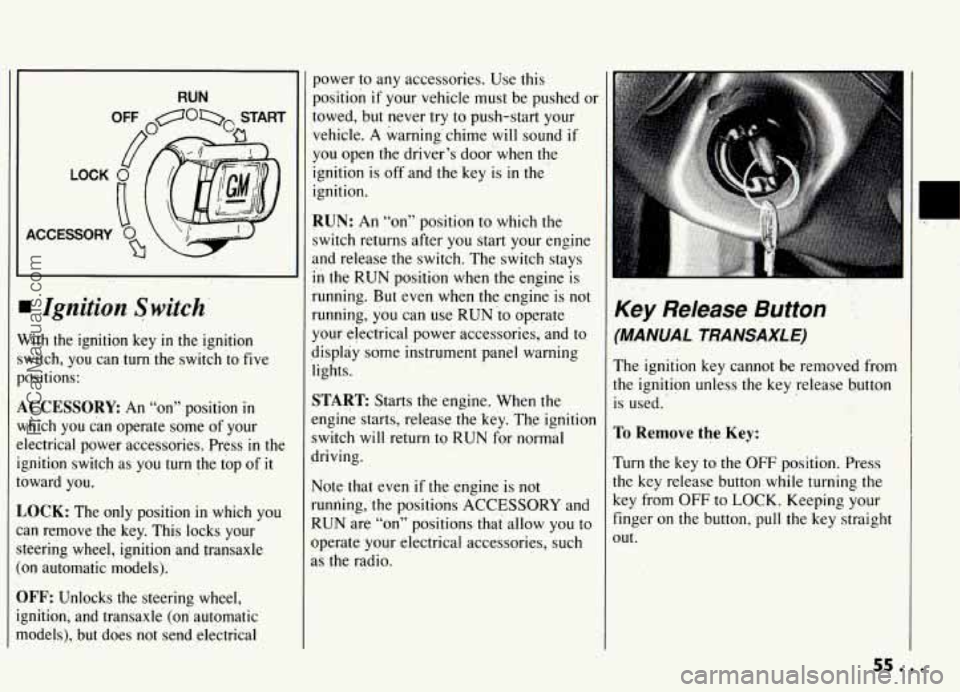

LOCK
ACCESSORY
I Ignition Switch-
Vith the ignition key in the ignition
witch, you can
turn the switch ‘to five
ositions:
,CCESSORE An “on” position in
lhich you can operate some of your
lectrical power accessories. Press
in the
;nition switch as you turn the top of
it
)ward you.
,OCK: The only position in which you
!n remove the key. This locks your
:cering wheel, ignition and transaxle
~n automatic models).
IFF: Unlocks the steering wheel,
;nition, and transaxle (on’ automatic
todels), but.does not send electrical
power to any accessories. Use this
position if your vehicle must be pushed or
towed, but never try
to push-start your
vehicle.
A warning’chime will sound if
you open the driver’s door when the
ignition is off and the key is in the
ignition.
RUN: An “on” position to which the
switch returns after you start your engine
and release the switch. The switch stays
in the RUN position when the engine is
running. But ‘even when the engine is not
running, you can use RUN io operate
your electrical power accessories,
and to
display
some instrument panel warning
lights.
START: Starts the engine. When the
engine starts, release the key. The ignition
switch
will return to RUN for normal
driving.
Note that even if the engine is not
running, ‘the positions
ACCESSORY and
RUN are “on” positions that allow you to
operate your electrical accessories, such
as the radio.
,.
Key Release Button
‘MANUAL TRANSAXLE)
The ignition key cannot be removed from
he ignition unless.the key release button
s used.
ro Remwe the Key:
rum the key to the OFF position. Press
he key release button while turning
the
Ley from OFF to LOCK. Keeping your
inger on
the button, pull the key straight
)Ut.
sa...
ProCarManuals.com

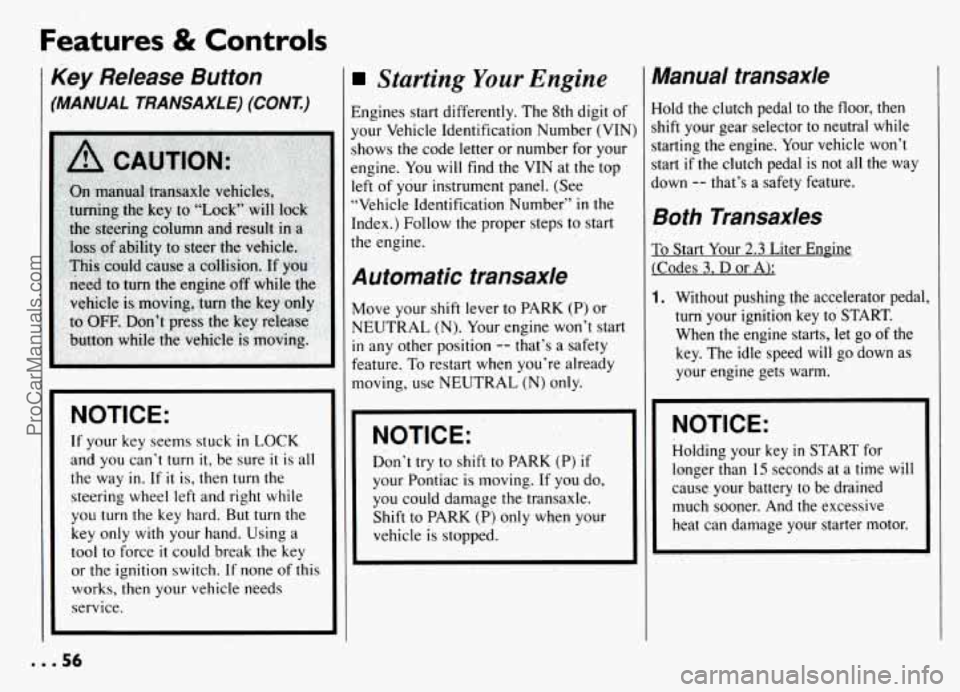

Features & Controls
Key Release Button
(MANUAL TRANSAXLE) (CONT.)
NOTICE:
If your key seems stuck in LOCK
and you can’t turn it, be sure it is all
the.way in. If
it is, then turn the
steering wheel left and right while
you
turn the key hard. But turn the
key only
with your hand. Using a
tool to force
it could break the key
or the ignition switch.
If none of this
works, then your vehicle needs
service.
Starting Your Engine
Engines start differently. The 8th digit of
your Vehicle Identification Number (VIN)
shows
the code letter or number for your
engine. You
will find the VIN at the top
left
of your instrument panel. (See
”Vehicle Identification Number”
in the
Index.) Follow the proper steps to start
the engine.
Automatic transaxle
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine won’t start
in any other position -- that’s a safety
feature. To restart when you’re already
.EUTRAL (N) only.
Don’t try to shift to PARK (P) if
your Pontiac is moving. If you do,
you could damage the transaxle.
Shift to PARK (P) only when your
vehicle
is stopped.
Manual transaxle
Hold the clutch pedal to the floor, then
shift your gear selector to neutral while
starting the engine. Your vehicle won’t
start
if the clutch pedal is not all the way
down
-- that’s a safety feature.
Both Transaxles
To Start Your 2.3 Liter EnEine
(Codes
3. D or A):
1. Without pushing the accelerator pedal,
turn your ignition key to START.
When the engine starts, let
go of the
key. The idle speed
will go down as
your engine gets warm.
NOTICE:
Holding your key in START for
longer than
15 seconds at a time will
cause your battery to be drained
much sooner. And the excessive
heat can damage your starter motor.
ProCarManuals.com

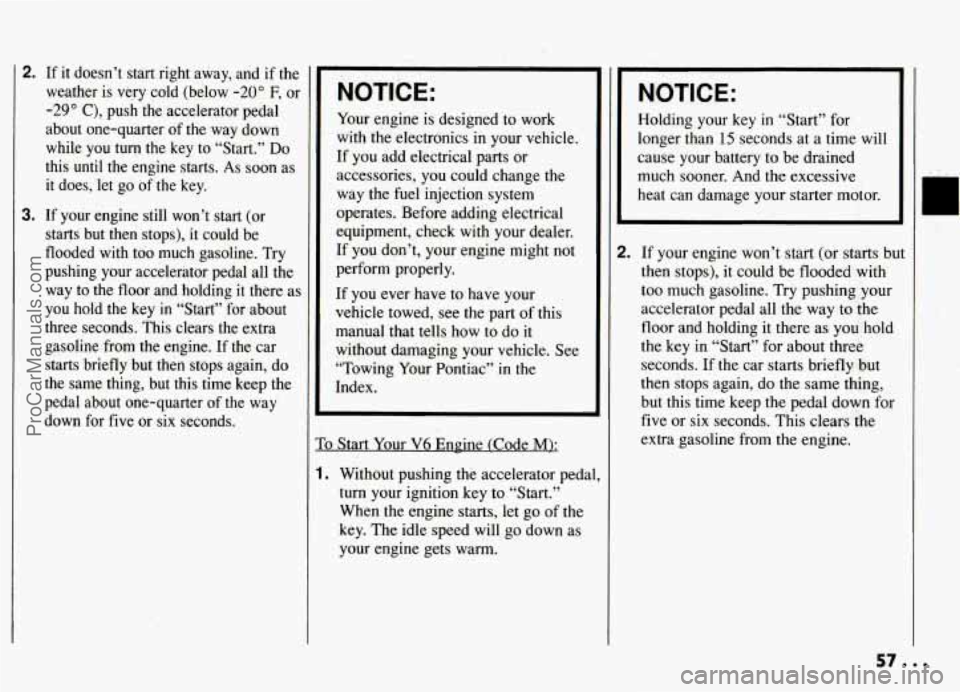

2. If it doesn’t start right away, and if the
weather is very cold (below
-20” F, or
-29” C), push the accelerator pedal
about one-quarter of
the way down
while you
turn the key to “Start.” Do
this until the engine starts. As soon as
it does, let go of the key.
3. If your engine still won’t start (or
starts but then stops), it could be
flooded with too much gasoline. Try
pushing your accelerator pedal all the
way to the floor and holding it there as
you hold the key
in “Start”.for about
three seconds. This clears the extra
gasoline from
the engine. If the car
starts briefly but then stops again, do
the same thing, but this time keep the
pedal
about one-quarter of the way
down for five or six seconds.
NOTICE:
Your engine is designed to work
with the electronics in your vehicle.
If you add electrical parts or
accessories, you could change the
way the fuel injection system
operates. Before adding electrical
equipment, check with your dealer.
If you don’t, your engine might not
perform properly.
If you ever have to have your
vehicle towed, see the part of this
manual that tells how to do it
without damaging your vehicle. See
“Towing Your Pontiac”
in the
Index.
To Start Your V6 Engine (Code M):
1. Without pushing the accelerator pedal,
turn your ignition key to “Start.”
When the engine starts, let
go of the
key. The idle speed will go down as
your engine gets warm.
NOTICE:
Holding your key in “Start” for
longer than
15 seconds at a time will
cause your battery to
be drained
much sooner. And the excessive
heat can damage your starter motor.
. If your engine won’t start (or starts but
then stops), it could be flooded with
too much gasoline. Try pushing your
accelerator pedal all the way
to the
floor and holding it there as you hold
the key
in “Start” for about three
seconds. If the car starts briefly but
then stops again, do the same thing,
but this time keep the pedal down for
five or six seconds. This clears the
extra gasoline from the engine.
ProCarManuals.com

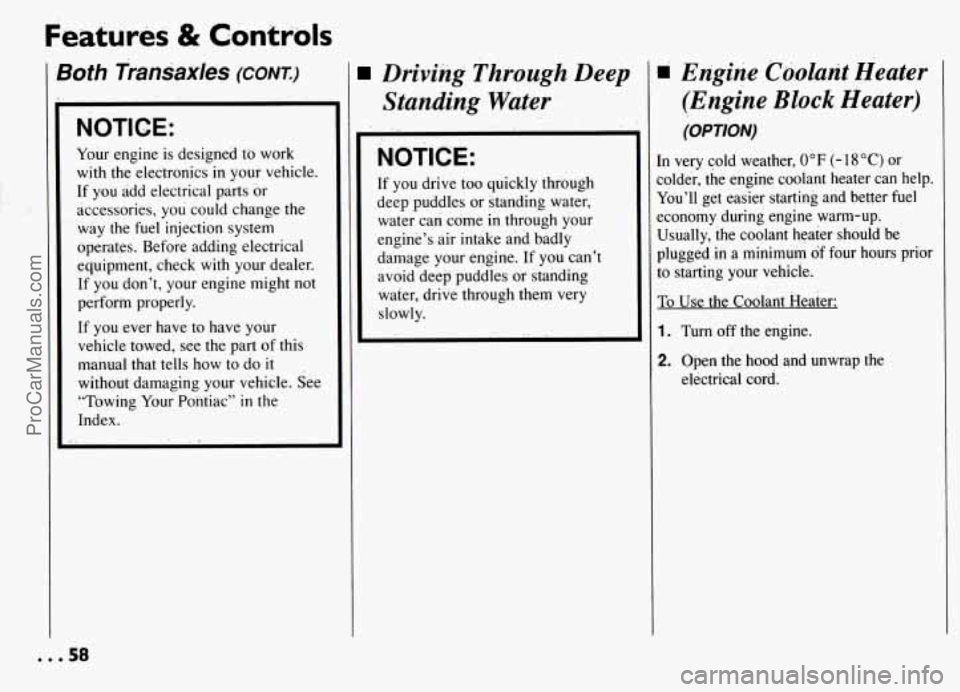

Features & Controls
Bofh Transaxles (CONT.)
NOTICE:
Your engine is designed to work
with the electronics
in your vehicle.
If you add electrical parts or accessories, you could change the
way the fuel injection system
operates. Before adding electrical
equipment, check
with your dealer.
If you don’t, your engine might not
perform properly.
If you ever have to have your
vehicle towed, see the part of this
manual that
tells how to do it
without damaging your vehicle. See
“Towing Your Pontiac”
in the
Index.
Driving Through Deep
Standing Water
NOTICE:
If you drive too quickly through
deep puddles or standing water,
water can come in through your
engine’s air intake and badly
damage your engine. If you can’t
avoid deep puddles or standing
water, drive through them very
slowly.
I Engine Coolant Heater (Engine
Block Heater)
(OPTION)
[n very cold weather, 0°F (- 18°C) or
;older, the engine coolant heater can help.
You’ll get easier starting and better fuel
zconomy during engine warm-up.
Usually, the coolant heater should be
plugged.
in a minimum of four hours prior
to starting your vehicle.
To Use the Coolant Heater:
1. Turn off the engine.
2. Open the hood and unwrap the
electrical cord.
... 58
ProCarManuals.com

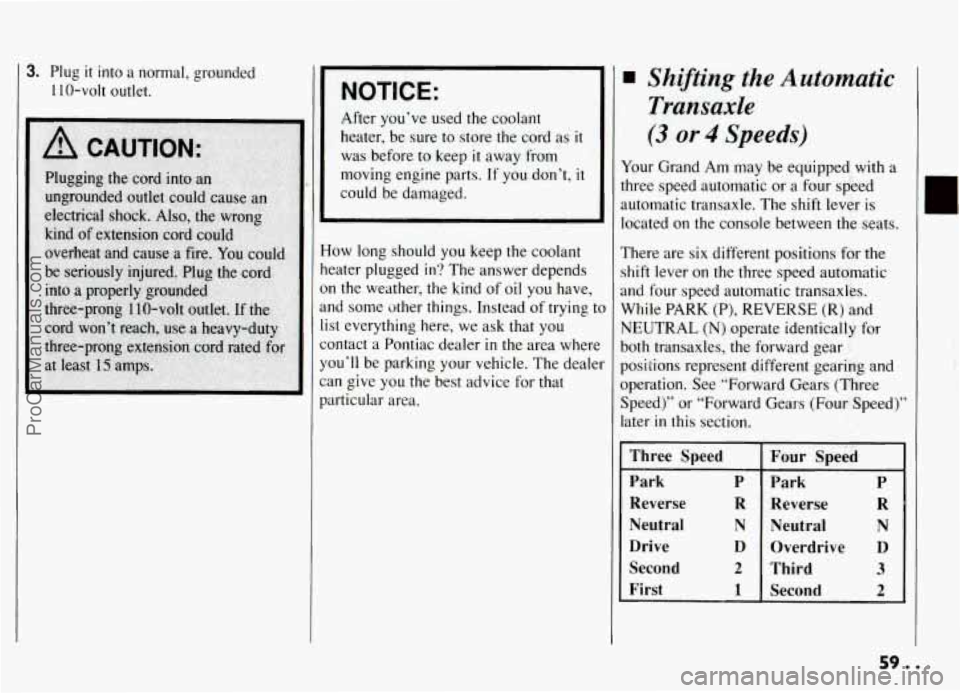

3. Plug it into a normal, grounded
1 10-volt outlet. NOTICE:
After you’ve used the coolant
heater, be sure to store the cord as
it
was before to keep it away from
moving engine parts. If you don’t,
it
could be damaged.
L
How long should you keep the coolant
heater plugged in? The answer depends
on the weather, the kind of oil you have,
and some other things. Instead
of trying to
list everything here, we ask that you
contact
a Pontiac dealer in the area where
you’ll be parking your vehicle. The dealer
can give you the best advice for that
particular area.
Shifting the Automatic
Transaxle
(3 or 4 Speeds)
Your Grand Am may be equipped with a
three speed automatic or a four speed
automatic transaxle. The shift lever is
located on the console between the seats.
There are six different positions for the
shift lever on the three speed automatic
and four speed automatic transaxles.
While PARK (P),
REVERSE (R) and
NEUTRAL (N) operate identically for
both transaxles, the forward gear
positions represent different geariirg and
operation. See “Forward Gears (Three
Speed)’’ or “Forward Gears
(Four Speed)”
later
in this section.
Three Speed
Park
P Park P Four Speed
Second
2 First 1
Third 3 Second 2
Overdrive D Drive D Neutral N
Neutral N Reverse
R Reverse R
59.0.
ProCarManuals.com
