PONTIAC GRAND-AM 1995 Repair Manual

Illuminated EntryExit System
When you lift the outside handle of either front door or
open a rear door, the lamps inside your vehicle will go
on. These lamps will fade out after about
40 seconds, or
when the ignition is turned on after all doors have been
closed.
If the ignition was recently turned off, the lamps
will fade out after
four seconds. These lamps will also
go on when you press the
DOOR or UNLOCK button
on the optional Keyless Entry transmitter.
If the ignition has been off for less than two minutes, the
lamps inside your vehicle will stay on for
15 seconds
when your key is removed from the ignition switch to
provide an illuminated exit. When the interior lamps go
off they will fade out like in a movie theatre.
Keyless Entry System
If your Pontiac has this option, you can lock and unlock
your doors or unlock your trunk from up to
30 feet (9 m)
away using the key chain transmitter supplied with your
vehicle.
Your Keyless Entry System operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)
This device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
Should interference to this system occur, try this:
Check to determine if battery replacement is
necessary. See the instructions on battery
replacement.
2-6
ProCarManuals.com

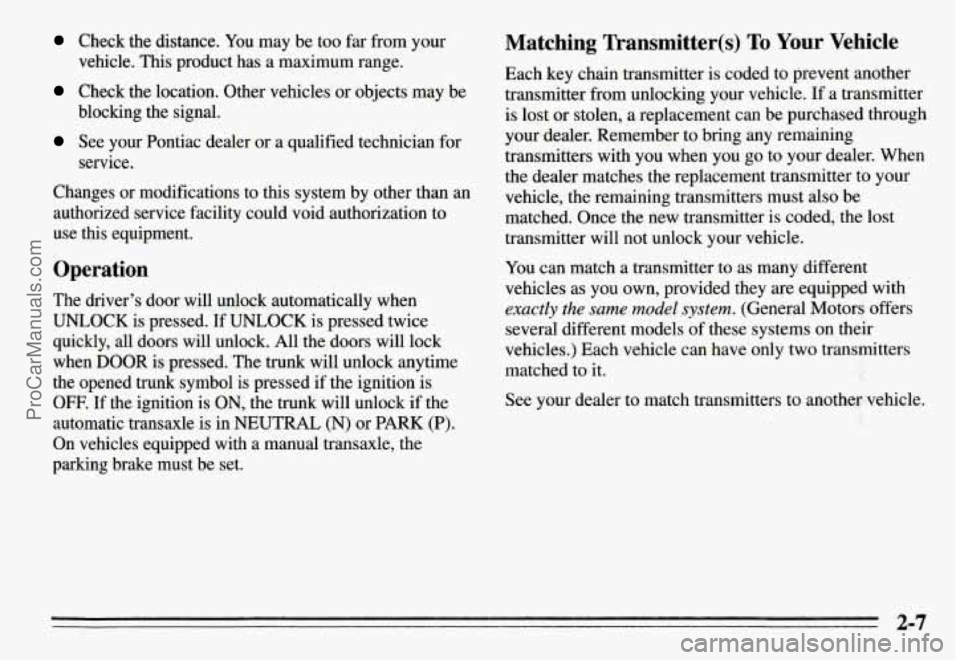

Check the distance. You may be too far from your
Check the location. Other vehicles or objects may be
vehicle. This product has a maximum range.
blocking the signal.
See your Pontiac dealer or a qualified technician for
service.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
Operation
The driver’s door will unlock automatically when
UNLOCK is pressed. If UNLOCK is pressed twice
quickly,
all doors will unlock. All the doors will lock
when DOOR is pressed. The trunk will unlock anytime
the opened trunk symbol is pressed if the ignition is
OFF. If the ignition is ON, the trunk will unlock if the
automatic transaxle is in NEUTRAL
(N) or PARK (P).
On vehicles equipped with a manual transaxle, the
parking brake must be set.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased through
your. dealer. Remember
to bring any remaining
transmitters with you when you
go to your dealer. When
the dealer matches the replacement transmitter to your
vehicle, the remaining transmitters must also be
matched. Once the new transmitter is coded, the lost
transmitter will not unlock your vehicle.
You can match a transmitter to as many different
vehicles as you own, provided they are equipped with
exactly the same model system. (General Motors offers
several different models
of these systems on their
vehicles.) Each vehicle can have only two transmitters
matched to
it.
See your dealer to match transmitters to another vehicle.
ProCarManuals.com

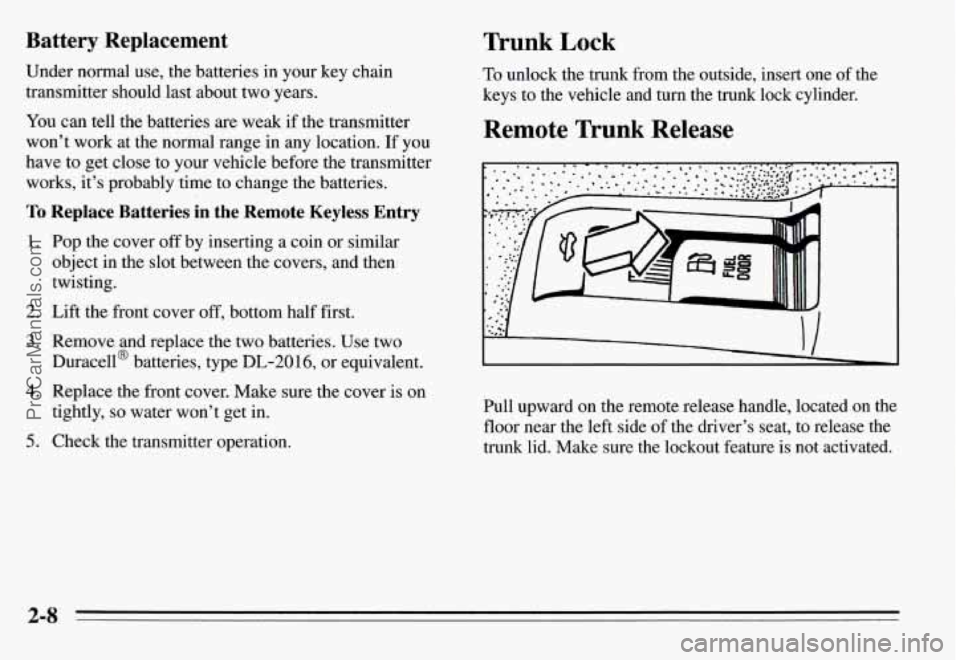

Battery Replacement
Under normal use, the batteries in your key chain
transmitter should last about two years.
You can tell the batteries are weak if the transmitter
won’t work at the normal range in any location. If you
have to get close to your vehicle before the transmitter
works, it’s probably time to change the batteries.
To Replace Batteries in the Remote Keyless Entry
1. Pop the cover off by inserting a coin or similar
object in the slot between the covers, and then
twisting.
2. Lift the front cover off, bottom half first.
3. Remove and replace the two batteries. Use two
Duracell’ batteries, type DL-2016, or equivalent.
4. Replace the front cover. Make sure the cover is on
tightly,
so water won’t get in.
5. Check the transmitter operation.
Trunk Lock
To unlock the trunk from the outside, insert one of the
keys to the vehicle and
turn the trunk lock cylinder.
Remote Trunk Release
Pull upward on the remote release handle, located on the
floor near the left side of the driver’s seat, to release the
trunk lid. Make sure the lockout feature is not activated.
2-8
ProCarManuals.com

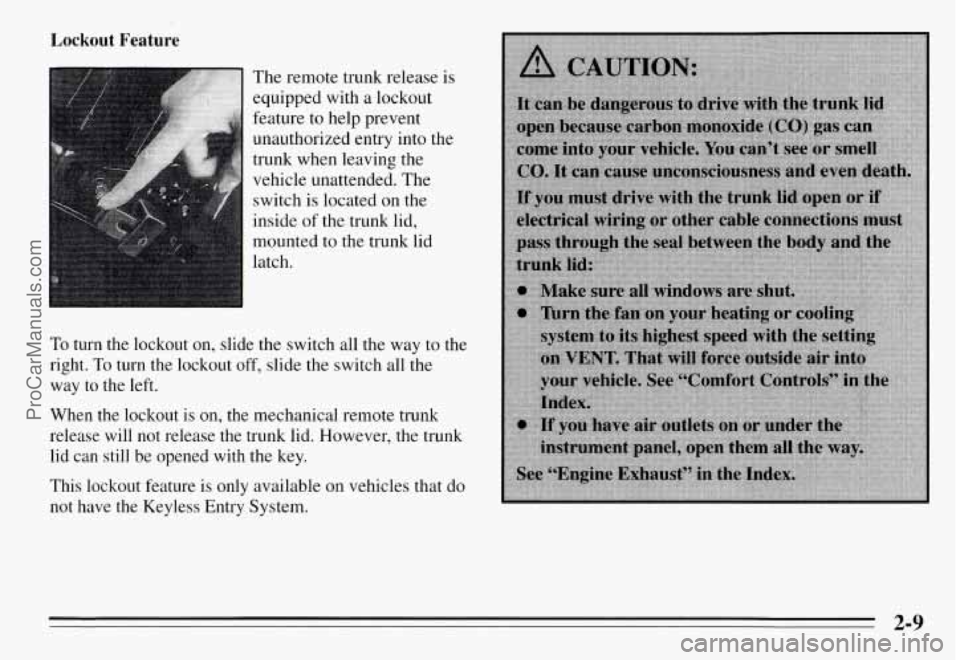

Lockout Feature
To turn the lockout on, slide the switch all the way to the
right.
To turn the lockout off, slide the switch all the
way to the left.
When the lockout is on, the mechanical remote trunk
release will not release the trunk lid. However, the trunk
lid can still be opened with the key.
This lockout feature is only available on vehicles that do
not have the Keyless Entry System.
2-9
ProCarManuals.com

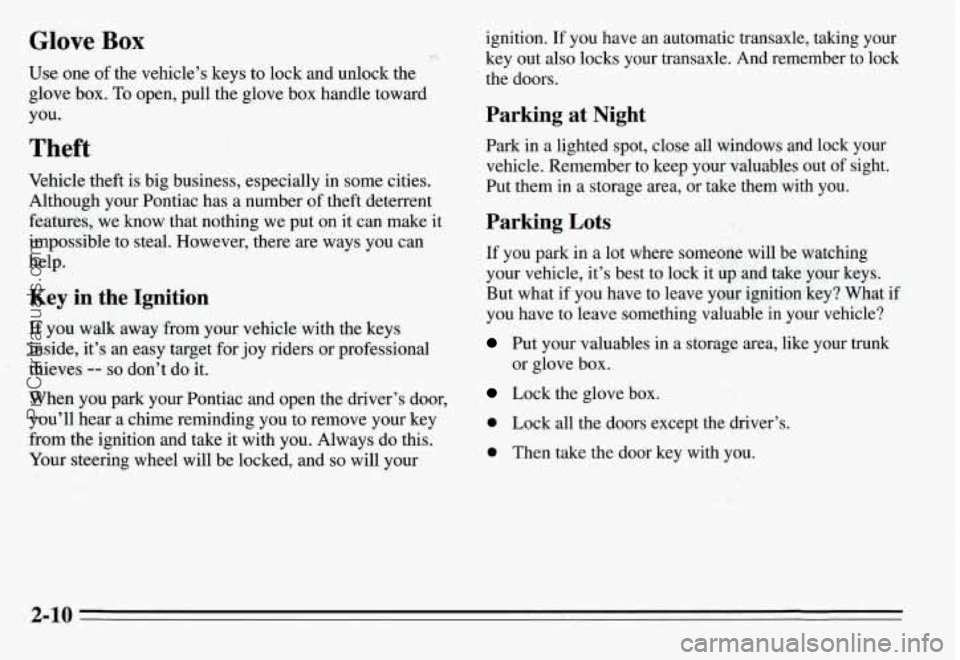

Glove Box
P’ !
, :.. 3-
Use one of the vehicle’s keys to lock and unlock the
glove box.
To open, pull the glove box handle toward
you.
Theft
Vehicle theft is big business, especially in some cities.
Although your Pontiac has a number
of theft deterrent
features, we know that nothing we put on it can make
it
impossible to steal. However, there are ways you can
help.
Key in the Ignition
If you walk away from your vehicle with the keys
inside, it’s an easy target for
joy riders or professional
thieves
-- so don’t do it.
When you park your Pontiac and open the driver’s door,
you’ll hear a chime reminding you to remove your key
from.the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition. If you have an automatic transaxle, taking your
key out also locks your transaxle. And remember to lock
the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out
of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock
it up and take your keys.
But what
if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your trunk
or glove box.
Lock the glove box. , I, ’ .- ’;
0 Lock all the doors except the driver’s.
0 Then take the door key with you.
2-10
ProCarManuals.com

New Vehicle “Break-In” Ignition Switch
NOTICE:
Your modern Pontiac doesn’t need an elaborate
“break-in.” But
it will perform better in the long
run if you follow these guidelines:
0
0
0
Don’t drive at any one.speed -- fast or
slow
-- for the first 500 miles (804 km).
Don’t make full-throttle starts.
Avoid making hard stops for the first 200
miles (322 km) or so. During this time your
new brake linings aren’t yet broken in.
Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this “breaking-in’’ guideline every
time
you get new brake linings.
Don’t tow
a trailer during “break-in.” See
“Towing
a Trailer” in the Index for more
information.
A E
W
With the key in the ignition switch, you can turn the
switch to five positions:
ACCESSORY (A): This is an “on” position in which
you can operate some
of your electrical power
accessories. Press
in the ignition switch as you turn the
top
of it toward you.
2-11
ProCarManuals.com

LOCK (B): This is the only only position in which you
can remove the key. This locks your steering wheel,
ignition and transaxle (on automatic models).
OFF (C): This unlocks the steering wheel, ignition, and
transaxle (on automatic models), but does not send
electrical power to any accessories. Use this position
if
your vehicle must be pushed or towed, but never try to
push-start your vehicle.
A warning chime will sound if
you open the driver’s door when the ignition is
off and
the key is in the ignition.
RUN (D): This is an “on” position to which the switch
returns after you start your engine and release the
switch. The switch stays in the RUN position when the
engine
is running. But even when the engine is not
running, you can use RUN to operate your electrical
power accessories, and to display some instrument panel
warning lights.
START (E): Use this for starting the engine. When the
engine starts, release the key. The ignition switch will
return to RUN for normal driving.
Note that even if the engine is not running, the positions
ACCESSORY and RUN are ON positions that allow
you to operate your electrical accessories, such as the
radio.
Key Release Button (Manual Transaxle)
The key cannot be removed from the ignition unless the
key release button is used.
To remove the key turn the key to the OFF position.
Press the key release button while turning the key from
OFF to LOCK. Keeping your finger on the button, pull
the key straight out.
2-12
ProCarManuals.com

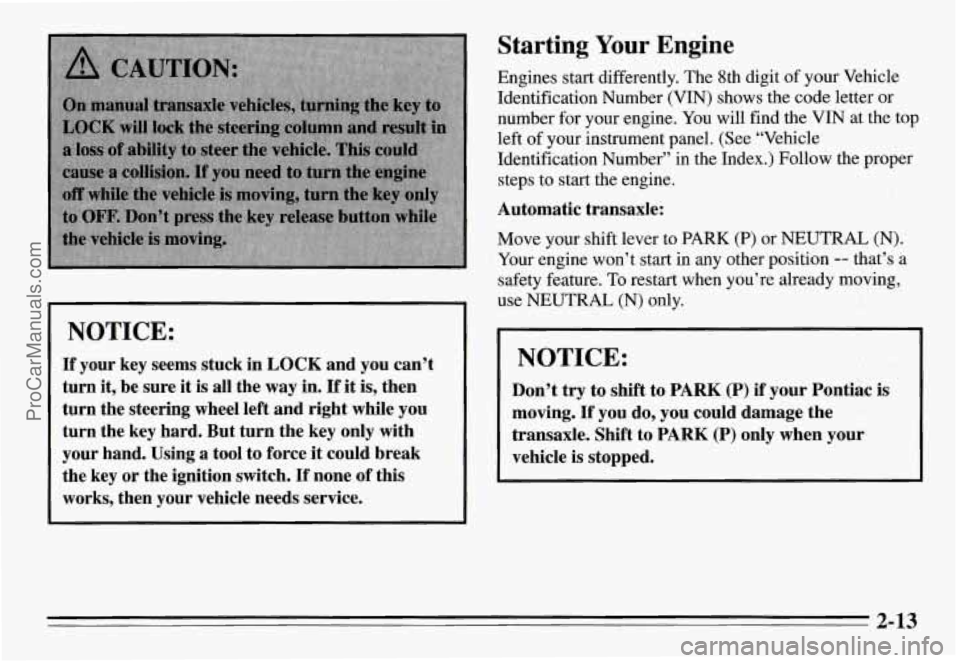

I NOTICE:
If your key seems stuck in LOCK and you can’t
turn it, be sure it is all the
way in. If it is, then
turn the steering wheel left and right while you
turn the key hard. But turn the key only with
your hand. Using
a tool to force it could break
the key or the ignition switch.
If none of this
works, then your vehicle needs service.
Starting Your Engine
Engines start differently. The 8th digit of your Vehicle
Identification Number (VIN) shows the code letter or
number for your engine.
You will find the VIN at the top
left of your instrument panel. (See “Vehicle
Identification Number” in the Index.) Follow the proper
steps to start the engine.
Automatic transaxle:
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position
-- that’s a
safety feature.
To restart when you’re already moving,
use NEUTRAL (N) only.
NOTICE:
Don’t try to shift to PARK (P) if your Pontiac is
moving. If you do, you could damage the
transaxle. Shift to PARK
(P) only when your
vehicle
is stopped.
2-13
ProCarManuals.com

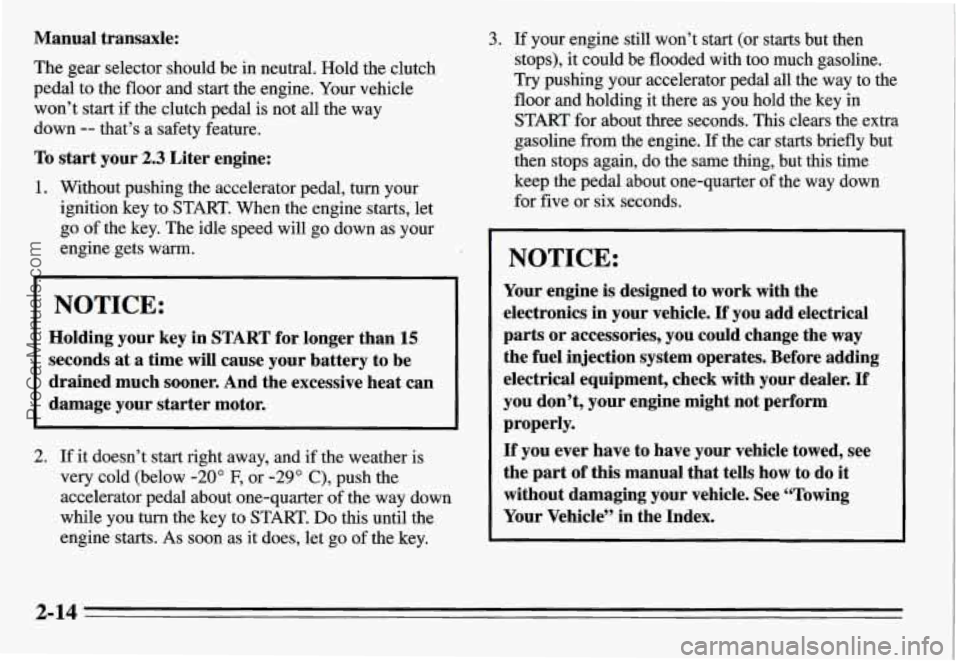

Manual transaxle:
The gear selector should be in neutral. Hold the clutch
pedal to the floor and
start the engine. Your vehicle
won’t start
if the clutch pedal is not all the way
down
-- that’s a safety feature.
To start your 2.3 Liter engine:
1. Without pushing the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than 15
seconds at a time will cause your battery to be
drained much sooner. And the excessive heat can
damage your starter motor.
I
2. If it doesn’t start right away, and if the weather is
very cold (below
-20” F, or -29” C), push the
accelerator pedal about one-quarter of the way down
while you turn the key to START.
Do this until the
engine starts. As soon as it does, let
go of the key.
3. If your engine still won’t start (or starts but then
stops), it could be flooded with too much gasoline.
Try pushing your accelerator pedal
all the way to the
floor and holding it there as you hold the key in
START for about three seconds.
This clears the extra
gasoline from the engine. If the car starts briefly but
then stops again, do the same thing, but this time
keep the pedal about one-quarter of
the way down
for five or six seconds.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle.
If you add electrical
parts or accessories, you could change the
way
the fuel injection system operates. Before adding
electrical equipment, check with your dealer.
If
you don’t, your engine might not perform
properly.
If you ever have to have your vehicle towed, see
the part
of this manual that tells how to do it
without damaging your vehicle. See “Towing
Your Vehicle’’ in the Index.
2-14
ProCarManuals.com

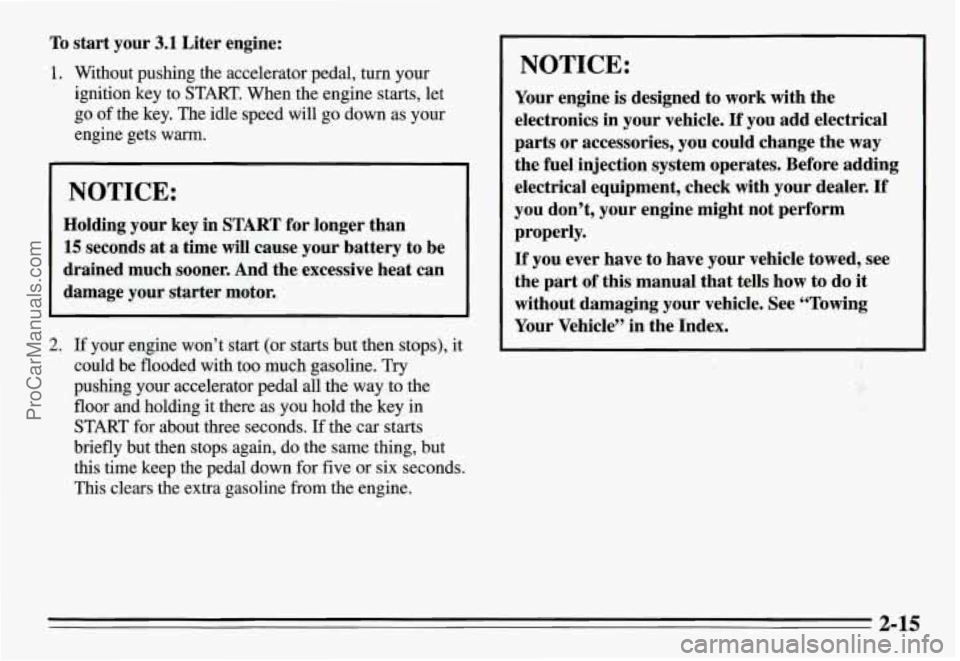

To start your 3.1 Liter engine:
1. Without pushing the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go
of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to be
drained much sooner. And the excessive heat can
damage your starter motor.
2. If your engine won’t start (or starts but then stops), it
could be flooded with
too much gasoline. Try
pushing your accelerator pedal all the way to the
floor and holding
it there as you hold the key in
START for about three seconds.
If the car starts
briefly but then stops again, do the same thing, but
this time keep the pedal down for five or six seconds.
This clears the extra gasoline from the engine.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle.
If you add electrical
parts or accessories, you could change the way
the fuel injection system operates. Before adding
electrical equipment, check with your dealer.
If
you don’t, your engine might not perform
properly.
If you ever have to have your vehicle towed, see
the part of this manual that tells how to do
it
without damaging your vehicle. See “Towing
Your Vehicle” in the Index.
2-15
ProCarManuals.com
